Link electronics 860-XL1616H Routing Switchers 860-XL1616H Specification Sheet

LINK
860-XL1616H Routing Switchers
WITH AUDIO FOLLOW
u 16 x16, Analog Video, AES AFV
u Local or Remote Control Panel
u AFV, breakaway, or X-Y Control
u Maximum of 256 Remote Panels
u RS-232 Serial Control, Standard
u Local Control Panel Supplied
The 800 Series Routing Switchers are wide bandwidth
vertical interval switchers designed for professional
video production facilities.
Link's routing switchers makes them an essential part
of any facility.
Packaged in a 19" rack mountable chassis, the
switchers are supplied with a single front-loaded power
supply. An optional redundant power supply is
available. High quality front panel push buttons are
used for selection of inputs and outputs.
Remote control panels are interconnected with
standard Ethernet 10Base2 single coax connections.
RS-232 is provided through a standard D-sub
connector. Panels can be set to control a single
output bus or the entire matrix. The router is supplied
with audio break-away control panel.
The Link 16 x16 routing system features:
P
Modular Design – plug-in modules for video & audio. No active components on the frame.
P
Two power supply slots are accessible from the front panel. One power supply is standard.
P
A redundant power supply is available as an option.

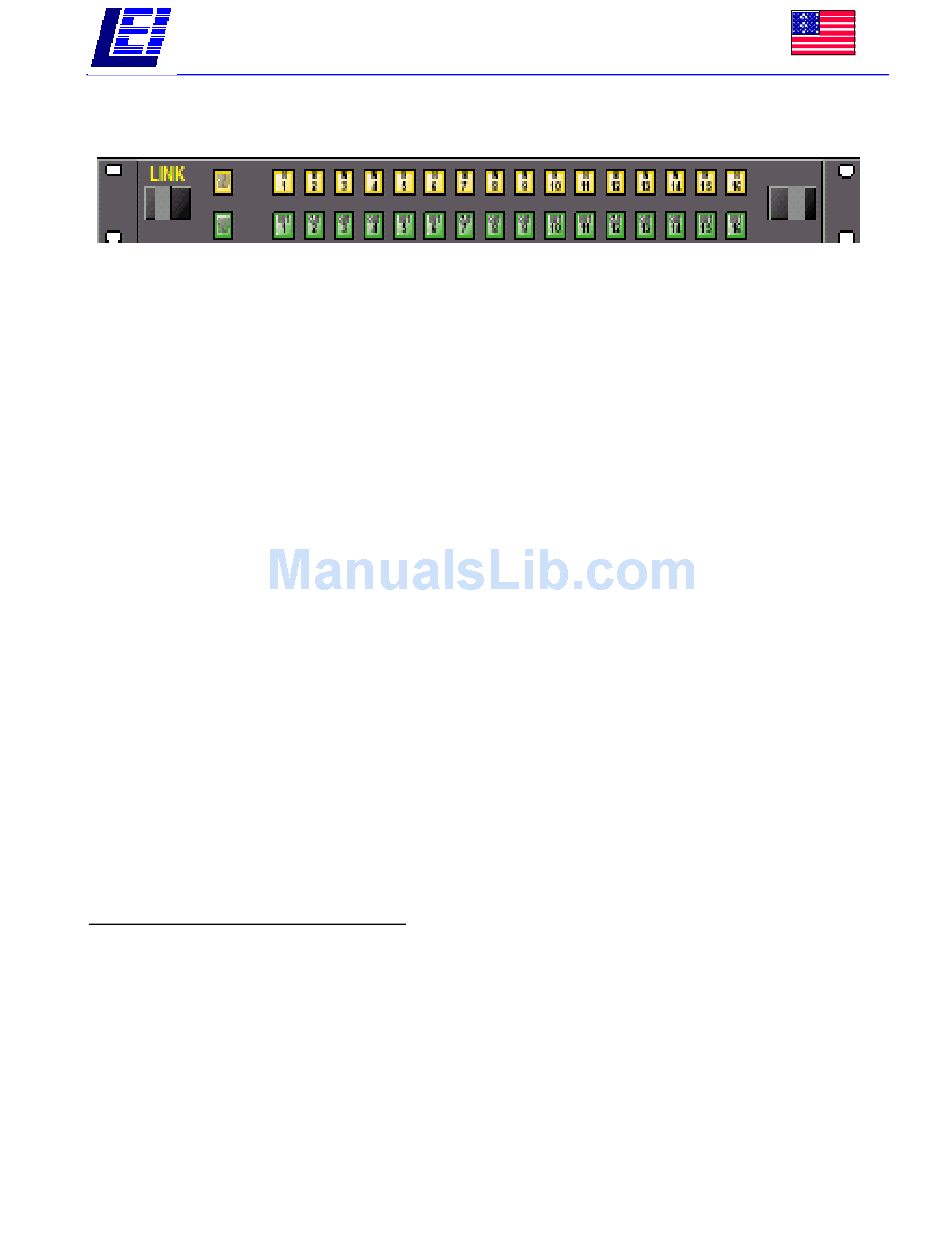

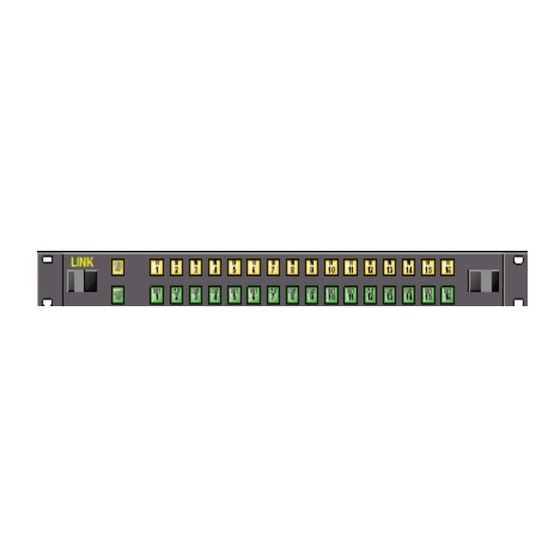

P Detachable X-Y front panel control with Ethernet 10Base2 coax connection.
P
Analog video only models and models with audio follow video.
P Digital video only models and models with analog audio follow.
P
Digital video only models and models with digital audio follow.
P RS-232 control standard.
P
The 16X16 Video switcher is in a 1 RU and the audio follow in a 1 RU
Remote Mounting Kits for Control Panels
The supplied control panel for all switchers is shipped installed onto the front of the main electronics chassis.
The control panel can be removed from the electronics chassis in the field and installed into a remote
mounting kit. The mounting kit hardware includes rack-mounting hardware for the control panel, a blank
panel(s) that is installed onto the front of the electronics chassis, and a power supply. Order the appropriate
rack mounting kit from the list below:
16 x16 Analog Video Only Routing Switcher
860-XL1616A
860-XL1616C 16 x16 Analog Video Routing Switcher with Stereo Audio Follow Video
16 x16 Analog Video Routing Switcher with AES Audio Follow Video
860-XL1616H
Link
Electronics, Inc. j 2137 Rust Avenue j Cape Girardeau, MO
ELECTROICS, INC.
16X16 WITH AUDIO FOLLOW
The compact design of
Phone 573 334-4433 j Fax 573 334-9255
The Link Switcher's flexibility is unmatched in the
industry. Modular constructi on offers unique flexibility
to the user, and provides an easy means of adding
additional features or upgrading to digital modules.
Power supplies are accessible from the front of the unit
and may be easily installed or removed.
switchers can easily be upgraded to digital by adding
field installable modules.
Industry standard BNC connectors are used for video
inputs and removable 3-Pin connectors are used for
stereo audio inputs and outputs.
Routers are available for analog video only, analog
video with stereo audio follow, digital video only, and
digital video with two-stream AES/EBU audio follow.
SUPPLIED WITH CONTROL PANEL WITH AUDIO
BREAK-AWAY.
MADE IN USA
Analog
One Rack
One Rack
One Rack
63703-7668
