Double Dome PTZPZ9 Installation Manual

Intelligent integrated ir high speed dome

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

PTZPZ9

Intelligent Integrated IR High Speed Dome

Installation Manual

V1：00

Version：

Before using the product, please carefully read the

manual and the maintenance of this manual for future use

Table of Contents

Need help?

Do you have a question about the PTZPZ9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Double Dome PTZPZ9

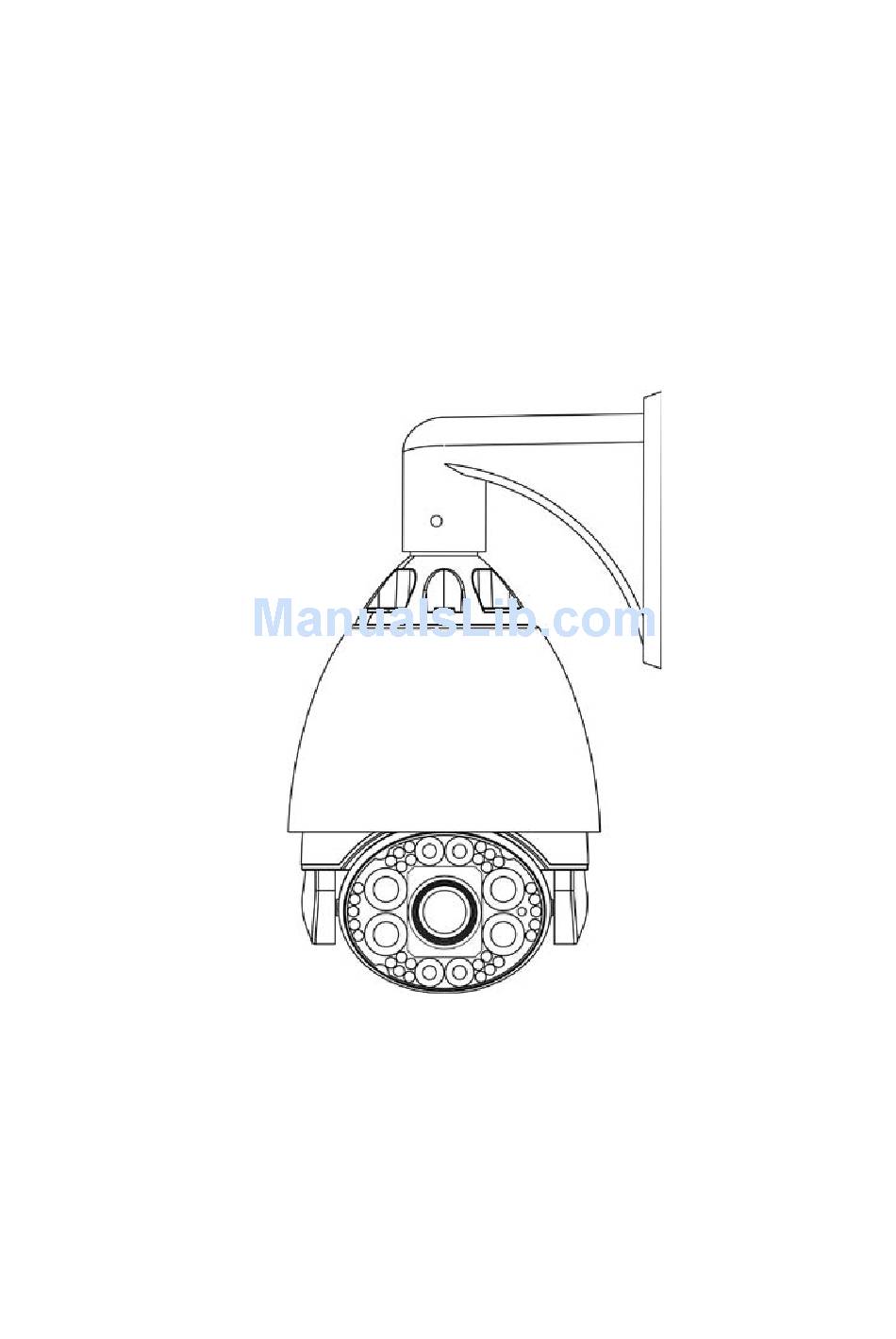

Page 1 PTZPZ9 Intelligent Integrated IR High Speed Dome Installation Manual V1：00 Version： Before using the product, please carefully read the manual and the maintenance of this manual for future use...
Page 2 The flashing arrow in the symbol is used to remind the user, the large non-insulated "dangerous voltage" near will produce an electric shock on the human body. The notice mark used to remind the users all the instructions for important operation and maintenance on this product.
Page 3: Table Of Contents
Content Safety Announcement ................1 Attentions ....................2 Functions and Features ................3 Special Use for Preset Point ..............4 Bracket Installment Size ................5 Installing Preparation ................6 Installation Steps ..................7 Dome Setting ................... 8 DIP Switch Settings ................10 Basic Function Operation Settings ............
Page 4: Safety Announcement
Safety Announcement Please read the manual carefully before the installation; Shall be subject to all the warnings； Shall comply with all instructions and the manual; To avoid failure, please use the recommended accessories; Use the indicated power supply line and voltage；if the location of power and voltage is not clear, please contact with the dealer；...
Page 5: Attentions
Attentions Don’t expose the camera to rain or moisture (except outdoor used model) It is designed inside of the house, so be sure to avoid rain and moisture. Turn off the power supply and maintain it by qualified person. The moisture may affect the cameras and lead to electric risk..
Page 6: Functions And Features
Functions and Features 1. Built-in decoder Digital design, data will not be lost while power fails.  With recovery, function while turning on the users can run it as you  like. Support 200 presets, 4 preset patrolling scanning routes, each ...
Page 7: Special Use For Preset Point
Auto shift from C-W/B.  4. Built-in OSD Menu Built-in multi-functional video OSD, functional parameters of  cameras and P/T function can be settable, with easy operation. Set 20 main subjects display.  Built-in direction display.  Built-in dome’s temperature display. ...
Page 8: Bracket Installment Size
Bracket Installment Size (mm) IR High Speed Dome Dimension (picture 1) Picture 1 Wall Mount Dimension (picture 2) Picture 2...
Page 9: Installing Preparation
Installing Preparation 1. Basic Requirement All electrical work must comply with the latest electrical regulations, fire regulations and relevant laws and regulations; In accordance with the packing list to check if the parts are completed or not, determine the sites and installation applications with the required match, if not, please contact the supplier;...
Page 10: Installation Steps
Installation Steps 1. Wall Mount Installation Steps: 1） 4 position for digging hole on the wall and install expansion scre （as picture 3） Picture 3 2） Make the cover parts guide line through the bracket to the wall bracket, and fix the M5*10 screw （gasket）， then Fix the installed wall parts on the ceiling and Lock nut.（as picture 4）...
Page 11: Dome Setting
Dome Setting System Connection 1) Dome System Chart (as picture 5) Picture 5 3） DIP Switch Chart (as picture 6) Picture 6...
Page 12 3) Jumper Setting (as picture 7/8) ③ Picture 7 ② ① Picture 8 a） Alarm output relay setting （picture ① is channel 1ala ， picture ②is channel 2 alarm output. ） Jumper setting “NO”: Non-alarm status, relay disconnected，alarm status, relay closed; Jumper setting “NC”: Non-alarm status, relay closed, alarm status, relay disconnected.
Page 13: Dip Switch Settings
DIP Switch Settings Baud rate Setting SW2（B7~B8） Protocol Setting SW2（B1~B6）...
Page 14 Address Setting SW1...
Page 17 Line Connect Instruction： Alarm line connect mark as picture 9；Control line mark as picture 10。 Color Instruction Color Instruction DC12V(AC24V) Black White Alarm in 3 Orange Earth line Pink Alarm in 4 Black DC12V(AC24V) Brown Yellow R RS485+(A) Blue Alarm out 1 Green RS485-(B) Purple...
Page 18: Basic Function Operation Settings
Basic Function Operation Settings This operation and editing regulations just take our company control system as an example, different keyboard manufacturers in the main menu to call the dome and preset points of the dome are different, if you are using other operating systems should be using the keyboard whichever the current operation method.
Page 19 1. Keyboard Function Instruction: 【OPEN】Open iris order, enlarge iris when image choose. It means, “enter into sub-menu or some item when it is dome menu edit, and save edit value after programming. 【CLOSE】Close iris order, minish iris when image choose. It means exit up-menu or some item when it is dome menu edit, and save edit value after programming.
Page 20: Menu Hint
Menu Hint SYSTEM SETTING → DOME ID TITLE LANGUAGE SELECT CHANGE PASSWORD FACTORY DEFAULT SYSTEM RESTART SYSTEM INFOMATION MAIN MENU CAMERA PARAMETERS →【LENS PARAMETER】【SYSTEM SETTING】【EXPOSURE MODE】【CAMERA P ARAMETERS】【WHITE B ALANCE】【BACKLIGHT MODE】【PAN TILT SETTING】【PRIVACY_MASK】【...
Page 21: Main Menu Function Setting
Main Menu Function Setting Main menu 【SYSTEM SETTING】【CAMERA PARAMETERS】【PAN TILT SETTING】【】 DISPLAY CONFIGURATION 【ALARMS SETUP】 System Setting MAIN MENU S YSTEM SETTING → DOME ID 【SYSTEM SETTING】 TITLE 【CAMERA PARAMETERS】 LANGUAGE SELECT 【PAN TILT SETTING】 CHANGE PASSWORD 【...
Page 22 and then press OPEN for confirm and enter to reinput serial number）. Press【OPEN】to save and exit this item setting; Press【CLOSE】 key exit directly and no save。 TITLE SETTING:   Operations： Call preset 95 to enter main menu. Up/down cursor choose【SYSTEM SETTING】item, press 【OPEN】...
Page 23 CHANGE PASSWORD   Operations： Call preset 95 to enter main menu. Up/down cursor choose【SYSTEM SETTING】item, press 【OPEN】 for confirm, enter system setting menu. Under【SYSTEM SETTING】to choose【CHANGE PASSWPRD】item, Press【OPEN】for confirm, enter password modification setting, and “Input Old Password ” shown on the screen.
Page 24: Camera Parameter
SYSTEM INFORMATON  Under【SYSTEM INFORMATION】to choose【SYSTEM INFORMATION】 item, press 【OPEN】 for confirm, and the dome present system information shown on the screen。 Camera Parameter Menu are different from factories, please follow the associated one. MAIN MENU CAMERA PARAMETERS 【SYSTEM SETTING】 →【LENS PARAMETER】...
Page 25 【OPEN】for confirm and enter【LENS PARAMETER】menu. Under 【LENS PARAMETER】 to choose 【 ZOOMING S PEED】 item, press【OPEN】for confirm and enter zoom speed set, parameter flickers. Up/Down P/T to choose Press【OPEN】to save and exit this item setting; Press【CLOSE】 key exit directly and no save. DIGITAL ZOOM SETTING ...
Page 26 key exit directly and no save. PICTURE FREEZE SETTING  Pre-set point in the tune, asking to freeze the screen.  Operations: Call preset 95 to enter main menu. Up/down cursor choose 【CAMERA PARAMETERS】 item, press 【OPEN】for confirm and enter【LENS PARAMETER】menu. 在...
Page 27 CAMERA PARAMETERS EXPOSURE MODE →EXPOSURE MODE A UTO 【LENS PARAMETER】 IRIS LEVEL CL OSE →【EXPOSURE MODE】 SHUTTER SPEED 1 /60 【WHITE B ALANCE】 AGC LEVEL 【BACKLIGHT MODE】 BRIGHT LEVEL 【PRIVACY MASK】 DIGI-SLOW SHUTTER AUTO DAY/NIGHT MODE A UTO Exp Mode Setting ...
Page 28 【Iris P】：Aperture in advance mode 【Bright】：Brightness control in advance mode. 【AGC level】：AGC level in advance mode.2 Up/down P/T to modify exposure mode； press 【 OPEN】 for confirm, save set and exit; press【CLOSE】key, exit directly. Iris   Operations： Under 【EXPOSURE MODE】...
Page 29  Attention：Only when set ‘AGC LEVEL’ as ‘Manual’ can this function work. BRIGHT LEVEL   Operations： Under【EXPOSURE MODE】choose【BRIGHT LEVEL】item, press【OPEN】for confirm, enter brightness control item. Up/down P/T to change brightness level value. Press 【 OPEN】 key, save and exit; press 【 CLOSE】 key, exit directly. DIGI-SLOW SHUTTER：...
Page 30 Up/down P/T to change setting，press【OPEN】key, save and exit; press【CLOSE】key, exit directly.  WHITE BA LANCE MENU: Through this function can set various white balance mode （auto and manual）,as well as red gain and blue gain adjustment. CAMERA PARAMETERS WHITE BALANCE 【LENS PARAMETER】...
Page 31 Up/down P/T to select needed white balance mode； Press 【 OPEN】 key, save and exit; press 【 CLOSE】 key, exit directly. R Gain   Operations： Under 【WHITE BA LANCE】choose【R Gain】item, press 【OPEN】for confirm and enter red gain set item, Up/down P/T to change red gain value, range from0－255 the larger the number is, the red deeper, color turn to warm.
Page 32: Backlight Mode
BACKLIGHT MODE   Operations: Under【CAMERA PARAMETERS】 to choose 【BACKLIGHT MODE】and press【OPEN】to enter BLC mode set. Up/Down PT to modify BLC value and open/close this function. Press 【 OPEN】 key, save and exit; press 【 CLOSE】 key, exit directly. BACK LIGHT LEVEL ...
Page 33: Privacy Zone
work.  Privacy Zone Set privacy zone protection. CAMERA PARAMETERS PRIVACY_MASK 【LENS PARAMETER】 →MASK NUMBER 【EXPOSURE MODE】 SETUP NEW MASK MASK ACTIVATE 【WHITE B ALANCE】 SHOW NEXT MASK 【BACKLIGHT MODE】 DELETE CURRENT MASK →【PRIVACY _MASK】 Privacy protection can display a region on the screen. Users can set regional coverage.
Page 34 Privacy Area Set   Operations： Call preset 95 to enter main menu. Choose【CAMERA PARAMETERS】item, press【OPEN】for confirm and enter camera set item. Under【CAMERA PARAMETERS】choose【PRIVACY_MASK】item, press 【OPEN】for confirm and enter privacy area set item. Under 【 PRIVACY_MASK】 choose 【SETUP NEW MASK】 item, press【OPEN】enter privacy area set.
Page 35: Pantilt Setting
Pantilt Setting MAIN MENU PANTILT SETTING 【SYSTEM SETTING】 → 【PANTILT SETTING】【PRESETS SETUP】【CAMERA PARAMETERS】【SEQUENCE SETUP】【PAN TILT SETTING】【PRESETS SETUP】【AUTOS CAN SETUP】【DISPLAY CONFIGURATION】【HOME ACTION】【ALARMS SETUP】 PANTILT Set Menu  Set auto-flip, rocker recovery, the speed proportion. PANTILT SETTING PANTILT SET →...
Page 36 JOYSTICK RECOVER  Full-open：After choosing this item, it will return to auto-focus and auto-aperture while using auto-focus or auto-aperture, with only using the rocker. Focus：After choosing this item, it will just return to auto-focus mode while using manual-focus or manual-aperture, with only using the rocker.
Page 37 Under 【PANTILT SETTING】choose【PANTILT SETTING】 menu, press【OPEN】for confirm and enter pan parameter set. Under 【PANTILT SETTING】choose【SPEED PROPORTIONAL】menu, press【OPEN】for confirm and enter speed matching set. Up/down P/T to open or close this function. Press 【 OPEN】 key, save and exit; press 【 CLOSE】 key, exit directly. INFRARED LIGHTING ...
Page 38 needed. Press 【OPEN】for saving. 【CLOSE】for return to the upper grade menu. GOTO ZERO POSITON  If execute this function, the system will check the vertical and horizontal point to make sure the dome camera could reset when accident happen.  Operations: Call preset point 95 to enter main menu.
Page 39: Title Setting
menu, press【OPEN】for confirm. Under 【PANTILT SETTING】choose【PRESET NUMBER】 menu to enter to the preset point setting, and the parameter flicker. Up/Down P/T to choose Press 【 OPEN】 key, save and exit; press 【 CLOSE】 key, exit directly.  Instruction: If the preset point has been set and if it exists, the dome camera will display it once for reminding its position.
Page 40 The set preset points could be arranged to the patrol tracking routes by setting preset point patrol scan function, and the staying time of every preset point could be set alone. The dome camera will call these points one by one in line with the arranged order when preset point patrol scan is running, the dome camera can record 4 preset point patrol scan routes at most and each can store 32 preset points.
Page 41 flicker. Press【OPEN】for confirm, save and exit; press【CLOSE】 exit directly.  Instruction：Every group of parameters is form of two groups of numbers, the first represent preset point number and the second for staying time. The staying time for every preset point is decided by the default time when it is not changed.
Page 42 time the tracking route will be recorded. If the users want to finish this recording mode, press【OPEN】for confirm, save and exit. Press【CLOSE】 exit directly. AUTOSCAN SETUP  a） This model supports auto scan mode setting. The camera will scan horizontally according to the set pitch position between the left and right edges, with steady speed and the same amplification.
Page 43: Home Action
and press 【OPEN】for entering into the scan left edge setting。 The vertical and horizontal position will be showed on the downside of the screen when the users operate the machine. Press 【OPEN】when the scan left edge has been set and the system will automatically record the current level position as the left edge on scanning。...
Page 44: Information Display Figuration
HOME T IME   Operations: Call preset point 95 to enter main menu. Up/down cursor to choose 【PANTILT SETTING】choose 【HOME ACTION】item and press 【OPEN】for confirm. Under 【 HOME ACTION】 choose 【HOME ACTION】 item and press 【OPEN】for confirm and enter into the leisure time setting item.
Page 45: Alarms Setup
Up/Down cursor to choose 【 DISPLAY CONFIGURATION】 press 【OPEN】for confirm. Under【DISPLAY CONFIGURATION】 choose 【DOME TITLE】and press【OPEN】for confirm. Up/down P/T to modify Camera Title Display time. Press【OPEN】for confirm, save and exit; press【CLOSE】 exit directly.  Instruction：Preset point title，Area Indication，Lens multiple Indication，Direction Indication, system time and environment index settings are the same as this one , you only have to refer to it.
Page 46 Support 4 input alarm lines and 2 output alarm line. Alarm switch input, can edit settings menu for each separate road linkage alarm and alarm output ports in the dome, and each specific way editing in the same method. When the alarm sounds, the dome will do the followings: Executive linkage features, the linkage must be preservation of corresponding feature set.
Page 47 Call preset point 95 to enter main menu. Up/Down cursor to choose【ALARMS SETUP】item, press 【OPEN】for confirm and enter alarm set items. Under 【 ALARMS SETUP】 choose 【 INPUT M ODE】 item, press 【OPEN】for confirm. Left/right P/T to choose open or close. Press【OPEN】for confirm, save and exit;...
Page 48 directly. RESET DELAY  It means when alarmed, the machine will recover to the normal state through deleting the alarm after set time. 1-255 seconds are selectable.  Operations: Call preset point 95 to enter main menu. Up/Down cursor to choose【ALARMS SETUP】item, press 【OPEN】for confirm and enter alarm set items.
Page 49: Technical Specifications
Technical Specifications Electrical indicator Power AC24 ± 20% Voltage ≤60W Settings： Protocol Pelco-P/D selectable Baud rate selectable 2400bps/4800bps/9600bps/19200bps address set （Soft address set） 1－255 Decoder Built-in Level rotation 360°continuous rotation Level speed 0.5°－240°/ seconds, adjustable maximum speed 0-90°Rotation, 180°auto rotation Vertical rotation Vertical speed 0.5°－147°/seconds,adjustable maximum speed...
Page 50: Fault Analysis
Fault Analysis Attention：Some operation need to restart dome. Failures Possible reason Resolution Voltage out or exchange damaged No action and no Power line modify image after power mis-connect Project network fault eliminate Wrong video link modify Successful auto Bad video link eliminate test but no image Camera damaged...
Page 51: Appendix 1 Lighting-Proof, With Surge-Protector
Appendix 1 Lighting-proof, with Surge-protector This product adopts air discharge lightning and TVS board-level technology; can effectively prevent damage to equipment from 1500W (below) instantaneous lightning strike, waves. However, make necessary protective measures under the electrical safety for outdoor installation: Signal lines must keep at least 50 meters with high-voltage ...
Page 52: Appendix 2 Rs485 Bus Common Sense
Appendix 2 RS485 Bus Common Sense RS485line Basic Features According to RS485 main line standard, RS485 resistance is 120Ω control line, maximum load is 32 pieces available, (including main control and controllers instrument). RS485 Transmit Distance When you use 0.56mm(24AWG)as control line, baud rate and maximum distance are as bellow: Baud rate Maximum distance...
Page 53: Appendix 3 Dc12V Line And Transmission Distance Table
DC12V Appendix 3 Line and Transmission Distance Table When the size of the line is certain, DC12V voltage loss rate is less than 10%, the recommended maximum transmission distance. (For the exchange of electricity supply equipment, its maximum allowable voltage loss of 10%). For example: one equipment, the rated power 80VA, installed 35 feet(10m) distance from the transformer, the need size of the smallest diameter is 0.8000mm.
