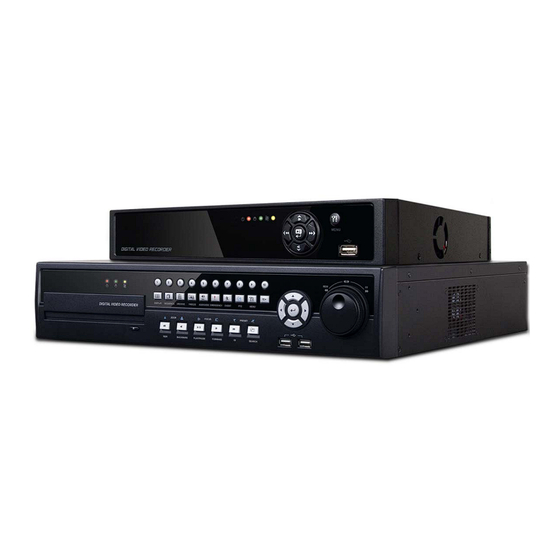

Page 1 Standalone Digital Video Recorder Premium DVR 4, 8, 16 Channel Models User`s Manual MADE IN KOREA KM4201DQCI DQ3_K This document contains preliminary information and is subject to change without notice.
Page 2 FCC Compliance Statement Notice to Users This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 3 Cautions  This product has free voltages (100V ~ 240V). See installation instructions before connecting to the power supply.  This product uses a Lithium battery.  To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. ...
Page 4 12. Servicing  Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel. 13. Damage Requiring Service  Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: ①...
Page 5 The List of Configuration A, D and E Type : 4 / 8 / 16CH B, C and F Type : 4 / 8 / 16CH DVR Set Manual / CMS CD Remote Controller Manual Screws HDD Brackets Rack Bracket (Except A, D and E Type) Data Cable Power Cable...
Page 6: Operation Precautions
Operation Precautions  Power Off  Do not turn DVR off, or plug off the power adapter while DVR is in operation (record/playback). Otherwise, it may cause permanent damage to the equipment. Please click ( ) SETUP>SYSTEM>Shutdown sequentially and then remove the power after DVR is shut down completely.
Page 7: Table Of Contents
Table of Contents 4.3 DISPLAY ............37 4.3.1 OSD .............. 38 1. PRODUCT FEATURES ........ 11 4.3.2 Main Monitor ..........38 1.1 Unpacking ............11 4.3.3 Multi Spot ............39 1.2 Service ............11 4.3.4 VGA .............. 40 1.3 System Connection Diagram ......11 4.4 DEVICES ............
Page 8 6.1.3 System Requirements ........69 7.4.2 Local Setting ..........108 6.2 Installation ............70 7.5 Live View............111 6.2.1 Software Installation ........70 7.6 Search Mode ..........114 6.2.2 Login ............71 7.6.1 Date/Time Search ........114 6.3 Menu ..............72 7.6.2 Event Search ..........
Page 9 12.3 Keyboard Configuration ......181 10.2.8 Search ............153 10.2.9 Snapshot gallery ......... 154 12.4 Setup ............. 182 10.2.10 Setting ........... 155 12.4.1 DVR Control Mode ........182 10.2.11 Uninstallation ......... 155 12.4.2 Speed Dome Setup........183 10.3 Android Phone(mViewer Pro) ....156 12.4.3 Joystick Calibration ........
Page 10 14.3.9 Cable ............204 14.3.10 Display ........... 204 14.4 HSC2410 ............205 14.4.1 Introduction ..........205 14.4.2 Features ............. 205 14.4.3 Technical Specification ....... 205 14.4.4 Unpacking ..........205 14.4.5 Service ............205 14.4.6 System Dimension Diagram ....... 205 14.4.7 Connector Wiring ........206 14.4.8 Cable ............
Page 11: Product Features
1. Product Features 1.1 Unpacking  This equipment is an electronic appliance, so it should be handled with special care.  After unpacking, please check if all the following items are included. - DVR Main body A, D and E Type : Power Supply Adapter (DC 12V, 5A) and Power Supply Cable B, C and F Type : Power Supply Adapter (DC 12V, 6.67A) and Power Supply Cable...
Page 12 B Type – 4 / 8 / 16 channel Series DVR...
Page 13 C Type – 4 / 8 / 16 channel Series DVR...
Page 14 D Type – 4 channel Series HD-SDI DVR...
Page 15 E Type – 4 channel Series HD-SDI DVR...
Page 16 F Type – 4 channel Series HD-SDI DVR...
Page 17: Installation
2. Installation 2.1 Hard disk and DVD-RW Installation 2.1.1 SATA Port  When installing HDDs, make sure to connect from SATA 1 Port. A and E Type  - Main substrate of this DVR has one SATA port: it is indicated as SATA 2. B, C and F Type ...
Page 18: E-Sata External Storage (B, C And F Type)
2.1.3 e-SATA External Storage (B, C and F Type)  This series DVR has 1 external SATA Port; the picture above shows external SATA 6 Port.  6 SATA Port: It is designed to mount 4HDDs per each external SATA Port. 2.1.4 HDD Installation ...
Page 19: Connector Wiring
2.2 Connector Wiring 2.2.1 Video-In/Loop Out Connections A, B and C Type  Connect a camera to ‘VIDEO IN’.  If user wishes to link camera input to another device, please connect the camera to ‘LOOP OUT’. (B Type).  Assure the ‘VIDEO IN’ and ‘LOOP OUT’ connections are connected properly, not oppositely. D, E and F Type ...
Page 20: Audio Connections
 Click the box below to select resolution. - User can select the resolution among ‘1920x1080 RB’, ‘1920x1080’, ‘1680x1050 RB’, ‘1680x1050’, ‘1280x1024’, and ‘1024x768’ - The default setting of DVR is ‘1280 x 1024’.  Click the box below to select signal format. - User can select the signal output among ‘NTSC’, ‘PAL’...
Page 21: Over Coax Connection
2.2.11 RS-485 Over Coax Connection (A and B Type ONLY)  PTZ Camera Connector  Please connect Coax to ‘Video In’ and select any Protocol in Camera/PTZ setup.. NOTE PTZ Camera must support Pelco-C Protocol in order to use this feature. NOTE When selecting Protocol, user can choose any protocol from the Protocol list other than ‘NONE’.
Page 22: Input Device And Screen Icons
3. Input Device and Screen Icons 3.1 Key and LEDs  B, C and F Type KEYS Front Button Operating mode Setup mode •Up/Down/Left/Righ Direction ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode t on screen cursor control 1 ~ 16 •...
Page 23: Camera Select Keys For 16 Channel Dvr
3.2 Camera Select Keys for 16 Channel DVR B, C and F Type  Below shows how to select camera channel for 4/8/16channel DVR  Below shows how to select camera channel for 4 channel DVR - Select Camera No. 1~4 ...
Page 24: Using A Remote Controller
3.4 Using a Remote Controller  Usage of a remote controller is same as the front panel keys.  Follow the procedure below when using the remote controller for multi DVRs. ① Check System ID (e.g., between 1 and 255) of the DVR that wish to use. - (SETUP>SYSTEM>Information>Status>System ID).
Page 25: Screen Icon
3.6 Screen Icon Icon Description Icon Description Continuous recording mode In Audio recording Event recording mode CMS access indication/ No. of accesses (Motion) (up to 16) Event recording mode In channel sequencing (Alarm In) In recording Lock PTZ registration / PTZ mode Setup in HDD Overwrite mode Setup in HDD No Overwrite mode Setup in HDD No Overwrite mode...
Page 26: Setup
4. Setup 4.1 Login / Logout  At the default setting of DVR, user has to input the password to enter the set up menu.  Please press SETUP key to enter the setup menu and the following screen will appear. ...
Page 27: System
4.2 SYSTEM 4.2.1 Information  Please click ( ) SYSTEM>Information and the following screen will appear. Status Site Description  Decide on a name of DVR.  Please click ( ) keyboard icon on Site Description frame and the following virtual keyboard will appear. ...
Page 28  Import: Copy the Menu setup stored in USB memory stick into DVR. Please plug in the memory stick and then click ( ) Import.  Export: Store the Menu setup of DVR in USB memory stick. Please plug in the memory stick and then click ( ) Export. ...
Page 29 Record  When user completes Version input, please click ( ) Record. Then, the following screen will appear.  The screen shows start time and end time of recorded data. Overwrite Setting  Click ( ) Overwrite Setting button and the following screen will appear. ...
Page 30: Admin
CAUTION IF USER USES “Rec Days” FUNCTION, DVR WILL STORE ONLY THE DAYS THAT SPECIFIED BY USER. PLEASE BEWARE OF DATA LOSS DUE TO “Rec Days” FUNCTION. NOTE Notify setting does not affect saving the recorded data. It only gives notification and keep recording until hard disk is full. NOTE For more specific setting about Alarm-out, use Setup>DEVICES>Alarm Out.
Page 31 CAUTION IF ADJUSTED DATE/TIME IS PRIOR TO RECORDED DATA, DATA AFTER NEW DATE/TIME MAY BE ERASED. CAUTION ANY CHANGE IN DATE/TIME IS IMMEDIATELY APPLIED ON VIEWING SCREEN (LIVE), BUT THE DATE/TIME WHEN THE RECORDING WAS DONE IS NOT CHANGED. MAKE SURE TO REBOOT DVR AFTER CHANGING THE DATE/TIME. DO NOT FORGET TO EXECUTE SHUTDOWN (SYSTEM>Shutdown) BEFORE REBOOT.
Page 32 NTP Server  Click ( ) keyboard icon in NTP Server frame and the virtual keyboard will appear. Input IP address of NTP server. NOTE “Use NTP” function connected to the Time zone, user should set the Time zone correctly to operate the NTP function properly. NOTE Currently used NTP is administered by pool.ntp.org and its IP address is 65.23.154.62.
Page 33 when all the HDDs are formatted.  If the format changes to ‘---‘after reboot, it means formatting has been properly done. CAUTION EXECUTE REMOVE PROCEDURE EVEN WHEN USER REMOVE PREVIOUSLY INSTALLED HDD. THE REMOVE PROCEDURE IS THE SAME AS THE FORMAT PROCEDURE DESCRIBED ABOVE. S.M.A.R.T ...
Page 34: Account
4.2.3 Account  Please click ( ) SYSTEM>Account and the following screen will appear. New Group  Please click ( ) New Group and the following screen will appear.  Click ( ) keyboard icon on the right-hand side of Group Name frame. Then, the virtual keyboard will show. Please click ( ) desired characters (up to 8 characteristics) on the virtual keyboard.
Page 35: New User
New User  Please click ( ) New User and the following screen will appear.  Click ( ) the keyboard icon on the right-hand side of User Name frame and the virtual keyboard will appear. Click desired characteristics (up to 8 characteristics) on the virtual keyboard. ...
Page 36: System Log
 This is a screen for password resetting.  Input password by clicking the keyboard icon on the right-hand side of the frame.  Use key if wish to erase password on keyboard. 4.2.4 System Log  Please click ( ) SYSTEM>System Log and the following screen will appear. ...
Page 37: Exit
- USB Upgrade Success/Fail - DVR Setup Change by Remote - Before/After Time Adjust  System Log removal procedure is as follows: - Execute Clear All Data in SYSTEM>Information>Record and choose ‘OK’ on the popup dialogue box. Please note that all normal recorded video data are deleted from database.
Page 38: Osd
4.3.1  Please click ( ) DISPLAY>OSD and the following screen will appear.  The OSD menu will allow user to configure full features (i.e., on/off every letter and icon) displayed on the screen.  Letters and icons are divided under System and Camera categories. If click ( ) ‘All’, all items are on/off at once. OSD Margin ...
Page 39: Multi Spot
Quad Seq  Use only with 8 / 16 channel DVRs.  Adjust interval for ‘X4 Split Screen sequencing’.  Check  check box next to the camera that wish to include in sequencing. Any camera with unchecked check box will be excluded from channel sequencing.
Page 40: Vga
 Adjust the rotation interval of camera by clicking Dwell column. The rotation interval changes to 3>5>10>15>30>60 seconds by each press.  ‘4 Split Screen sequencing’ is disabled in the following modes. - 8 channel DVR: 3x3 Mode - 16 channel DVR: 4x4 Mode X9 Seq ...
Page 41: Devices
4.4 DEVICES  Please click ( ) DEVICES and the following screen will appear. 4.4.1 Network  Please click ( ) DEVICES>Network and the following screen will show. Network Type  Please click ( ) Network Type. When you click ( ) the button, it changes alternately to Static (fixed IP) and DHCP (floating IP).
Page 42 CAUTION NOTE THAT DNS SERVER ADDRESS IS IP ADDRESS OF YOUR COMMUNICATIONS COMPANY NAME SERVER PROVIDING INTERNET SERVICE. IT IS NOT THE IP ADDRESS OF DDNS SERVICE SITE. DDNS  Please click ( ) DDNS and the following screen will appear. ...
Page 43 - As for Domain Name, user has to input the Domain Name given from the selected DDNS Server. - As for ID and Pass word, use the user ID and Password to log in to the selected DDNS Server. - Click “Run ddns service” to start mapping from DVR to DDNS Server. - Choose ‘OK’...
Page 44 NOTE “Enable Dual Streaming” and click “OK” button, DVR will automatically reboot. If users check the CAUTION IT IS NOT POSSIBLE TO CHANGE PORT NUMBER DURING CMS ACCESS TO DVR. CAUTION CHANGES MADE IN SETUP WILL BE APPLIED AFTER EXITING THE MENU. CAUTION PLEASE CHECK THE ROUTER FOR UPNP SUPPORTABILITY BEFORE START USING THE UPNP FEATURE.
Page 45: Camera / Ptz
4.4.2 Camera / PTZ  Please click ( ) DEVICES>Camera/PTZ and the following screen will appear.  Click ( ) the keyboard icon on the right-hand side of each frame on Title column and the virtual keyboard will appear. Then, register titles of cameras.
Page 46: Audio
 Click ( ) ▲, ▼ direction buttons on the right-hand side of the ID column to set ID number (i.e., 0 ~ 9999) of each PTZ.  While pressing (+) or (-) button, ID increases or decreases by 10 units. ...
Page 47: Alarm Out
4.4.5 Alarm Out  Please click ( ) DEVICES>Alarm Out and the following screen will appear.  The Alarm Out menu will allow user to give title and to select the type and duration of Alarm output.  Click ( ) the keyboard icon on the right-hand side of each frame on Title column and the virtual keyboard will appear. Then, please register the title of Alarm output.
Page 48: Record
4.5 RECORD  Please click ( ) RECORD and the following screen will appear. 4.5.1 Setting  Please click ( ) RECORD>Settings and the following screen will appear.  There are three kinds of recording mode. - Continuous: record continuously. - Event: record only when Sensor or Motion calls.
Page 49 -HD-SDI Type- D Type 360x240 (360x288) 720x240 (720x288) 720x480 (720x576) 1280 x 720 1920 x 1080 4 Channel DVR Max. 30 fps per Channel Max. 30 fps per Channel Max. 30 fps per Channel Max. 15 fps per Channel Max. 7.5 fps per Channel E Type 360x240 (360x288) 720x240 (720x288)
Page 50 A,B and C Type NTSC(PAL) 360x240 (360x288) 720x240 (720x288) 720x480 (720x576) 960x480 (960x576) 4 Channel DVR 120 (100) 120 (100) 120 (100) 120 (100) 8 Channel DVR 240 (200) 240 (200) 240 (200) 240 (200) 16 Channel DVR 480 (400) 480 (400) 480 (400) 480 (400)
Page 51: Schedule
NOTE A, B and C Type does not have HD-SDI Input tap. A, B and C Type NTSC(PAL) 360x240 (360x288) 720x240 (720x288) 720x480 (720x576) 960x480 (960x576) 4 Channel DVR 120 (100) 120 (100) 120 (100) 120 (100) 8 Channel DVR 240 (200) 240 (200) 240 (200)
Page 52: Pre Alarm
 Repeat the procedure for Camera Nos. 2 to 16. If user wants every camera to have the same mode, please click ( ) Copy to All Camera.  Below lists symbols of the respective recording modes. Continuous Alarm In Alarm In / Continuous Alarm In / PreAlarm Motion...
Page 53: Motion Detection
of 360x240(288), 720x240(288), 720x480(576), 960x480(576), 1280x720 and 1920x1080.  Click ( ) each frame on Frames column to select recording rate of a corresponding camera. Recording rate varies by camera. Below lists the maximum recording rate of each camera. A, B and C Type NTSC(PAL) 360x240 (360x288) 720x240 (720x288)
Page 54: Holiday
 Press SETUP key (or right mouse button) and the SETUP menu will appear.  SETUP menu descriptions. - Camera: select camera for setup. - Sensitivity: select sensitivity (Low, Normal and High) - Reverse Vert: activate the entire column at the cursor’s position. - Reverse Horz: activate the entire row at the cursor’s position.
Page 55: Link
4.6 LINK  Please click ( ) LINK and the following screen will appear.  The LINK menu will allow user to set recording modes of all kinds of alarms (Sensor, Motion Event, Video loss, System Event, etc.), alarm output, e-mail notification and the like. 4.6.1 Alarm In ...
Page 56: Motion Event
4.6.2 Motion Event  Please click ( ) LINK>Motion Event and the following screen will appear.  Select cameras for recording while the motion sensor is in operation and alarm outputs and set up E-mail addresses for notification.  Link Notification displays E-mail addresses registered in DEVICES>Network>Notification. ...
Page 57: System Event
⑤ Repeat the above procedure for Video Loss 2~ Video Loss 16.  Click No Beep  to deactivate alert sounds from video loss. Apply to all channels.  Choose ‘OK’ to confirm the setting. 4.6.4 System Event  Please click ( ) LINK>System Event and the following screen will appear. ...
Page 58: Operation Instruction
5. OPERATION INSTRUCTION 5.1 Viewing 5.1.1 First Image  Power on DVR and the following live video will appear, while viewing and recording at the same time.  The screen will display date/time and icons below. Icon Description Continuous recording mode Event recording mode (Motion) Event recording mode (Alarm In) In recording...
Page 59: View Format
 Click Emergency recording button, icon will show.  Click Audio button, icon will show. And click channel button, then user can change only audio channel. NOTE When front key does not work well, please check whether the audio icon is activated on the screen.
Page 60 Function Up/Down/Left/Right rotation Zoom out Zoom in Focus near Focus far Iris Close Iris Open Save Preset Go to the Preset Go to OSD main menu Run Group Tour 1~9 Run Pattern 1~9  To use a mouse in Pan/Tilt mode, please move the cursor to the lower portion near the center of the screen. To use front button in Pan/Tilt mode, please push setup button.
Page 61: System Log
5.1.6 System Log  Press EVENT key and the System Log screen will appear.  Please refer ‘SETUP>SYSTEM>System Log’ to learn different events listed on the System Log and see how to delete the System Log. 5.1.7 Key Lock  Press AUDIO>FF>FORWARD keys in sequence to operate the key lock function. This function is indicated by icon in the lower portion on the right-hand side of the screen.
Page 62: Date / Time Search
5.2.1 Date / Time Search  Please click ( ) Date/Time Search in SEARCH menu and the following input box will appear.  Follow the procedure below to search video by date/time. ① Click ( ) the date and/or time whichever user needs to change and block the item. The designated item will be marked in a square.
Page 63: Event Search
⑤ The screen will show selected date/time. ⑥ Click ▲▼ button for selecting cameras. ⑦ Click then recorded data will be highlighted on the bar. ⑧ Selected camera will show the time bar 0-60 and It will be marked on 2.5minutes basis during selected time zone. ⑨...
Page 64: Playback
5.3 Playback  This involves searching recorded video to playback the wanted video of a specific date and time in search mode.  Press SETUP key or please press the mouse right button and click in Playback mode. Then, the following screen will appear. ...
Page 65: One-Touch Playback
5.4 One-touch Playback  Press the PLAY/PAUSE key or double click the mouse wheel (central button) in the viewing mode. Then, user will be able to view the wanted recorded video right away without going through the search procedure. The video plays back the recorded video from the last one minute.
Page 66: Menu Bar
NOTE Please do not change the settings by DVR or CMS, while back up. NOTE Please enter all the necessary information before Click ‘START’. NOTE If the When the targeted file size is over 2GB, press “ ” button on the right again after the first “ARCHIVE SUCCESS”. And DVR will continue to archive to another file with the extension of “-002”...
Page 67: Alarm Out Control
5.8 Alarm Out Control  Please click ( ) Color / Alarm in SEARCH popup menu or in front panel and the following input box will appear. NOTE This function is enabled only when LIVE MODE and 4 SPLIT SCREEN MODE or HIGHER. NOTE A Type has 1 Alarm Relay out, B and C Type has 2 Alarm Relay out ports and 4/8/16 Alarm out, D and E Type has 1 Alarm Relay out and 1 Alarm out, and F Type has 2 Alarm Relay out and 4 Alarm out.
Page 68 Professional Central Monitoring Software CMS Pro Full-featured Enterprise Class Surveillance Solution User`s Manual This document contains preliminary information and is subject to change without notice.
Page 69: Cms Pro
6. CMS Pro 6.1 CMS Pro Features 6.1.1 Introduction  The CMS Pro is a central surveillance system solution that monitors multiple sites with video, audio and event signals from DVR over networks.  The software supports different windows of live viewer, playback player, interactive map viewer, various search panes and event signal monitoring panes.
Page 70: Installation
Installation 6.2.1 Software Installation  Please follow the program installation procedures below. ① If an old version of CMS Pro program was installed, completely uninstall or delete the old version. CAUTION USERS SHOULD COMPLETELY REMOVE CMS PRO PROGRAM OF AN OLD VERSION BEFORE INSTALLING NEW VERSION IN ORDER TO REDUCE COLLISION.
Page 71: Login
⑦ When the following screen appears, click “Install.” ⑧ When the following screen appears, click “Finish” to complete the installation. NOTE  If the PC has a previously installed CMS Pro, the installer asks whether to overwrite the existing DB or not. The DB contains setting values on the program.
Page 72: Menu
NOTE Users may change the password in [Setup] – [Change Password] menu. For the detailed information, please refer to the ‘Chapter 7.4.4.3 Change Password’ page. The CMS Pro saves settings and layouts on the program of the current user when the program is closed. Menu ...
Page 73: Setup
6.4 Setup 6.4.1 Local Setup - Device  Please make sure the network setting of DVR has been done properly prior to the remote connection setting. 6.4.1.1 Remote Site Connection Setup  Click Setup – Local Setup – Device to enter the setup and a dialog will pop up as below picture. 6.4.1.2 New Device Register Device ...
Page 74 Camera  Choose a camera name between DVR and CMS setting or both. - Device Camera Name: Display camera name of DVR. - CMS Camera Name: Display Camera name of CMS. - Both (Device-CMS) Camera Name: Display both as [DVR name]-[CMS name]. ...
Page 75: Device Group Setup
6.4.2 Device Group Setup  It is possible to make a group of multi-devices for user’s convenience. - Users are able to combine multiple devices as one group of connection for easy control. - Users are able to extract the cameras from registered DVRs to make own group of display. 6.4.2.1 New Grouping Setting ...
Page 76: Local Setup - Environment
6.4.3 Local Setup - Environment  This enables users to adjust the default setting for user’s convenience. 6.4.3.1 System  Users are able to check the current version of the software.  Users are able to select the language among English, Korean, Japanese, Russian and Turkish. 6.4.3.2 Viewer Audio ...
Page 77  Date / Time format: Users can adjust and set the mode of date / time display in accordance with the location. - Date/Time: show current time. - Date Format: select the date format among YYYY-MM-DD/MM-DD-YYYY/DD-MM-YYYY. - Time Format: select the time format between 24Hours/ 12 Hours AM/PM. ...
Page 78: Local Setup - Account
 Select Data: Select data which users would like to save in the storage devices.  Default setup: Initialize the setup to factory default. Click “OK” to exit the program.  Setup Import: Copy the Menu setup stored in USB memory stick(or PC HDD) into DVR. Please plug in the memory stick and then click (...
Page 79  This setup is only permitted to Admin account holder.. 6.4.4.1 Add User Account  Click “New” button and the following will appear.  Type: Select one of the two types of user account, Manager and User from the drop-down menu. - While Manager Account allows all of the authorization to be controlled, User Account is permitted to set only Search, PTZ control, and E-map functions.
Page 80: Local Setup - E-Map
6.4.5 Local Setup – E-map  Users are able to create various E-maps and it enables monitoring both Live and Playback screen. 6.4.5.1 Registering a New E-map  Click “New” Tab to set up the E-Map.  In order to load an image of the map, click “Load Map Image” that users would like to use as an E-Map. ...
Page 81 Dome Camera. Generally indicates as Indoor camera. Users can hear the audio in the site by clicking the icon after setting the E-map. The icon will be light on when the alarm in is activated. If users click the icon, the light is on the icon and the alarm equipment such as siren and buzzer will be activated in the site.
Page 82: Remote Device Setup
 Select type among Outdoor, Floor, and Room. - Users can set up the hierarchical E-map in their taste. - For example, after setting up the floor map, room maps are added under the floor map.  DVR Name: Select the specific DVR from the list to connect E-map. ...
Page 83: Change Password
6.4.7 Change Password  Users are able to change the password of the ID. - Password: input the current password. - New Password: input the new password. - Confirm Password: confirm the new password. NOTE User “ID” cannot be modified. 6.4.8 Help 6.4.8.1 About...
Page 84: Remote Device System Log
6.5.2 Remote Device System Log  User can check the system log of the device in this menu.  Type, Date/Time/Description can be checked.  The contents in the parenthesis show the name of the device. Ex) [Demo]  Check “Visible” in the Remote Device System Log menu to see the menu or uncheck “Visible” in order not to see the menu. ...
Page 85: Cms System Log
 If click the pause button in the menu, then event log will be stopped.  Click the resume button to resume the system event log. (The log data will be lost during the pause.) NOTE The Remote Device Event Log is on when the “pause” is shown while the log is stopped when the “resume” is shown in the menu.
Page 86: Health Check
6.5.5 Health Check  This is the menu where users can easily check the overall status of the device.  Check “Visible” in the Health Check to see the menu or uncheck “Visible” in order not to see the menu. ...
Page 87: Show All Windows
The channel is being recorded. The channel is not being recorded currently but can be recorded later.  Alarm In Status Alarm In is not activated and cannot be added. Alarm In is being activated. Alarm In is not activated currently but can be added later. ...
Page 88: Application
Application 6.6.1 Search  There are five different types of search menu; Timebar, Event, POS/ATM, Thumbnail and Smart Search  The detailed information and directions is described in chapter 8. 6.6.2 Exit  If users wish to exit the program, then click the “Exit” in the Application menu.
Page 89: Live (Live Video Monitoring System)
Live (Live Video Monitoring System) 6.7.1 Overview  This program is to display live video from multiple channels in customized screen format.  The program is based on user friendly interface. Users may configure the entire program and open or close the panes and screens in the program.
Page 90: Instant Playback
6.7.2.2 Auto Sequence  Users are able to set the auto sequence.  When user set the “Auto Sequence” display mode, screen will change to 1 channel display mode and channel will be changed by user’s setup. For more information Please refer chapter 1.4.3.6. 6.7.2.3 Instant Playback ...
Page 91 6.7.2.4 Digital Zoom  To use digital Zoom, please make the display as 1CH.  Right click on the mouse and select Enter Digital Zoom.  To Zoom in and out, please use the display function at the corner of the channel Display or click and drag the area wish to zoom in.
Page 92 6.7.2.5 PTZ Control  After right mouse click on the channel that PTZ camera is connected, select “PTZ control”.  Users can designate the certain area and set the name by using “Preset” function.  Up to 255 presets can be designated. ...
Page 93 6.7.2.6 Screen Capture & Print  After right mouse click, select “Capture & Print Screen”  The brightness, contrast and saturation can be adjusted to store in users’ taste and can be printed directly. NOTE Image adjustment is only possible on the last captured image. ...
Page 94: Instant Recording
6.7.2.7 Audio On/Off  Click right mouse button to on/off audio in the channel.  Audio On/Off function is applied to only one channel out of all connected channels. - Once audio is on “ ” will be changed to show connected audio channel. “ ”...
Page 95  If users click ‘OK’, It will start recording of particular chosen channel.  When users want to view the archived file, please choose “Open Folder”  It will open the saved directory of the file.  When users double click the created file, password window will pop –up. ...
Page 96: Screen Layout Control
6.7.2.10 Display Option  Users can set up the display of camera name and time in “Display Option”.  After right mouse click, check the “Show Camera Name” to display the camera name or uncheck the menu to hide it. ...
Page 97: Sequencing
6.7.5 Sequencing  Click the to switch the channel according to setup made in auto sequence in Local setup – Environment.  It is only supported one channel 6.7.6 Audio Volume Control  Users can control the audio volume using the bar controller at the bottom of the screen.
Page 98: Search
6.8 Search 6.8.1 Overview  There are five different types of search function and users are able to search the recorded data by using a suitable search function of the five in accordance with their purpose. NOTE Search window cannot be closed during playback, also cannot be changed window size. Please close the window after stop. Playback more than 2 channels at the same time is available only in time bar search.
Page 99 NOTE Audio and Digital Zoom are supported only in 1CH display mode.  In the playback menu, users are able to decide to search the data from the beginning of the day or from the cursor position.  Or just simply click on the time line users want, and then click “ ”...
Page 100: Event Search
6.8.3 Event Search  Click the “connect” after right mouse clicking on the device and select the “Event Search”.  Check the event type which users wish to search among “Emergency”,” Alarm” and “Motion”. (Users can select more than 2 event types at the same time) ...
Page 101: Thumbnail Search
6.8.5 Thumbnail Search  Click the “connect” after right mouse clicking on the device and select the “Thumbnail Search”.  This search function provides the users with the certain number of snapshots of the recorded video of the selected camera. ...
Page 102: E-Map
E-Map 6.9.1 Overview  The ‘Map Viewer’ program is to display event signals over map images so that users may acknowledge event status with geographical information.  Users may perceive event occurrence status with visual notifications on icons over the map image and audible notifications on speaker system of a PC.
Page 103: Alarm In/Out Control
6.9.4 Alarm In/Out Control  The Alarm In icon on the map will be light on when the Alarm In equipment like sensor or detector is activated in the site.  If users click the Alarm Out icon, the light is on the icon and the alarm equipment such as siren and buzzer will be activated in the site.
Page 104: Uninstalling Cms Pro
6.10 Uninstalling CMS Pro  Please click the “Uninstall” file in the CMS Pro folder in the PC.  Click the uninstall file and the following message box will pop up.  Click “OK” to remove the program and its components. ...
Page 105 iCMS iCMS User`s Manual This document contains preliminary information and is subject to change without notice.
Page 106: Icms Viewer
iCMS VIEWER 7.1 System Recommendations Recommended Core 2 Duo 2.26GHz or higher Main Memory 2GB or higher Video Memory 512MB or higher Display Resolution 1024ⅹ768 (with 32bit color) or higher HDD Storage Space 30GB or higher Network 100~1000 Mbps Fast Ethernet Operating System Mac OS 10.6.0 or higher Program installation...
Page 107: Login
7.3 Login  After installation of the software, iCMS icon appears in ‘Application’ folder.  Please double click on the icon to execute the program.  Select User Name by clicking upside down arrow and enter corresponding Password to login. Watch Mode 7.4.1 Log-in Screen...
Page 108: Local Setting
7.4.2 Local Setting  Please click ‘Setup’ button on the top of the Toolbar and the following screen will appear.  There are three types of setup such as Device Manager, Display Setup and Password Change. 7.4.2.1 Display Manager  Please click ‘Device manager’ and the following screen will appear. ...
Page 109  Device Info - Device Name: input the DVR site name which will be displayed on the Server list. Please note that this name has nothing to do with the ID registered in DVR. Users may create the name that is fairly easy to distinguish. - Description: type brief description of the site - IP Address: input IP address or Domain Name of DVR (check with SETUP>DEVICES>Network in DVR).
Page 110: Display Setup
7.4.2.2 Display Setup  Please click ‘Display Setup’ and the following screen will appear.  Users can adjust and set the environment of the display window. - Default Division: Users can select the number of division of display channels when the program initially displays the screen.
Page 111: Live View
7.4.2.3 Password Change  Please click Password Change in setup menu to change the password.  Please select the ID from the drop down list and type original password.  Please type new password and confirm the password below.  If the information is filled out, click ‘OK’ to finish the Password change. 7.5 Live View 7.5.1 Connection...
Page 112 8~16. If users select Channel No. 9 and click the button, 1~9 split screens will display. Similarly, if users select Channel No. 10, 8~16 split screens will display.  16-Split Screen Mode: Click on No.16 button and 16-split screens will display. ...
Page 113  Monitoring shows the status of the number of motion detection and how many alarm in and alarm out are activated. ① ② ③ ④ Number Description DVR name Start and finish recorded date and time The version of the firmware The number of Connected network(ex.
Page 114: Search Mode
7.5.5 System Log  In the Live mode, system Log is shown. This will allow users to check System Log of Remote Site (DVR). 7.6 Search Mode  This involves searching recorded video to playback the video of a specific date and time. ...
Page 115: Event Search
Search previous ‘Year’ Search subsequent ‘Year’ Search previous ‘Month’ Search subsequent ‘Month’ ② ③ ① ⑤ ④ ⑥ Fast Forward/Backward & Playback (Click the button to increase the speed by x1, x2, x4, x8, x16, x32, x64 and Extreme) Sequence Mode Display Mode( Click the button to divide the screen by 1, 4, 9, 16 and Full Time Bar (24 Hour) Data Bar (Recorded data)
Page 116: Pos/Atm
① Event Type: it has three event types which are Emergency, Alarm and Motion. Please choose one event that users want to detect. ② Select Camera: Please select the camera that users want to view from Cam1 to Cam 16 for the event (Only 1 camera can be selected).
Page 117: Disconnection
⑥ Both: The text will be overlaid on the video and will be displayed in the text window as well. ⑦ Hide All: The text will not be displayed in both video and the text window.  Please fill out the text box with the searching word. ...
Page 118: Uninstall
7.8 Uninstall  Please go into the ‘Application’ folder and right click on the iCMS icon.  Please choose ‘Move to Trash’ to uninstall the iCMS program...
Page 119 xCMS xCMS User`s Manual This document contains preliminary information and is subject to change without notice.
Page 120: Xcms Viewer
8. xCMS VIEWER 8.1 Program Installation  Please follow the program installation procedures below.  Please select the ‘Activities’ on the top left side of the corner, and choose Home directory  Please select the ‘xCMS’ file and move the file to the Home directory ...
Page 121: Login
8.2 Login  Please right-click on the icon and select open to execute the program.  Select User Name by clicking upside down arrow and enter corresponding Password to login. 8.3 Watch Mode 8.3.1 Login Screen  After users log into the ‘xCMS’, the following screen will appear.
Page 122: Local Setting
8.3.2 Local Setting  Please click ‘Setup’ button on the top of the Toolbar and the following screen will appear.  There are three types of setup menu such as Device Manager, Display Setup and Password Change. 8.3.2.1 Device Manager ...
Page 123  Device Info - Device Name: input the DVR site name which will be displayed on the Server list. Please note that this name has nothing to do with the ID registered in DVR. Users may create a name that is fairly easy to distinguish. - Description: type brief description of the site.
Page 124  Users can adjust and set the environment of the display window. - Default Division: Users can select the number of division of display channels when the program initially displays the screen. (1, 4, 9, 16, 25, 36 or 64). - Users can choose either English or Korean in language setup.
Page 125: Live
8.3.3 Live 8.3.3.1 Connection  Please choose one of the registered sites in Server list on the right hand side of the ‘Live Display’ screen and the right click on the mouse button will pop up the menu with ‘Connect’. ...
Page 126  36-Split Screen Mode: Click on No.25 button and 36-split screens will display.  64-Split Screen Mode: Click on No.64 button and 64-split screens will display.  Seq: Click ‘Seq’ and then it will show an ordered list of display which will change the channel of live display to next channels. For example, In 4 channel display, CH5 to CH8 on the display screen will change to CH9 to CH12 sequently.
Page 127 8.3.3.3 PTZ Control  Under the server list, PTZ control can be found. This is for the control of Pan/Tilt/Zoom of DVR.  Buttons on the screen have the following functions. - Up/Down/Left/Right direction buttons - Zoom In/Out, Focus Near/Far, Iris Close/Open Zoom Out/ In Focus Near / Far Iris Close / Open...
Page 128: Search Mode
8.4 Search Mode  This involves searching recorded video to playback the wanted video of a specific date and time.  Users are able to search the recorded data in the xCMS program by Date/Time, Event, POS/ATM Search. - Date/Time Search: search by inputting date/time. - Event Search: search by event.
Page 129: Event Search
② ③ ① ⑤ ④ ⑥ Fast Forward/Backward & Playback (Click the button to increase the speed by x1, x2, x4, x8, x16, x32, x64 and Extreme) Sequence Mode Display Mode( Click the button to divide the screen by 1, 4, 9, 16 and Full Time Bar (24 Hour) Data Bar (Recorded data) Time Select Bar...
Page 130: Pos/Atm
8.4.3 POS/ATM  POS/ATM button allows users to search for the POS/ATM text.  Please click ‘POS/ATM’ button right next to the ‘EVENT’ and users will see the following screen.  Please choose one of the devices among the ‘Server List’ and right click on the mouse to have popup menu. ...
Page 131: Disconnection
 To search the word, please fill out the text box with the searching word.  Please click ‘Search’ when all the necessary requirements are filled out.  The following screen shows the result of the POS/ATM search  Double click on the event that users want to display. Disconnection ...
Page 132: Uninstall
8.6 Uninstall  Please go into the ‘Home’ folder and right click on the xCMS icon.  Please choose ‘Move to Trash’ to uninstall the xCMS program.
Page 133 CMS Web Client Pro CMS Web Client Pro User`s Manual This document contains preliminary information and is subject to change without notice.
Page 134: Cms Web Client Pro
CMS WEB CLIENT Pro 9.1 System Requirements  Web Client Pro may not run properly if the PC does not meet minimum requirements. Other programs should not run on the same PC where this is running. Otherwise, Web Client Pro software may not perform as designed. Minimum (Enable Dual Streaming) Recommended (Disable Dual Streaming) Intel Core i5...
Page 135: Live Display
9.3 Live Display  After Login, following screen will appear. ① ⑤ ④ ② ③  The screen contains following features: ① Display current live video ② Setting display mode - Search: Opening search mode in new window. - PTZ: Open PTZ control panel. - Capture: Capturing the image of selected channel.
Page 136: Search Screen
9.4 Search Screen  Click then following screen will appear on a new window. ① ② ③ ④ ⑦ ⑧ ⑥ ⑤  The screen contains following features: ① Searched playback video displays. ② Setting Date/Time to search. - Click a date in calendar, then recorded data will be showed up in Time bar. - Start Time : Setting start time.
Page 137: Ptz Control
9.5 PTZ Control NOTE Must complete the control setting on its DVR and Cameras first.  Click then following screen will appear on a new window. ① ② ③ ④ ⑤ ⑥  The screen contains following features: Pan/Tilt Direction button. ①...
Page 138: Capture
9.6 Capture  Click then following screen will appear on a new window. ① ③ ④ ② ⑤ ⑥  The screen contains following features: Captured Image is displayed. ① ② Color Control - User can change Brightness, Contrast and Saturation of the captured image. Save as Image ③...
Page 139: Cms Mobile Viewer
CMS Mobile Viewer CMS Mobile Viewer User`s Manual This document contains preliminary information and is subject to change without notice.
Page 140: Cms Mobile Viewer
10. CMS MOBILE VIEWER 10.1 iPhone Mobile 10.1.1 System Requirements  There are no other requirements to run this program because it is specialized to perform on iPhone interface. 10.1.2 Installation  Turn on the iPhone then connect to App Store. ...
Page 141  If user already has iTunes account, then input user’s account to download the program.  If user does not have the account, then click “ ” and it is registered by free.  When user registered the account, the program will be automatically installed.
Page 142: Site Registration
10.1.3 Site Registration  Click “ ” icon on iPhone then below will show.  Tap “ ” then below will show.  Tap “ ” and enter site information which are same as CMS site registration.  Enter Site Name, IP or DDNS address. ...
Page 143: Connection
10.1.4 Connection  Tap on Device Name to connect the DVR to iPhone. 10.1.5 Live View (Portrait View)  To select other channels, Slide finger from Right to Left to ascend. Slide finger from Left to Right to descend.  Tap on “ ”...
Page 144: Live View (Landscape View)
10.1.6 Live View (Landscape View)  To select other channels, Slide finger from Right to Left to ascend. Slide finger from Left to Right to descend.  Tap on “ ” to choose split mode between 1, 4, 9 and 16. In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.
Page 145: Search
10.1.8 Search  Users are able to search the recorded data with iPhone.  Click “ ” on Main menu or “ ” on Live monitoring to use search function.  Choose date that wish to search from Calendar  Choose time to search by sliding the Hour and Minute bar. ...
Page 146: Snapshot Gallery
 Tap “ ” or “ ”to disable audio. (1CH display ONLY)  To use Zoom feature, simply pinch and drag in 1CH display. (1CH display ONLY) NOTE Audio, Zoom and PTZ are available only in full screen mode.(1channel only) 10.1.9 Snapshot gallery ...
Page 147: Setting
10.1.10 Setting  Tap “ ” to check the information of the application.  User can read the manual. 10.1.11 Uninstallation  Click the “ ” icon and hold for a while until the program icon shows x mark on the top-left side. ...
Page 148: Ipad Mobile
10.2 iPad Mobile 10.2.1 System Requirements  There are no other requirements to run this program because it is specialized to perform on iPad interface. 10.2.2 Installation  Turn on the iPad then connect to App Store.  Move to search menu and type “mviewer” then click “ ”.
Page 149  If user already has iTunes account, then input user’s account to download the program.  If user does not have the account, then click “ ” and it is registered by free.  When user registered the account, the program will be automatically installed.
Page 150: Site Registration
10.2.3 Site Registration  Click “ ” icon on iPad then below will show.  Tap “ ” and enter site information which are same as CMS site registration.  Enter Site Name, IP or DDNS address.  Enter Admin/Stream port value. ...
Page 151: Live View (Portrait View)
10.2.5 Live View (Portrait View)  To select other channels, Slide finger from Right to Left to ascend. Slide finger from Left to Right to descend.  Tap on “ ” to choose split mode between 1, 4, 9 and 16. In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.
Page 152: Live View (Landscape View)
10.2.6 Live View (Landscape View)  To select other channels, Slide finger from Right to Left to ascend. Slide finger from Left to Right to descend.  Tap on “ ” to choose split mode between 1, 4, 9 and 16. In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.
Page 153: Search
10.2.8 Search  Users are able to search the recorded data with iPad.  Click “ ” on Main menu or “ ” on Live monitoring to use search function.  Choose date that wish to search from Calendar  Choose time that wish to search by sliding the Hour and Minute bar. ...
Page 154: Snapshot Gallery
 Tap “ ” to control the playback.  Tap “ ” or “ ” to take Snapshot.  Tap “ ” or tap screen to remove Camera Name and Date/Time from OSD.  Tap “ ” to switch from Live mode to Playback mode. ...
Page 155: Setting
10.2.10 Setting Setting  Tap “ ” to check the information of the application.  User can read the manual. 10.2.11 Uninstallation  Click the “ ” icon and hold for a while until the program icon shows x mark on the top-left side. ...
Page 156: Android Phone(Mviewer Pro)
10.3 Android Phone(mViewer Pro) 10.3.1 System Requirements  This program is designed and applied only for Android OS(version 2.3 or higher) based mobile device.  Display: Min. 3.7 inch screen NOTE mViewer Pro might not work even though Android OS version is high enough. It is due to the hardware specification of Android device.
Page 157: Site Registration
10.3.3 Site Registration  Click “ ” icon on application menu then below will show.  Tap “ ” on the main menu.  Tap “ ” on top right corner.  Enter Device Name, IP/Host address.  Enter Cmd/Stream port value. ...
Page 158: Live View (Portrait View)
10.3.5 Live View (Portrait View)  To select other channels, Slide finger from Right to Left to ascend. Slide finger from Left to Right to descend.  Tap on “ ” or “ ”to choose split mode between 1, 4, 9 and 16. In Multi channel display mode, user can double tap on certain channel to change to 1CH display mode.
Page 159: Live View (Landscape View)
10.3.6 Live view (Landscape View)  Tap “ ” to enable landscape view when the device is tilted horizontally.  Tap screen once and menu bar will appear on each side of OSD.  To select other channels, Slide finger from Right to Left to ascend. Slide finger from Left to Right to descend.
Page 160: Ptz Control
10.3.7 PTZ control  Users are able to control PTZ with mobile device by touching the screen.  Tap “ ” or “ ” to execute PTZ function.  Tap Arrow for Pan and Tilt movement.  Touch “ ” to zoom out. ...
Page 161: Search
10.3.9 Search  Users are able to search the recorded data with mobile device.  Tap “PLAYBACK” on main menu or “ ” on Live monitoring to use search function.  Choose date and time that wish to search from Calendar ...
Page 162: Snapshot Gallery
NOTE Audio and Alarm Out are available only in full screen mode.(1channel only) 10.3.10 Snapshot Gallery  Users are able to watch snapshot with the mobile device.  Tap “ ” on main menu to enter the gallery.  Tap Device name to view snapshot. ...
Page 163: Uninstallation
10.3.12 Uninstallation  Move to Setup > Application > Manage Applications then select “ ”.  Click “ ” icon then it will ask to delete the program.  Click “ ” button to successfully uninstall the program.
Page 164: Android Phone
10.4 Android Phone 10.4.1 System Requirements  This program is designed and applied only for Android OS(version 1.6 or higher) based Smart phones. 10.4.2 Installation  Turn on the phone then connect to Android Market.  Move to search menu and type “mviewer” then select “ ”...
Page 165: Site Registration
 The program will be automatically installed in user’s application menu. 10.4.3 Site Registration  Click “ ” icon on application menu then below will show.  Move to “ ” tab and enter site information which are same as CMS site registration. ...
Page 166: Connection
10.4.4 Connection  Click “ ” icon and select one of the registered site and click “ ”.  Move to “ ” tab and click “ ” icon.  To change the display mode, click the “ ” and select among 1ch (full screen), 4ch, 9ch and 16ch multi view. ...
Page 167: Search
10.4.5 Search  Users are able to search the recorded data in the mobile CMS program.  Click “ ” to use search function of the application.  click “ ” to select the month, the date and the time in order. ...
Page 168: Ptz Control
10.4.7 PTZ control  Users are able to control PTZ with Android Phone.  Press volume up button on the right side of the phone to zoom in.  Press volume down button on the right side of the phone to zoom out. ...
Page 169: Uninstall
10.4.10 Uninstall  Move to Setup > Application > Manage Applications then select “ ”.  Click “ ” icon then it will ask to delete the program.  Click “ ” button to successfully uninstall the program.
Page 170: Blackberry Mobile
10.5 Blackberry Mobile 10.5.1 System Requirements  This Program is designed and applied only for RIM Blackberry OS based Smart Phones. 10.5.2 Installation  Turn on the phone and connect to Blackberry App World.  Click “search” icon and type “DVR Viewer” program. ...
Page 171: Connection
 Enter Site Name and IP/Domain.  Enter Admin and Stream port.  Enter ID and Password.  Click “Add” to save the setting. 10.5.4 Connection  If the site is registered appropriately, the following screen will be shown.  Click “Menu>Connect” to connect the site. ...
Page 172: Ptz Control
 16 channel multi view is available for CIF resolution.  4 channel multi view is available for H.D1 and D1 resolution.  Only 1 channel view(full screen) is available for 720p and 1080p.  The message as below pops up when users try to see the multi view which exceeds its resolution. 10.5.5 PTZ Control ...
Page 173: Disconnection
10.5.6 Disconnection  When disconnecting, please click "Disconnect” and exit the mobile viewer program. 10.5.7 Uninstallation  Click “Menu>Delete” on the “DVR Viewer” icon in the download folder to uninstall the program.
Page 174: Keyboard Controller
Keyboard Controller Keyboard Controller CP1200A User`s Manual This document contains preliminary information and is subject to change without notice.
Page 175: Cp1200A Keyboard Controller
11. CP1200A KEYBOARD CONTROLLER 11.1 Connection  User may connect cameras and Keyboard through DVR in various ways.  Below shows the major probable connection methods through RS-485; 11.1.1 Configuration Diagram I  Single system configuration (1 Camera, 1 DVR) DVR PTZ Port RS485 RS485...
Page 176: Configuration Diagram Iii
11.1.3 Configuration Diagram III  Multiple system configuration (Multi Cameras, Multi DVRs) Max 16 camera RS485 RS485 RS485 RS485 … … … … Multi port Max 16 DVR DVR 1 DVR 2 … … Multi port  Please make sure to connect “Tx to Rx “or “Rx to Tx” with positive polarity. (+ to +) and (- to -). 11.2 Keyboard Setup in DVR ...
Page 177: Keyboard Configuration
11.3 Keyboard Configuration 11.4 Operation 11.4.1 DVR/PTZ Mode conversion  Press System ID number (For example, ID: 001 press Num Pad ) with button.  OSD will show “KBD:1” in right-bottom side that the keyboard is on DVR mode as below picture; ...
Page 178: Ptz Control Mode
- EVENT: pop up a window to see System Log. - PIP: turn on/off PIP screen in case of 1 channel screen. If PIP function is on, user number key(s) + ENT key to change the PIP channel. In case of 4 or 9 channel screen, it changes the screen to a next one in the sequence. - FREEZ: freeze a current image.
Page 179 Keyboard Controller Keyboard Controller CP1300 User`s Manual This document contains preliminary information and is subject to change without notice.
Page 180: Cp1300 Keyboard Controller
12. CP1300 KEYBOARD CONTROLLER 12.1 Connection  User may connect cameras and Keyboard through DVR in various ways.  Below shows the major probable connection methods through RS-485; 12.1.1 Configuration Diagram  Example  Please make sure to connect “Tx to Rx “or “Rx to Tx” with same polarity. (+ to +) and (- to -). 12.1.2 USB Connection ...
Page 181: Keyboard Configuration
12.3 Keyboard Configuration DVR Mode KEYS SPD mode DVR control Mode PTZ Mode ① EXIT Key DVR Mode select Key ② SPD Mode select Key Setup Key Number Pad Key ③ Clear Key ENTER Key Display Key Preset Key (PRESET) Audio Key Scan Key (SCAN)
Page 182: Setup
Pause on Live Key DVR Menu Key REW Key Backward Key ⑤ Play/Pause Key Forward Key FF Key PTZ Mode Key Camera Menu Key (MENU) Activate Preset Key Open Iris Key (OPEN) ⑥ Set Preset Key Close Iris Key (CLOSE) Focus control Key Focus control Key Zoom control Key...
Page 183: Speed Dome Setup
12.4.2 Speed Dome Setup  Press in SPD Mode to enter Speed Dome Setup and enter password. (Default password is 0000) Keyboard Detail Option ADDRESS Camera ID number 1~255 MODEL Select Camera PROTOCOL Set Protocol PEL-D / PEL-P / W-DRX / SAM-E / LGP / SAM-T / PANAS / VICON / AD / HWELL BAUDRATE Set Baud rate...
Page 184  Then, user should be able to operate the DVR functions by CP1300. 12.5.2.2 Buttons  In DVR control mode, all buttons are operated according to texts written on each button. The functions are same as Front buttons of DVR as follows: : Change display mode on Live and Playback in sequence of 1CH>4CH>9CH>16CH>1CH.
Page 185: Spd Control Mode(Speed Dome)
 Then, user should be able to operate the PTZ camera with CP1300.  In PTZ mode, all buttons are operated according to texts written on each button. The functions are same as Front buttons of DVR as follows: - # + “ “...
Page 186  (SCAN): Press number Key and SCAN then the designated Scan will run. (HOLD): Press HOLD to lock the Keyboard. To unlock user has to input Password. (Default password is 0000)   : Press NEAR/FAR to adjust the focus of Speed Dome camera. ...
Page 187 Serial In (POS) Serial In (POS) User`s Manual This document contains preliminary information and is subject to change without notice.
Page 188: Serial In (Pos)
13. SERIAL IN (POS) 13.1 Usage of Serial-In Function  Enables to record/search/display all transactions on monitoring screen by connecting POS/Cash Register.  User can choose the data whether to record/display on their taste without limitedly designated protocols. 13.2 Connection Method ...
Page 189 NOTE  DVR and POS terminals, cabling and installation When you completed, Please restart the DVR. DVR is "usb to serial cable" to restart the DVR to recognize the device will need to be sure.  POS terminals to connect to the DVR and Null Modem cable connections. If you have completed all the configuration and settings, and does not result in state action, RS232c cable's pin in the map, please change the Rx and Tx lines.
Page 190: Link
13.4 Link 13.4.1 Link Setup  Click “Setup>Link>” then shows as below. NOTE The above menu is only available on the DVR model with Serial-In function.  Click “Serial In” to appear following screen.  Select POS/ATM port by clicking ‘Serial In’ button. ...
Page 191: Schedule Setup
13.4.2 Schedule Setup  Click “Record>Schedule>” then shows as below.  Tick the box(□) item Alarm In.  Click the Time/Date that wishes to activate ATM/POS function on schedule.  It is possible to activate all the time by clicking top-right side of table. ...
Page 192: Port Setting
13.5.2 Port Setting  Press ( ) the “Port Setting” button in order to set up the port. Default values are Baud rate 2400 bps, Data Bit 5 bit, Stop Bit 1 bit, Parity None.  When the setup is done, press enter ( ) to save the setting. 13.5.3 OSD Display ...
Page 193  Each item explains below: - Start Pattern: Indicates the beginning of the new data when new designated data are received from a serial device. - End Pattern: Indicates the end of the data when designated data are received from a serial device. - Discard Pattern: Does not show the designated data on OSD screen.
Page 194  Input the pattern of dummy data to Discard Pattern.  Choose the data which willing to display and enter the Start Pattern and End Pattern.  Then tick the Auto box off in order to make the DVR recognizes the data between the Start and End patterns. ...
Page 195: Search
13.6 Search  Using event search function.  Please click ( ) the “Search>Event Search” menu on the pop-up menu of the wallpaper, then user will see the following screen.  It is possible to search the recorded data which is set up on Serial In and Linking pages. ...
Page 196 Extensive HD-SDI Video Signal Accessory HD-SDI Video Signal Accessories User`s Manual This document contains preliminary information and is subject to change without notice.
Page 197 The List of Configuration HSC 1100 (HDMI to HD-SDI Converter) HSC 1200 (HD-SDI to HDMI Converter) HSC 2110 (1 to 1 Analog to HD-SDI Converter) HSC 2410 (4 to1 Analog to HD-SDI Converter) HSR 1110 (1 In / 1 Out Repeater) HSR 1440 (4 In / 4 Out Repeater) HQS 1004...
Page 198: Hsc1100
14. HD-SDI Video Signal Accessories HSC1100 14.1 14.1.1 Introduction  HSC 1100 is HD signal converter which converts video signal between HDMI and HD-SDI. It converts the high resolution of HDMI sources to SMPTE 292M, standard HD-SDI signal. 14.1.2 Features ...
Page 199: System Dimension Diagram
14.1.6 System Dimension Diagram 14.1.7 System Connection Diagram 14.1.7.1 HDMI In/Out and HD-SDI In/Out Connections  Connect a ‘HDMI OUT’ from the device to ‘HDMI IN’ of HSC 1100 using by HDMI cable.  Connect a ‘HD-SDI OUT’ from HSC 1100 to ‘HD-SDI IN’ of HD-SDI device using by 75 ohm coaxial cable. 14.1.7.2 Video Component Input ...
Page 200: Display
14.1.9 Display 14.1.9.1 LEDs KEYS Operating mode Power LED • Light off: Converter off (Red) • Light on: Converter on Connection LED • Light off: Not connected (Green) • Light on: Connected HSC1200 14.2 14.2.1 Introduction  HSC 1200 is HD signal converter which converts video signal between HD-SDI and HDMI. It converts the HD-SDI video to HDMI signal.
Page 201: Service
14.2.5 Service  If there is any problem in the product, please refer servicing to a supplier or a distributor with qualified service personnel. 14.2.6 System Dimension Diagram 14.2.7 Connector Wiring 14.2.7.1 HD-SDI In/Out and HDMI In/Out Connections  Connect a ‘HD-SDI OUT’ of HD-SDI device to ‘HD-SDI IN’ of HSC 1200 using by 75ohm coaxial cable ...
Page 202: Operation Key
14.2.9 Operation Key and Screen Display Information First Digit No. Output resolution OUT_1024x768 OUT_1280x720p_60Hz OUT_1920x1080_30Hz OUT_1920x1080_60Hz, (default) OUT_1920x1080_60Hz_RB NOTE Operation button: When operation button is pressed, output resolution is changed. Please note that the number shown in the operation button is the time that users need to press the button. Second Digit No.
Page 203: Hsc2110
14.3 HSC2110 14.3.1 Introduction  HSC 2110 is video signal converter between SD to SDI. It is 1 In / 1 Out SD to SDI signal converter which will convert one analog signal to one HD-SDI signal. 14.3.2 Features  Convert 1CH SD to 1CH HD-SDI ...
Page 204: Connector Wiring
14.3.7 Connector Wiring 14.3.7.1 1 In / 1 Out Analog to HD-SDI Connection  Connect a ‘VIDEO OUT’ of analog device to ‘VIDEO IN’ of HSC 2110 using 75ohm coaxial cable.  Connect a ‘HD-SDI OUT’ of HSC 2110 to ‘HD-SDI IN’ of the HD-SDI DVR using 75ohm coaxial cable. 14.3.7.2 RS-485 Connection ...
Page 205: Hsc2410
HSC2410 14.4 14.4.1 Introduction  HSC 2410 is video signal converter between SD to SDI. It is 4 In / 1 Out SD to SDI signal converter which will convert four analog signal to one HD-SDI signal. 14.4.2 Features  Convert 1CH SD to 1CH HD-SDI ...
Page 206: Connector Wiring
14.4.7 Connector Wiring 14.4.7.1 4 In / 1 Out Analog to HD-SDI Connection  Connect 4 ‘VIDEO OUT’ of Analog device to each of 4 ‘VIDEO IN’ of HSC 2410 using 75ohm coaxial cables.  Connect a ‘HD-SDI OUT’ of HSC 2410 to ‘HD-SDI IN’ of the HD-SDI DVR using 75ohm coaxial cable. 14.4.7.2 Power Supply Connection ...
Page 207: Hsr1110
HSR1110 14.5 14.5.1 Introduction  HSR 1110 is HD SDI repeater to extend the signal transmission distance between HD-SDI devices. The transmission distance is easily extended up to 150m and if it requires to extend longer than 150m, it needs to connect another repeater to extend the signal transmission and it will be extended up to another 150m.
Page 208: Connector Wiring
14.5.7 Connector Wiring 14.5.7.1 1 In/ 1 out HD-SDI Connections  Connect a HD-SDI device (e.g. Camera) to ‘HD-SDI IN’ of HD-SDI repeater.  Connect the HD-SDI device (e.g. DVR) to ‘HD-SDI OUT’ of HD-SDI repeater. 14.5.7.2 Power Supply Connections ...
Page 209: Hsr1440
HSR1440 14.6 14.6.1 Introduction  HSR 1440 is HD-SDI repeater to extend the signal transmission distance between HD-SDI devices. The transmission distance is easily extended up to 150m and if it requires to extend longer than 150m, it needs to connect another repeater to extend the signal transmission and it will be extended up to another 150m.
Page 210: Connector Wiring
14.6.7 Connector Wiring 14.6.7.1 4 In/ 4 out HD-SDI Connections  Connect a 4 HD-SDI device (e.g. Camera) to each of 4 ‘HD-SDI IN’ of HD-SDI repeater.  Connect the 4 HD-SDI devices (e.g. DVR) to each of 4 ‘HD-SDI OUT’ of HD-SDI repeater. 14.6.7.2 Power Supply Connections ...
Page 211: Hqs1004
HQS1004 14.7 14.7.1 Introduction  This device is HD-SDI Video distribution amplifier which has 4 separately buffered HD-SDI outputs. This model is specially designed for 75 ohm HD Digital video distribution. 14.7.2 Features  Compact HD-SDI Video Distribution Amplifier  1 HD-SDI Video Input(SMPTE 292M) ...
Page 212: Connector Wiring
14.7.7 Connector Wiring 14.7.7.1 Distribution-In/Out Connections  Connect a ‘HD-SDI OUT’ of HD-SDI device (e.g. Camera) to ‘HD-SDI IN’ of HQS 1004 using by 75 ohm coaxial cable  Connect 4 ‘HD-SDI OUT’ of HQS 1004 to each ‘HD-SDI IN’ of HD-SDI devices (e.g. DVR). 14.7.7.2 Power Supply Connections ...
Page 213: Hfo1100 & Hfo1200
HFO1100 & HFO1200 14.8 14.8.1 Introduction  HFO 1100 Series are HD-SDI/Fiber optic converters which enable the transmission of HD-SDI signal up to 30km. These converters meet SMPTE 292M specification and are suitable for both indoor and outdoor use. HFO1200 receives the HD- SDI signal and send the signal out through fiber optic cable.
Page 214: System Dimension Diagram
14.8.6 System Dimension Diagram 14.8.7 Connector Wiring 14.8.7.1 HD-SDI in Connections  Connect HD-SDI Camera to ‘HD-SDI IN’ of HFO1200 using 75 ohm coaxial cable 14.8.7.2 Fiber Optic Out Connections  Connect the “LC Fiber Optic out” of HFO1200 which can be connected to opposite site of Fiber optic converter (HFO 1100) by using the fiber optic cable.
Page 215: Cable
14.8.8 Cable  75 ohm coaxial cable is needed  Fiber Optic Cable NOTE The cables above are not included in the package. 14.8.9 Display 14.8.9.1 LEDs KEYS Operating mode Power LED • Light off: Converter off (Red) • Light on: Converter on Connection LED •...
