Maktec MT870 Instruction Manual

Hide thumbs Also See for MT870:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
INSTRUCTION MANUAL
Rotary Hammer
MT870
012278
DOUBLE INSULATION
IMPORTANT: Read Before Using.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT870 and is the answer not in the manual?

Questions and answers

Related Manuals for Maktec MT870

Summary of Contents for Maktec MT870

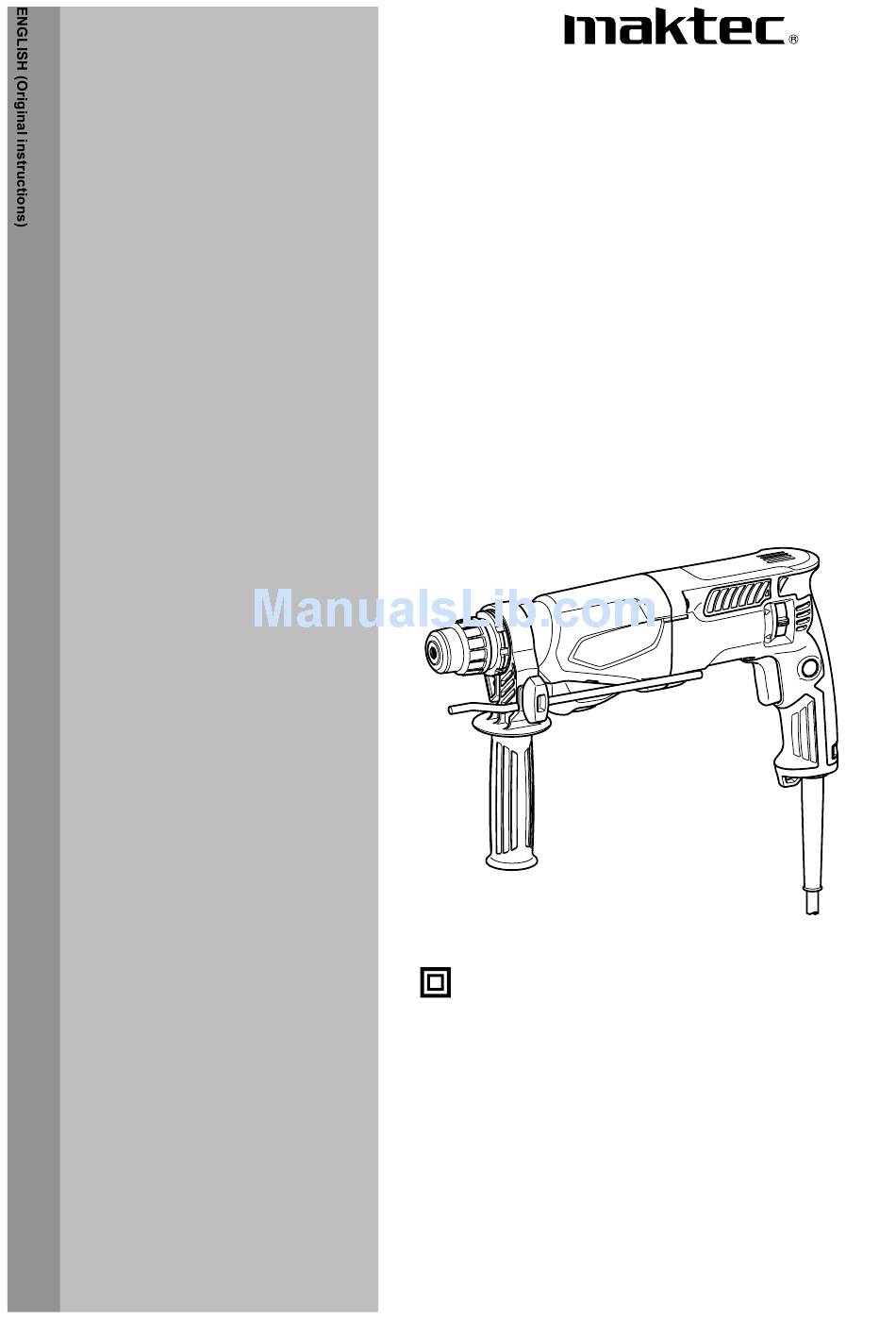

  • Page 1 INSTRUCTION MANUAL Rotary Hammer MT870 012278 DOUBLE INSULATION IMPORTANT: Read Before Using.

  • Page 2: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model MT870 Concrete 22 mm Core bit 54 mm Capacities Diamond core bit (dry type) 65 mm Steel 13 mm Wood 32 mm No load speed (min 0 - 1,100 Blows per minute 0 - 4,350...

  • Page 3: Rotary Hammer Safety Warnings

    Do not expose power tools to rain or wet Power tool use and care conditions. Water entering a power tool will 18. Do not force the power tool. Use the correct increase the risk of electric shock. power tool for your application. The correct Do not abuse the cord.

  • Page 4: Functional Description

    wiring or its own cord. Cutting accessory FUNCTIONAL DESCRIPTION contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. CAUTION: Wear a hard hat (safety helmet), safety glasses Always be sure that the tool is switched off and •...
  • Page 5 This tool has a reversing switch to change the direction of ASSEMBLY rotation. Move the reversing switch lever to the position (A side) for clockwise rotation or the position (B side) for counterclockwise rotation. CAUTION: Always be sure that the tool is switched off and Selecting the action mode •...
  • Page 6 Insert the bit into the tool. Turn the bit and push it in until it pull the switch trigger. Do not force the tool. Light engages. pressure gives best results. Keep the tool in position and After installing, always make sure that the bit is securely prevent it from slipping away from the hole.
  • Page 7 A stuck bit can be removed simply by setting the • reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly. Always secure small workpieces in a vise or similar •...
  • Page 8 Makita Corporation www.makita.com 885072-4...
