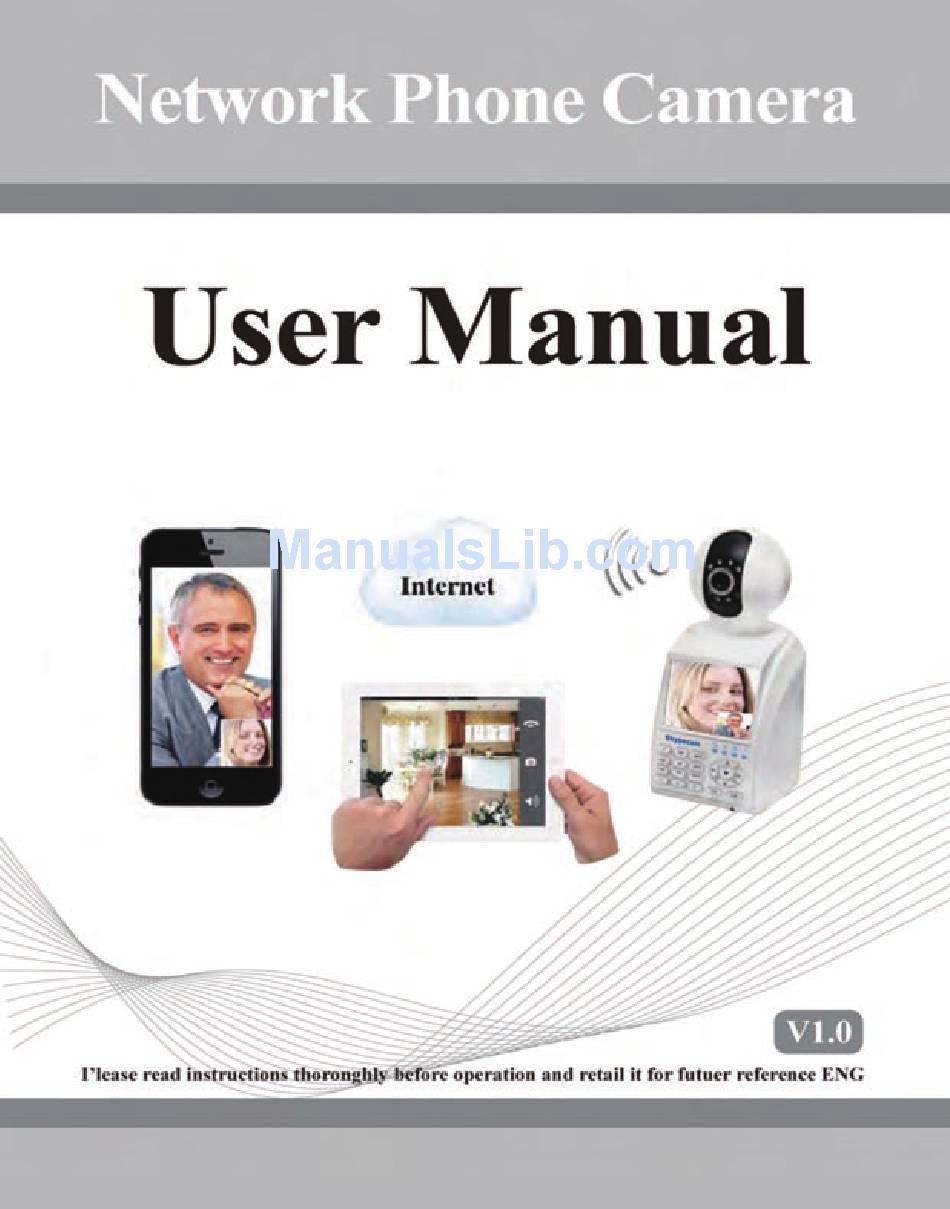

Linux Skypecam series User Manual

Network phone camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for Linux Skypecam series

  • Page 2: Safety Precaution

    Read and understand thoroughly this safety awareness & instruction before using and keep it for future reference,the device is called Skypecam in this text. Safety Precaution: Do not place heavy object on the Skypecam. Do not let any solid or liquid fall into or infiltrate the Skypecam. Do not disassemble, repair or replace the parts of the by yourself Skypecam...

  • Page 4: Product Introduction

    1 Product Introduction 1.1 Product Overview The Skypecam series is a type of excellent intelligent home product specially designed for digital field. It introduces embedded LINUX operating system which is more stable. It introduces the technology of standard H.264 mp video compression format and G.711A audio compression format which insure the high-quality image, low-bit rate and single-frame playing.
  • Page 5 Network Phone Camera User Manual 2 Open-package inspection and cable connection 2.1 Open package check First, please check whether there is any visible damage to the package appearance. The protective material used for the package of the can sustain most accidental clashes during Skypecam the transportation.
  • Page 6 Network Phone Camera User Manual 2.3 The front and rear panel key function Piolot lamp:From left to right are： (Network, Defence,Recording, Alarm)
  • Page 7 Network Phone Camera User Manual The front button operation function Button Mark Function name Input the number key during user input state Number button Short press to decrease the volume during video call or playing state Short press to delete text during edit state */.键...

  • Page 8: Network Interface

    Network Phone Camera User Manual menu/confirm Enter main menu 2.4 The rear panel ○ ○ ○ ○ 1 Network interface 2 WIFI ant interface 3 Learning code indicator 4 Learning button ○ ○ ○ ○ ○ 5 Power switch 6 Power interface 7 USB interface 8 3C smart card interface 9 Micro...

  • Page 9: Basic Operation

    Network Phone Camera User Manual 3 Basic operation 3.1 Turn on Plug the power supply and turn on the power supply switch to “ON”, the Skypecam enters the system. Suggest using the stable input voltage and power input ripple with less interference to make sure the Skypecam power supply.
  • Page 10 Network Phone Camera User Manual Picture 3.1 Login interface Icons meaning under standby state: USB detection icon Micro SD detection icon Motion detection icon 3C smart card detection icon WIFI connection icon Internet connection icon Sever abnormal connection icon...

  • Page 11: Main Menu

    Network Phone Camera User Manual 4 Main menu Press button , the system main menu is shown as below. You can operate and set each function in this menu. Picture 4.1 Main menu interface 4.1 Main menu navigation Main menu Function Overview General Set the basic parameters of the system...
  • Page 12 Network Phone Camera User Manual 4.2 General setup Picture 4.2 General setup interface Set the basic parameters of the system, please click [main menu]> [general] to enter the general setup interface. 【Time setup】 Set the system date and time. 【Language setup】 Set the system language 【Video format】...
  • Page 13 Network Phone Camera User Manual Picture 4.3 System setup interface 【Restore factory】 Restore system to factory setting. 【System update】 You can update and maintain the system when there is system software need to be updated. There are two ways: local update and cloud update. Local update: Copy the update file to U disk or Micro SD card, then insert U disk or Micro SD card, Press update button and then press button...
  • Page 14 Network Phone Camera User Manual Picture 4.4 Video retrieval 【Fast retrieval】 Enter the video playback interface, you can search system video file of the day after press search button directly. If there is no video, it will show “no video file found”. Picture 4.5 Video retrieval 【Accurate retrieval】...
  • Page 15 Network Phone Camera User Manual Picture 4.6 Video retrieval 【Play】 During play state, press left-right buttons to finish fast forward and rewind operation and press up-down buttons to switch different video files. Press the button to stop playing. Press right key for single-frame playing during stop-playing state. Press button adjust the volume.
  • Page 16 Network Phone Camera User Manual 【IP】 Set system IP address, you can automatically or manually set the IP address. Through automatically set the IP address, system will automatic access to IP by DHCP; Through manually set the IP address, you can manually set the IP address(system will automatically determine the network segment of IP address, you only need manually set the last one of IP address.
  • Page 17 Network Phone Camera User Manual Picture 4.9 Alarm setup 【Send e-mail】 When there is alarm or alarm linkage of capture images, you can send specific alarm information or capture images to given e-mail address Picture 4.10 Email alarm 【Motion detection】 This option is turned on and when the system detects the mobile signal that reached a preset sensitivity by analyzing the video image, motion detection alarm will be booted...
  • Page 18 Network Phone Camera User Manual 4.7 Recording setup Set different record modes, you can click [main menu]> [record] to enter the record setup interface. You can set three record modes: manual,alarm and timed. The record LED indicator will blink during record state. 【Manual】...
  • Page 19 Network Phone Camera User Manual 【Timed】 You can set the record time, system will automatically enter record state during this time. Picture 4.12 Record setup（3） 5 Remote monitor and video call 5.1 Remote monitor You need correctly connect to the network before remote monitor. For network setup, please see 4.5 【Main menu】>【network setup】...
  • Page 20 Network Phone Camera User Manual you can make remote monitor to this Skypecam after enter correct digital passwords; If the remote monitor fails, please check whether the network of mobile device is normal. 5.2 Video call Video call between two devices Dial among WAN network: After Skypecam connecting to internet normally, the icon of standby abnormal network connection will disappear, the Skypecam is online state, then you can make video calls after dial the 3C ID of the other device.
  • Page 21 Network Phone Camera User Manual Dial among LAN network: If two devices in same LAN,you can make video calls after dial the last numbers of the IP address. Example: the IP address of device A or device B in LAN is: 192.168.1.10 and 192.168.1.11, device A can dial “11”...

  • Page 22: Faq And Maintenance

    Network Phone Camera User Manual 6 Wireless learning code 6.1 Wireless detector learn code to match the Skypecam In order to trigger the alarm, all the wireless detectors must learn code to match the Skypecam. The specific operation as follows: First press device learning button, when the red lamp of two-color LED lights up, then trigger the wireless detector that need to be matched to transmit a signal, if the red lamp of two-color LED flashes which indicates learning is success, after the learning succeed, when the wireles detector is triggered then the red lamp of two-color LED will be lighted up.
  • Page 23 Network Phone Camera User Manual 1.The input voltage is not stable or too low 2.The power of switch power supply is low. 3.Frontal video signal is not stable 4.Bad heat radiator or too much dust or bad running circumstance of the Skypecam. 5.The hareware of the Skypecam is damaged.
  • Page 24 Network Phone Camera User Manual 1.It is not an active tone arm. 2.It is not an active sound box. 3.The audio lines are damaged. 4.The hardware of the Skypecam is damaged. The time is wrong. Possible reasons are as follows: 1.Setting is wrong.
  • Page 25 Network Phone Camera User Manual 7.2 Maintenance Please use the Skypecam in dry environment so that the Skypecam can work long-term and stably. The damp dust in the circuit board will cause short-circuit which will interferes the Skypecam normal running or damages the Skypecam. Please keep the grounding well done to prevent the video or audio signal interfered and the Skypecam from static or inductive electricity.
