Summary of Contents for ikitchening YKZ-5D

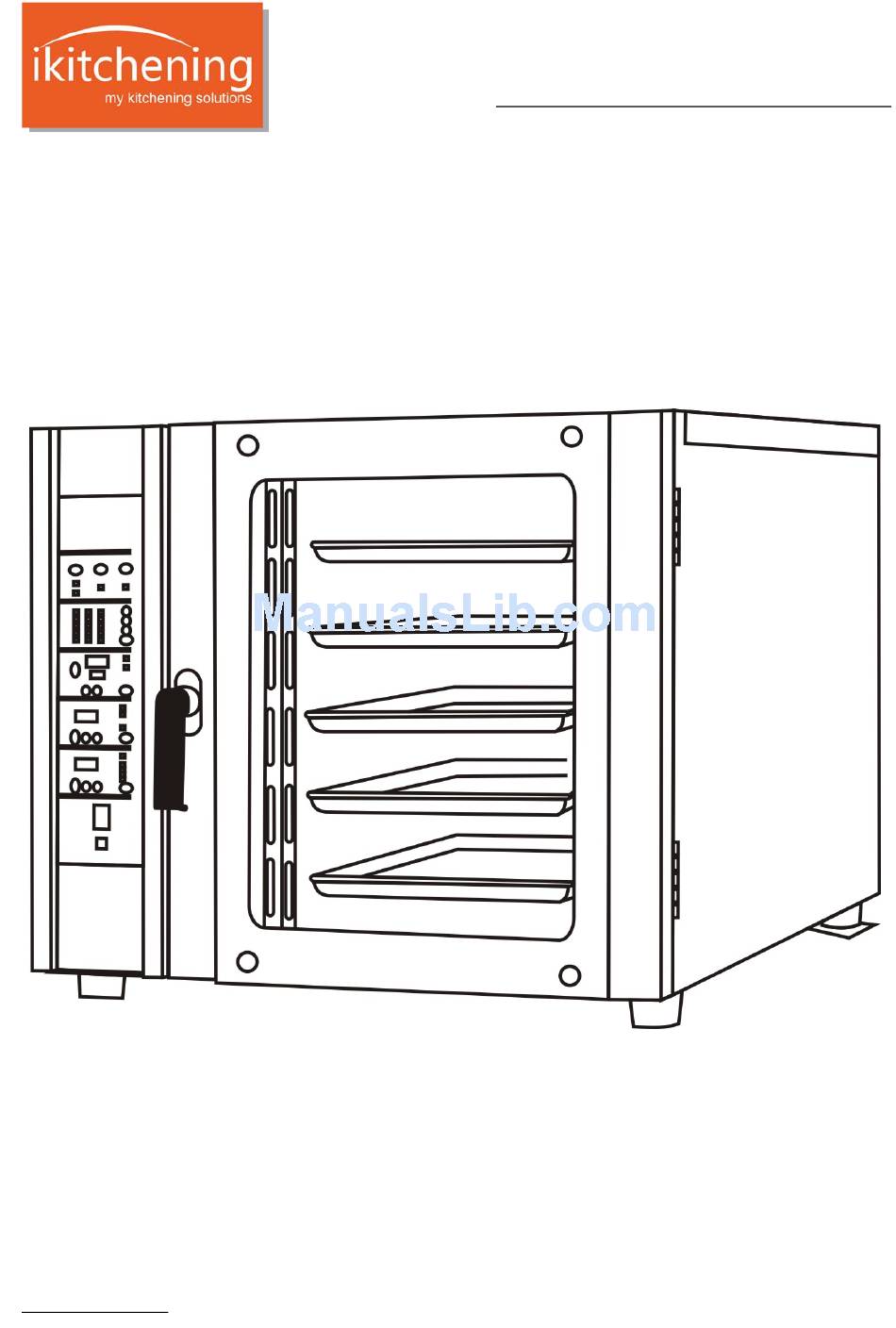

- Page 1 CONVECTION OVEN YKZ-5D USER’S MANUAL ELECTRIC POWERED CONVECTION OVEN USER’S MANUAL READ THIS MANUAL CAREFULLY BEFORE USING By Ikitchening Food Machinery Released date: Dec. 2012 CONVECTION OVEN www.ikitchening.com YKZ-5D 1 of 11...
- Page 2 CONVECTION OVEN YKZ-5D USER’S MANUAL Oven Control: “power” key：ON/OFF power，press start power，press again close power。 light” key：ON/OFF light ，press start light，press again close 。 Temperature “plus” key ， “minus” key： ”plus” or “minus” temperature parameter when setting temperature ， left 、middle、right set the hundred 、ten 、unite of temperature parameter in separated .
- Page 3 CONVECTION OVEN YKZ-5D USER’S MANUAL choose to parameter ： Backing count time stop press memory“up/down”key， can choose 0~10 team had stored parameter， among 0 team is hand working；1~10team are stored parameter of procedures control。 Stored parameter： Working count time stop as press (long time) stored “down” and stored “up” key several seconds，enter set parameter ，...
- Page 4 CONVECTION OVEN YKZ-5D USER’S MANUAL Show Content Range Basic Value Remarks 100～400 ℃ "Id.01 300" set temperature upper limit -30～30 ℃ "Id.02 00" temperature connect value 0～99 ℃ "Id.03 00" upper limit deviation temperature 0:no using 0～99 ℃ "Id.04 30"...
- Page 5 CONVECTION OVEN YKZ-5D USER’S MANUAL Alarm ways 1. Temperature cut down line 2. Excess temperature 3. Temperature above upper limit deviation 4. Count time reach, alarm 60 seconds Function and feature The product is used for backing cake ,bread and so on 。...
- Page 6 CONVECTION OVEN YKZ-5D USER’S MANUAL 3. Thermostat is observed and controlled by temperature through thermocouple, therefore usually should be careful in the operation or the cleaning up process, do not hit or curving; otherwise it will be losing warming ability.
- Page 7 CONVECTION OVEN YKZ-5D USER’S MANUAL Maintain and clean 1. After finish the work, please turn off all switches. 2. Inspects the power line frequently, appears bursts or the aging, should replace promptly. 3. Inspects whether the water is normal frequently.
- Page 8 CONVECTION OVEN YKZ-5D USER’S MANUAL CONVECTION OVEN www.ikitchening.com YKZ-5D 8 of 11...
- Page 9 CONVECTION OVEN YKZ-5D USER’S MANUAL CONVECTION OVEN www.ikitchening.com YKZ-5D 9 of 11...
- Page 10 CONVECTION OVEN YKZ-5D USER’S MANUAL 1、power switch ON/OFF press key（press one time“ON”，press again“OFF”， 2、lighting switch ON/OFF press （press one time“ON”，press again“OFF”） 3、temperature plus minus key（left）hundred ， （middle）ten ， （right）unite ， 4、steam plus minus key 5、steam switch 6、timing heating plus minus key 7、timer switch...
- Page 11 CONVECTION OVEN YKZ-5D USER’S MANUAL YKZ-5D Wiring Diagram CONVECTION OVEN www.ikitchening.com YKZ-5D 11 of 11...
