Do not use this equipment before reading this manual!
The Ideal Way to Control Your Warmfloor
Touch Thermostat
®

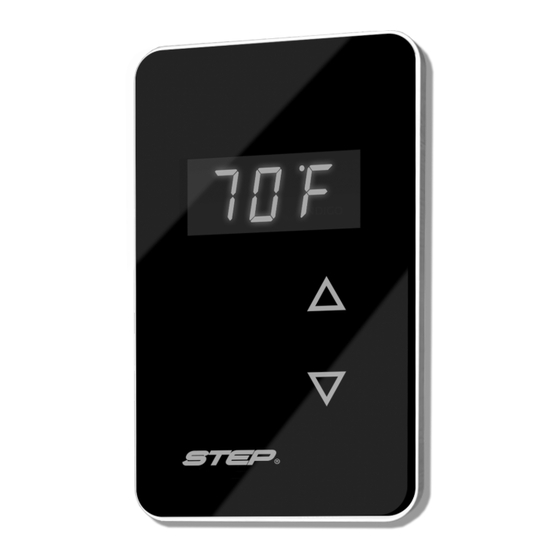

The new Step Touch thermostat from Electro Plastics is
the elegant way to control your Step Warm oor system.
Perfectly suited and designed from the ground up
to work seamlessly with all Step Systems.
Features:
•
Clean, simple two control design for ease of operation
•
Three digit auto-dimmable LED Display
•
Touch sensor controls that are maintenance free
•
Clear, totally at acrylic surface for a clean contemporary look that works
well with any decor
•
Elegant stainless steel perimeter housing
•
Displays in Fahrenheit or Celsius
•
Interfaces to an external temperature sensor
•
Works with Step Warm oor, Step Snowmelt and Step Deicing systems
•
Standard colors: black and white. Custom colors available at additional cost
•
Capable of interfacing with smart home systems
•
No batteries needed. All settings are stored in permanent memory for
instant recovery in the event of a power failure
•
Step Warm oor logo is lit when system is heating
•
Green friendly low power design
Speci cations:
Set Range: 40 º to 90 º F • 4 º to 32 º C
Internal Ambient Temp Range: 0 º to 99 º F, +/-1 º F • -9 º to 37 º C, +/-0.5 º C
External Sensor Temp Range: 0 º to 99 º F / -9 º to 37 º C
Power: 9-24 VAC/VDC @ <10mA (without external temperature sensor)
Note: This manual contains important warnings
Installation &
Operation Manual
and instructions. Please read and retain
for reference.
© 01/2014 Step Warmfloor, Inc. All rights reserved.
