Summary of Contents for Vibe TCA-D01

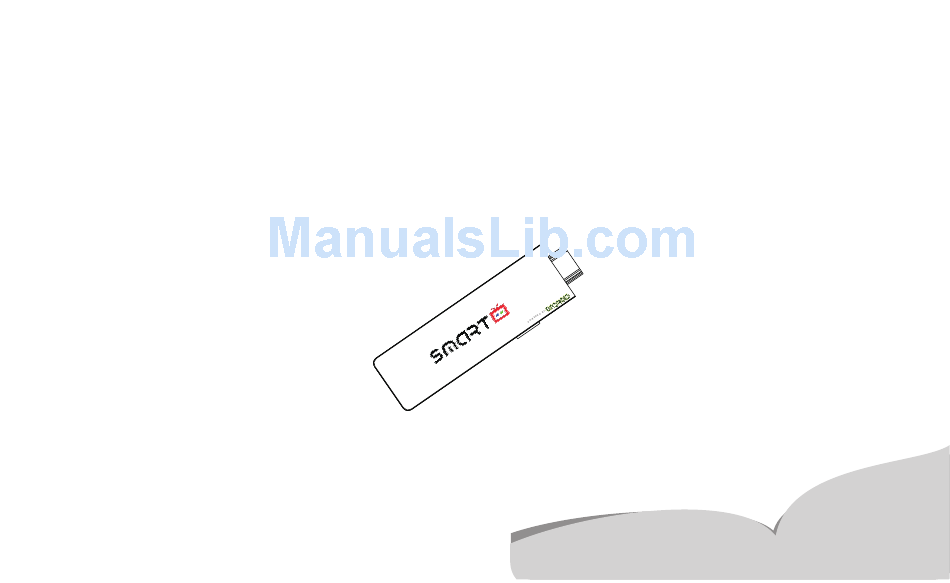

- Page 1 Android Dongle User Manual...
-
Page 2: Table Of Contents
CONTENTS SECURITY INFORMATION PACKAGE CONTENTS GETTING STARTED CONNECTING AN TV CONNECTING A MOUSE CONNECTING THE DONGLE STARTING UP THE LAUNCHER PAGE USING THE DONGLE CONNECTING WIRELESS &NETWORKS ADJUSTING THE DISPLAY RESOLUTION ADJUSTING THE VOLUME COPYING FILES INSTALL & UNINSTALL APPS TROUBLESHOOTING... -
Page 3: Security Information
SECURITY INFORMATION Before operating the unit, please read through this manual. The manual contains important security information and tutorials about the product. SAFETY WARNING PLACEMENT ● D o not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. ●... -
Page 4: Package Contents
PACKAGE CONTENTS PRODUCT & ACCESSORIES HDMI Dongle TYPE A USB(HOST) Mini USB (OTG + Host) External TF Card Slot USB POWER IN (Max 32GB) USB Supply User Manual HDMI Extended Line Line Connecting an TV 1.Insert Android dongle into TV's HDMI input interface Connect it through HDMI extended line 2.Select the TV source on "HDMI". -
Page 5: Starting Up The Launcher Page
Starting up the launcher page Connect its micro USB port to TV's USB port via USB supply line for power supply. (* ATTENTION :Make sure the USB power supply can offer 5V/500mA. If not, please use a 5V/500mA output AC adapter instead!) When the Android Dongle is powered up, the interface shows on TV screen as below:... -
Page 6: Using The Dongle
Using the Android Dongle Connecting the Wireless & Networks When the first time connecting the Wi-Fi network,choose your Wi-Fi network access point to connect the wireless, enter “SETTING” to connect the Wi-Fi network. Click on"SETTING" by mouse as below: Select and click "Wi-Fi" on "SETTING” menu interface, choose available Wi-Fi Networks. Input the password and select"Connect. -
Page 7: Adjusting The Volume
Adjust Display Resolution Select “Display-Output settings” to adjust the display resolution, and then click on the proper resolution. Adjust the Volume Click on the Volume icon by mouse to adjust the volume+/-. - Page 8 Copy files (Connect to a computer) Connect Android Dongle Mini USB port into computer USB port. Click on the section1,the new screen shoot- section 2 pops on the screen. Click on the section 2 to display the information as below: Click the icon to “turn on USB storage”, and copy files from the computer to the Android Dongle.
-
Page 9: Install & Uninstall Apps
Install & uninstall Apps. Install Apps： Click on the top right icon to display the installed Apps. Select "Play store" to install Apps. If you are the first time to use Play store, the system will guide you to creat/sign in the Google account. - Page 10 Uninstall the Apps： Enter “SETTING” interface, and select “Apps”, all the downloaded & installed apps will display on the screen, click on the files you needs to uninstall,the file will be uninstalled accordingly.
-
Page 11: Troubleshooting
Troubleshooting: LED no display, check AC power cord connections. The LED indicator is lights up but the TV no display or the launcher page cannot be display, check HDMI connections, and make sure the TV source is switch on HDMI. The mouse is connected to the device but no display on the TV screen, check mouse connections again, if 2.4G wireless mouse be used, make sure replace batteries with the poles(+/-) in the right direction. - Page 12 The specification and software version involved in this manual is for reference only. Change will not be announced.
