LIBRATONE Live Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

1

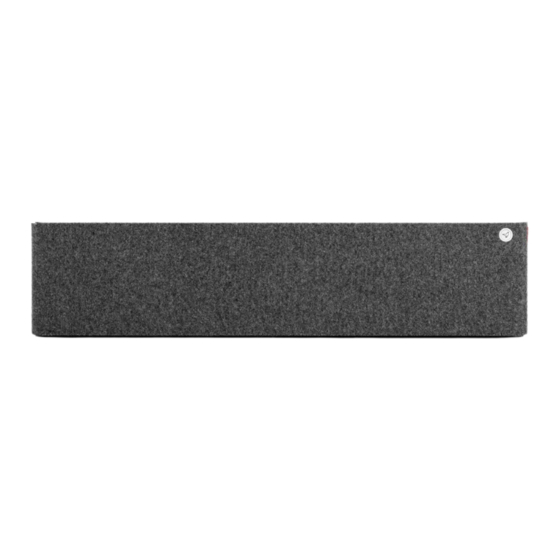

Libratone Live
Lounge
owner's manuaL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Live and is the answer not in the manual?

Questions and answers

Related Manuals for LIBRATONE Live

Summary of Contents for LIBRATONE Live

  • Page 1 Libratone Live Lounge owner’s manuaL...
  • Page 2 You. Libratone app Factory reset we have done everything in our power to make your Libratone sound system as simple and user Connect auX friendly as possible. Hopefully this manual will answer any questions you might have.
  • Page 3 360° sound experience. Libratone PlayDirect™ is airPlay to go. it allows you to stream your music wirelessly in non-wi-Fi areas from PC/mac or your ios devices: iPad, iPhone or iPod touch. Libratone PlayDirect™...
  • Page 4 Libratone Live in a corner but it’s up to you.

  • Page 5: Button Functions

    white Breathing button FunCtions status inDiCator i’m oK - Just sleeping white Sequence i’m oK - ready for PlayDirect and in setup mode white Solid i’m playing (airPlay, PlayDirect, DLna or auX) press YeLLow Pulse mute or wake me up booting - updating DoubLe press reD Pulse...

  • Page 6: Libratone App

    Libratone aPP Put your sPeaKer in setuP moDe • Download the “Libratone” app from apple’s app store. • Turn on your speaker and wait 30 sec. while the “Logo button” is pulsing yeLLow. • When the “Logo button” emits the wHite setup sequence, it’s ready for setup.
  • Page 7 FinD your sPeaKer setuP your Libratone Live or Lounge • Open “settings” and press “wi-fi” connections on your iPhone. • Open “Libratone” app, “select speaker” and press “setup”. • Choose the “Libratone” network. • Type in: speaker name. • Press “wi-fi network”, select your home home wi-fi network and enter password (if needed).
  • Page 8 “Logo button” is breathing wHite you’re alright! and you’re ready for airPlay. • Choose your home wi-fi network. If it emits the WHITE setup sequence or pulsing RED, go to page 11 and start over Your iPhone may do this automatically. or visit: www.libratone.com/help for support.
  • Page 9 Logo button set your musiC Free musiC on tHe go - PLayDireCt • Select “Music” on your iPhone, iPad or iPod touch. • Turn on your speaker and wait 30 sec. while the “Logo button” is pulsing yeLLow. • Press “airplay” icon. •...
  • Page 10 Free • Open “settings” and press “wi-fi” connections on your iPhone. • Select “Music” on your iPhone, iPad or iPod touch. • Choose the “Libratone” network. • Press “airplay” icon. • Choose your speaker. • Press “play” and set your music free.
  • Page 11 Logo button Put your sPeaKer in setuP moDe FinD your Libratone sPeaKer networK • Turn on your speaker and wait 30 sec. while the “Logo button” is pulsing yeLLow. Make sure your home Wi-Fi is up and running and within range of both your speaker and Mac.
  • Page 12 enter your sPeaKer setuP Page setuP your sPeaKer • Open “safari” on your mac. • Type in: speaker name, your home wi-fi network and password (if needed). • Type 192.168.1.1 in the browser and press “enter”. • Click “apply settings” Your speaker will now reboot.
  • Page 13 “Logo button” is breathing wHite you’re alright! and you’re ready for airPlay. • Choose your home wi-fi network. If it emits the WHITE setup sequence or pulsing RED, go to page 20 and start over or visit: Your Mac may do this automatically. www.libratone.com/help for support.
  • Page 14 Free DLna • Open “itunes” on your mac/PC. built-in DLna technology allows you to stream music to your Libratone speaker from most devices • Click “airplay” icon and choose your speaker. using android, windows 7 or windows 8.
  • Page 15 PC is almost the same as setting up airPlay on mac. Follow the same steps as to setup airPlay on mac but be aware that network selection is located differently on mac and PC. If you need a full AirPlay setup guide for PC go to www.libratone.com/manual...

  • Page 16: Factory Reset

    FaCtory reset Oh, by the way - in our world wireless always to clear all speaker settings on your Libratone speaker you need to perform a factory reset. trumps wires. This means that your wireless • Hold “Logo button” while powering up the speaker.

  • Page 17: Troubleshooting

    CLeaning troubLesHooting your Libratone product is covered in fine italian wool, so please don’t use it as a coffee table. our hearts and souls are in your Libratone speaker. However, if it’s acting up and you can’t you can use a lint roller to remove lint from the fabric or vacuum at very low power with a find your answer here, please visit our support page at: special textile brush/head.
  • Page 18 H: 23 cm / 9 in. w: 100 cm / 39.4 in. trademarks of apple inc., registered in the u.s. and other countries. 2x25w midrange, 2x25w tweeter. D: 11 cm / 4.3 in. weight: 12 kg / 26.5 lb Libratone and Fullroom are registered trademarks of Libratone a/s.
  • Page 19 Liberty Libratone Different speLLing. saMe Meaning.

This manual is also suitable for:

Lounge
