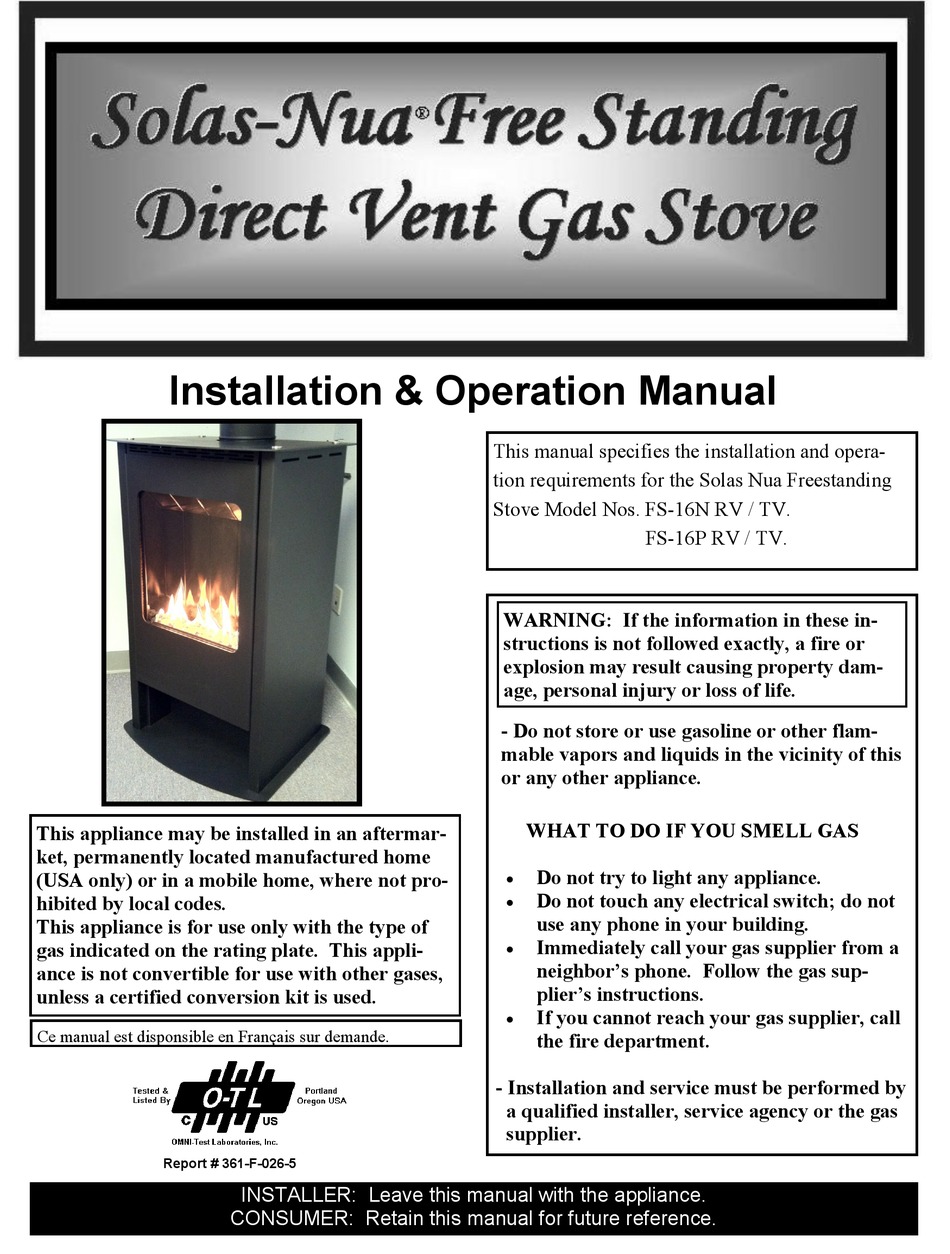

Installation & Operation Manual

This appliance may be installed in an aftermar-

ket, permanently located manufactured home

(USA only) or in a mobile home, where not pro-

hibited by local codes.

This appliance is for use only with the type of

gas indicated on the rating plate. This appli-

ance is not convertible for use with other gases,

unless a certified conversion kit is used.

Ce manual est disponsible en Français sur demande.

Report # 361-F-026-5

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

This manual specifies the installation and opera-

tion requirements for the Solas Nua Freestanding

Stove Model Nos. FS-16N RV / TV.

FS-16P RV / TV.

WARNING: If the information in these in-

structions is not followed exactly, a fire or

explosion may result causing property dam-

age, personal injury or loss of life.

- Do not store or use gasoline or other flam-

mable vapors and liquids in the vicinity of this

or any other appliance.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.



Do not touch any electrical switch; do not



use any phone in your building.

Immediately call your gas supplier from a



neighbor's phone. Follow the gas sup-

plier's instructions.

If you cannot reach your gas supplier, call



the fire department.

- Installation and service must be performed by

a qualified installer, service agency or the gas

supplier.

Table of Contents

Need help?

Do you have a question about the FS-16N RV and is the answer not in the manual?

Questions and answers

Summary of Contents for Solas-Nua FS-16N RV

Page 1 Installation & Operation Manual This manual specifies the installation and opera- tion requirements for the Solas Nua Freestanding Stove Model Nos. FS-16N RV / TV. FS-16P RV / TV. WARNING: If the information in these in- structions is not followed exactly, a fire or explosion may result causing property dam- age, personal injury or loss of life.
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION SPECIFICATIONS INSTALLATION REQUIREMENTS MASSACHUSETTS REQUIREMENTS VENTING ASSEMBLY & INSTALLATION GAS CONNECTION LIGHTING AND OPERATION COPRECI CONTROL SYSTEM TROUBLESHOOTING MAINTENANCE MAINTENANCE LOG FORMS REPLACEMENT PARTS LIST CONTROL SCHEMATIC INSTALLATION RECORD FORM WARRANTY INFORMATION WE STRONGLY SUGGEST THAT YOU READ THIS MANUAL THOROUGHLY BEFORE BE- GININNG THE INSTALLATION OF THE SOLAS NUA FREESTANDING DIRECT VENT GAS STOVE.
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 or the Canadian Installation Code, CAN/CGA B149. A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 or when such a standard is not applica- ble, the Standard for Manufactured Home Installations, ANSI/BCSBCS A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.
Page 4: Specifications
SPECIFICATIONS INPUT Natural Gas Propane (LP) Input Rating-Btu/hr 13,500 13,500 Min. Input-Btu/hr 7,500 7,500 Orifice-DMS GAS SUPPLY Manifold Pressure 4.8”w.c. / 1.2kPa 10.0”w.c. / 2.5kPa Min. Supply Pressure 5.5”w.c. / 1.4kPa 11.0”w.c. / 2.8kPa Max. Supply Pressure 10.0”w.c. / 2.5kPa 13.0”w.c.
Page 5: Installation Requirements
INSTALLATION REQUIREMENTS Several issues must be addressed when selecting a suitable location for your Solas Nua Freestanding Stove. The minimum clearances to combustible construction are listed below. In addition, access to the gas supply must be considered. The location of the stove will also affect the venting requirements and you must be certain the location will allow compliance with the venting requirements shown on page You must also insure that your installation provides adequate accessibility clearance for servicing and proper opera-...
Page 6: Massachusetts Requirements
INSTALLATION REQUIREMENTS The gas fireplace is shipped with a plugged 3/8” Stainless Steel Flex Connector exiting the bottom rear of the stove. The gas supply piping should have a separate gas shutoff valve and a 1/8” NPT plugged tapping upstream of the valve. The stove and its main control valve must be disconnected from the gas supply pip- ing system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
Page 7: Venting
VENTING The Solas Nua Freestaning Direct Vent Gas Stove has been tested and listed for installation with 4” X 6 ® ® 5/8” Simpson DuraVent GS/Pro Selkirk Direct-Temp , Security Secure Vent™, AmeriVent Direct™ Metal t venting components. Although you may use the pipe components Fab Direct Vent and ICC EXCELDirec (straight pipe, elbows, etc.) from any of the listed manufacturers, you may only use the vent terminations (caps) listed in the chart on page 8.
Page 8 USING THE VENTING CHARTS The location of the vent termination must meet the requirements of the current edition of ANSI Z223.1/  NFPA 54, National Fuel Gas Code or CAN B419.1, Natural Gas and Propane Installation Code and the requirements shown on page 15 of this manual. Just as with any other vented device, vertical vent rise creates draft (negative pressure) in the firebox as the exhaust gases heat up.
Page 9 NATURAL GAS VENTING CHART AIR RESTRICTOR EXHAUST RESTRICTOR 1— 6 TABS OPEN A or B NU = NOT USED NU = NOT USED VERTICAL TERMINTIONS NOT ALLOWED VERTICAL RISE IN FEET...
Page 10 LP GAS VENTING CHART AIR RESTRICTOR EXHAUST RESTRICTOR 1— 6 TABS OPEN A or B NU = NOT USED NU = NOT USED VERTICAL TERMINATIONS NOT ALLOWED VERTICAL RISE (FEET)
Page 11 VENTING CHART WORKSHEET A. FUEL TYPE: NATURAL GAS LP GAS (PROPANE) B. TOTAL VERTICAL VENT RISE (MEASURED FROM HORIZONTAL CENTERLINE OF VENT OPENING ON THE BACK OF THE STOVE FOR REAR VENT APPLICATIONS, OR FROM THE STOVE TOP FOR VERTICAL VENT AP- PLICATIONS, TO THE HORIZONTAL CENTERLINE OF THE VENT CAP (FOR HORIZONTAL VENT CAPS) OR TO THE FLANGE ON THE CAP (FOR VERTICAL CAPS): _____________ FEET C.
Page 12 VENTING CHART WORKSHEET EXAMPLES A. Fuel: Natural Gas A. Fuel: LP Gas B. Total Vertical Vent Rise: 0 feet B. Total Vertical Vent Rise: 1 feet C. Total Horiz. Vent Run (Actual): 0 feet C. Total Horizontal Vent Run (Actual): 3 feet D.
Page 13 VENT TERMINAL CLEARANCES Venting terminals shall not be recessed into a wall or siding.
Page 14: Assembly & Installation
ASSEMBLY & INSTALLATION UNPACKING AND INSTALLING THE SOLAS NUA FREESTANDING STOVE By now, you will have removed the packaging from around the Stove. Locate the box containing the mis- cellaneous components required to complete the unit. This box will contain the following items: 1) Installation and operation Manual 2) A/C Adapter 3) Vent Restrictor Kit...
Page 15 ASSEMBLY & INSTALLATION Venting Installation: The Solas Nua Freestanding Stove is shipped with a custom Simpson DuraVent GS® starter section that is specifically designed for the Solas Nua. Regardless of the venting brand you chose, you must use the starter section provided . All of the venting brands listed for use with the Solas Nua Freestanding are compatible with the starter section provided .
Page 16 ASSEMBLY & INSTALLATION 5. If the air restrictor ring is required, first GASKET determine the number of tabs that must be bent open. Before bending any tabs, align the mounting holes in the ring over the four mounting holes on the back of the stove. When selecting the tabs to bend, it is impor- TABS FACING tant to maintain the most symmetrical pattern...
Page 17 ASSEMBLY & INSTALLATION Final Firebox Assembly 1. Remove the front stove panel as shown. 2. Using a 7/16” socket or wrench loosen and remove the 3 hex retaining bolts at the top of the glass frame. 3. While holding the glass panel and glass frame along the outer edges, tip the top of the glass frame forward a few inches.
Page 18 ASSEMBLY & INSTALLATION Relief Door Installation 1. The top relief door is shipped separated from the fireplace and must be installed on the top of the fire- box at this point in the installation. Note: The relief door includes a gasket that covers the full bottom surface.
Page 19 ASSEMBLY & INSTALLATION Installing or Replacing the Batteries 1. The valve control module is powered by three “C” batteries. The battery pack is located on the right side of the fireplace and is held to a mount- BATTERY ing bracket with a hook and eye strap. Refer to PACK the adjacent illustration.
Page 20 ASSEMBLY & INSTALLATION Installing the Front Glass Panel and Frame After burner media, batteries, and relief doors been installed, the next step is to replace the front glass panel and frame. 1. Carefully pick up the glass and glass frame assembly by grasping the sides of the frame and using your thumbs and fingers to hold the glass in place within the gasket and frame.
Page 21: Gas Connection
ASSEMBLY & INSTALLATION Gas Supply Line The stove is supplied with a 3/8” Stainless Steel Flex connector exiting the bottom rear of the stove. We suggest the installation of a shut-off valve in the supply line between the wall and the connection to the stove.
Page 22: Lighting And Operation
LIGHTING AND OPERATION LIGHTING THE FIRE FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition device that automatically lights the pilot. Do not try to light the pilot by hand.
Page 23 LIGHTING AND OPERATION 11. To turn the appliance off completely, push and release the “OFF” button on either the Remote Handset or Manual Control Panel . You will hear an audible signal confirming the off setting. 12. TURN OFF GAS TO THE APPLIANCE by closing the shut-off valve on the gas supply line to the ap- pliance and call your service technician or gas supplier.
Page 24: Copreci Control System
COPRECI R-emotion CONTROL SYSTEM The R-emotion system contains: The system controls a gas fire with the follow-  A motorized valve ing functions  A pilot assembly  Automatic switch on  A control unit  Automatic switch off  A battery box or power supply ...
Page 25: Remote Control
COPRECI R-emotion CONTROL SYSTEM 1.2 Switching off. To switch off the fire, the ON / OFF button should be pressed. After the system has emitted a beep, the fire switches off. 2. Remote control. 2.1 Description. The remote control contains: LCD display Four buttons: OFF button...
Page 26 COPRECI R-emotion CONTROL SYSTEM 2.1.2 OFF button This button switches off the appliance. If it is pressed for more than 40 seconds, the configuration menu is ac- cessed. 2.1.2 Left, middle and right buttons These buttons change their function as shown by the on-screen labels. For some screens a button may have no function and is inactive.
Page 27 COPRECI R-emotion CONTROL SYSTEM...
Page 28 COPRECI R-emotion CONTROL SYSTEM 2.5 Setting the control mode. While in manual mode the flame level may be set to HIGH, MEDIUM, or LOW. There are three different modes for controlling the Automatic (Thermostatic) mode allows you to set appliance: a desired temperature to be maintained.
Page 29 COPRECI R-emotion CONTROL SYSTEM 2.6 Day programming menu (Menu Adjust Menu Change Program). There are 8 menus like this. One for Daily, and the others for each day (Monday, Tuesday, Wednesday, Thurs- day, Friday, Saturday and Sunday). This day programming screen consists of: Daily program.
Page 30 COPRECI R-emotion CONTROL SYSTEM 2.8. Configuration Menu To acess the configuration menu, press the OFF button on the remote control for 40 seconds. During this time the screen may go blank, this is normal. After 40 seconds, the Configuration menu appears. This is a list of the settings that can be changed in the configuration menu: Pairing: This feature establishes communication between the remote and the fire- place.
Page 31 COPRECI R-emotion CONTROL SYSTEM Programming: this option enables or disables the program mode. To enable it, select Yes. To disable it, select Fan System: Not applicable on this appliance always set to NO. Soft Start: Should always remain in “ON” setting. Ember bed: Not applicable on this appliance always set to NO.
Page 32: Troubleshooting
TROUBLESHOOTING...
Page 33: Maintenance
MAINTENANCE A qualified service agency should conduct an annual inspection and maintenance of your Solas Nua Free- standing Stove, including the overall installation and venting to keep it running safely. The following pro- cedures should be performed only by a qualified service person. The gas supply should be turned off and the stove should be completely cool whenever a maintenance procedure is performed.
Page 34 MAINTENANCE Inspecting the Venting An inspection of both the inner and outer vent pipes and the vent terminal should be made as part of the an- nual service appointment. The venting must have no blockage and be in good repair. The vent manufac- turer’s instructions may provide specific details on vent inspection.
Page 35: Maintenance Log Forms
MAINTENANCE LOG We strongly recommend that you keep a log of the regular maintenance that is performed on your stove. We have provided the forms below to make it easy. Simply ask your qualified service person to fill out one of the maintenance record forms below, each time the stove is serviced. This will help insure that all of the required maintenance procedures have been completed, at least annually.
Page 37: Control Schematic
CONTROL SCHEMATIC Caution: Label all wires prior Pilot to disconnection when servicing the controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. Caution: Label all wires prior to disconnection when servicing the controls. Wiring errors can cause improper and dangerous operation.
Page 38: Installation Record Form
INSTALLATION RECORD The installer should complete the form below that describes the details of the installation. Having this writ- ten record of installation information available will greatly expedite trouble-shooting should any problem arise with your stove. The installer should keep a duplicate of this form for their records.
Page 39: Warranty Information
4 Technology Drive Suite 5 West Lebanon, NH 03784 Telephone: 603-298-5169 Fax: 603-298-9246 Sales@hearthinnovations.com...
Page 40 Manufactured by: Progressive Manufacturing Inc. 4 Technology Drive Suite 5 West Lebanon, NH 03784 www.hearthinnovations.com V1 / 01.2013...
