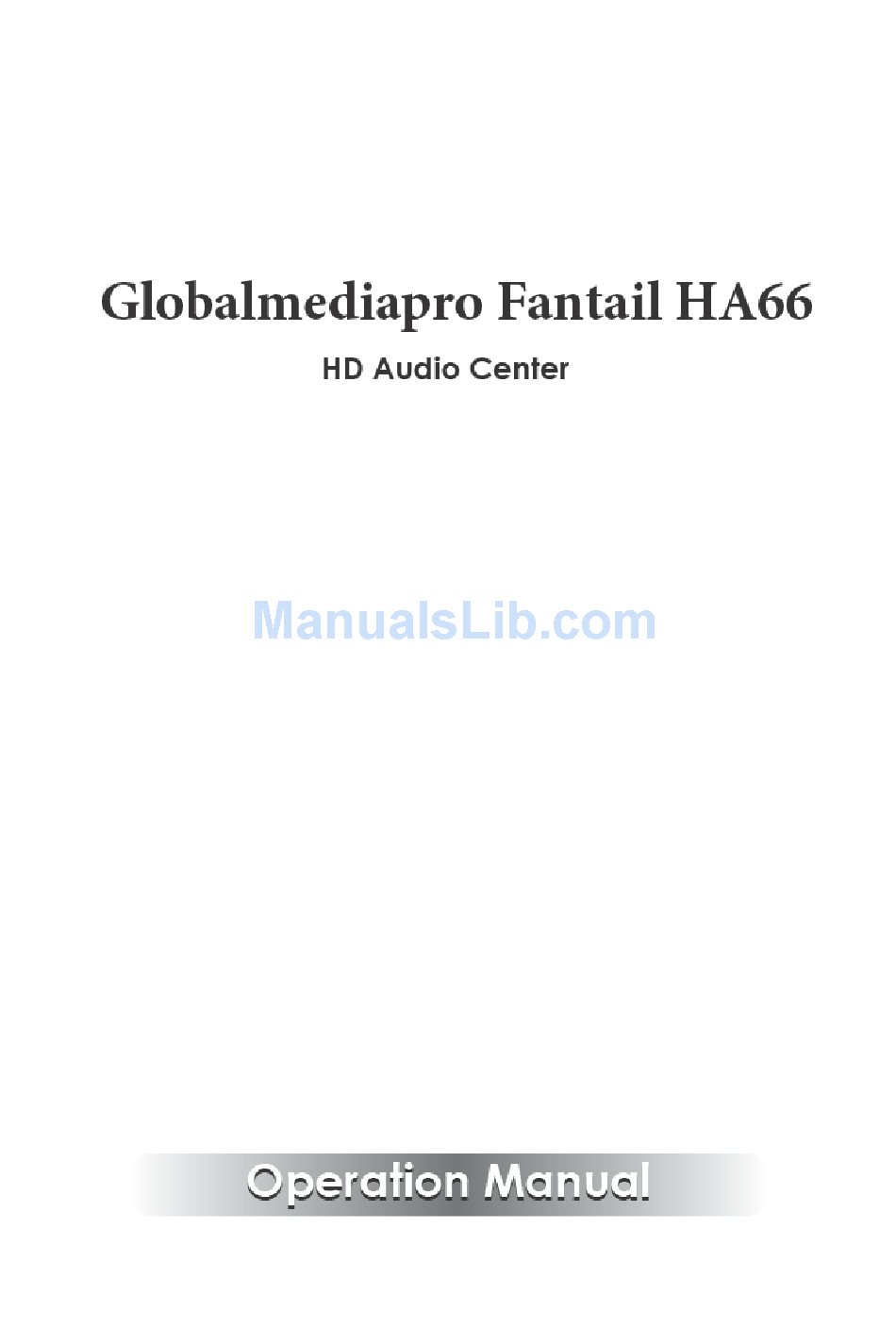

Globalmediapro Fantail HA66 Operation Manual

Hd audio center
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fantail HA66 and is the answer not in the manual?

Questions and answers

Summary of Contents for Globalmediapro Fantail HA66

  • Page 2: Table Of Contents

    cONteNts 1. introduction ..........1 2. applications ........... 1 3. package contents ........ 1 4. system requirements ......2 5. features ..........2 6. Operation controls and functions ..4 6.1 Front Panel ........4 6.2 Rear Panel .........5 6.3 Top Panel ..........6 6.4 Remote Control ........6 6.5 OLED Menu ........7 7.

  • Page 3: Introduction

    1. iNtrODuctiON The HD Audio Center is designed to allow multiple audio sources to be controlled, switched and output to a variety of audio equipment. With its 6 audio inputs (including an HDMI input) and 6 audio outputs (including a 6.3mm headphone output) you can integrate and convert any digital or analog audio source to any type of amplifier or active speakers.

  • Page 4: System Requirements

    4. systeM requireMeNts Input source equipment such as PC (USB) or DVD player with relevant connection cables and output to amplifier, active speakers or headphones 5. features Main • 6 Input, 6 Output HD Audio Center • 4 Digital Inputs, 2 Analog Inputs •...
  • Page 5 Misc • IR Remote with direct source, power and mute buttons • HDMI audio embedding or de-embedding • Volume control of analog and headphone outputs or just headphone output via remote or main control dial • Direct power and mute button on unit •...

  • Page 9: Oled Menu

    6.5 OleD Menu 1st layer full NaMe 2ND layer source in hDMi in Source Selection usB in Optical in coaxial in line in (l/r in) front in return src set Bypass Sampling Rate Conversion Setup 192 khz 176.4 khz 96 khz 88.2 khz 48 khz 44.1 khz...

  • Page 11: Specifications

    8. specificatiONs input ports 1×HDMI, 1×USB (Type B), 1×Coaxial, 1×Optical, 1×L/R (Analog Stereo 2RCA), 1×3.5mm Phone Jack (L/R) Output ports 1×HDMI, 1×Coaxial, 1×Optical, 1×L/R (Analog Stereo 2RCA), 1×XLR (Balanced Analog Stereo), 1×6.3mm Phone Jack (Headphone) Digital audio i/O support LPCM 2CH stereo audio i/O level 2 Vrms ±0.2 Xlr Blanced i/O level...
