SM International MIRO’ 15 User Manual

Led zoom head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

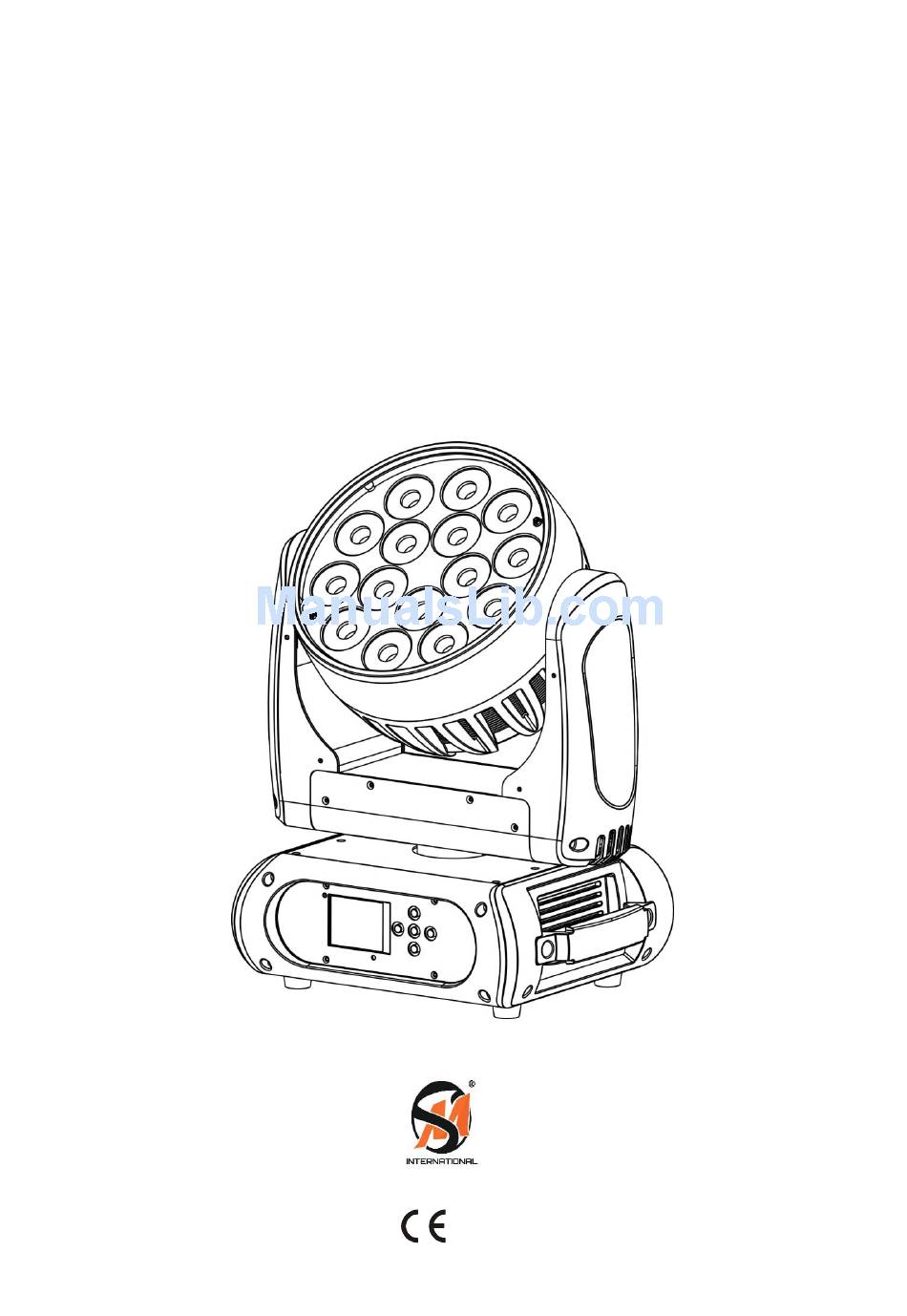

LED ZOOM HEAD
USERS GUIDE
MIRO' 15
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIRO’ 15 and is the answer not in the manual?

Questions and answers

Related Manuals for SM International MIRO’ 15

Summary of Contents for SM International MIRO’ 15

  • Page 1 LED ZOOM HEAD USERS GUIDE MIRO’ 15...

  • Page 2: Product Introduction

    1. Product Introduction: 1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the box: -The fixture -This users guide -3m DMX cable -1.5m power cable with powercon -Omega bracket for hanging installation -Safety chain 1.2 Specification Source...

  • Page 3: Safety And Maintenance Information

     Hibernation when lost DMX for preset time  Indicate temperature info of base, arm and lamp  Fan speed auto change according to temperature  Heat pipe for cooling Display  2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu ...
  • Page 4 Before operate this unit, please carefully read this users guide and keep if needed in future. It’s necessary to respect following rules. The disposal of the device after lifecycle could damage the environment, need to take it to special company for recycling or return to authorized dealer. The products referred to in this manual conform to the European Community Directives and are therefore marked with CE logo.

  • Page 5: Installation

    Device not power up Powercon or power cable damaged Change a good power cable to try Faulty power supply Replace new power supply Pan/Tilt error or vibrate Faulty Pan/Tilt PCB Replace PT001 PCB Faulty opto sensor Replace opto sensor OP001 Cable loosen Check the cable connect to OP001 LED off...

  • Page 6: Control Menu

    Step one: Installation the clamp onto the omega bracket; Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks; Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or other fixing point at a suitable position that drop down distance not exceed 20 cm.
  • Page 7 2U01 V1.0.00 Reset Reset all Pan&Tilt Reset Pan&Tilt Others Reset Others Movment Pan Reverse① ON/OFF Pan Reverse Tilt Reverse① ON/OFF Tilt Reverse Pan Degree① 630/540 Choose Pan Degree Encoders① ON/OFF Encoder wheel on/off Pan/Tilt Mode① Stand/Smooth Choose pan/tilt mode Mic Sens. ③ UI Set 0~99%,60% Sensitivity of Mic...
  • Page 8 =xxx Edit Scenes② Edit Scene 001 Pan,Tilt,…… Input manual scene ~ Edit Scene --Fade Time-- =xxx Modify manually fading --Secne Time-- time =xxx DMX Input Modify manually scene time Input scene from exterior controller Scenes Record ScXX=>ScXX Auto Input scenes 5.
  • Page 9 Channel name function Min DMX 8bit 16bit Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movment fastest to Slowest Speed Normal Movment Movement With Backout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions Close...
  • Page 10 On Function CTC Function Forward Spin Reverse Spin Virtual Color Function Continuous Color Bounce LED Segments CTC Function Colour Temperature Correction 2000K->2700K White 3200K White 4200K White 5600K White 8000K Forward Spin Rainbow Effect (Slow->Fast) Reverse Spin Rainbow Effect (Slow->Fast) Continuous &...
  • Page 11 For Dimmer Red 0->100% Red-All LED Segments LED_B Virtual Color For Dimmer Green 0->100% Green-All LED Segments LED_C Virtual Color For Dimmer Blue 0->100% Blue-All LED Segments LED_D Virtual Color For Dimmer White 0->100% White-All LED Segments LED_E Virtual Color LED-A Color LED_A Virtual Color LED-B Color...

  • Page 12: Unique Features

    Other Reset Display Off Display On Hibernation 6. Unique Features 6.1 RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed.
  • Page 13 Power consumption 280W 15pcs OSRAM 15W 4in1 leds DMX channels 15/38/14/16 modes Beam angle 10° to 60° Luminous flux 5500lumen, 27400lux@2m at 10°, 1500lux@2m at 60° Fuse T 3.15 A, 250 V Device dimensions 344x250x445mm Net Weight 11KG...
