METASONIX S-2000 Owner's Instructions

S-2000 owner instructions

Table of Contents

Need help?

Do you have a question about the S-2000 and is the answer not in the manual?

Page 2 VENTILATION AND COOLING: The S-2000 normally operates warm to the touch. It MUST be situated so that its location or position does not interfere with convective cooling. The S-2000 MUST NOT be used on a bed, sofa rug or similar surface which may prevent proper cooling. It is NOT a toy. If the S-2000 is mounted in a rack or other built-in installation, space must be left around it to allow convection from the case.

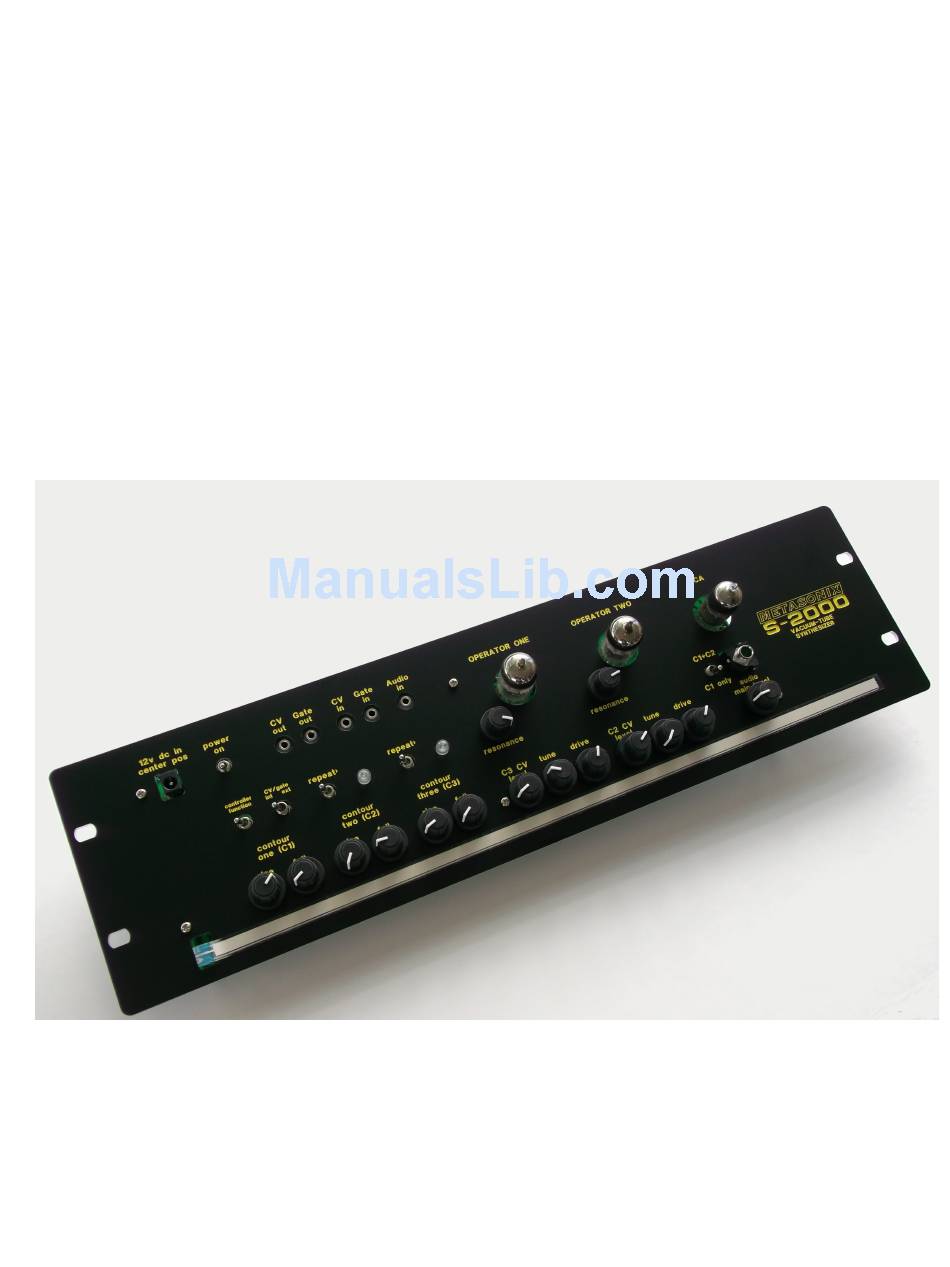

Page 3 Controls and interfaces: The S-2000 panel is divided roughly in half, with the CV controls on the left and the audio path controls on the right. First we start with the audio section. OPERATOR ONE OPERATOR TWO Tubes!>...
Page 4 Plug in the AC power adapter. The one included (if any) is a “universal” type, and will just need added plug adapters to allow its use anywhere on earth. The power inlet for the S-2000 is a 2.1mm coaxial jack, center positive. The S-2000 needs 12 volts DC (not AC!), as clean as possible, at 1.5 amps for initial power-up, and 600 mA thereafter.
Page 5 There are a few changes that are possible, but we normally do not recommend them. (text is copyright 2013 Metasonix. All rights reserved. It is a violation of federal law to reproduce, reuse or duplicate this publication without the express written permission of Metasonix or its assigned representative. Oh, you want to FIX...
