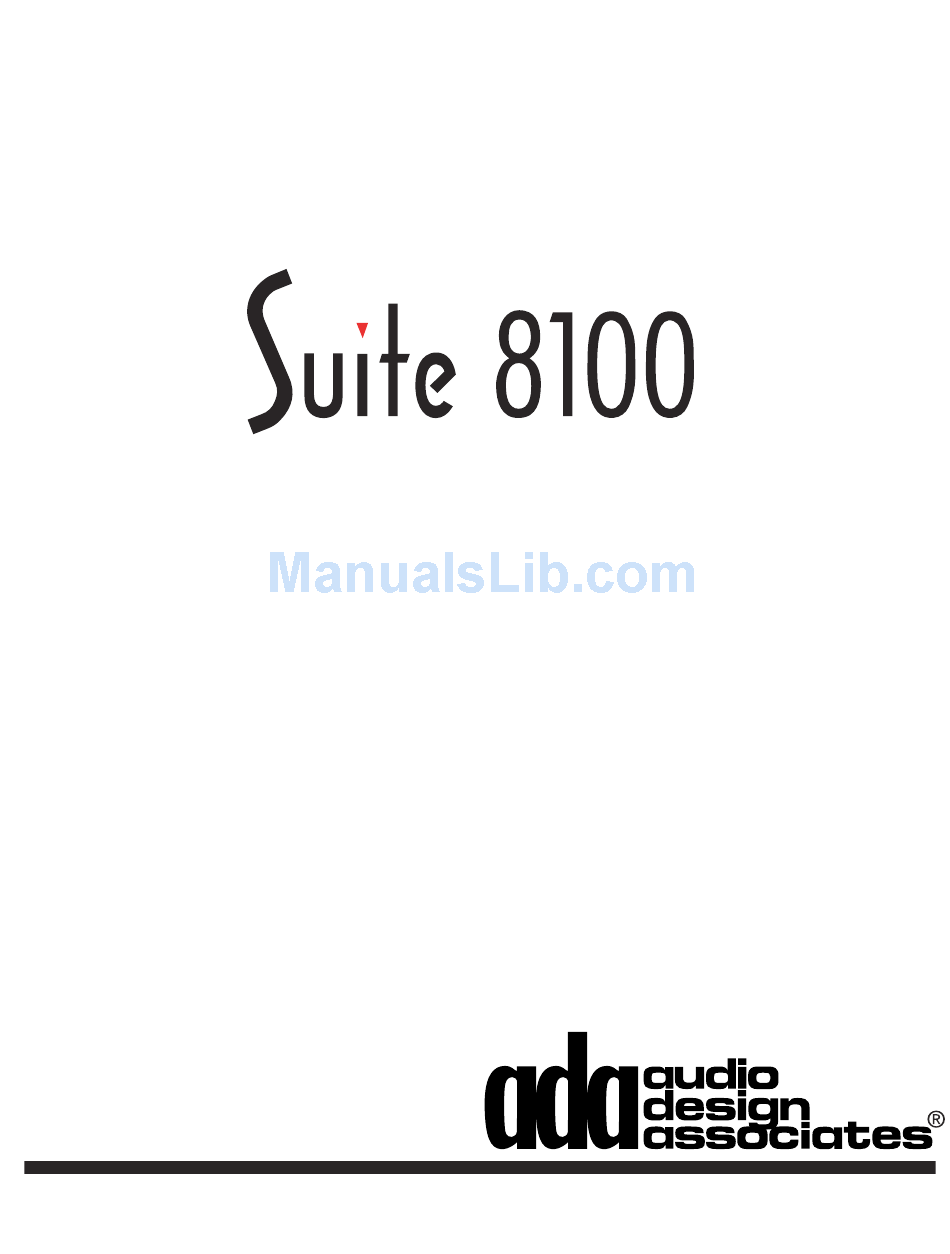

Ada Suite 8100 Installation Manual

Ada suite 8100 multi-room a/v receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M
-R
ULTI
OOM
A/V R
ECEIVER
A
20, 2006 R
PRIL
ELEASE
I
NSTALLATION
M
ANUAL
602-610 Mamaroneck Avenue, White Plains, NY, 10605, www.ada-usa.com, 1-800-HD-AUDIO, Fax (914) 946-9620

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Suite 8100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ada Suite 8100

Summary of Contents for Ada Suite 8100

  • Page 1 ULTI A/V R ECEIVER 20, 2006 R PRIL ELEASE NSTALLATION ANUAL 602-610 Mamaroneck Avenue, White Plains, NY, 10605, www.ada-usa.com, 1-800-HD-AUDIO, Fax (914) 946-9620...

  • Page 2: Table Of Contents

    ONNECTIONS ............7 ONTROL UITE ONNECTIONS WH-2000 & IRL-5000 C .......... 8 ONNECTIONS ACC-48 S ............9 OURCE RACKING ADA B 15’ ........10 AXIMUM ISTANCE ADA B ......... 11 AKING ................. 12 EYPAD IRING IR L & F ........13...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRI- READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliances are operated. CAL SHOCK, DO NOT EXPOSE THE APPLI- ANCES IN THIS SYSTEM TO RAIN OR MOIS- RETAIN INSTRUCTIONS - The operating instructions should be retained for TURE.

  • Page 4: Suite 8100 Features

    Suite 8100 using ADA’s PC Program. When using ADA Keypads in combi- nation with a control system, you may be using a Control Suite that also features an RS-232 port. If this is the case you will not need to order a Suite 8100 with a built-in RS-232 port. Room 1...

  • Page 5: I Nput C Onnections

    IRECT NTENNA UNER ONNECTIONS The Suite 8100 features an in- ternal tuner: AM/FM/WX, HD AM/FM/WX, XM Radio, or FM Roof Antenna Sirius Radio, the latter two re- (or other FM Antenna) quiring a subscription. The appropriate antenna can be Connect AM/FM/WX...
  • Page 6 NTENNA UNER ONNECTIONS For basic antenna connections, one can run the radio antenna directly into the Suite 8100’s tuner module. Please note, that in order to get both FM and AM, you will need to provide the re- FM/WX ACB-1 Ant.
  • Page 7 (8 - 2 ) (8 - 2 ) (8 - 2 ) (8 - 2 ) (8 - 2 ) (8 - 2 ) (8 - 2 ) (8 - 2 ) Page 5 Suite 8100 Manual Connections & Features...
  • Page 8 UTPUT ONNECTIONS The Suite 8100 features class-D digital amplification which is designed to run cool and remain stable to support 2 Ohm loads per zone. Each zone has a removable screw terminal connec- tor for attaching the home-run speaker cables. In order to assure the best possible sound, make certain to maintain polarity by placing + to the + lead on both the left and right speakers and - to -.
  • Page 9 ADA Bus connector included with your system. It should be plugged into the Suite 8100 and the far left ADA Bus port on the Control Suite (when looking at the back of the Control Suite). The additional ADA Bus ports can be used to connect additional ADA tuners, the iHome Multi- Center, the iBase iPod docking station, or other ADA Bus devices or components.
  • Page 10 Dealer Only button. (User Name = dealer, Password = 1867). Use the ADA Bus cable provided with your system to connect the Suite 8100 to the Loop Input on the WH-2000. Connect the IRL-5000 to any one of the three ADA Bus ports open. Re- serve the Loop Out port for future use.

  • Page 11: T Racking

    The Suite 8100 features input tracking low voltage triggers that output DC voltage when a source is in use. The rear of the Suite 8100 features a 9-pin “D” style connectors (non-RS- 232) where one pin is a common ground and then eight other pins correspond to inputs 1-8.
  • Page 12 In addition, there is an iHome Multi-Center hard drive server and Duo Tuner (addi- tional two radio tuners). Note that if all ADA Bus length were to equal 3’, the total distance of ADA Bus wire (12’) behind the rack would not exceed the suggested maximum length of 15’...
  • Page 13 ADA B AKING From time to time, it may be necessary to make ADA Bus wires to custom length. As you determine how many wires you will need, keep the wire length as short as possible and do not exceed 15 total feet. If actual ADA Bus cable is not available, use a heavy gauge speaker cable.
  • Page 14 BLUE/WHITE you have 7 good Cat. 5 wires). RJ-45 Cat. 5 Cable Connector If you need to connect additional ADA key- pads (more than 8), ADA suggests using the WH-4000 instead of the WH-2000 or the wire harness in the Control Suite. If you are using a Control Suite, order an additional WH-4000 and connect all keypads to it.
  • Page 15 REASON - When a keypad issues a transport command, the RS-232 code for the IRL is sent down the ADA Bus to the IRL so that it can then issue the source’s IR command. If repeating is on, the keypad’s command first emits through the IR flasher. If the source component’s IR receiver is slow to cool down (so that it can take the next IR command), when the IRL releases the actual command (a moment later), the source component’s IR receiver may reject it.
  • Page 16 A folder will appear on your desk top. Open it and then run the installer. Once the installation is complete, you will find a new folder named ADA in your C Drive and in it is a folder called IRL-3000.
  • Page 17 3 An Open File window will appear. Navigate to the folder containing this components IR codes and select the function you wish to test and press OK. 4 Repeat these steps for all sources and functions. Page 15 Suite 8100 Manual PC Program Setup...

  • Page 18: Multi-Room

    This is why creating the proper folder structure is so important prior to mapping IR commands. 6 Several ADA keypads feature a display that can confirm an IR based transport function by name (i.e. PLAY). In the top of the window, type in a word that describes the IR code/function.
  • Page 19 2 Double click slowly under detail and enter your delay in ms. 3 On line 3, select the next IR com- mand as previously discussed. 4 Add a label in the top window. Page 17 Suite 8100 Manual PC Program Setup...
  • Page 20 IRS file. The entire source file will now load onto this IRL port. If you already have developed an IRL library, you can repeat these steps for other sources on your IRL. Page 18 PC Program Setup Suite 8100 Manual...
  • Page 21 ADA customer file. All ADA customer files can be no more than eight characters in length and must end in “.ada”. To save a file: 1 From the File pull down window select “Save As.” 2 A Save As window will open.
  • Page 22 “Normal Mode.” When using the IRL-5000, Source 8 Source 7 Source 6 Source press the push button to the upward ADA Bus position. At this time, ADA recommends powering down the system for a few moments and then powering it back up again.
  • Page 23 Multi-room system of the Suite 8100, operate on ASCII. For those programming other systems for con- trol of the Suite 8100, the ASCII text or HEX code from the View Command win- dow can be copied and then pasted.

  • Page 24: Pc Program Setup

    Suite 8100’s Tuner Presets as well as sev- eral other features which are dependent on the type of tuner module you ordered in your Suite 8100. Once on this tab, se- lect the tuner module installed in your Suite 8100.

  • Page 25: Am/Fm/Wx Tuner

    If you wish to relabel the preset number from PR # to a four char- acter word, simply highlight the preset number and type over it. When your done, download your presets to the tuner. Page 23 Suite 8100 Manual PC Program Setup...

  • Page 26: Hd Radio Tuner

    FIPS is the weather band code and is not functional at this time. This feature can be ignored. Page 24 PC Program Setup Suite 8100 Manual...

  • Page 27: Xm Radio Tuner

    This represents numeric entry as performed by an ADA keypad. The keypad on the right permits you to enter an entire channel number prior to sending it to the tuner. This is similar to touch screen control of a tuner.

  • Page 28: Sirius Radio Tuner

    This represents numeric entry as performed by an ADA keypad. The keypad on the right permits you to enter an entire channel number prior to sending it to the tuner. This is similar to touch screen control of a tuner.

  • Page 29: Rs-232 Codes - Xm T

    RS-232 C ODES ULTI HTR 2400 MULTIROOM AUDIO SERIAL PROTOCOL V3.1 STRING START ACTION PREFIX PART 2 GLOBAL PART 3 FUNCTION CHARACTER DO (SET) FUNCTION R01 TO R08 INPUT UP INUP INPUT DOWN INDN INPUT 1 AD01 INPUT 2 AD02 INPUT 3 AD03 INPUT 4...

  • Page 30: Uner

    1 = 31h Mod 2 = 40h 2 = 32h Mod 3 = 20h 3 = 33h 4 = 34h 5 = 35h 6 = 36h 7 = 37h 8 = 38h 9 = 39h Page 28 RS-232 Codes Suite 8100 Manual...

  • Page 31: Fm/Am/Wx Tuner

    RS-232 C - FM/AM/WX T ODES UNER AM/FM/WX Hex Commands Format of Command String Start Constant Command Module 6 Characters total command module Bus Address 0 = 30h 0 = 30h 1 = 20h Bus Address 1 = 31h 1 = 31h 2 = 21h Bus Address 2 = 32h 2 = 32h...

  • Page 32: Odes

    CONTROLBYTE 0: B8h CONTROLBYTE 1: 77h CONTROLBYTE 2: 65h CONTROLBYTE 3: 60h + Output (0,1,2,3,4,5,6,7)=(Output 1-8) CONTROLBYTE 4: 80h + Address (0,1,2,3,4,5,6,7,8)=(Address 1-9) CONTROLBYTE 5: B8h Feedback: 0Fh (12 CHARACTER DATA) IDCODE1 IDCODE2 F0h Page 30 RS-232 Codes Suite 8100 Manual...
  • Page 33 FUNCTION: BUTTON SENDS TO OUTPUT CONTROLBYTE 0: B8h CONTROLBYTE 1: 77h CONTROLBYTE 2: 66h CONTROLBYTE 3: 60h + Output (0,1,2,3,4,5,6,7)=(Output 1-8) CONTROLBYTE 4: 80h + Address (0,1,2,3,4,5,6,7,8)=(Address 1-9) CONTROLBYTE 5: B8h Feedback: 0Fh (12 CHARACTER DATA) IDCODE1 IDCODE2 F0h FUNCTION: 0 BUTTON SENDS TO OUTPUT CONTROLBYTE 0: B8h CONTROLBYTE 1: 77h CONTROLBYTE 2: 67h...
  • Page 34 CONTROLBYTE 0: B8h CONTROLBYTE 1: 77h CONTROLBYTE 2: 74h CONTROLBYTE 3: 60h + Output (0,1,2,3,4,5,6,7)=(Output 1-8) CONTROLBYTE 4: 80h + Address (0,1,2,3,4,5,6,7,8)=(Address 1-9) CONTROLBYTE 5: B8h Feedback: 0Fh (12 CHARACTER DATA) IDCODE1 IDCODE2 F0h Page 32 RS-232 Codes Suite 8100 Manual...
