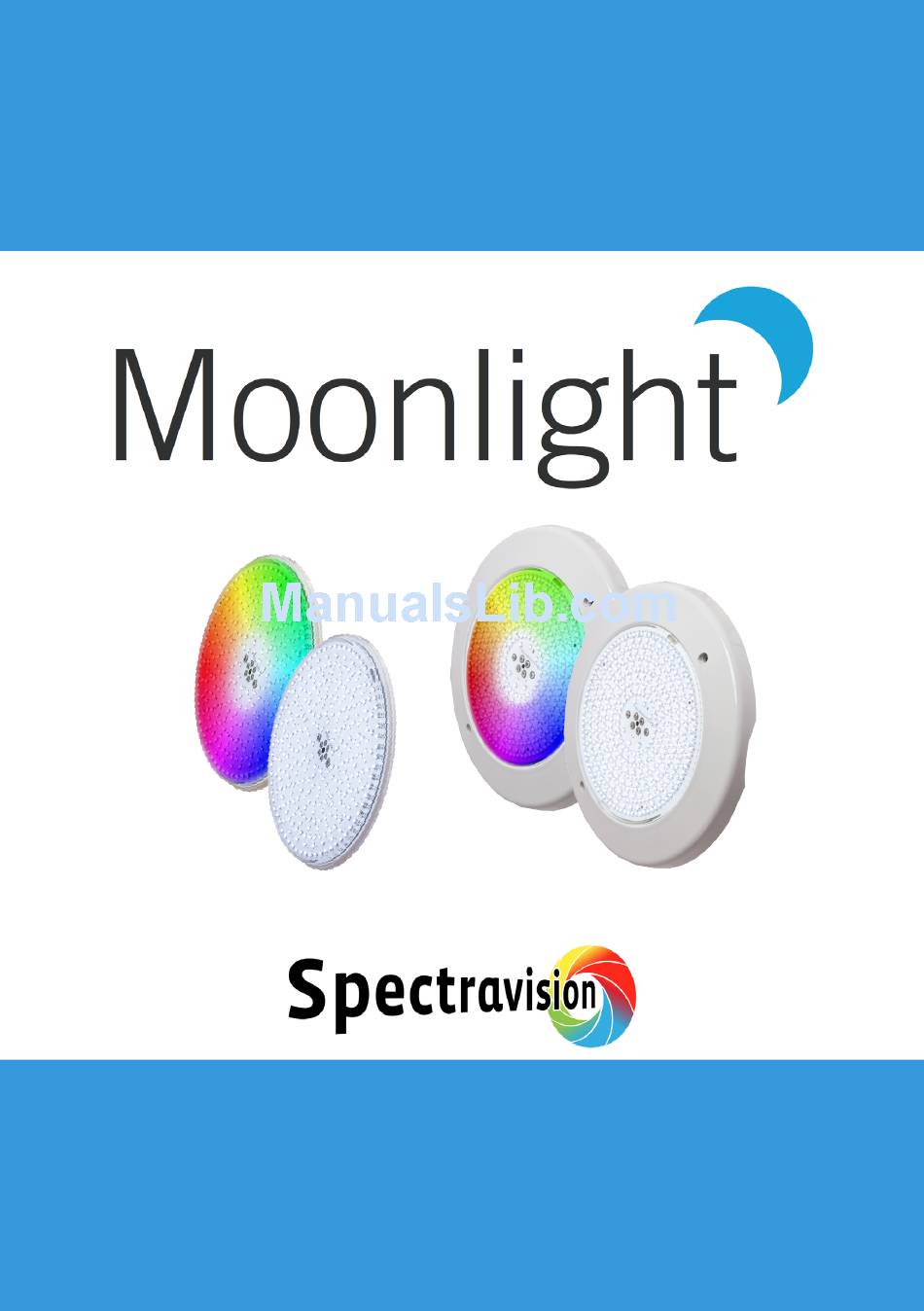

- Page 1 Ultra flat Pool & Spa LED light OWNER’S MANUAL Ultra flat shape 2 wire 12VAC ON/OFF control NoAir™ PAR56 Retrofit...
-
Page 2: Table Of Contents
Table of contents Technical & General specifications Page 3 Box contents Page 4 Installation instructions Page 5 Page 6 Retrofit with PAR56 niche 16 color programs (only for RGB lamps) Page 7 Operation Page 7 Page 8 Wiring instructions Setup 1 Wiring instructions Setup 2 Page 9 Troubleshooting... -
Page 3: Technical & General Specifications
Technical specifications Reference Description Color Light output Power Nominal CCT 575 lm n.a. PLS300 Bulb + housing 575 lm n.a. PLS300B Bulb only 1250 lm 9000K PLW300 Bulb + housing White 16 W 1250 lm 9000K PLW300B Bulb only White 16 W 1450 lm n.a. -
Page 4: Box Contents
Box contents Moonlight complete types: Moonlight Bulb only types: • PLS300 • PLS300B • PLW300 • PLW300B • PLS700 • PLS700B • PLW700 • PLW700B • PLS400B • PLW400B page 4 of 12... -
Page 5: Installation Instructions
Installation instructions No liner: Use 1 gasket With liner: Use 2 gaskets page 5 of 12... -
Page 6: Retrofit With Par56 Niche
Retrofit with PAR56 niche page 6 of 12... -
Page 7: Color Programs (Only For Rgb Lamps)
16 Color programs (only for RGB lamps) SUN WHITE warm white fixed color red GREEN fixed color green BLUE fixed color blue GREEN-BLUE fixed color green-blue RED-GREEN fixed color red-green BLUE-RED fixed color blue-red EVENING SEA slow animation red-blue EVENING RIVER slow animation red-green RIVIERA slow animation green-blue... -
Page 8: Wiring Instructions Setup 1
Wiring instructions Setup 1 Each lamp is connected to the transformer by a separate cable (Preferred for new installations) Max cable length 230VAC 12VAC 4m cable attached to lamp Separate cable (not included) Toroïdal transformer is preferred because of better efficiency MAX CABLE LENGTH BY CABLE SECTION TRANSFORMER LAMP TYPE... -
Page 9: Max Cable Length
Wiring instructions Setup 2 All lamps are connected to the transformer via 1 cable Max cable length 230VAC 12VAC JUNCTION JUNCTION 4m cable attached to lamp Separate cable (not included) Toroïdal transformer is preferred because of better efficiency MAX CABLE LENGTH BY CABLE SECTION TRANSFORMER LAMP TYPE 2,5 mm... -
Page 10: Troubleshooting
Troubleshooting PROBLEM SOLUTION The Pool light is flickering or • Check the output voltage at the or lights up faint transformer terminals. This volt- age should be between 12VAC and 13VAC. Verify that the used trans- former VA rating is sufficient for powering all connected lamps •... -
Page 11: Pls300(B)
EC Declarations of Conformity We, t he u ndersigned, Manufacturer: Propulsion S ystems b vba Address, C ity: Dooren 7 2, M erchtem B E-‐1785 Country: Belgium Declaration t he f ollowing a pparatus: ... - Page 12 Contact details Propulsion Systems bvba Dooren 72 1785 Merchtem, Belgium Tel +32 2 461 02 53 Fax +32 2 706 59 60 www.propulsionsystems.be info@propulsionsystems.be We reserve the rights to change all or part of the contents of this document without prior notice...
