S 2658 1988
AS 2658 2008
. GSCS20063
Cert. GSCS20063
SAI Global
SAI Global
AS2568:2008
4551-2008
AS 2658 2008
GSCS20131
Cert. GSCS20108
SAI - 400167
SAI Global
SAI Global
SAI Global
Australia's original Outdoor brand
AS 2658 2008
Cert. GSCS20148
SAI Global

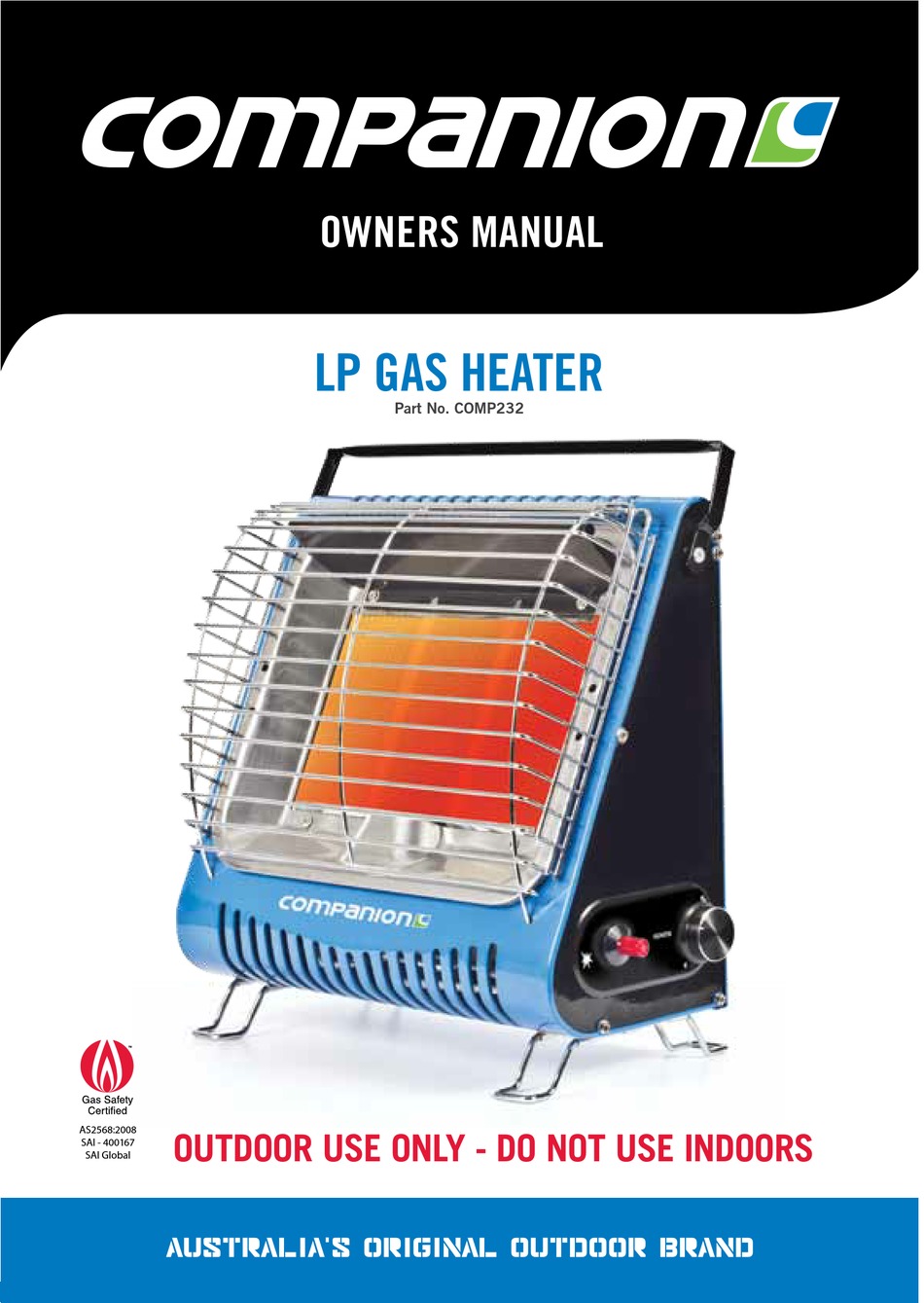

Owners Manual
lP Gas HeaTer
outdoor use only - do not use indoors
Part No. COMP232
Advertisement
Table of Contents
Related Manuals for COMPANION COMP232
Summary of Contents for COMPANION COMP232
- Page 1 Owners Manual lP Gas HeaTer Part No. COMP232 S 2658 1988 AS 2658 2008 . GSCS20063 Cert. GSCS20063 SAI Global SAI Global AS2568:2008 4551-2008 AS 2658 2008 outdoor use only - do not use indoors GSCS20131 Cert. GSCS20108 SAI - 400167...
-
Page 2: General Warnings
IMPOrTanT: read these instructions for use carefully. familiarise yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference. GenerAl WArninGs • This appliance shall only be used with the approved 1500mm Propane gas hose & regulator assembly supplied with the appliance and must be connected only to a Propane gas cylinder certified to AS2469 standards fitted with POL Connections only It may be hazardous to attempt to fit other types of gas containers or cartridges. -
Page 3: Carbon Monoxide Hazard
Owners Manual CArBon MonoXide HAZArd THIs aPPlIance can PrOduce carbOn MOnOXIde wHIcH Has nO OdOur. usInG IT In an enclOsed sPace (fOr eXaMPle, caraVan, TenT, car, MObIle HOMe) May cause deaTH. iMPortAnt • OUTDOOR USE ONLY – ONLY USE IN WELL VENTILATED AREAS The appliance must be used outdoors only and is to be operated no closer than 1000mm from the sides and 1000mm from above all combustible surfaces, fabrics and flammable materials. -
Page 4: Safety Instructions

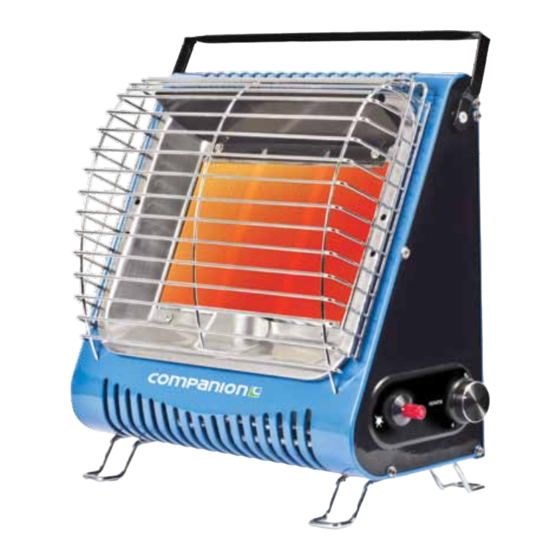

sAFety instruCtions This appliance shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. any enclosure in which the appliance is used shall comply with one of the following: (a) An enclosure with walls on all sides, but with no overhead cover. - Page 5 Owners Manual understAndinG your APPliAnCe cARRy HANDLE GUARD cERAmIc PLATE cONTROL INLET FEET PIEZO IGNITION POL REGULATOR AND 1500mm LPG HOSE...
- Page 6 ConneCtion to Cylinder step 1. Locate the appliance on a firm horizontal and non-combustible surface. step 2. Check that the control on the appliance is in the ignite position. step 3. Connect to the cylinder with the supplied hose and regulator assembly.
-
Page 7: Lighting The Heater
Owners Manual liGHtinG tHe HeAter step 1. Turn the gas cylinder “On” step 2. Check that the control is in the “Ignite” position and then depress and hold. step 3. Press the Piezo igniter to light the pilot flame and centre burner plate. -
Page 8: Adjusting The Heat Output
AdjustinG tHe HeAt outPut step 1. Slightly depress the control and turn in an anti-clockwise direction to the the centre burner will remain in operation. step 2. Again slightly depress the control and turn in an anti-clockwise direction to the to ignite the remaining burners as required. -
Page 9: Technical Details
Owners Manual teCHniCAl detAils specifications COMP232 Part No. 363 x 353 x 170mm Dimensions: 4.2Kg Weight: 0.56mm x 3 Gas Jet: 11.44Mj/Hr - 227G/Hr Consumption: SAI 400167 Certificate: CAre instruCtions Using warm soapy water with a mild detergent wipe down all surfaces and areas of the appliance, taking care not to allow water to enter the burner outlets. - Page 10 notes...
- Page 11 Owners Manual notes...
- Page 12 Distributed by companion brands Bundoora Victoria 3083 www.companionbrands.com.au...
