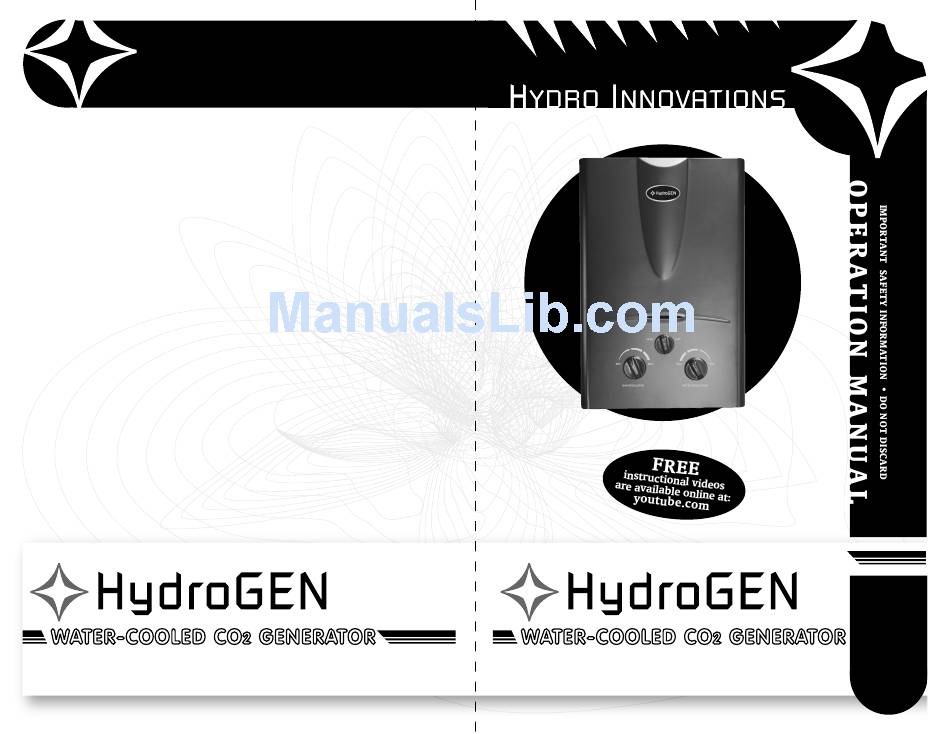

hydro innovations hydrogen1 Operation Manual

Hide thumbs

Advertisement

Table of Contents

IMPORTANT SAFETY INFORMATION • DO NOT DISCARD
O P E R A T I O N M A N U A L
TM

Functions and Features:

• Adjustable CO2 output from 15 – 45 cubic feet per hour.
• Water-cooled design removes 86% of the heat produced.
• Adjustable water flow valve.
• High / low gas setting.
• Compact, wall-mount or suspended design.
• Water activates the unit.
• No flow / no go switch cuts off flame if water flow stops.
• Auto-cut off protection for gas leaks and tipping over.
• Overheat shutdown sensor.
• Oxygen depletion sensor
• Over pressure protection.
• All copper water passages.
• Inline water debris screen.
• 1 year warranty with great service.
• Optional valve for hooking unit directly to
pressurized municipal water supply.
TM
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the hydrogen1 and is the answer not in the manual?

Questions and answers

Summary of Contents for hydro innovations hydrogen1

  • Page 1 IMPORTANT SAFETY INFORMATION • DO NOT DISCARD O P E R A T I O N M A N U A L Functions and Features: • Adjustable CO2 output from 15 – 45 cubic feet per hour. • Water-cooled design removes 86% of the heat produced. •...

  • Page 2: Installation Instructions

    Installation Instructions Hanging Method: The HydroGEN can be suspended Installing Batteries: The battery compartment is Packing List: from the ceiling using chains and “S” hooks. First grey and is located on the bottom of the securely fasten two chains 14” apart to a rafter, HydroGEN.
  • Page 3 Cooling Methods The HydroGEN burns propane like other units but has a WATER CHILLER WATER CHILLER few added features, the main one being the heat COOLING METHOD COOLING METHOD exchanger mounted above the flame that is used to These are only water-cool 86% of the heat produced.
  • Page 4 HEAT EXCHANGER HEAT EXCHANGER HEAT EXCHANGER COOLING METHOD COOLING METHOD COOLING METHOD MONITOR Heat Exchanger Cooling Method: The third most efficient method is a small radiator with an attached fan. There are two different ways to do this, inline or closed loop. INLINE HEAT EXCHANGER...
  • Page 5 HEAT EXCHANGER DRAIN TO WASTE LARGE RESERVOIR COOLING METHOD COOLING METHOD COOLING METHOD Another efficient cooling method is to circulate cool water from a large The most economical way to cool the unit is drain to waste but is only reservoir used outside your grow room.

  • Page 7: Troubleshooting

    Troubleshooting: Unit does not light! • Check propane level (don’t be fooled, bottles are heavy even when they are empty). • Check propane valve and make sure it’s on. • Check the batteries and make sure they are installed properly. •...
