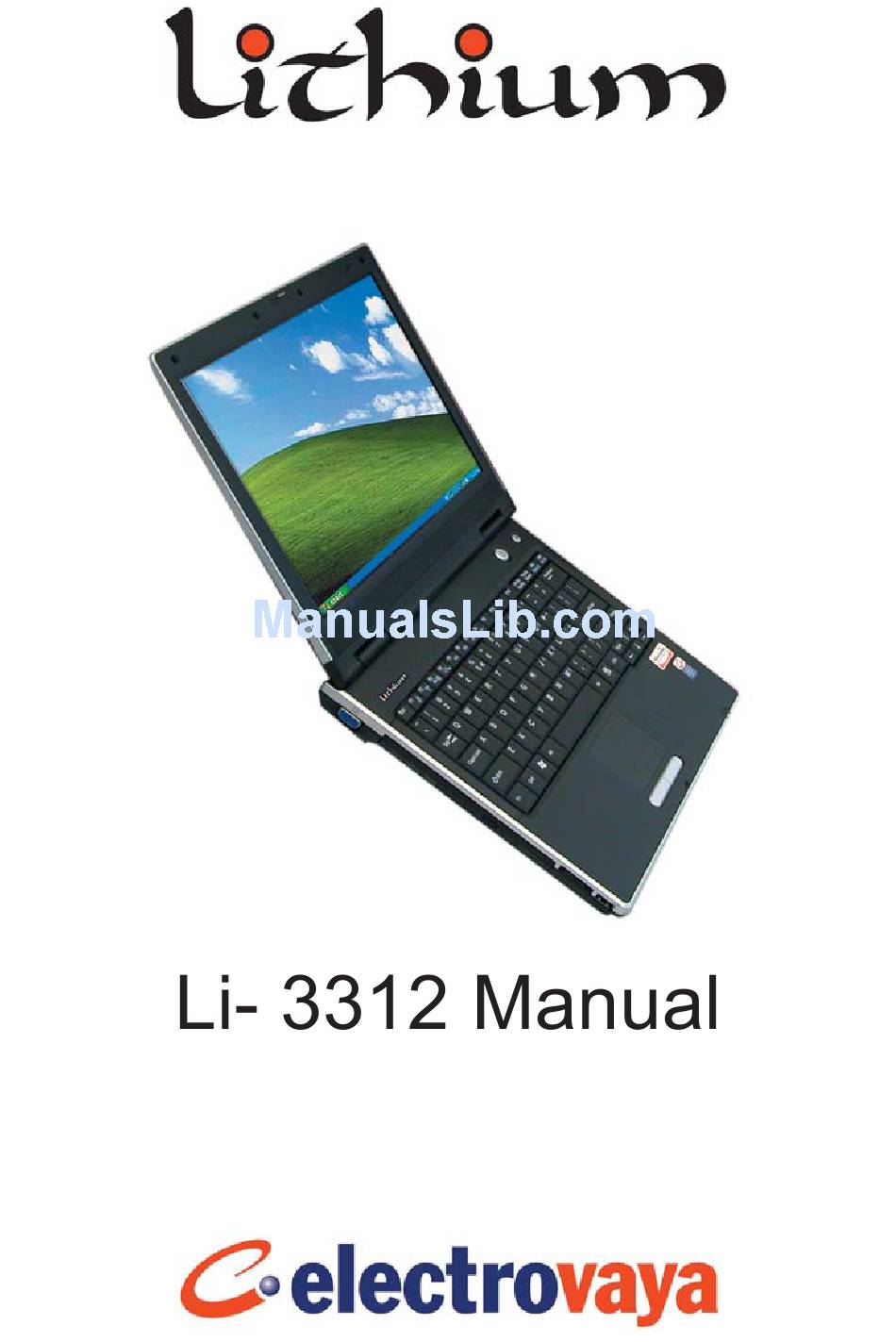

Electrovaya Lithium Li-3312 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lithium Li-3312 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Electrovaya Lithium Li-3312

Summary of Contents for Electrovaya Lithium Li-3312

  • Page 2 Notice The information in this user’s manual is subject to change without notice. THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR USE OF THIS MANUAL.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PREFACE Symbols and Conventions Protecting Your Computer - Avoid Abusive Handling and Adverse Environment Chapter Summaries GETTING TO KNOW THE BASICS Performance Features (1-2,3) System at a Glance (1-4) Front View (1-4,5,6,7) Rear View (1-8,9,10) Bottom View (1-11,12,13) AC Adapter (1-14) LED Status Indicators (1-15,16) Keyboard Features (1-17)
  • Page 4 Main Setup (2-4) Advance Setup (2-4) Security Setup (2-5,6) Power Setup (2-6,7) Boot Setup (2-7,8) Exit Setup (2-8) BATTERY POWER & POWER MANAGEMENT The Battery Pack (3-2) Lithium-Ion Battery Technology (3-2) Battery Low-Power Warning (3-3) Installing and Removing the Battery Pack (3-4,5) Charging the Battery and Charging Time (3-5) Checking the Battery Level (3-6) Prolonging the Battery’s Life and Usage Cycles (3-6)
  • Page 5 Network Adapter / Ethernet Problems (5-13) PC Card / PCMCIA Problems (5-14) Performance Problems (5-15) Firewire (IEEE1394) and USB2.0 Problems (5-16) APPENDIX A Product Specification APPENDIX B Agency Regulatory Notices APPENDIX C Power Cinema Installation and User Manual APPENDIX B Bluetooth Module Installation and User Manual i -5...

  • Page 6: Using This Manual

    Preface Using This Manual This User’s Manual contains general information about the hardware and software setup, troubleshooting, and technical specifications of the notebook computer. Symbols and Conventions The following conventions and symbols are used in this manual: When keys are to be pressed at the same time, a plus (+) symbol is used.
  • Page 7 Protecting Your Computer - Avoid Abusive Handling and Adverse Environment Follow the advice below will help ensure that you get the most out of your Investment. Your computer will serve you well if you take good care of it. Do not expose the computer to direct sunlight or place it near sources of heat.
  • Page 8 Keep the adapter away from children. The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. The total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

  • Page 9: Chapter Summaries

    Chapter Summaries The following is a summary of the available chapters and appendices in this manual. Chapter 1: Getting to Know the Basics In this chapter, you will learn the basic operations and features of your computer. It gives you a general understanding of the components of your computer.

  • Page 10: Getting To Know The Basics

    chapter 1 getting to know the basics GETTING TO KNOW THE BASICS This chapter introduces the features and components of the computer.

  • Page 11: Performance Features

    chapter 1 getting to know the basics Performance Features High Performance Processor The notebook PC is equipped with a powerful Mobile Intel Pentium M processor of the latest sub-micron process, processor technologies, and high bus bandwidths. Advanced Graphic Engine An Intel Integrated Extreme Graphic 2 video processor gives excellent graphic performance.
  • Page 12 chapter 1 getting to know the basics The system provides built-in Ethernet network adapter for high bandwidth network connection. Firewire (IEEE1394 / 1394a) and USB2.0 ports In addition to a full array of built-in I/O por s, the computer offers IEEE1394 for ultra high-speed connection to high bandwidth digital video devices and USB2.0 ports to connect to any USB-based peripheral devices.

  • Page 13: System At A Glance

    chapter 1 getting to know the basics System At A Glance Front View...
  • Page 14 chapter 1 getting to know the basics Note: Your computer may come with the 12.1” display in the wide 16:10 aspect ratio or in the standard 4:3 aspect ratio. If your computer comes with the wide 12.1” display, there is an extra pair of built-in loudspeakers located below the display panel.
  • Page 15 chapter 1 getting to know the basics disk drive. Please see Appendix C to learn how to use Power Cinema. Silent Mode Button (When system has already booted to Windows) – Pressing the key enables the system to lower its power usage, therefore turning off the fan to achieve lowest operating noise.
  • Page 16 chapter 1 getting to know the basics 10. Built-in Stereo Speakers The built-in speakers output the sound in stereo. 11. Touch Pad The touch pad is a built-in pointing device with functions similar to a mouse. 12. USB2.0 Port The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety of devices to your computer at a rate of up to 480 Mbps.
  • Page 17 chapter 1 getting to know the basics 16. External VGA Port The 15-pin VGA analog port is for connecting the external CRT monitor or projector. 17. Built-in Stereo Speakers If your system comes with the 12.1-inch wide aspect ratio panel, there is an additional pair of speakers built-in.

  • Page 18: Rear View

    chapter 1 getting to know the basics Rear View Warning: Do not place any heavy objects on the top of notebook. This may damage the display 1. PC Card Slot (Type II PCMCIA) and Card Eject Button The slot is where PC Card (Type II PCMCIA) is inserted. Press the eject button to release the PC Card.
  • Page 19 chapter 1 getting to know the basics 3. Microphone Jack The microphone jack (3.5-mm diameter) is where you connect a microphone. 4. Firewire / IEEE1394 / 1394a Port This is a high-speed serial data port. You may connect any Fire-wire-ready device to this port. Note: In some models, theFirewire/1394 Port may not be available.
  • Page 20 chapter 1 getting to know the basics A Kensington-type security lock latches to this keyhole for anti-theft purpose. 10. Power Jack (DC-in) The DC-out jack of the AC Adapter connects here and powers the computer. 11. Ventilation Grill The fan grill is where air is exchanged to dissipate the internal heat.

  • Page 21: Bottom View

    chapter 1 getting to know the basics Bottom View 1. Ventilation Grill The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely. Warning: Do not block the Fan Grill outlet. Place the machine on hard surface only.
  • Page 22 chapter 1 getting to know the basics 3. USB Device (Optional) You may install the optional Bluetooth module or USB Thumb Drive into this slot. Please see Appendix D to learn how to use the Bluetooth device. And make sure you put the latch in the locked position.
  • Page 23 chapter 1 getting to know the basics 4. Wireless LAN Module Bay (Optional) You may install the optional wireless LAN module into this slot. 5. System Device Cover The system’s processor with cooler assembly, hard disk drive, and DDR memory module are located under the case cover. The system memory and HDD can be upgraded to a larger capacity.

  • Page 24: Ac Adapter

    chapter 1 getting to know the basics AC Adapter DC-out Connector The DC-out connector docks to the power jack (DC-in) on the computer. 2. Adapter The adapter converts alternating current into constant DC voltage for the computer. 3. AC Plug The AC plug plugs to the AC wall outlet.

  • Page 25: Led Status Indicators

    chapter 1 getting to know the basics LED Status Indicator The LED Status Indicator displays the operating status of your notebook. When a certain function is enabled, an LED will light up. The following section describes its indication. System Status Indicator LED Graphic Indication Symbol...
  • Page 26 chapter 1 getting to know the basics Power Indicator LED Graphic Indication Symbol Persistent blue light indicates Power On. Light-off indicates the notebook is in Power Off mode. Blinking blue light indicates system is either in long battery life mode or high performance mode.

  • Page 27: Keyboard Features

    chapter 1 getting to know the basics Keyboard Features Function Keys (Quick Keys) Graphic Action System Control Symbol Fn + F1 Enters Suspend Mode. Fn + F2 Turns the WLAN module on or off. Fn + F3 Turns of the battery warning beep off or on.

  • Page 28: Windows Keys

    chapter 1 getting to know the basics Windows Keys Your keyboard also has two Windows keys: 1. Start Key This key allows you to pull up the Windows Start Menu at the bottom of the taskbar. 2. Application Menu Key This key brings up the popup menu for the application, similar to a click of the right mouse button.

  • Page 29: Touch Pad

    chapter 1 getting to know the basics Touch Pad The built-in touch pad, which is a PS/2-compatible pointing device, senses movement on its surface. As you move your fingertip on the surface of the pad, the cursor responds accordingly. The following items teach you how to use the touch pad: 1.

  • Page 30: Graphic Subsystem

    chapter 1 getting to know the basics Graphic Subsystem Your computer uses a high performance 12.1-inch (in either normal 3:4 aspect ratio or wide 16:10 aspect ratio) active matrix TFT panel with high resolution and multi-million colors for comfortable viewing. The Intel Extreme Graphic 2 video graphics accelerator, which is Microsoft DirectX 9 compatible, performs graphic rendering at a lighting-fast speed.

  • Page 31: Opening And Closing The Display Panel

    chapter 1 getting to know the basics Opening and Closing the Display Panel To open the display, push the LCD latch inwardly and lift up the lid. Then tilt it to a comfortable viewing position. To close the display cover, fold it down gently until the LCD latches click into place.

  • Page 32: Audio Subsystem

    chapter 1 getting to know the basics Audio Subsystem Your computer’s audio subsystem is Sound Blaster Pro-compatible. Adjusting the Volume Manually To increase the volume, press Fn+ F5. To decrease the volume, press Fn+F6. Adjusting the Audio Volume in Windows 1.
  • Page 33 chapter 1 getting to know the basics Modem Your computer comes with a 56K V.92 internal fax/modem and a phone jack (RJ-11), which is located on the left side of your computer. Use a telephone cable to connect the computer to the telephone wall outlet.
  • Page 34 chapter 1 getting to know the basics Ethernet Your computer is equipped with a 10/100Base-TX Fast Ethernet network adapter. Connect the active LAN cable to the RJ-45 LAN port located on the left side of the computer. This allows you to access and transmit data in the local area network.

  • Page 35: Bios Setup And Security Feature

    chapter 2 bios setup and security feature T E R BIOS SETUP AND SECURITY FEATURE In this chapter, you will learn how to enter the BIOS Setup Menu and manipulate various hardware control settings. You will also learn how to use the built-in security features.
  • Page 36 chapter 2 bios setup and security feature Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is a menu-driven software, which allows you to easily configure and change the settings.

  • Page 37: Entering The Bios Setup Screen

    chapter 2 bios setup and security feature Entering the BIOS Setup Screen First turn on the power. When the BIOS performs the POST (Power-On Self Test), press F2 key quickly to activate the AMI BIOS Setup Utility. Note: You may need to press F2 key fairly quickly. Once the system begins to load Windows, you may have to retry by cycle-power on again Leaving the BIOS Setup Screen When you have finished modifying the BIOS settings, exit the BIOS.

  • Page 38: Modifying The Bios Settings

    chapter 2 bios setup and security feature Modifying the BIOS Settings The AMIBIOS setup main menu is subdivided into sub-menus. Each menu item is described in this section. Main Setup Under this menu, you may change time/date and view basic processor and system memory information.

  • Page 39: Security Setup

    chapter 2 bios setup and security feature Security Setup ►Boot Settings Configuration Item Selections / Description Sub-menu Change Install or Change the Password Supervisor Password Change Install or Change the Password User Password Clear User Install or Change the Password Password Boot Disabled...

  • Page 40: Power Setup

    chapter 2 bios setup and security feature The passwords activate two different levels of protection: 1. System always asks for password every time it is powered on. 2. System asks for password only when you attempt to enter BIOS utility. The passwords are encrypted and stored in NVRAM.

  • Page 41: Boot Setup

    chapter 2 bios setup and security feature Enabled High When Enabled, maximum system Performance performance can be achieved. The Disabled Mode processor performance is enhanced. Note: The Suspend Mode selection in BIOS only applies to older Windows version (such as Windows 3.1 or Windows 95 or NT4) or non-Windows operating system. In Windows ME / 98SE / 2000 / XP, suspend mode and settings are determined by settings in the Power Options Properties (Start >...

  • Page 42: Exit Setup

    chapter 2 bios setup and security feature Removable Dev. Set the type of device for the 1st drive 1st Boot CD/DVD BIOS attempts to boot from. If Realtek Device Hard Drive Boot Agent is selected, system will Realtek Boot attempt to load boot sector from the Agent Ethernet port.

  • Page 43: Battery Power & Power Management

    chapter 3 battery power & power management C H A P T E R T H R E E BATTERY POWER & POWER MANAGEMENT In this chapter, you will learn the fundamentals of power management and how to use it to achieve longer battery life.

  • Page 44: The Battery Pack

    chapter 3 battery power & power management this chapter, you will learn how to operate your notebook on battery power, how to handle and maintain the battery pack, and learn about the system’s power saving features. TFT display, central processor, hard disk drive are the major hardware subsystems that consume the most power.

  • Page 45: Battery Low-Power Warning

    chapter 3 battery power & power management Battery Low-Power Warning Low Battery Warning Low battery condition occurs when battery power is reduced to 6%. The red battery status LED indicator blinks and the system beeps once every 16 seconds or Very Low Battery Warning Very Low battery condition occurs at 3 % power remaining.

  • Page 46: Installing And Removing The Battery Pack

    chapter 3 battery power & power management Installing and Removing the Battery Pack To Remove the Battery Pack: Place the notebook bottom-side up on a flat and secured surface. Slide Latch 1 to the unlocked position Hold Latch 2 to the unlocked position as indicated by the arrow and pull the battery’s hard case away from the notebook.

  • Page 47: To Install The Battery Pack

    chapter 3 battery power & power management To Install the Battery Pack: Place the notebook bottom-side up on a flat and secured surface. Carefully insert the battery pack into the battery compartment of the notebook and slide Latch 1 to the locked position.

  • Page 48: Checking The Battery Level

    chapter 3 battery power & power management Checking the Battery Level You can check the remaining battery power in the Windows battery status indicator, which is located at the lower right-hand corner of the task bar. (If you do not see a battery or AC-in icon on the task tray, go to Power Options Properties box and click on the Advanced tab.

  • Page 49: Using Windows Power Options

    chapter 3 battery power & power management Using Windows Power Options Windows Power Management provides basic power saving features. In the Windows Power Options Properties [Start > Settings > Control Panel > Power Options] dialogue box, you may enter time-out values for display and hard disk drive. Windows power manager saves power by turning off hard drive after 1 minute of inactivity, for example.
  • Page 50 chapter 3 battery power & power management In this dialog box, you can manually set the LCD and hard drive’s time-out values in the Plugged in column and in the Running on batteries column. Lower time-out values will save more battery power. Note: Also consult Windows user guide for more information on how to use Windows power management functions.

  • Page 51: Suspend Mode

    chapter 3 battery power & power management Suspend Mode Standby Suspend The system automatically enters this mode after a period of inactivity, which is set in the Power Schemes dialog box. In Standby mode, hardware devices, such as display panel and hard disk, are turned off to conserve energy.
  • Page 52 chapter 3 battery power & power management Note: Do not install or remove the memory module when the system is in the suspend mode. Note: Actual dialogue box shown above may appear slightly different. 3-10...

  • Page 53: Power Button Action

    chapter 3 battery power & power management Power Button Action The notebook PC’s power button can be set to turn off the system or activate the suspend mode. Go to [Start > Settings > Control Panel > Power Options] and click on the Advanced tab. In the pull-down menu, select how you wish the power button to work as.

  • Page 54: Low Battery Warning

    chapter 3 battery power & power management Low Battery Warning You can define when and how the system warns you of its battery-low condition. Go to the Alarms tab in the Power Options Properties box. If you wish to hear audible beeps, click on the Alarm Action button and put a check on Sound Alarm.

  • Page 55: Power Manual Quick Access

    chapter 3 battery power & power management Power Manu Quick Access Instead of making specific selections in the Power Options Properties box, you can quickly and easily specify which pre-set power saving function you desire by clicking on the Battery icon at the lower right-hand corner of the task bar.

  • Page 56: Upgrading Your Computer

    chapter 4 upgrading your computer C H A P T E R F O U R UPGRADING YOUR COMPUTER In this chapter, you will learn how to upgrade the DRAM, hard disk drive, and to install the optional wireless LAN mini PCI.

  • Page 57: Upgrading The Hard Disk Drive

    chapter 4 upgrading your computer Upgrading the Hard Disk Drive Replacing the original drive with one of larger capacity can increase the hard drive capacity of your computer. The computer uses a 9.5 mm (height), 2.5-inch Ultra ATA-66 / 100 / 133 type hard disk. Be sure to make a backup copy of all your data before attempting this operation.
  • Page 58 chapter 4 upgrading your computer Upgrading the Hard Disk Drive To replace the hard disk drive, do the following: Turn OFF the computer. Unhook the AC cord and all cables/devices attached to the notebook. Place your hand on a large metal object momentarily to discharge any static electricity.
  • Page 59 chapter 4 upgrading your computer Screw B Module Screw B Locate and remove 4 Screw C’s from the HDD module. Remove the metal case. S crew C H DD M odule R em o ve t he hard dr ive f rom the met al fr ame S cre w C Re-attach the metal cover to the new hard drive and...
  • Page 60 chapter 4 upgrading your computer Congratulations! You have now completed the hard drive upgrade. When you boot up the PC, you may need to create a primary HDD partition and reformat the new drive and re-install O/S, drivers, and all the necessary applications.

  • Page 61: Upgrading The System Memory

    chapter 4 upgrading your computer Upgrading the System Memory Many applications will generally run faster when the computer’s dynamic memory capacity is increased. The computer provides two DDR memory sockets, located underneath the System Device Cover. You can increase the amount of memory by replacing the existing one with a dual inline memory module (commonly known as SO-DIMM) of a higher capacity.
  • Page 62 chapter 4 upgrading your computer Installing a memory module (DIMM) into the system To install the DIMM, do the following: Power OFF the notebook. Unplug the AC cord and all cables/devices attached to the notebook. Place your hand on a large metal object momentarily to discharge any static electricity.
  • Page 63 chapter 4 upgrading your computer Double Deck DDR Slot If you need to remove an old DIMM from the socket, press out on the latches located on both edges of the socket at the same time. The DIMM should pop up to an angle of 30 degree (see diagram below.).
  • Page 64 chapter 4 upgrading your computer Notch Pivot the DIMM until the latches on both sides of the socket snap into place. Note: Notice the notch on the DIMM. The notches should fit nicely with the socket. Replace the System Device Cover and 8 Screw A’s. Congratulations! You have just completed the memory upgrade.

  • Page 65: Optional Device

    chapter 4 upgrading your computer Adding a Mini-PCI Type Wireless LAN Card (Optional Device) Your computer comes with a unique Mini PCI Card socket, which is located next to the DRAM socket and underneath the WLAN Module Cover. The socket allows the computer to add unique features such as wireless LAN (IEEE802.11x).

  • Page 66: Installing A Mini Pci Card To The System

    chapter 4 upgrading your computer Installing a Mini PCI Card into the System To install a new Mini PCI card, do the following: Power OFF the notebook. Unplug the AC cord and all cables/devices attached to the notebook. Place your hand on a large metal object momentarily to discharge any static electricity.
  • Page 67 chapter 4 upgrading your computer Note: If you want to remove a mini PCI card from the socket, press out on the latches located on both edges of the socket at the same time. The card should pop up to an angle of 30 degree. Locate 2 antenna cables with connectors.

  • Page 68: Trouble-Shooting

    chapter 5 trouble shooting C H A P T E R F I V E TROUBLE SHOOTING In this chapter, you will learn how to solve common hardware and software problems.
  • Page 69 chapter 5 trouble shooting Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter.
  • Page 70 chapter 5 trouble shooting hardware devices in the BIOS Setup utility. A faulty setting may cause the system to misbehave. If you are not sure of the changes you made, try to restore all the settings to factory defaults. Be sure all the device drivers are installed properly. For example, without the audio driver properly installed, the speakers and microphone will not work.

  • Page 71: Audio Problems

    chapter 5 trouble shooting Audio Problems No speaker output - Turn up the volume dial located at the right edge of the computer. See Chapter 1 for its location. Software volume control is turned down in Microsoft Sound System or is muted. Double-click the speaker icon on the lower right corner of the taskbar to see if the speaker has been muted or turned down all the way.

  • Page 72: Hard Disk Problems

    chapter 5 trouble shooting Hard Disk Problems The hard disk drive does not work or is not recognizable - If you had just performed a hard disk upgrade, make sure the hard drive connector is not loose and the hard disk drive is also correctly seated.
  • Page 73 chapter 5 trouble shooting for instructions on decreasing the cache size or on removing temporary Internet files. Empty the Recycle Bin to create more disk space. When you delete files, Windows saves them to the Recycle Bin. The hard disk takes longer to read a file - If you have been using the drive for a period, the files may be fragmented.

  • Page 74: Optical Drive Problems

    chapter 5 trouble shooting Optical Drive Problems The optical drive does not work - Try rebooting the system. The disk is damaged or files are not readable. After you have inserted a CD-ROM disk, it may take a moment before you can access its content. The drive dose not read any disks - The CD may not be properly seated in the tray.

  • Page 75: Display Problems

    chapter 5 trouble shooting Display Problems The display panel is blank when the system is turned on - Make sure the computer is not in the Standby or Hibernate suspend modes. The display is turned off to conserve energy in these modes. The screen is difficult to read - The display resolution should at least be set to at least1024x768 for optimal viewing.

  • Page 76: Keyboard And Mouse Problems

    chapter 5 trouble shooting Keyboard and Mouse Problems The built-in touch pad performs erratically - Make sure there is no excess perspiration or humidity on your hand when using the touch pad. Keep the surface of the touch pad clean and dry. Do not rest your palm or wrist on the surface of the touch pad while typing or using the touch pad.

  • Page 77: Cmos Battery Problem

    chapter 5 trouble shooting CMOS Battery Problem A message “CMOS Checksum Failure” displays during the booting process or the time (clock) resets when booting - Try to reboot the system. If the message “CMOS Checksum Failure” appears during the booting procedure even after rebooting, it may indicate failure of the CMOS battery.

  • Page 78: Memory Problems

    chapter 5 trouble shooting Memory Problems The POST does not show an increased memory capacity when you have already installed additional memory - Certain brands of memory module may not be compatible with your system. You should ask your vendor for a list of compatible DIMM.

  • Page 79: Modem Problems

    chapter 5 trouble shooting Modem Problems The built-in modem does not respond - Make sure the modem driver is loaded properly. Go to [Start > Settings > Control Panel > Phone and Modem Options] and go to Modems tab. Make sure SmartLink 56K Voice Modem or Uniwill V.92 Modem is listed.

  • Page 80: Network Adapter / Ethernet Problems

    chapter 5 trouble shooting Network Adapter / Ethernet Problems The Ethernet adapter does not work - Go to [Start > Settings > Control Panel > System > Hardware > Device Manager]. Double-click on Network Adapters and check if Intel Gigabit PCI Fast Ethernet Adapter appears as one of the adapters.

  • Page 81: Pc Card / Pcmcia Problems

    chapter 5 trouble shooting PC Card / PCMCIA Problems Note: Some system may not have the PC Card Slot option. PC Cards do not function- Make sure you have properly installed the driver for the card. Consult the card’s manual or contact the vendor for trouble-shooting.

  • Page 82: Performance Problems

    chapter 5 trouble shooting Performance Problems The computer becomes hot - In a 35 C environment, the certain areas of the computer’s back case are expected to reach 50 degrees. Make sure the air vents are not blocked. If the fan does not seem to be working at high temperature (50 degrees Celsius and up), contact the service center.

  • Page 83: Firewire (Ieee1394) And Usb2.0 Problems

    chapter 5 trouble shooting Firewire (IEEE1394) and USB2.0 Problems The USB device does not work - Windows NT 4.0 does not support USB protocols Check the settings in the Windows Control Panel. Make sure you have installed the necessary device drivers.

  • Page 84: Product Specification

    appendix A product specification PRODUCT SPECIFICATION...

  • Page 85: System Memory

    appendix A product specification Processor and Core Logic Mobile Intel Pentium M (Banias), 1.5GHz-1.6GHz, 1 Processor MB L2 with Error Correction Code Mobile Intel Pentium M (Dothan), 1.7GHz-2.0GHz, 2 MB L2 with Error Correction Code Core Logic Intel 855GME + ICH4M(FW82801DBM) chipset with graphic, audio, modem, and USB2.0 controllers integrated 400 MHz Front Side Bus...
  • Page 86 appendix A product specification Audio Chipset Intel (ICH4M) integrated audio controller Audio Codec VT1612A Sound DirectSound 3D, EAX 1.0 & 2.0 compatible Capabilities A3D, I3DL2 compatible AC97 V2.3 compatible 2 or 4 Stereo Speakers Modem Chipset Intel (ICH4M) integrated Modem Controller with MDC card, AC97 V2.2 Modem support Transmission V.92 / V.90 / K56flex for download data speed up to...
  • Page 87 appendix A product specification Firewire IEEE1394(a) Chipset TI TSB43AB22A IEEE1394 OHCI Host Controller and Up to 400 Mbps Capabilities Expandable up to 63 devices in chains (Note: In some models, Firewire/1394 function may note be available.) Storage Hard Drive 2.5-inch format hard disk drive Combo Drive 5.25-inch format (12.7mm height) fixed module (Optional Purchase)

  • Page 88: Ports And Connectors

    appendix A product specification Ports and Connectors Mic-In Port One Microphone-in jack Audio-Out/SPDIF One Headphone / SPDIF jack Firewire One Firewire (IEEE1394) host connector USB2.0 Port Two USB2.0-compliant connectors Ethernet One standard network Ethernet connector (RJ-45) Modem One modem / phone connector (RJ11) S-Video One S-video (TV-out) output connector Power-In...
  • Page 89 appendix A product specification BIOS PnP Function AMI PnP BIOS Self Test Power On Self Test Auto DRAM auto-detection, auto-sizing Detection L2 Cache auto-detection Hard disk type auto-detection Power APM 1.2 (Advanced Power Management) & Management ACPI 2.0 (Advanced Configuration Power Interface) Security Two Level Password Protections Other...

  • Page 90: Agency Regulatory Notices

    appendix B agency regulatory notices AGENCY REGULATORY NOTICES...
  • Page 91 appendix B agency regulatory notices Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 92 appendix B agency regulatory notices EN55022 (CISPR 22) Radio Frequency Interference EN50082 (IEC801-2, IEC801-3, IEC801-4) Electro-magnetic Immunity EN 300 328-2, EN 300 328-1, EN 301 489-1, EN 301 489-17 (ETSI 300 328, ETSI 301 489) Electro-magnetic Compatibility and Radio Spectrum Matter. TBR21 ( ETSI TBR21) Terminal Equipment.
  • Page 93 appendix B agency regulatory notices The attachment plug must be a two-pole, grounded type with a Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration. Other Countries The cord set fittings must bear the certification mark of the agency responsible for evaluation in a specific country. Acceptable agencies are: BSI (UK) OVE (Australia)
  • Page 94 appendix B agency regulatory notices Telephone lines requirement The appropriate utilization of 26AWG telephone line cord on unit. CAUTION: Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment. CAUTION: To reduce the risk of fire, use only No. 26AWG or larger telecommunication line cord.
  • Page 95 appendix B agency regulatory notices (DHHS) Radiation Performance Standard and International Standards IEC 825 / IEC 825-1 (EN60825 / EN60825-1). The device is not considered harmful, but the following precautions are recommended: Do not open the unit. Avoid direct exposure to the laser beam. If the unit requires service, contact an authorized service center.
  • Page 96 appendix B agency regulatory notices Zum Netzanschlua dieses Gerates ist eine geprufte Leitung zu verwenden. Fur einen Nennstrom bis 6A und einem Gerategewicht groBer 3kg ist eine 2X0.75 mm Leitung nicht leichter als (1)H05VV-F, 3G, 0.75mm conductors einzusetzen. Die Steckdose muB nahe dem Gerat angebracht und leicht zuganglich sein.
  • Page 97 appendix C Using the Bluetooth Module USING THE BLUETOOTH MODULE...

  • Page 98: Software Installation

    appendix C Using the Bluetooth Module Software Installation: The software installation package of the Bluetooh module is located in the Bluetooth CD disc. If you are inserting the Bluetooth module into notebook for the first time, the system will prompt you for driver. Put in the Bluetooth CD disc into the optical drive and follow the on-screen instructions to install the Bluetooth driver and utility program properly.
  • Page 99 appendix C Using the Bluetooth Module General Tips on Using Bluetooh Functions: The Bluetooth Tray The Bluetooth tray resides in the Windows system tray, which is located in the lower-right corner of the screen. The Bluetooth tray provides fast access to most Bluetooth operations. From the Bluetooth tray you can: Access My Bluetooth Places: Double-click the Bluetooth icon, or right-click the Bluetooth icon and then select...
  • Page 100 appendix C Using the Bluetooth Module feedback about Bluetooth status. Bluetooth Icon Indicates Bluetooth Status Enabled Disabled Connected Blue with White Blue with Red Blue with Green Create A Connection Using The Bluetooth Setup Wizard From the Folders pane of Windows Explorer, right-click My Bluetooth Places and select Bluetooth Setup Wizard.
  • Page 101 appendix C Using the Bluetooth Module Bluetooth Places, right-click a device name and select Discover Available Services from the shortcut menu. Bluetooth services are those things that this computer can do for remote Bluetooth devices. For example, if this computer allows a remote Bluetooth device to send a fax using a fax modem that is physically attached to this computer, then this computer is providing the Bluetooth fax service.
  • Page 102 USING POWER CINEMA...
  • Page 103 computer boots to the Linux environment and launches the Power Cinema application. If you are required to re-install Windows O/S or when you have purchased a new or upgraded HDD, you need to observe the following steps before installing Power Cinema. 1.
  • Page 104 please create a new one. 2-2 Insert the PCM4 Linux installation disc into the optical drive and reboot the system. 2-3 When system finished booting from the optical drive, you should see a warning message. Read it carefully. 2-4 In the step above, follow the on-screen instruction. When prompted, type "YES", and then press the "Enter"...
  • Page 105 page. The corresponding function opens, allowing you to enjoy the type of media you have selected. Finding and Playing Content Click or press Enter to open folders and to play or view media files. To go up a folder level, click the onscreen up arrow. To return to a previous screen within a mediafunction, click Return.
  • Page 106 Q Mute 0-9 Enter numbers 0-9 S Stop A Angle T Step B Scan backward U Subtitles E Step backward Music Clips Use this function to listen to music files in MP3 and WAV formats. Click Device to select a media source. You can select CDROM (for media on a CD), USB Devices (for media on a removable device), or HDD (for media in hard disk folders).
  • Page 107 playback), Pause (pauses movie playback), and Quit (returns to the Welcome page). These controls automatically disappear several seconds after the mouse stops moving. Settings There are settings in PowerCinema to allow you to fine-tune its performance to your machine and your personal preferences. DVD SPDIF...: Select the DVD AC3/SPDIF option for multi-channel sound.
