GC1 MOTO CAM User Manual

1
Main Device
Fasten Points
Adjustable Lens
1、Place the 3M VHB tape onto the Metallic mount.
2、Stick the silica gel patches between the mount and the joints, then screw in the screws.
3、Stick the silica gel patches between the main device and the joints, then screw in the screws.
4、Make sure to clean the surface of where you want to install the mount to, and rip off the other side of the 3M tape
and stick it to the said surface, and press for at least 5 seconds when applying the mount.
5、Adjust the main device and the joint to desired positions, then screw down the screws tight.
6、If the surface you are installing to is curved, please bend the mount to fit the surface.
Metallic Joint x 2 pcs
2
Power Box
3
Control Panel
Record Button
Micro USB Wi-Fi Button
Port (P.9)
3M VHB Tape
Main Device
MOTO CAM User Manual

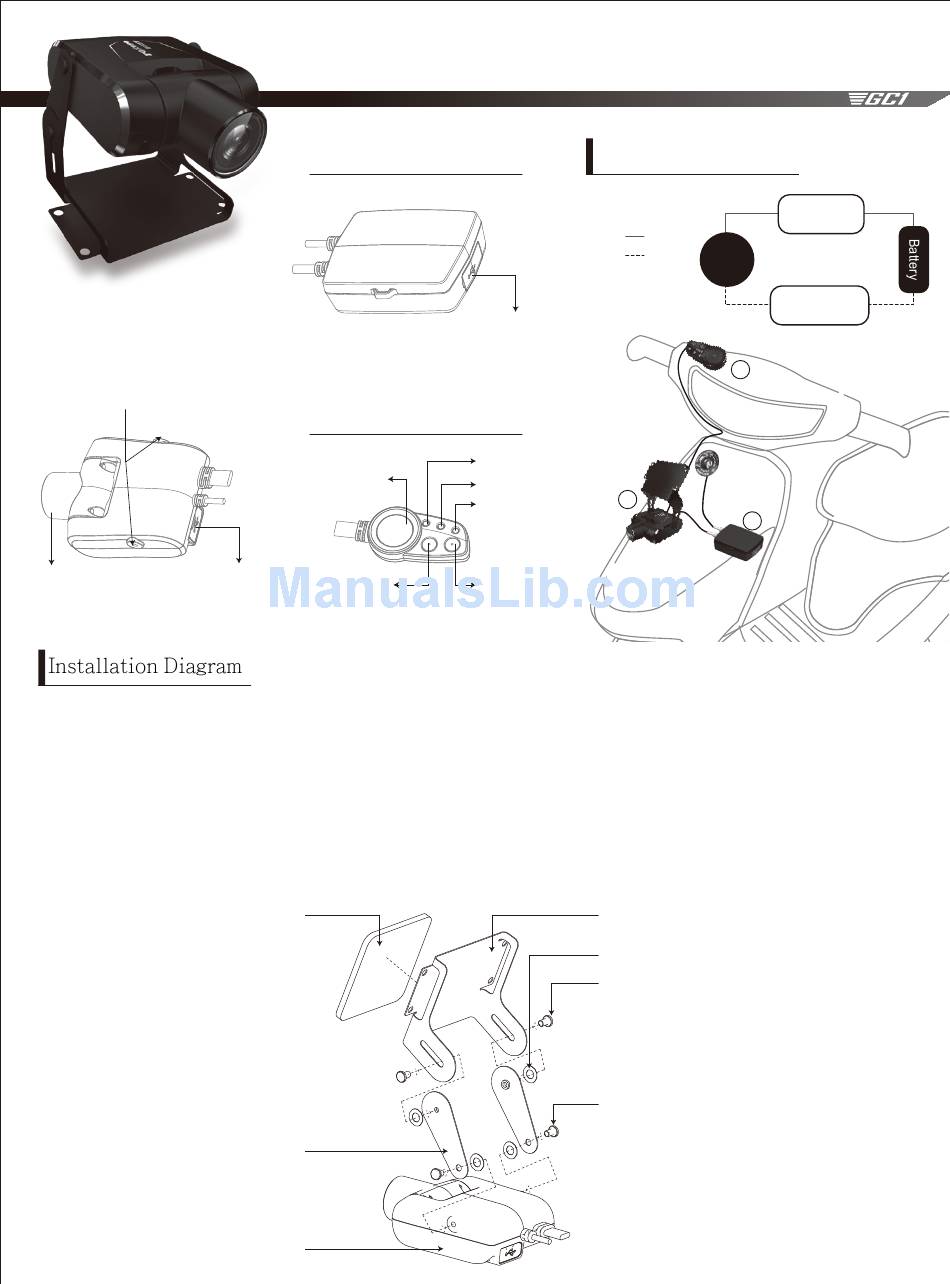

Wiring Diagram
Power+
Power Box
Power-
USB Port
(P.8)
Record Light
Wi-Fi Light
1
Power Light
Power Button
Metallic Mount
Silica Gel Patches x4 pcs
Fine Thread
Hex Head Screw x2 pcs
Coarse Thread
Hex Head Screw x2 pcs
Motocycle
Power+ Battery+
Ignition Switch
Power
Box
Motocycle
Power Ground or
Power- Battery-
Battery Ground
3
2
