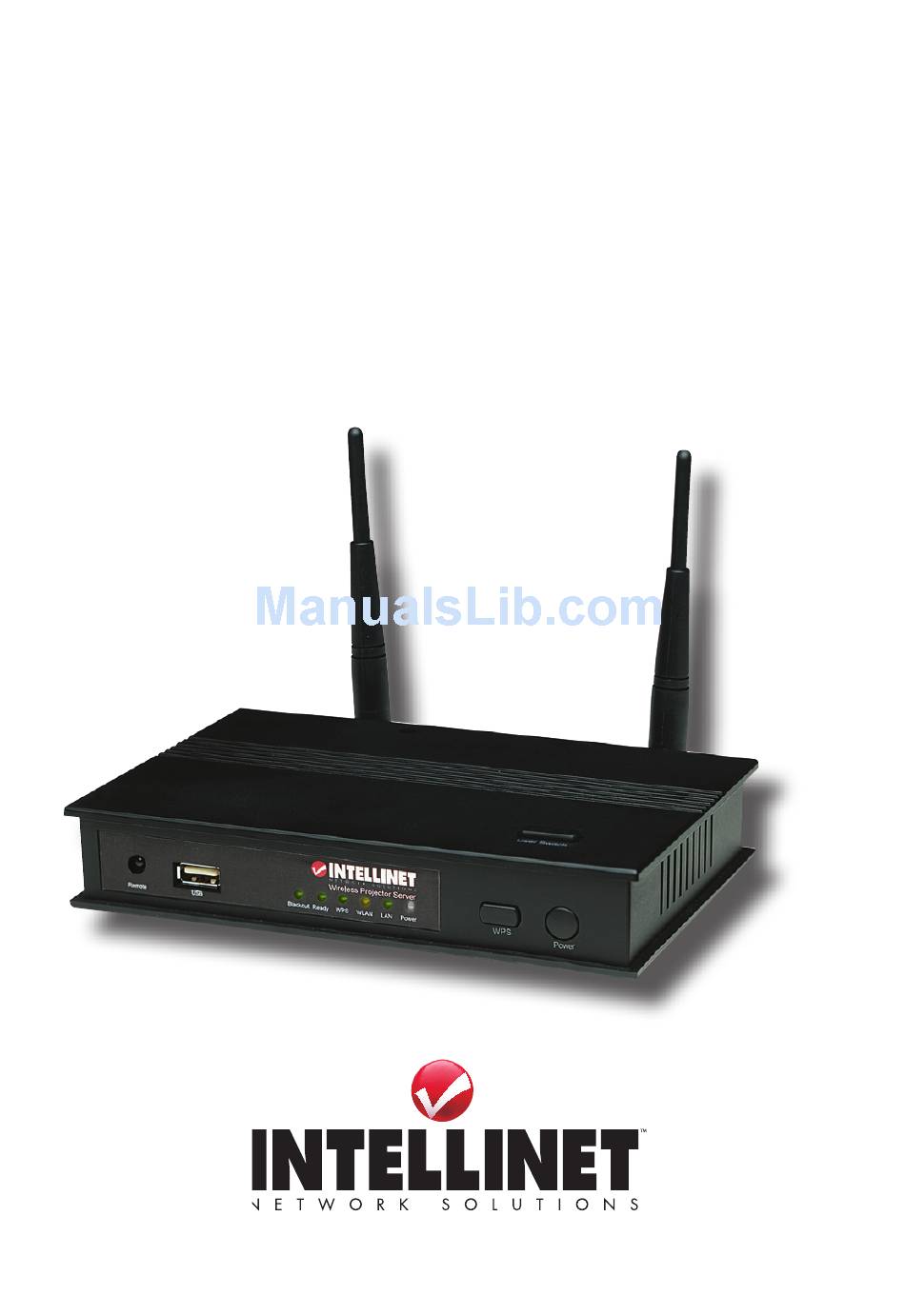

- Page 1 Wireless 300N PreseNtatioN GateWay quick iNstall Guide Model 524759 INT-524759-QIG-0509-01...
- Page 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Wireless 300N Presentation Gateway, Model 524759. This quick install guide presents the rudimentary steps required to set up and operate this device. For detailed instructions and specifications, refer to the user manual 1) on the CD enclosed with this product; 2) on the Web site listed below;...
-
Page 3: Hardware Installation
hardWare iNstallatioN Before proceeding with the hardware connections, ensure that you have the items listed above in Package Contents at hand. Also check that the surface where you intend to place the Wireless 300N Presentation Gateway is level, stable and capable of supporting the device. Rear panel •... -
Page 4: Software Installation
softWare iNstallatioN You can proceed with the Wireless 300N Presentation Gateway software installation once the hardware installation is complete. Front panel 1. Press the Power button (6). The Power LED (7) should light, and your external display device should present a Loading... - Page 5 3. Use your Web browser to connect to the Wireless 300N Presentation Gateway (WLAN or LAN IP address). NOTE: If using a wireless network, first search for the Wireless 300N Presentation Gateway SSID and connect to it. Enter the WLAN IP address in your browser, and it will direct you to the next screen.
- Page 6 7. Should a Software Installation warning screen display, click “Continue Anyway,” regardless of how many times it may appear. 8. When the software installation is complete, a new “WPS” icon will appear on the desktop. Double-click this icon (shown here) to launch the Wireless 300N Presentation Gateway’s client software.
- Page 7 9. The client software will search for the Wireless 300N Presentation Gateway (here, projector server) connected to the LAN, and the device’s SSID will be displayed in the “Projector SSID” field. Enter your username (something that others will easily recognize as you) and the login code displayed on-screen in Step 2. 10.
- Page 8 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
