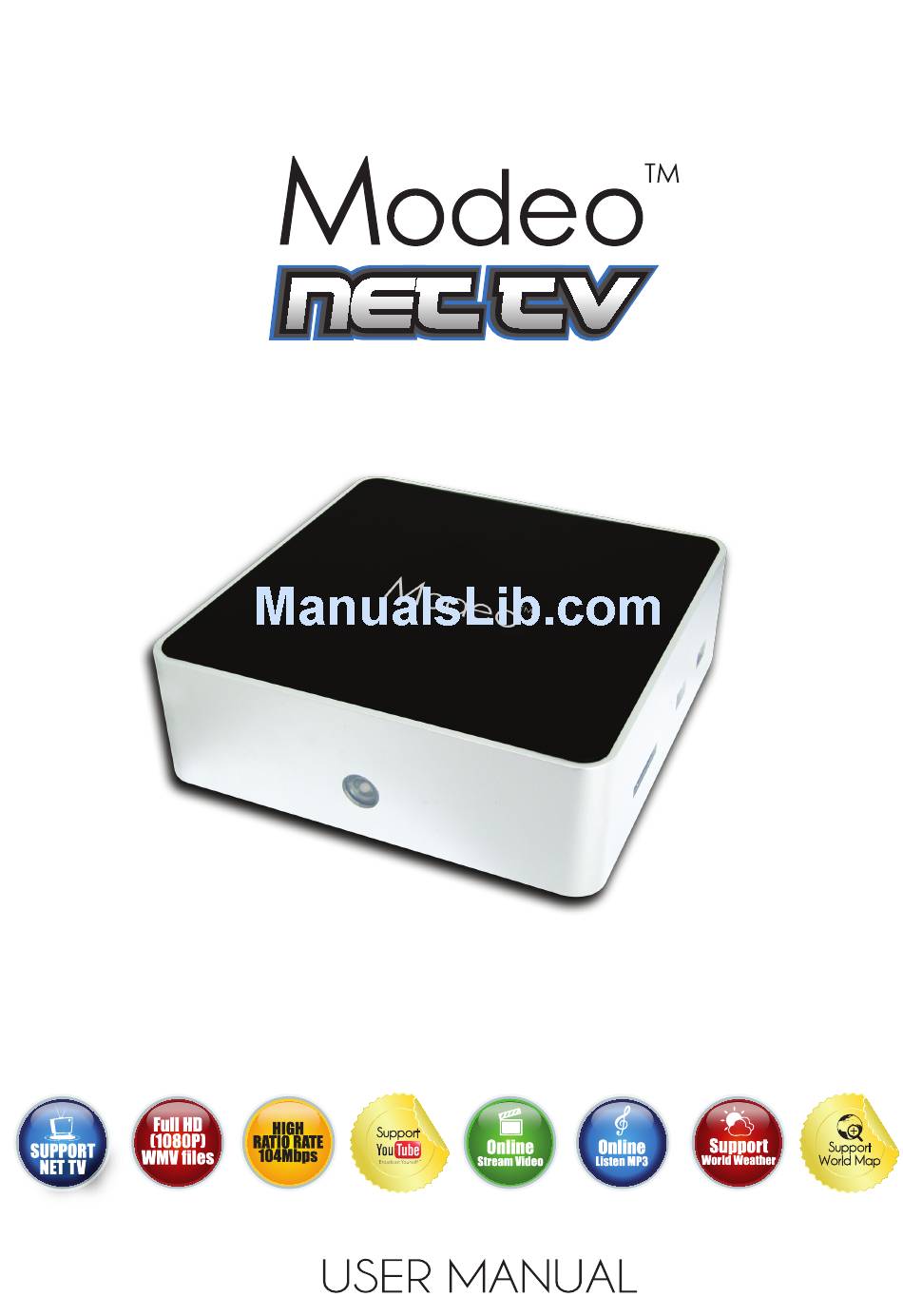

INNO Modeo User Manual

Net tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Modeo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for INNO Modeo

  • Page 2: Table Of Contents

    Introduction ………………….……………………….…………………….…………………….…...……..3 Warning………………….………………………………………….…………………….……...…………..3 Chapter I Product Specification..….…………………………….…………………….…………………...4 1.1 Function List………..……………………………………….…………………….…………...………..4 1.2 Parameters List …………….………………………….…………………….…………………………5 1.3 Functional Feature ……………..……………………….…………………….……………………….6,7 1.4 Quick Installation………..………………………………….…………………….……………….…..7 Chapter II Remote Control Function………………………….…………………….………….…...…..8 Chapter III User Guide………. ……………………………….…………………….………………..9 3.1 Main Menu…….………………………………………….…………………….…………..…………...9 3.2 Media Play…………..………………………………….…………………….……….……………….10 3.2.1 Music………………………………………………….…………………….………………...……...10 3.2.2 High Definition DVD………………………………….…………………….…………..……………11 3.2.3 Movie……………………………………………………….…………………….……….………….12 3.2.4 Online Streaming………………………………………….…………………….…......13 3.2.5 Picture…………………………………………………….…………………….…......14...

  • Page 3: Introduction

    INTRODUCTION This guide shows you how to use and set up your product. Please read it carefully before operation the unit for you can exactly understand the using skill. We repair the damaged goods not caused by users. Body cases are not included in repair. This warranty does not cover damage due to accident.

  • Page 4: Chapter I Product Specification

    Chapter I Product Specification 1.1 Function List - Support HD decode 1080P (1920*1080), bit rate up to 104Mbps; - Support decoding of H.264,MKV,WMV9,MPEG1/2/4,HD DIVX,XVID,FLV,RM/RMVB and other relevant full HD formats; - Film Play: Support many formats, such as MKV,TS,M2TS,MTS,TP,TRP,WMV,IFO,ISO,VOB,DAT,AVI,MPG,MP4,MOV,RM,RMVB,DIVX, XVID,FLV - Support various outdoor-hung subtitle, multiform subtitle and sound track switch;...

  • Page 5: Parameters List

    1.2 Parameters List Power supply Positive role (inside), and negative one (outside), 12V/2.5A File system FAT32, NTFS Video output Component YPbPr, HDMI1.3 and CVBS Audio output Analog stereo, HDMI1.3 Digital, Optical, Coaxial (coaxial is optional) Video Decode: H.264 、 MKV 、 WMV9 、 MPEG1/2/4 、...

  • Page 6: Functional Feature

    1.3 Function Feature H.264 Better HD picture quality, Smaller capacity H.264, the latest HD Video Compression Technique with definite standards, was used widely in the fields such as Television and Radio Broadcasting, Blue-ray DVD and HD-DVD. It can be keep better HD picture quality as well as smaller files when you use H.264 to encode videos.

  • Page 7: Quick Installation

    1.3 Function Feature HD Real Real HD video, Popular format on internet RM, RMVB the different formats of Real Media AV compression standard which was made by Real Networks Company, taking up the mainly video download ratio on internet. The HD player is compatible with RM/RMVB, supporting RM8/RM9/RM10, its dynamic index is higher than 720P, and highly to 1080 1920*1080P resolution.

  • Page 8: Chapter Ii Remote Control Function

    Chapter II Remote Control Function Key Code Key function Silent(Open/Off), play audio/video Zoom Picture zoom in/zoom out Standby/Power On Menu Return from DVD CD file list to menu Title Enter file list from DVD CD DVD eject Angle Switch of visual angle, need file support TV system Video output mode: switch of 480P,...

  • Page 9: Chapter Iii User Guide

    Chapter III User Guide 3.1 Main Menu Power on the TV and select the correct video input mode. Press the key on the remote controller to power on. After the setup finished, the screen will display the main menu interface as shown below: Press the keys on the remote controller to select File copy, Music, High Definition DVD, Movie, Online Streaming, Photo or Setup, then press the key...

  • Page 10: Media Play

    3.2 Media Play 3.2.1 Music the Music display interface, you can: *Press the keys to select music file; *Press the key to display the selected file; *Press the key to prohibit inputting the sound, and repress the key to release the mute status; *Press the volume keys VOL+/ VOL- to change the volume;...

  • Page 11: High Definition Dvd

    3.2.2 High Definition DVD After enter the CD menu, it will show: 1.PLAY DISC 2.BROWSE DISC. Select PLAY DISC to play files directly; then select BROWSE DISC to enter the folder, where you can press the keys to select specific video file to preview. During preview, press the key to get full screen or do other operations.

  • Page 12: Movie

    3.2.3 Movie Under the Movie Browser interface, you can *Press the key to select movie file; *Press the key to display the selected movie; *Press the key to back the previous menu. When the film is playing, you can: *Press the key to prohibit inputting the sound, and repress the key to release the mute status;...

  • Page 13: Online Streaming

    3.2.4 Online Streaming 3.2.3 Movie Press the keys to select relevant website, press, then press the key to enter video navigation interface. Press the keys to select relevant video website, and press the key to enter internet video guide, then press the keys to select the favorite video, press the key to play the video online.

  • Page 14: Picture

    3.2.5 Photo Under the Photo Browser interface, you can: *Press the key to select photo file; *Press the key to display a selected picture in full screen, and play the pictures in the form of slide in the order that the pictures are stored; *Press the key to back the previous menu.

  • Page 15: Network

    3.3 Net This function can support to access to the shared movie, music and photos in your network neighborhood’s computer by network. Select Network Neighborhood, press the key to enter it, select the required computer group, then press the key again, select the required computer and press the key . If there is an access password required in your connected computer, the screen will pop up a dialog box: Network User ID, Network Password, press the key to pop up dummy keyboard, then input User’s ID and password, select OK and access the network neighborhood’s computer to display the...
  • Page 16 3.4 UPNP 2. Setup to share UPNP file (1) Open the computer which installed UPNP software, select “Start”---All program---Tversity Media Serve---Tversity Media Serve---Click “+”---pop up “Add Media Source” dialog box Page.16...
  • Page 17 (2) Select “File” on “TYPE”—click “Open”---Click “Submit” and select the shared file from pop up dialog box, then click “open”---click “submit” to realize file share. (3) If want to delete the shared file, select the file in Library---Source and click “Delete” to delete. Remark: 1.

  • Page 18: Bt Download

    3.5 BT Download (Optional) 1. Hard Disc Format After installation of HDD, press the keys to select System in Setup menu, then press to select HDD format and confirm. According to the cue to operate the steps. Please back up the files before format HDD to avoid losing data. 2.
  • Page 19 3. BT Download Install and run the program of Transcode Server on the computer of LAN. Select Service and click Scan to search for IP address of BT download, then click Neighbor Web to access to Login. Page.19...
  • Page 20 Input user’s ID and password (admin), click Login to enter Neighor Web interface. Click Bit Torrent Download to enter BT download interface. Page.20...
  • Page 21 Click +Add New Torrent to enter the below interface. Press View and find the downloaded torrent file in the company, then open the torrent. The torrent will be added to the left blank area of View. Click YES to enter downloading interface.

  • Page 22: File Copy

    Click Start to download and save it to the hard disk. Click +Add New Torent to continue to add torrent. 3.6 File Copy Press the keys on the remote controller under main menu interface to select “File copy”, then press to enter management.
  • Page 23 (2) Press the key and select the file needed to be copied in source folder, then press “Select” when the cursor stops on the copy file, the selected file will be marked in Red. Then press the key to enter to the destination folder to save it. (3) Press the key to pop up menu: (4) Press the key...

  • Page 24: Menu Setup

    3.7 Menu Setup Press the key / on the remote controller to select “Setup” under main menu interface, then press the key to enter setup interface, which consists of the options such as Audio, Video, Network, System and MISC as shown below. 1.
  • Page 25 2.Video Press the keys to select Video under Setup menu interface, then press the keys to set up. (1)Aspect Ratio: set up aspect ratio, three options---Pan Scan 4:3, Letter Box 4:3, 16:9; (2)Brightness: set up the brightness of screen, the numerical value from 0 to 50; (3)Contrast: set up the contrast of screen, the numerical value from 0 to 50;...
  • Page 26 Select OK icon and press the key to finish. If failed, please check if the network connection is OK. (3)WiFi network setting (need external USB RTK8187B dongle) Page.26...
  • Page 27 Select a connection profile name: Connection1, Connection2 or Connection3 to get connection mode:. There are two modes of Connection Mode: Infrastructure (AP) and Peer to Peer (Ad Hoc), select and confirm Infrastructure (AP): Page.27...
  • Page 28 Get SSID name successfully, select and confirm the SSID name, and open WPA/WPA2 Key Input the password, select and press OK to finish WiFi network setting. Select Peer to Peer (Ad Hoc) to enter. Page.28...
  • Page 29 Put the correct IP address in the Host IP dialog box, press the key to finish Peer to Peer (Ad Hoc) network setting. If the WiFi network setting is failed, please check if the network connection is normal. 4.System Press the keys to select System under Setup menu interface, then press the keys to set up...
  • Page 30 (1) Resume play: set up the function of continue to play movie as “On” or “Off”; (2) Slide Show Timing: set slide show time, support off, 2s, 5s, 30s, 1min, 2min; (3) Transition effect: set the actual effect of photo change, support “Off”, “Top to Bottom”, “Left to Right”, “All Effect Shuffle”...

  • Page 31: Chapter Iv Polite Notice

    Chapter IV Polite Notice 1. If the player support internal 3.5” SATA HDD, please refer to the installation and format way as below: take out off the four screws both in front panel and back panel before installation, take apart the player and insert the HDD to the main board, then lock it. HDD format: If a new HDD, please partition and format it before using.
  • Page 32 Page.18...
