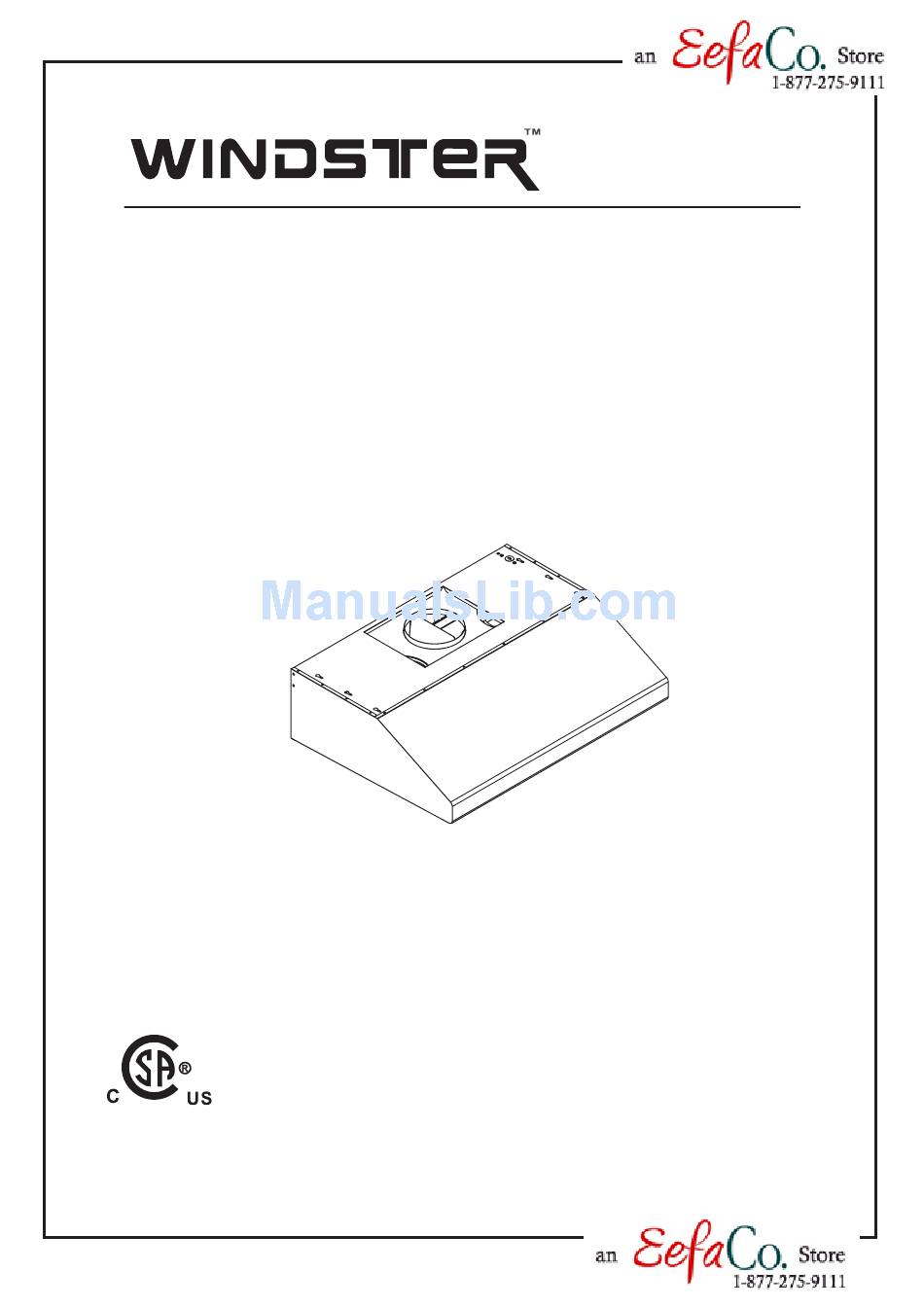

- Page 1 MODEL : WS-38 series OPERATION MANUAL Please read and save this guide through before using your range hood. Store the guide away in a safe place so that you will know where it is, when you want to refer to it.
- Page 2 A. Important Safety Insturctions A. Important Safety Insturctions Read and Save These Instructions CAUTION- To reduce risk of fire and to properly exhaust air, make sure to properly exhaust air. Be sure to duct air outside- Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages.
- Page 3 WARNING- To reduce the risk of injury in the event of a range top grease fire, observe the following: SMOTHER FLAMES with a close- fitting lid, cookie sheet, or metal tray, then turn off the burner. Be careful to prevent burns.
-
Page 4: Safety Notes
B. Safety Notes B. Safety Notes 1. All electrical work must be done in accordance with local and/or national electrical code as applicable for safety. This product must be grounded if your are unfamiliar with methods of installing electrical wiring, secure the services of a qualified electrician. -
Page 5: Tools And Materials Required
C. Tools and Materials Required C. Tools and Materials Required Drill, electric of ratchet driver, with 3/16" wood bit (for drilling starter holes and 1 ” wood bit (to drill an access holes in the cabinet or ¼ kitchen wall for the electric power line) One common screwdriver. -
Page 6: Preparing The Range Hood
E. Preparing The Range Hood E. Preparing The Range Hood 1. Remove the top electrical Electrical Knockout knockout, you may plan to bring power to the range hood either through the cabinet or through the wall (Fig.1) Fig.1 2. Insert a screwdriver into the knockout slot and bend the knockout back and forth. -
Page 7: Preparing The Installation Location
F. Preparing The Installation Location F. Preparing The Installation Location 1. If you want to move the electric range to make room for working on the cabinet turn off the 220 volt power for the electric range at the service entrance. 2. -
Page 8: Providing Electrical Power
C. Screw the four 1" wood screws (for mounting the hood) into the exact center of the arrow and into the keyhole mounting slots marked on the cabinet bottom (for flush installations), or marked on the 1” x2” wood strips (for Strips secured recessed cabinet installation) (Fig.7) Do not turn the mounting screws in all... -
Page 9: Remove And Reinstall Baffle Filters
H. Remove and Reinstall Baffle filters H. Remove and Reinstall Baffle filters ② ① 1. Wear safety workman gloves and ①, 2. Push Baffle filter down ward hold the handles of Baffle filter. then pull a little back ② ③ ③... -
Page 10: Maintenance Instruction
I. Maintenance Instruction I. Maintenance Instruction 1. Maintenance shall be important than repair. Please take care of the needed maintenance in order to secure and extend the excellent functions and using life. Note : Before repairing the range hood. Disconnect the power source. 2. -
Page 11: Vertical Rectangular Ducting
K. Vertical Rectangular Ducting K. Vertical Rectangular Ducting A. Remove the pre-mounted D. Overlap the rectangular starting collar on the top 6” round duct opening. of transition plate. Half round section E. Mounting rectangular starting collar with remaining screws. B. Put transition plate by first installing 4 screws on the...
