Vanguard Sailboats Laser 2 Rigging Instructions

VANGUARD
SAILBOATS
200 Highpoint Avenue
Portsmouth, RI 02871 USA
V A N G U A R 0 Tel. (401) 683-0960 · Fax (401) 683-0990

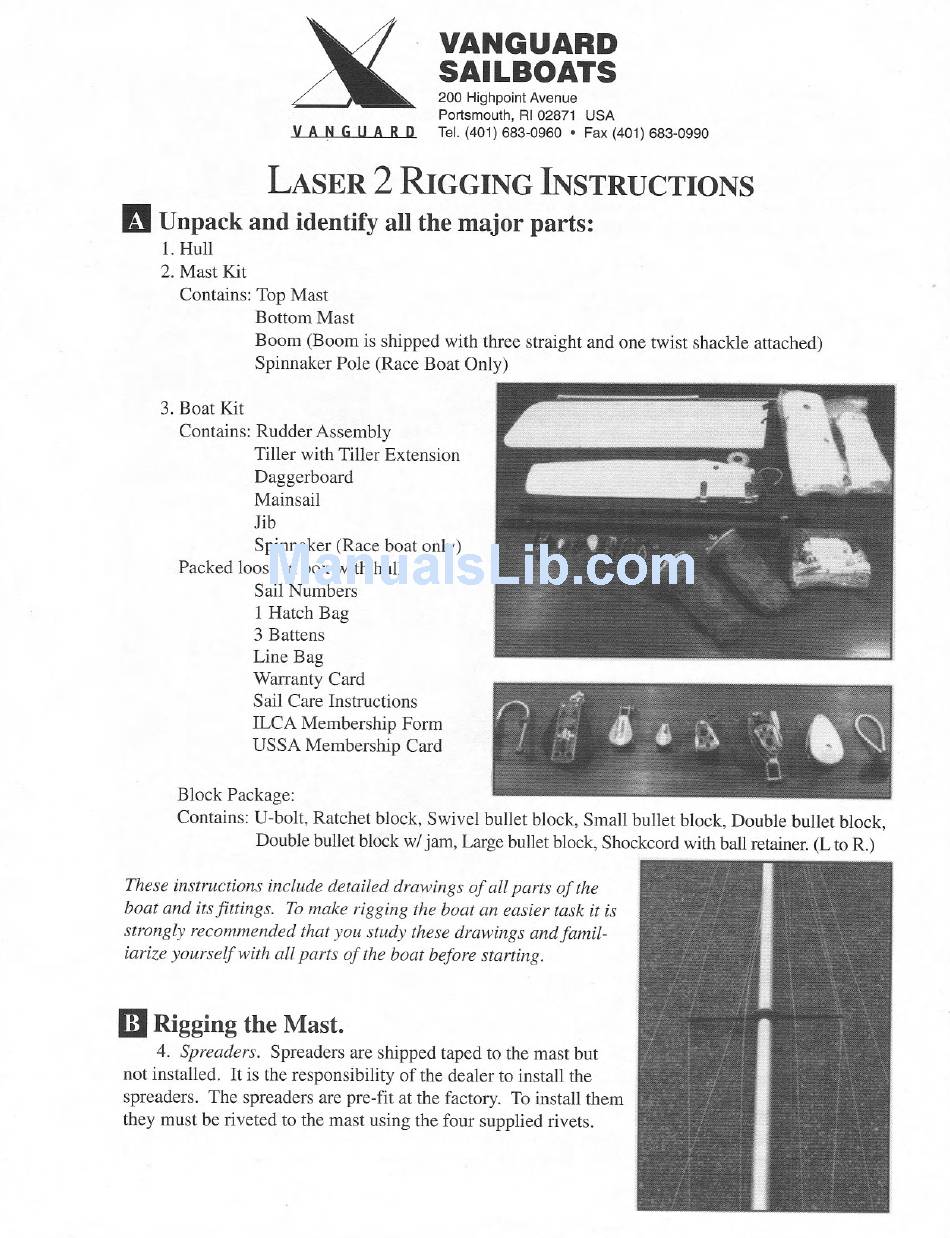

LASER 2 RIGGING INSTRUCTIONS
D
Unpack and identify all the major parts:
1. Hull
2. Mast Kit
Contains: Top Mast
Bottom Mast
Boom (Boom is shipped with three straight and one twist shackle attached)
Spinnaker Pole (Race Boat Only)
3. Boat Kit
Contains: Rudder Assembly
Tiller with Tiller Extension
Daggerboard
Mainsail
Jib
Spinnaker (Race boat only)
Packed loose in box with hull:
Sail Numbers
1 Hatch Bag
3 Battens
Line Bag
Warranty Card
Sail Care Instructions
ILCA Membership Form
VSSA Membership Card
Block Package:
Contains: V-bolt, Ratchet block, Swivel bullet block, Small bullet block, Double bullet block,
Doublebullet block w/jam, Largebullet block,Shockcordwith ball retainer.(L to R.)
These instructions include detailed drawings of all parts of the
boat and its fittings. To make rigging the boat an easier task it is
strongly recommended that you study these drawings and famil-
iarize yourself with all parts of the boat before starting.
DJ Rigging the Mast.
4. Spreaders. Spreaders are shipped taped to the mast but
not installed. It is the responsibility of the dealer to install the
spreaders. The spreaders are pre-fit at the factory. To install them
they must be riveted to the mast using the four supplied rivets.
