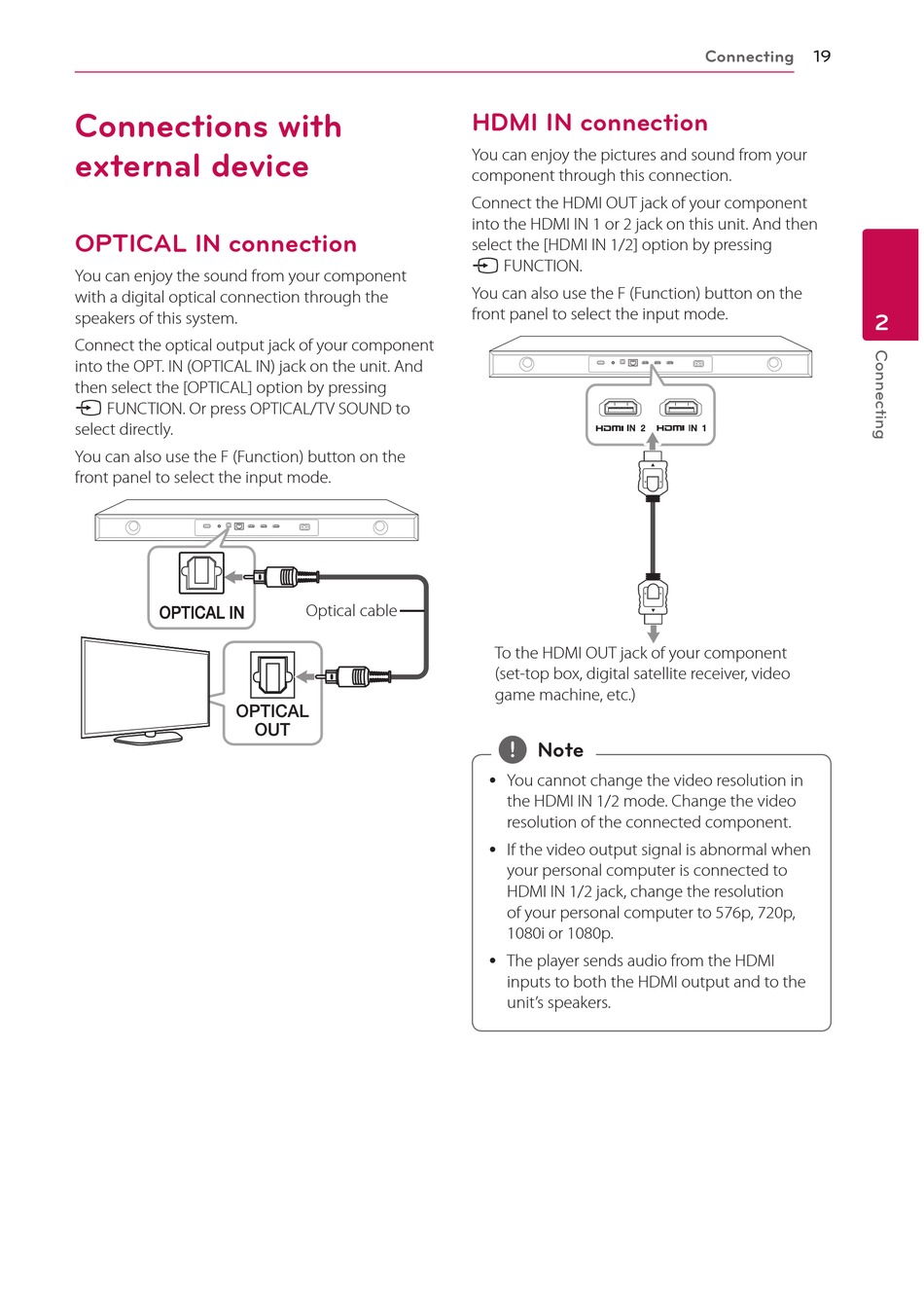

Connections with
external device

OPTICAL IN connection

You can enjoy the sound from your component
with a digital optical connection through the
speakers of this system.
Connect the optical output jack of your component
into the OPT. IN (OPTICAL IN) jack on the unit. And
then select the [OPTICAL] option by pressing
P FUNCTION. Or press OPTICAL/TV SOUND to
select directly.
You can also use the F (Function) button on the
front panel to select the input mode.

HDMI IN connection

You can enjoy the pictures and sound from your
component through this connection.
Connect the HDMI OUT jack of your component
into the HDMI IN 1 or 2 jack on this unit. And then
select the [HDMI IN 1/2] option by pressing
P FUNCTION.
You can also use the F (Function) button on the
front panel to select the input mode.
Optical cable
To the HDMI OUT jack of your component
(set-top box, digital satellite receiver, video
game machine, etc.)
,
Note
y You cannot change the video resolution in
the HDMI IN 1/2 mode. Change the video
resolution of the connected component.
y If the video output signal is abnormal when
your personal computer is connected to
HDMI IN 1/2 jack, change the resolution
of your personal computer to 576p, 720p,
1080i or 1080p.
y The player sends audio from the HDMI
inputs to both the HDMI output and to the
unit's speakers.
