Summary of Contents for Tekcomm TCT2100

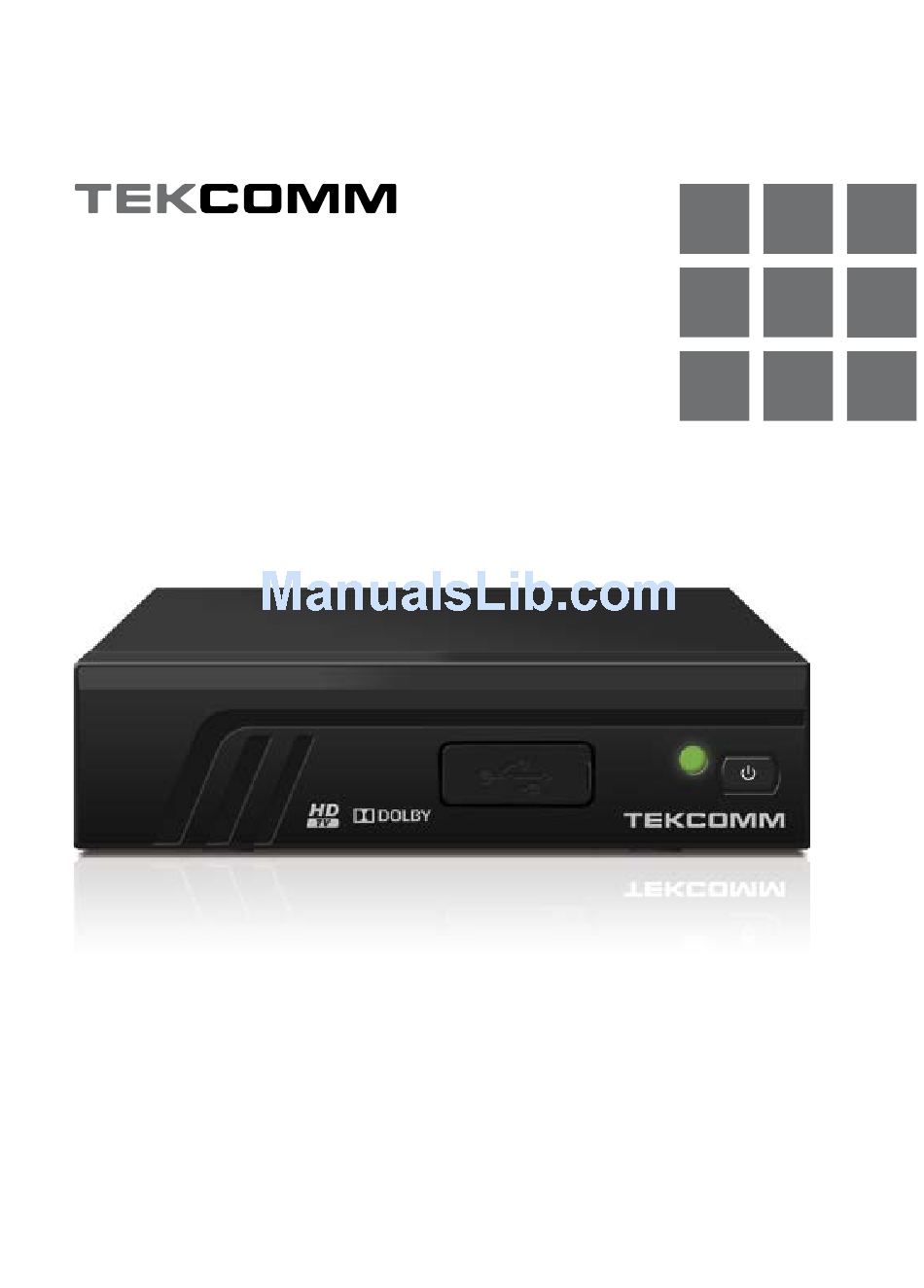

- Page 1 1000 INFO channels enregistrement Terminal Numérique Terrestre Digital Sous-titres Télétexte audio Haute Défi nition TCT2100 Contrôle Recherche autom/man. parental listes favoris Manuel d’utilisation User Manual...
- Page 2 AC 220-240 V~ 50/60 Hz. max. 12 W Digital Terrestrial High Definition Receiver Model: TCT2100 USB: 5 V 800 mA max. MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AND THE DOUBLE-D SYMBOL ANT IN ARE TRADEMARKS OF DOLBY LABORATORIES. DC 5 V...
- Page 3 Digital Terrestrial High Definition Receiver AC 220-240 V~ 50/60 Hz. max. 12 W Model: TCT2100 USB: 5 V 800 mA max. MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AND THE DOUBLE-D SYMBOL ANT IN ARE TRADEMARKS OF DOLBY LABORATORIES. DC 5 V...
- Page 4 Supplied by STRONG & Co, Japan Represented by STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Vienna Austria Email: support_at@strong.tv 17 Jun 2015 12:23...
- Page 5 Licenses ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN PERSONAL USE THAT COMPLIES WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2 PATENT PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado 80111 U.S.A.
-
Page 6: Table Of Contents
3.5 Connecting to an analogue Audio Amplifier TEkCoMM declares that this item complies with the basic requirements and other relevant regulations of directives 2004/108/EC and 73/23/EC, rohs 2002/95/EC Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. -
Page 7: Introduction
1.0 InTroDuCTIon 1.1 safety Instructions Do noT InsTALL Your rECEIvEr: In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a „ „ surface which might obstruct the ventilation slots. Do noT EXPosE ThE rECEIvEr or ITs ACCEssorIEs: To direct sunlight or any other equipment that generates heat;... -
Page 8: Equipment Set-Up
It is advised not to store important information on USB storage devices used with the receiver. „ „ Always make backups of data on your USB storage device before using it with this receiver. TEKCOMM will not take responsibility for any loss of information or circumstances caused by loss of information. -
Page 9: Your Receiver
2.0 Your rECEIvEr 2.1 DEfAuLT PIn: 1234 2.2 front Panel Fig. 1 1. usb Connector for USB storage devices. 2. Ir sensor Point your remote control towards this sensor. 3. Mode indicator RED indicates that the receiver is in STANDBY mode. GREEN indicates that the receiver is in OPERATING mode. -
Page 10: Installing The Batteries
16. rECALL Back to previously watched channel 17. AuDIo Opens the audio language selection 18. Tv/rADIo Toggles between TV or RADIO mode 19. fAv Opens the favourite group selection 20. fILE Opens the Media Player list 21. TTX Displays Teletext on the OSD (On Screen Display) 22. -
Page 11: Connecting To Tv With Hdmi Cable
noTE: If the signals at your location are too weak to receive proper signals with an indoor antenna, we recommend using an outdoor antenna which can be pointed towards the transmission tower. Ask your local dealer for more information. 3.2 Connecting to Tv with hDMI cable Fig. -
Page 12: Starting Up For The First Time
4.0 sTArTInG uP for ThE fIrsT TIME When you use your receiver for the first time, the Welcome “Easy install” menu appears. Use pq to move the highlight to the setting you wish to alter and use t u to change values. Start by selecting your language using t u. -
Page 13: Quick Guide To Using Your Receiver
5.0 QuICk GuIDE To usInG Your rECEIvEr We at TEKCOMM understand that you can’t wait to enjoy your new digital terrestrial HD receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance from your receiver. -
Page 14: Selection Of Audio Language
6.3 selection of audio language Some channels support a choice of audio formats and/or languages. To select another audio stream, press AuDIo in viewing mode. A list with available audio streams will now be displayed. Use pq to select a stream and confirm with ok. The audio channel as stereo, mono, left and right can be selected with the t u buttons. -
Page 15: Instant Recording
6.8 Instant recording Your new receiver allows you to make an instant recording of the programme you are watching. Simply press rECorD to start the recording. To enter the duration for the recording, press rECorD again, while the program banner is visible. Use the 0~9 buttons to enter the recording time and press ok to confirm. -
Page 16: Moving Channels
is possible. When all changes have been made, press EXIT twice. A confirmation banner will pop up. Select Yes to save the changes or No to discard. 7.1.1.3 skipping channels Channels marked with Skip will be skipped when zapping channels with the pq buttons. The channels will still be available from the channel list. -
Page 17: Installation
you have marked all channels you wish to delete, press EXIT twice. A confirmation banner will be displayed. Select Yes to delete the marked channels or No to cancel. 7.1.2 radio Channel List Basically, the operation of the Radio Channel List is the same as in the TV Channel List. The only difference is that in Radio Channel List there is no video information, so it will always display the radio background on the preview screen. -
Page 18: System Setup
7.2.3 Antenna Power Use pq to select Installation, press ok or u to advance. Use pq to select Antenna Power and press ok to enter. Set to On if you use an active antenna. Select Off for passive antennas. When set to On,5 V will be present on the ANT IN connector of the receiver. Press EXIT to leave the Antenna Power menu. -
Page 19: Local Time Setting
Aspect Mode: Use this option to select the aspect ratio of your TV and the preferred conversion method. The options are: Auto (automatic detection of aspect ratio), 4:3 Panscan (Displays 16:9 widescreen broadcasts full screen on your 4:3 TV), 4:3 letterbox (black bars on top and under the picture on a 4:3 TV) and 16:9 (use this setting for 16:9 TV sets). -
Page 20: Parental Lock
Timer Service: Choose between Channel (the timer will wake up the receiver) or Record (Timer will start recording the scheduled event). Use t u to select the channel the timer will wake up with. Wakeup Channel: Use the 0~9 buttons to enter the date for the timed event. Wakeup Date: Use the 0~9 buttons to enter the starting time. -
Page 21: Tools
This receiver is equipped with an Over The Air software upgrade function. An Over The Air update might not be available in your region. Please visit our website www.tekcomm.tv or contact your local service hotline for more information about this option. -
Page 22: Games
An Over The Air update might not be available in your region. Please visit our website www.tekcomm.tv or contact your local service hotline for more information about this option. 7.5 Games Your receiver is equipped with two games which can be played on your TV screen using the receiver... -
Page 23: Media
Use pq to select Games from the Main menu and press ok or u to proceed. Select one of the available games (Othello or Sudoku) using pq and press ok to start the game. Follow the directions on screen. Press EXIT to quit a game. 7.6 Media The Media menu consists of the following submenus: Media Player, HDD Information, DVR Setting and Remove USB device safely. - Page 24 Formatting will permanently delete ALL data stored on the connected device. Please make a backup copy of all data you wish to keep before entering the HDD Format menu. TEKCOMM cannot be held responsible for loss of data from USB devices used with this receiver.
- Page 25 Press ok to proceed, select FAT or Cancel, or press EXIT to leave without formatting. Press bLuE DVR Set to select recording type. Select REC & TMS to store recordings and Timeshift copies to your HDD. Select Record to store only recordings to your HDD. Select Timeshift to switch recordings OFF.
- Page 26 Default PIN is 1234 Forgotten channel lock Contact the local Service Hotline code or send an email to our Support via www.tekcomm.tv After moving the receiver The antenna signals are too Press INFO on the remote control to another room/area...
- Page 27 MP3, OGG* Picture view: BMP, JPEG* * TEKCOMM cannot guarantee the playback of all files although extensions are listed, as it depends on codec used, data bit rate and resolution (all MPEG codec formats are supported). Connectors ANT IN - IEC Female HDMI TV SCART (RGB, CVBS, Audio L&R)
- Page 28 Power consumption: 3.65 W (typ.), 12.00 W (max) Power consumption in standby: max. 0.4 W Operating temperature: 0 °C ~ +40 °C Storage temperature: -10 °C ~ +50 °C Operating humidity range: 10~85%, RH, Non-condensing Size (WxDxH) in mm: 141 x 113 x 40 Net-weight: 0.25 kg...
