Infinova V1700 Series Installation Manual

Super domes
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V1700 Series
Super Domes Installation Guide
Wall Mounting
Over-roof
Side Wall Mounting

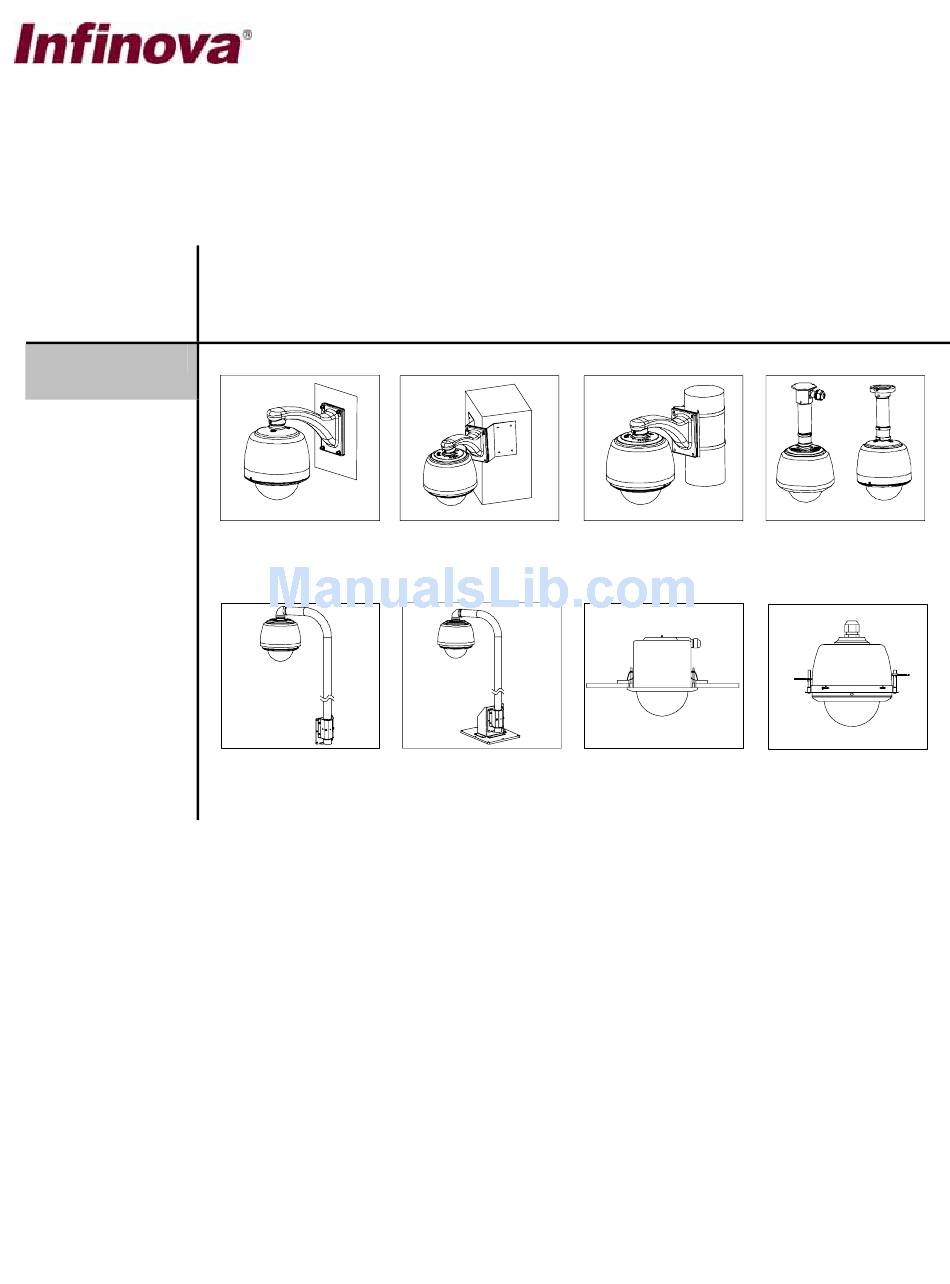

This manual addresses the installation procedures of Infinova V1700 series Super Domes. The domes feature an
all-in-one design and compact structure that makes its installation an easy and time-saving job.
Please familiarize yourself with the instructions and guidelines discussed in this manual before attempting to
install your super domes.
Corner Mounting
Over-roof horizontal
surface Mounting
(outdoor)
Pole Mounting
Ceiling Mounting
(indoor)
(indoor)
Pendant Mounting
Ceiling Mounting
(outdoor)
