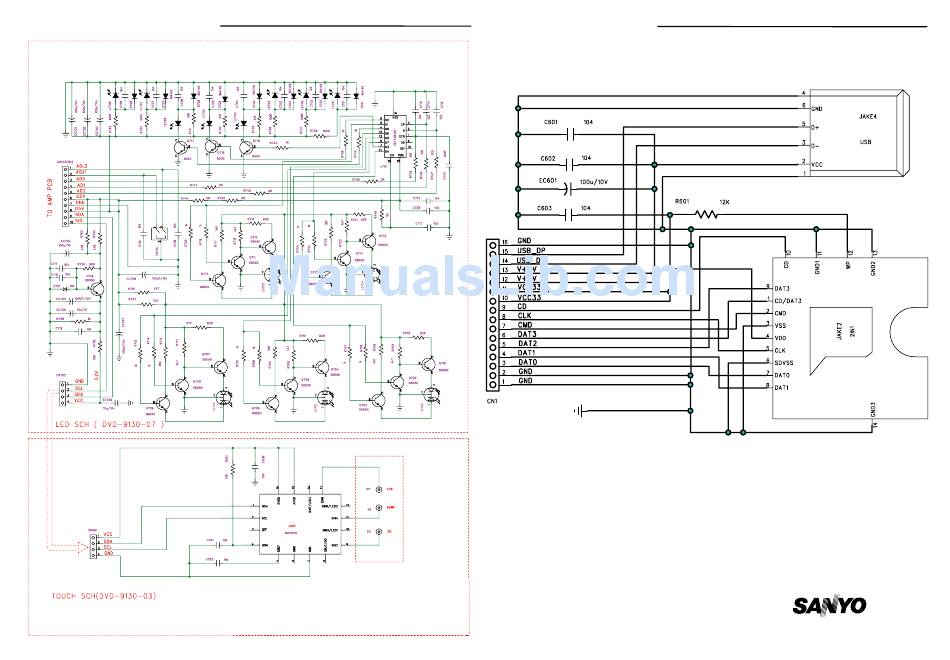

SCHEMATIC DIAGRAM ( LED & TOUCH )
DEC/ ' 08
- 20 -
SCHEMATIC DIAGRAM ( USB & SD )
SANYO Electric Co., Ltd.
Osaka, Japan
- 21 -
