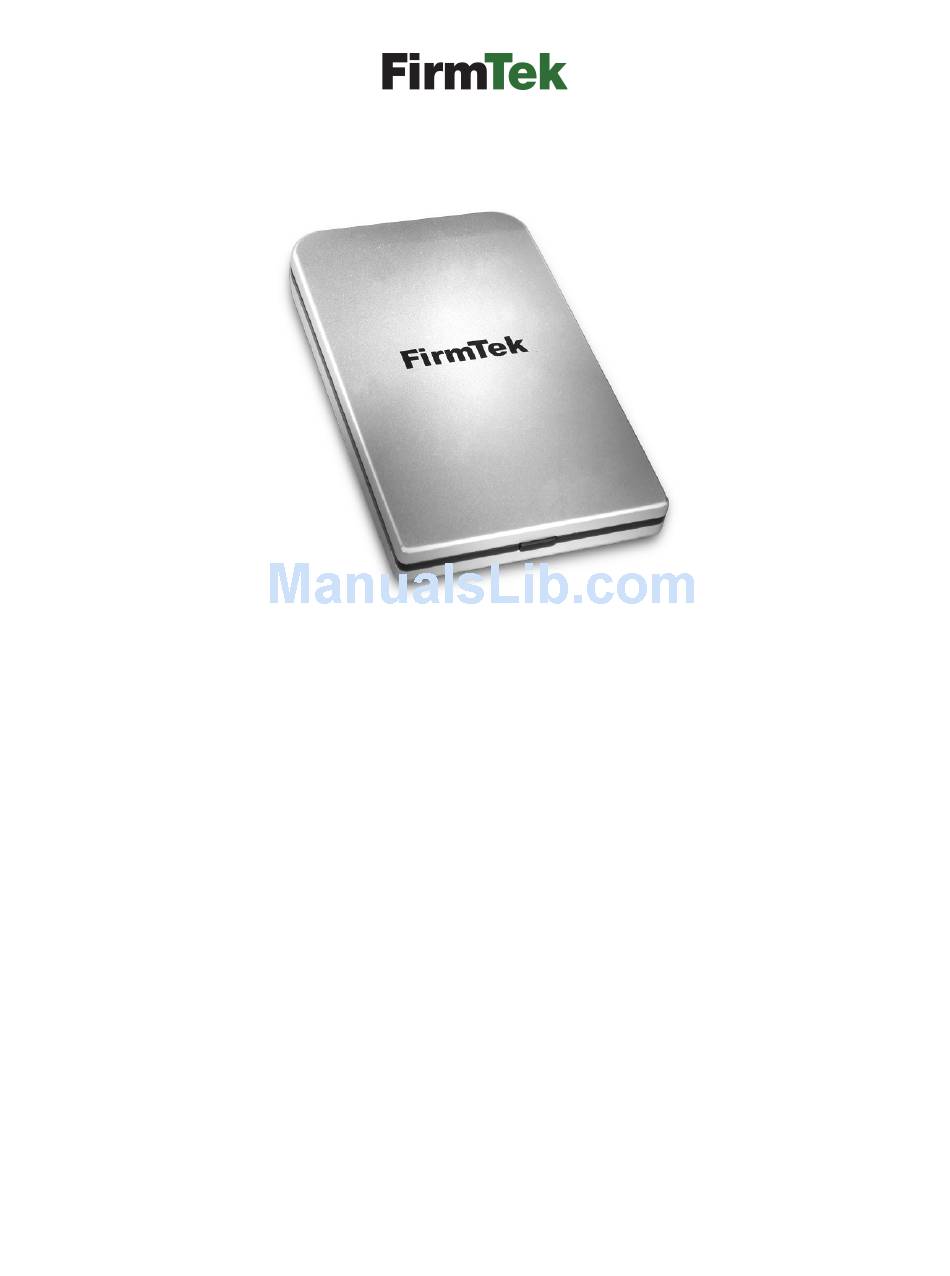

- Page 1 Store and Share your Digital Creations dLite ™ 2.5” External, Bus Powered, High-Performance, Ultra-light, USB 3.0 Enclosure User Manual...
- Page 2 (not the cable) when inserting and removing the cable from the computer and the external USB 3.0 enclosure. Note: The dLite cable and connectors are specifically design to provide secure connections with the dLite. The USB 3.0 cable included can be used with either USB 2.0 or USB 3.0 ports.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ....................4 II. Preparing the dLite ..................8 Drive Installation ..................9 Power Operation ..................10 III. Hot-Swapping Hard Drives ..............10 General Hot-Swap Guidelines ..............10 IV. Sleeping & Wake-Up Procedures:............11 V. Troubleshooting..................12 VI. -
Page 4: Introduction
This product is yet another innovative solution from FirmTek. About This User Manual The user manual will introduce you to the dLite enclosure. Please read it carefully, so that you may become familiar with the proper operation of this product. -
Page 5: Package Contents
Package Contents Part number USB3-dLite includes: External USB 3.0 chassis One ext. shielded USB 3.0 data cable with Type A to Mini connectors dLite Highlights Attractive, durable, ultra-portable, high-speed enclosure supports one 2.5” SATA SSD or HDD ♦ Easy to set up: install drives in seconds ♦... - Page 6 Specifications General System Compatible with Macintosh or PC with an available USB 2.0 or Hardware USB 3.0 port Requirements Operating • System independent Systems • Cross-platform, PC and Macintosh compatible Supported Enclosure • One 2.5” drive of any capacity...
- Page 7 System Requirements Hardware Requirements Compatible with external USB 3.0 and 2.0 ports. USB 3.0 ports can be found on the 2012 • or later Apple MacBook Pro, MacBook Air, Mac mini, iMac and Windows PC notebooks and desktops 7mm or 9.5mm 2.5” SATA 1.5G, 3G, 6G hard drive or SSD, any capacity •...
-
Page 8: Preparing The Dlite
II. Preparing the dLite Caution: Please verify your data is backed up before attempting to use the dLite external enclosure. The dLite enclosure, hard drive/SSD and computer contain sensitive components that can be permanently damaged by Static Electric Discharge. Be sure you’re working in an area free of static electricity to prevent damage. -
Page 9: Drive Installation
Drive Installation Follow the steps below to install a hard drive or SSD and attach the dLite to the computer. 1. Remove the top and bottom covers Push the front middle tab on the dLite enclosure. This will allow you to remove the aluminum top and bottom covers. -
Page 10: Power Operation
The dLite will operate on bus power provided the USB power limits of the computer are not saturated. USB 2.0 computer connections offer up to 500mA of power while USB 3.0 ports provide up to 900mA. The dLite does not support a power adapter. -
Page 11: Sleeping & Wake-Up Procedures
2. Put the system into Sleep mode, or shutdown normally. When you wish to Wake-Up or Turn-On the Computer System: 1. Verify your dLite enclosure is connected to the computer via the USB cable. 2. Wake-Up or Turn-On your System normally. -
Page 12: Troubleshooting
• Does the dLite work with all PPC and Intel based Macintosh computers? Yes, the dLite works with all computers with at least one available USB 3.0 or USB 2.0 port. For support of devices over 2TB Mac OS X 10.5.x or higher is required VI. -
Page 13: Product Warranty And Disclaimers
VII. Product Warranty and Disclaimers FirmTek warrants to the original buyer only that this product shall be free from defects in material and workmanship for a period of one year from the original date of purchase. This warranty is valid only when the original purchase invoice is provided.
