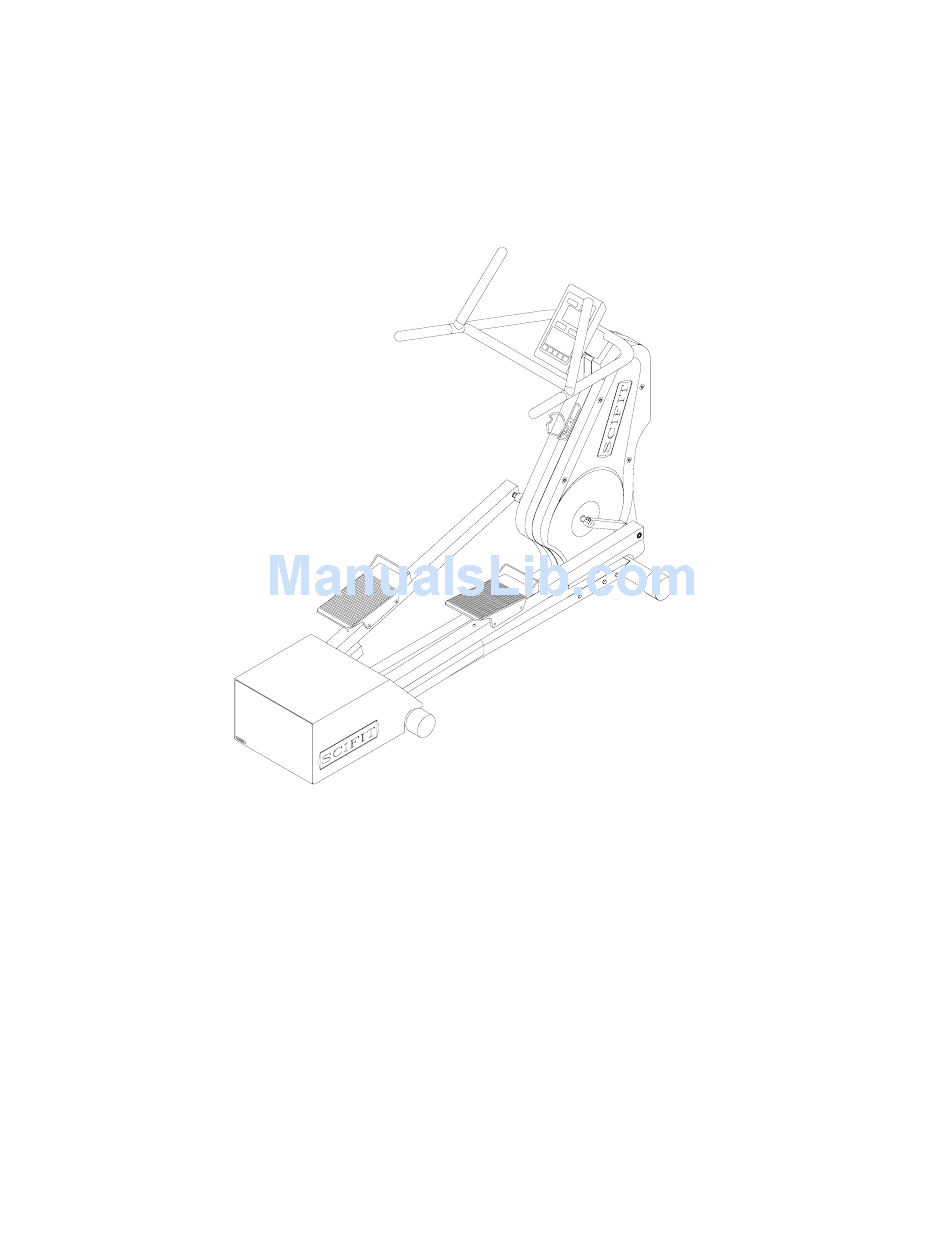

- Page 1 SX1000 Service Manual SALES: 800-278-3933 CUSTOMER SERVICE: 800-745-1373 Revision: August 1999...
-
Page 2: Table Of Contents
Brake Assembly Procedure 5 – Checking the Rail Alignment Procedure 6 – Adjusting the Rail Alignment Figures Figure 1 – SX1000 Main Frame Figure 2 – SX1000 Total Assembly Figure 3 – Power Entry Module with Fuse Holder Figure 4 – SX1000 Wiring Diagram Figure 5 –... -
Page 3: Overview
I. Overview Purpose. This manual is designed to assist in service of SCIFIT SX1000 elliptical exercise machines. The manual is divided into sections to diagnose and isolate problems. Troubleshooting tables and procedures, along with drawings, are provided to aid technicians in servicing equipment. The Item Numbers given in the parts list in Section V can be used to determine the location of various parts in Figures 1 and 2. -
Page 4: Troubleshooting Tables
II. Troubleshooting Tables Table 1 – Electrical Troubleshooting Problem Possible Reasons Solutions 1.1 The machine Faulty power supply If buttons on the control appears to be off board. display beep when when plugged in pressed, replace power and switched “on”. supply board. - Page 5 1.5 Heart rate displays Chest strap and Verify that they are being zero (0) in window transmitter improperly properly worn. worn. Loose sensor lead Check and adjust as connection at display needed. board. Faulty receiver. If there is no audible signal, replace receiver.
- Page 6 Table 2 – Mechanical Troubleshooting Problem Possible Reasons Solutions 2.1 Rails lock up while Power supply board is Unplug power cord. If operating. faulty. rails move, replace power supply board. Brake is bad. If rails do not move with power cord unplugged, replace brake.
- Page 7 2.4 Very little resistance Speed sensor improperly Check and adjust the at any level. adjusted. speed sensor as needed. See Procedure 3. Bad speed sensor Check voltage at power connection with power supply board. See supply board. Procedure 2. 2.5 Belt is slipping Not enough tension on Tighten the belt to ¼”...
-
Page 8: Maintenance Procedures
Plug into power source and Adjusting the Speed Sensor turn on. 1. Turn machine on and press start. b. The message “SCIFIT FOR 2. Turn crank arms at 1 revolution SCIENTIFIC SOLUTIONS” per second. The RPM window should display around 60 ±10 should be scrolling across upper display board. -
Page 9: Procedure 4 - Removal And Replacement Of The Brake Assembly
Remove the brake from the machine and set aside to return to SCIFIT (request a UPS call tag by phone). Procedure 4 – Removal and 11. Hoist the replacement brake Replacement of the Brake... - Page 10 The brake with sheet metal frame. display will be scrolling the Loosely attach the 10-32 screw to message, “SCIFIT…” Slowly this hole. rotate the crank arm assembly 17. Slip the V-belt over the plastic and the message will change to a pulley while slowly turning the programming prompt.
-
Page 11: Procedure 5 - Checking The Rail Alignment
If this is the case, 4. Reinstall the left crank arm at the please contact SCIFIT Service at same angle as the right crank 800-745-1373. Also, check the arm. Do not use the Woodruff chain tension. -
Page 12: Figures
IV. Figures Figure 1 – SX1000 Main Frame... -
Page 13: Figure 2 – Sx1000 Total Assembly
Figure 2 – SX1000 Total Assembly... -
Page 14: Fuse Holder
Figure 3 – Power Entry Module with Fuse Holder... -
Page 15: Figure 4 – Sx1000 Wiring Diagram
Figure 4 – SX1000 Wiring Diagram... -
Page 16: Lubricant Application
Figure 5 – SX1000 Spindle Bearing Lubricant Application... -
Page 17: Sx1000 Parts List
V. SX1000 Parts List Item Description Part No. Qty. Console 65202 Display board 65110 overlay/switch panel 65112 heart rate pickup/cable, assy A1066 standoffs, 1", 6-32 P1051 screw, 6-32x.5 b.h. pltd. P1052 screws, 6-32x.250 f.h. pltd. P1053 mount, display, weldment B1020 bolts, 1/4-20 x 5/8 pltd. - Page 18 5/16-18, pltd. P1099 cover, right P1036 cover, left P1035 Tape, pickup, speed, brake, large A1190 decal, Scifit P1100 decal, SX1000 P1101 cover, rail, rear, weldment A1022 decal, warning, hi voltage P1102 decal, serial number P1103 manual, operator's P1104...
- Page 19 cord, power, AC 65169 grommet, hole, 1 1/2 dia. P1105 support, cover A1033 decal, plate, scuff P1106 holder, bottle, water P1092 bracket, tension, upper A1116 bracket, tension, lower A1117 socket head, 10-32x2.5, flat, d.h., pltd. bolt, 3/8-24 x 2 1/2 hex, pltd. nuts, 3/8-24 lockwashers, 3/8 100 bolt, 3/8-16 x 1 1/2 hex, pltd.
