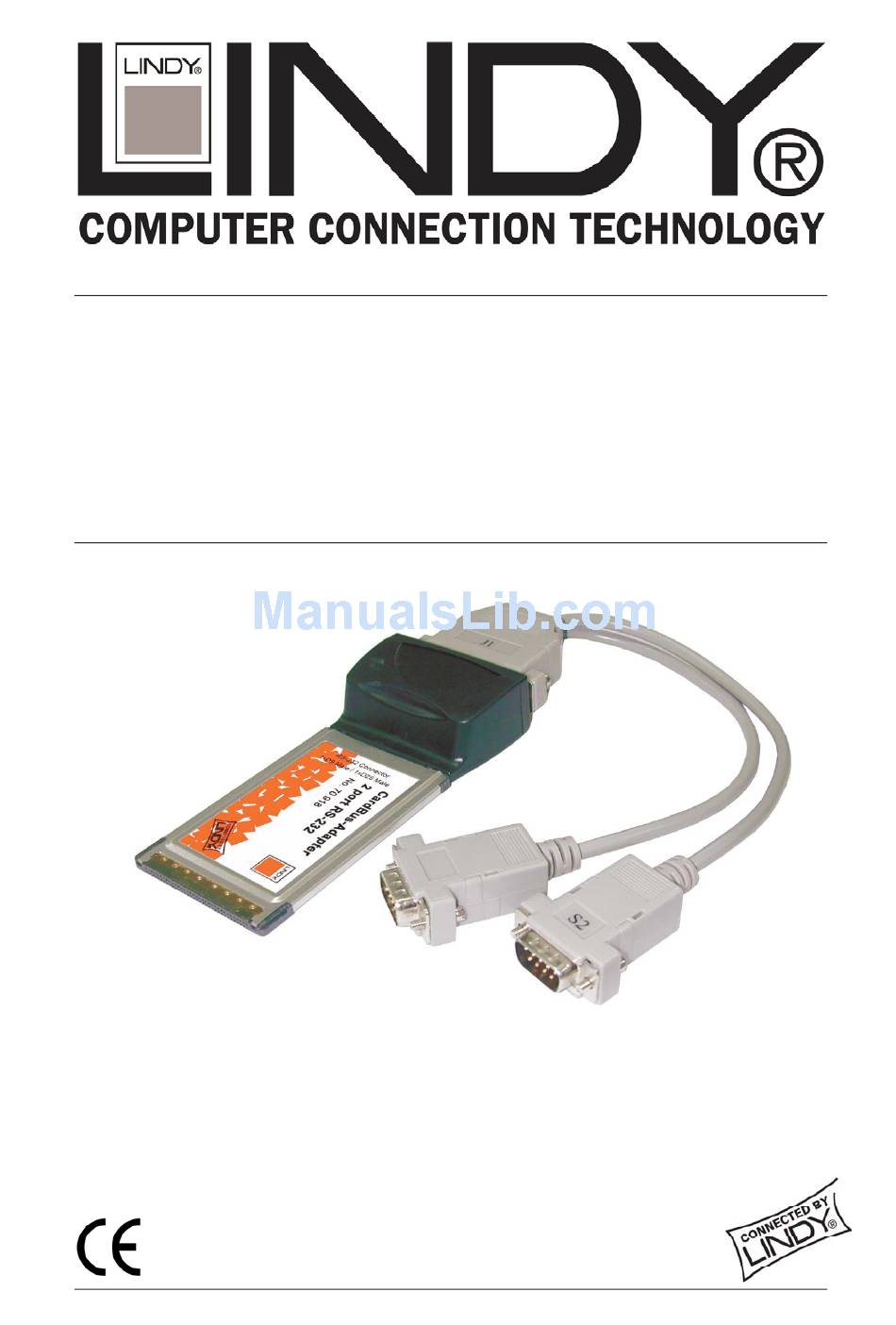

CardBus/PCMCIA 2 Serial Ports User Manual English LINDY No. 70918 www.LINDY.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (JUNE 2004) -
Page 2: System Requirements
Thank you for purchasing the RS-232 asynchronous serial PCMCIA card, an ideal solution for adding additional ports to a wide variety of portable systems. This Card Bus is your best solution to utilize the peripheral with serial port in an easy-to-use environment such as plug-n-play and hot-swapping function. -
Page 3: Pin Assignment
4.0 Pin Assignment 5.0 Driver Installation Windows NT4.0 1. Power up the system. 2. After inserting the Serial Card Bus into PCMCIA Type II slot successfully, please follow the instructions as below: 3. Please run the “Install_Serial.exe” program locate within folder of the attached driver CD : \PCMCIA\IO\CBS2000X\WinNT4\Install_Serial.exe 4. - Page 4 Windows 9x/2000/XP 1. Power up the system. 2. After inserting the Serial Card Bus into PCMCIA Type II slot successfully, please follow the instructions as below: 3. System will show the “Found New Hardware Wizard” windows. a. You can select “Install the software automatically”. Let system searching and installing the appropriate driver automatically.
-
Page 5: Verifying Installation
Note: 5.0 Verifying Installation The “Add New Hardware Wizard” windows will show up and re-install driver several times until you finish setting up each serial port. Please right click “My Computer”, select “Properties”, and “Hardware”, then “Device Manager” to verify the driver installation completed. If there is any yellow exclamation mark on "PCcard OX16CF950", please remove this item from the Device Manager by clicking the Uninstall button and click Refresh to reinstall this driver again. - Page 6 6.0 Configure COM Port 1. Select the COM Port which you want to configure, for example COM4. Right check the mouse, and select the “Properties”. 2. You can configure different operating settings through selecting the “High Speed Communications Port” properties pages. 3.
- Page 7 3. You can select “FIFOs” change the length of receiver and transmitter FIFO. This page is used to configure the FIFO trigger levels, i.e. at what fill levels the device will generate an interrupt, or apply automatic flow control. In addition, the FIFO can be completely disabled; although this is not recommended for normal operation.
- Page 8 4. You can select “Data Rate” change the crystal Frequency of input clock. This page provides a list of common crystal values used with COM ports. Select “Detect crystal frequency” to detect the input clock frequency to the UART. (This requires that the port is not currently in use by another application).
- Page 9 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.
