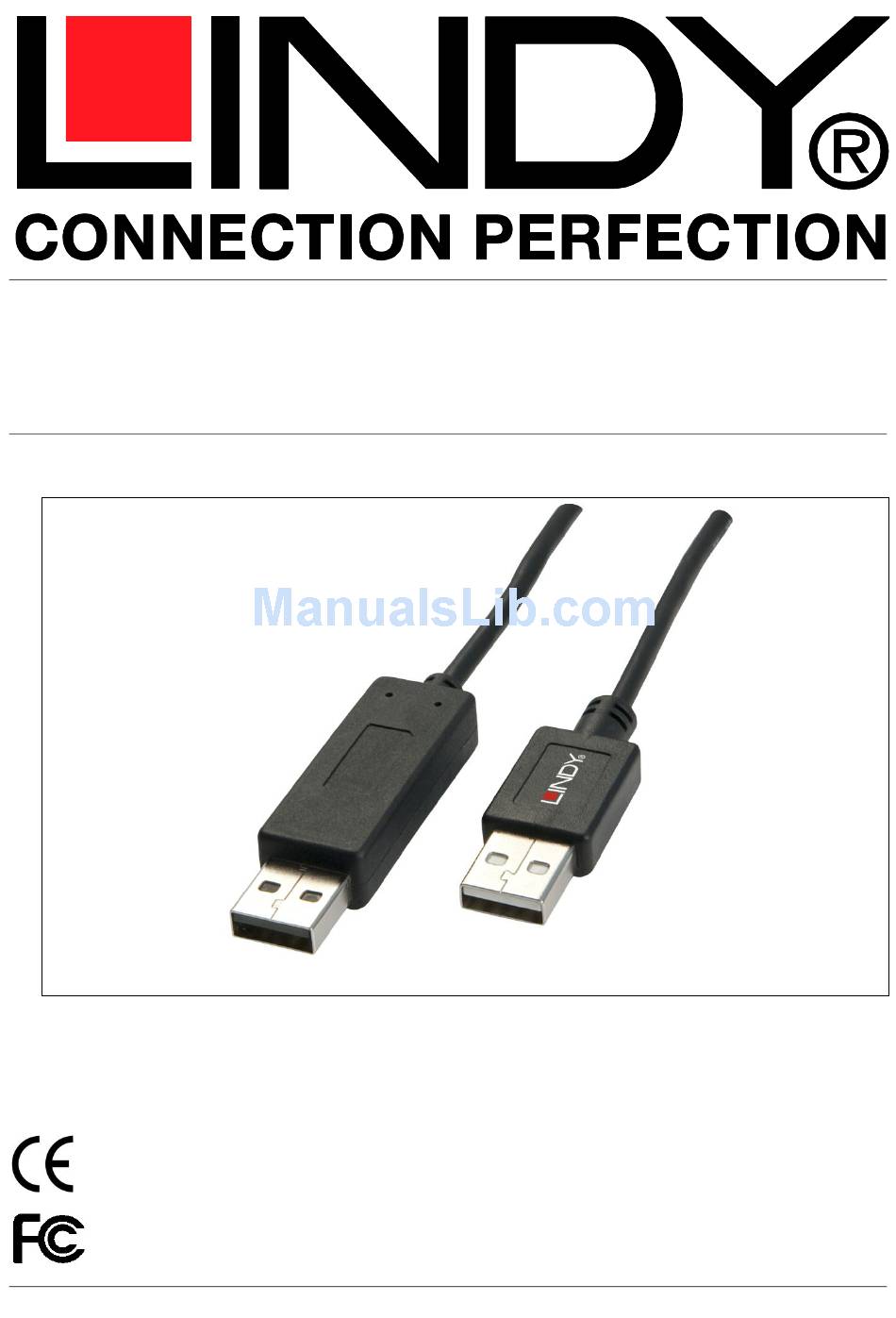

- Page 1 USB 2.0 Smart Transfer Cable User Manual English LINDY No. 42617 www.LINDY.com For Home and Office Use Tested to Comply with FCC Standards © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH FIRST EDITION (MAR 2010)
-
Page 2: Specifications
1 x Smart Transfer Cable with KM Switch 1 x User Manual (Home and Professional edition) 42617 1.5m or 2m USB power (DC 5V) 85mA Windows XP / Vista / *7 40 x 15 x 10 (mm) or 45 x 20 x 10 (mm) compatible. -
Page 3: Hardware Installation
English Manual Hardware Installation The device LED status (if applicable): Blinking: Connected to computers. Lighted: Data transferring or functions activity. * Please connect the device’s “R” connector to PC2 and “L” connector to PC1. English 3... - Page 4 English Manual AP Installation of Smart Transfer Cable with KM Switch Windows A. XP 1. ICON PLAY: Turn on your computers and connect the KM Switch with your two computers (when prompted to restart your computer, click Yes to restart your system for the configuration changes).
- Page 5 English Manual English 5 3.1 When the Welcome screen appears, click Next. 3.2 Create a desktop icon. 3.3 Click Install to start the installation.
- Page 6 English Manual English 6 3.4 When the following screen appears, click Finish. 2.5 When the icon appears on desktop and a small icon appears from taskbar, the installation is completed. 2.6 Please double click from desktop to activate KMDS if needed. (*The small icon indicates the ready status.
- Page 7 English Manual English 7 Afterward the icon appears from taskbar to indicate ready status. If you click Exit to leave or unplug KM Switch, you can click KMDS from COMPUTER to activate again. AP PLAY: Please connect the KM Switch with your two computers (when prompted to restart your computer, click Yes to restart your system for the configuration changes).
- Page 8 English Manual When the icon appears on desktop and a small icon installation is completed. 2.2 Please double click (*The small icon computer. The KMDS can be automatically activated but please connect KM Switch with your computers before turn on computers. ***If you exit the function or unplug KM Switch, you can click KMDS from the desktop to activate).
- Page 9 English Manual 2. (During the process the screen appears. This is to let you switch back to original computer to avoid any unforeseen circumstances). 3. Now, you can type your password to start the computer. 4. The mouse cursor will be back to the original computer and then click KM switch again to slide the mouse cursor to the other computer.
- Page 10 English Manual This product also combines the Data-Link function allowing you to copy files on desktop between two computers under KVM PIP mode or KM Switch mode. It is easy for you to cut and paste texts within KVM PIP mode or KM Switch mode. Remark: The file transfer and cut &...
- Page 11 Kabeln verwendet werden. LINDY Herstellergarantie LINDY gewährt für dieses Produkt über die gesetzliche Regelung hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs. WEEE (Waste of Electrical and Electronic Equipment),...
