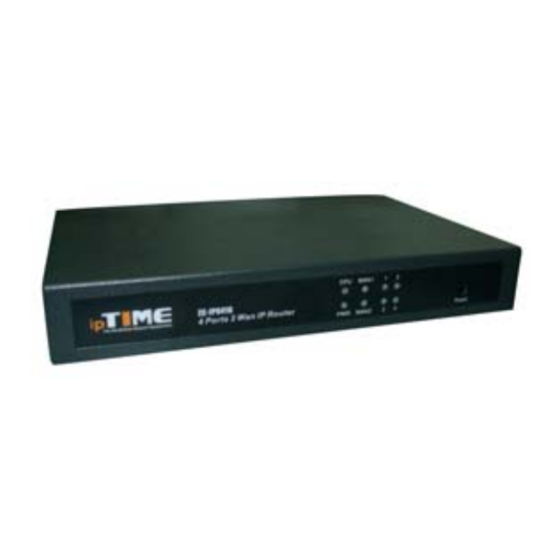

ipTime IP0416 User Manual

Hide thumbs Also See for IP0416:
Table of Contents

Advertisement

Quick Links

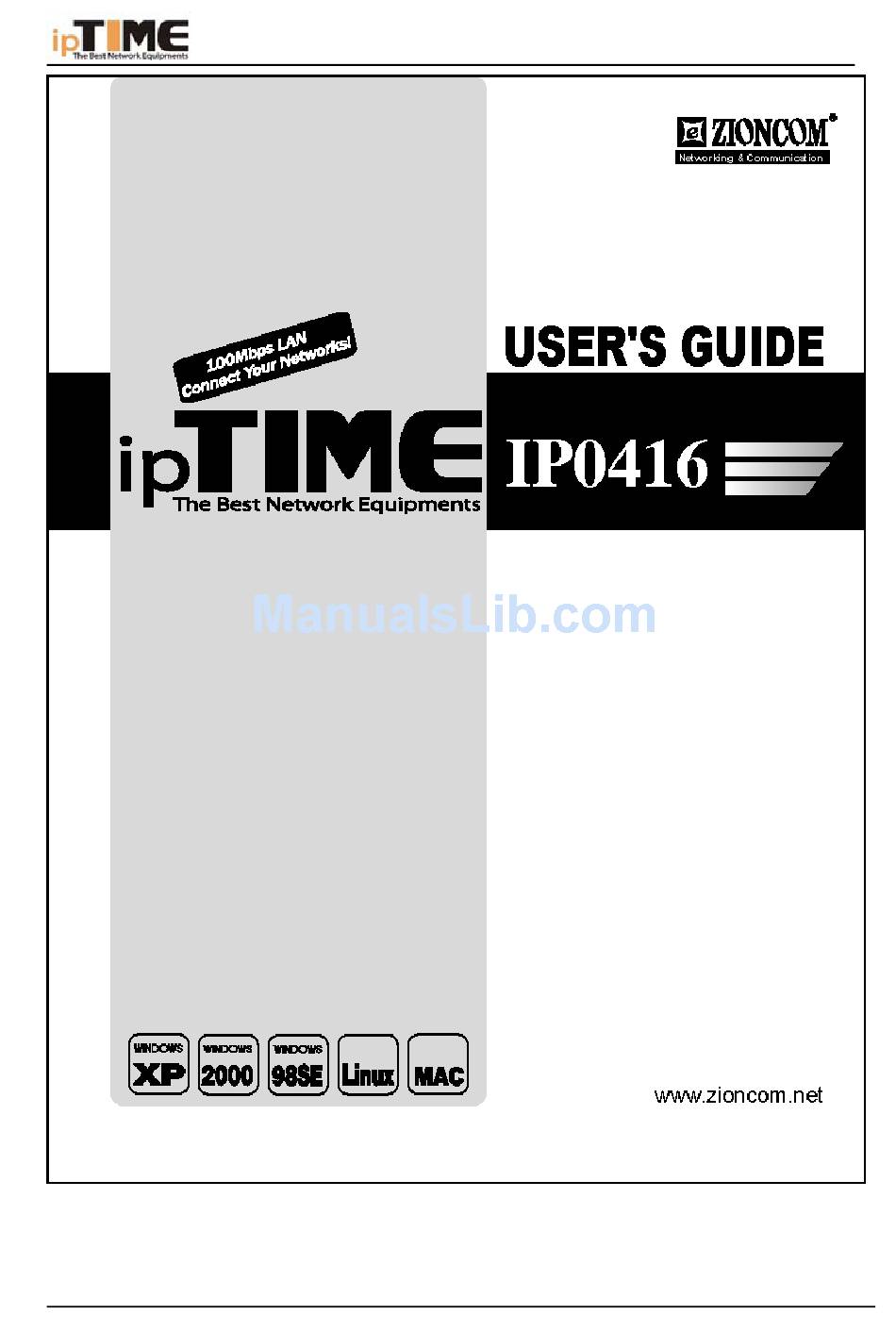

User's Guide
-0-
www.zioncom.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP0416 and is the answer not in the manual?

Questions and answers

Related Manuals for ipTime IP0416

Summary of Contents for ipTime IP0416

  • Page 1 User’s Guide www.zioncom.net...
  • Page 2 Great thanks for your purchasing on the ipTIME ipTIME IP0416 Broadband Router, ipTIME IP0416 has two WAN ports for the internet connection, to let PCs in LAN to share two internet from two different ISP account. It enable use to share two internet bandwidth, also compatible to different types of internet connection at the same time, such as Cable Modem ,ADSL, ADSL PPPoE , and LAN to LAN.

  • Page 3: Table Of Contents

    5.1Setup under Windows98/ME………………………………………………..15 5.2 Setup under Windows 2000……………………………………..………22 5.3 Setup Under Windows XP …………………………………………………29 6. Setup Broadband Router …………………………..……………37 6.1 Login ipTIME IP0416 …………………………………………….………….37 6.2 Setup for PPPoE IP…………………………………………………………..39 6.3 Setup for Dynamic IP. ………………………………………….…..………..44 6.4Setup for Static IP …………………………………………………………….49 6.5 Status …………………………………………………………………………51...
  • Page 4 User’s Guide 6.7.4 System Misc………………………………………………………………63 6.8 QoS………………………………………………………..…………………….65 6.8.1 Basic Setup ……………………………………………………… ..……65 6.8.2 IP QoS…………………………………………………………..…… ……67 6.8.3 Applications QoS……………………………..…………………… ……68 6.8.4 Ports Qos………………………………………………………… ……..70 6.9 LS/NAT………………………………………………………………… ……..71 6.9.1 Load Sharing ……………………………………………………… ………71 6.9.2 Applications ………………………………………..……………… ………74 6.9.3 Internal Server ………………………………………..………… …………76 6.9.4 Port Forwarding …………………………………………………...

  • Page 5: Warning

    User’s Guide Warning 1. Please used adaptor provided by manufacturer, otherwise will break IP0416. 2. Do not drop Broadband Router down or any damage to the Router and its electronic component. 3. Do not disassemble Broadband Router, otherwise warranty for repair will not be guaranteed 4.

  • Page 6: Pakcing List

    User’s Guide 2.PACKAGE CONTENTS 1. ipTIME IP0416 Dual WAN ports Broadband Router 2. Adaptor (5V,2.6A) 3. UTP cable 4. User Guide www.zioncom.net...

  • Page 7: Specification

    Static IP Address Binding: Authorize user to manage and configure PC in LAN in most by binding MAC address and IP address together. System Memorandum: IP0416 record routing history and forwarder to administrator mailbox. UPnP: Defaulted UPnP enable user to configure networking hardware and software.
  • Page 8 User’s Guide Data Package Filtration: Port Filtration, IP Address Filtration, MAC Address filtration, Key word Filtration enable user to configure Broadband Router to analyse data package can be forwarded or refused. Virtual Server：Allow other users from Internet access WWW, FTP server or other servers in LAN.
  • Page 9 User’s Guide Detailed Specification. ITEM IP0416 IEEE 802.3, IEEE 802.3u, IEEE 802.x, IEEE Fast Standard Ethernet, TCP/IP, NAT, DHCP, UDP, FTP, PPPoE, PPTP, L2TP, Protocol HTTP, DNS, IPSec/VPN Pass-through… Dual 10/100Mbps RJ-45 port, automatic External sense cross cable Port Four 10/100Mbps speed Ethernet switch...
  • Page 10 User’s Guide 10/100Mbps switch LAN/WAN port auto sense cross cable Dual WAN for load sharing and back-up PPPoE dial-up and connection time setting up PPPoE dial-up and automatic/manual connection Double IP Configuration Support VPN Pass-through DHCP Service DNS relaying DMZ Server Static IP Address Binding System Memorandum forwarding IP Router configuration back-up...

  • Page 11: Install Broadband Router

    User’s Guide ARM9 166MHz FLASH 2MB Flash Memory 16MB SDRAM Static or dynamic IP address connection xDSL, Cable Modem, Special cable, LAN connection Power supply DC 5V/2.6A switch power adapter Size 179mm×*119mm×*39mm 0 ~ 60 ℃ Temperature Humidity` 10 ~ 85% Compatible OS：...

  • Page 12: Installation

    User’s Guide installation of Broadband Router, please backup your installation software and uninstall your ADSL PPPoE dial-up software by Start->control panel->Add or Remove Programs. 4.2 INSTALLATION 4.2.1. Setup WAN connection: connect broadband cable (xDSL, Cable Modem or LAN/ Leased cable) with WAN port of Broadband Router. 4.2.2.
  • Page 13 User’s Guide RUN(Green Running RESET：Refresh defaulted Value LAN(Green):LAN Status POWER(Red):Power Status WAN(Green):WAN Status Port explanation Power jack Connect power adapter (7.5V/1.5A) Press Reset button. Switch the power off/on. After switching the power on, about 5 seconds later RUN Reset LED will flash rapidly, then release the button. After Broadband Router startup, all configuration will restore to default configuration.

  • Page 14: Network Sketch Up

    User’s Guide Power Jack ： DC 5V/1A LAN: Connect PC or WAN ： Connect with Ethernet Switch xDSL/Cable Modem 4.3 NETWORK KETCH-UP DC Adapter: 5V2.6A 2.PC Modem1 Modem2 -13- www.zioncom.net...
  • Page 15 User’s Guide Example 1 Internet IP0416 Cable/xDSL Modem Server Example 2 Ethernet Internet IP0416 Switch Cable/xDSL Modem Server Server -14- www.zioncom.net...

  • Page 16: Setup Local Computer

    User’s Guide NOTE： After switch or hub expand, Wireless Broadband Router can connect at most 253 client computers in LAN or WLAN. 5 LOCAL COMPUTER SETUP Users should configure local network to access Internet by Broadband Router. Users should know the default configuration of Broadband Router before installation.
  • Page 17 User’s Guide User’s Guide -16- -16- www.zioncom.net www.zioncom.net...
  • Page 18 User’s Guide (5)Click “Local area connection”->“Properties”->“Internet protocol （TCP/IP）”and “Properties”. -17- www.zioncom.net...
  • Page 19 User’s Guide (6) Click “Gateway”, to make sure this value is empty -18- www.zioncom.net...
  • Page 20 User’s Guide (7) Click “DNS setup ”, to make it off, then “Apply ”. (8) To insert Windows Installation CD when system setup TCP/IP, and then “Apply” -19- www.zioncom.net...
  • Page 21 User’s Guide (9) After finishing TCP/IP setup ,”System Setup changed” will come out ,choose “Yes”, reboot the PC . (10) Run PC after reboot -20- www.zioncom.net...
  • Page 22 User’s Guide (11) Input CMD ，then Click “ok” (12) Enter “ipconfig” Make sure IP information is same as following value, if it same to the setup is correct, if different, please repeat above setup. IP address should be range from 192.168.

  • Page 23: Setup Under Windows 2000

    User’s Guide 5.2 SETUP UNDER WINDOWS 2000 (1)Install Broadband Router. (2) Start Windows 2000 and check LAN LED is on or off. If off, please confirm the connection of your computer with Broadband Router. (3) Click “start”->“Setting”->“Panel Control”.。 (4) Double click the “Network and Dial-up Connection” in “control panel”. -22- www.zioncom.net...
  • Page 24 User’s Guide User’s Guide -23- -23- www.zioncom.net www.zioncom.net...
  • Page 25 User’s Guide (5) Click “Local area connection”->“Properties”->“Internet protocol （ TCP/IP） ”and “Properties”. -24- www.zioncom.net...
  • Page 26 User’s Guide (6) Click “General ” bar ,Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” (7) Click “OK”. -25- www.zioncom.net...
  • Page 27 User’s Guide User’s Guide -26- -26- www.zioncom.net www.zioncom.net...
  • Page 28 User’s Guide (8) Click ”Start” ->“Run”. (9) Input ”cmd” ,then click “OK”. (10) Input “ipconfig” in Pop-up Command window. (11) Please make sure your IP is the same with below. If same then your configurations is successful, or please redo the above steps and restart your computer.
  • Page 29 User’s Guide (12) Input “ping 192.168.0.1”, then “Enter”. (13) If you can see “Reply from 192.168.0.1: bytes=32 time=2ms TTL=64”，then the connection between your computer and Broadband Router is completed. -28- www.zioncom.net...

  • Page 30: Setup Under Windows Xp

    User’s Guide 5.3 SETUP UNDER WINDOWS XP (1) Install Broadband Router. (2) Start Windows XP and check LAN LED is on or off. If off, please confirm the connection of your computer with Broadband Router. (3) Click “Start”->“Setting”->“Panel Control” (4) Double click the “Network and Internet Connections” in “control panel”. (5) Click “Network connection”->“local area connection”->“properties”->...
  • Page 31 User’s Guide -30- www.zioncom.net...
  • Page 32 User’s Guide User’s Guide -31- -31- www.zioncom.net www.zioncom.net...
  • Page 33 User’s Guide -32- www.zioncom.net...
  • Page 34 User’s Guide -33- www.zioncom.net...
  • Page 35 User’s Guide -34- www.zioncom.net...
  • Page 36 User’s Guide (8) Click “Start”->“Run” (9) Input “cmd “, Click “OK” (10) Input “ipconfig” in the pop-up command window. (11) Please make sure your IP is the same with below. If same then your configuration is successful, or please redo the above steps and restart your computer.
  • Page 37 User’s Guide (12) Input “ping 192.168.0.1”, then “Enter”. (13) If you can see “Reply from 192.168.0.1: bytes=32 time=2ms TTL=64”，then the connection between your computer and Broadband Router is completed. -36- www.zioncom.net...

  • Page 38: Setup Broadband Router

    User’s Guide 6 SETUP BROADBAND ROUTER 6.1 LOGIN ipTIME IP0416 (1) Run Internet Explorer to login ipTIME IP0416 ) ，to enter IP address http://192.168.0.1。 (2) Run Internet Explorer( (Which is defaulted IP address) (3) Login Page will come to guide user configuration (4) To login with manufacturer defaulted ID and password.
  • Page 39 User’s Guide Conn. Type: BROADBAND ROUTER current connection type, Dynamic IP is default value. Conn. Status: Broadband Router current connection Status WAN IP: BROADBAND ROUTER WAN current IP address Connected PC: IP address of the computer which connects to BROADBAND ROUTER.

  • Page 40: Setup For Pppoe Ip

    User’s Guide 6.2 SETUP FOR PPPoE IP This connection way is suitable for virtual dial-up Internet connection. (1) Open external ADSL Modem and check the WAN LED of BROADBAND ROUTER. * If WAN LED is off, check the network cable between external modem and WAN port.
  • Page 41 User’s Guide (7) In case “Conn. Status” is “Successfully connected”, the configuration is correct. (8) Click “Show Internet connection status”. * If In case “Conn. Status” is “Invalid ID/password”, the configuration is incorrect. (9) Click the “close” button and check your ID& password. * If “Conn.
  • Page 42 User’s Guide * “Disconnect” is manual disconnection button. If you click then the system will disconnect with Internet -41- www.zioncom.net...
  • Page 43 User’s Guide *“Connect” to refresh the connection with internet (11) Click “Save” to save current configuration. (12) Restart all PCs connect with Broadband Router. -42- www.zioncom.net...
  • Page 44 User’s Guide Notes: Please save Broadband Router Configuration after completion, otherwise configuration will lose when power off or restart. Other Configuration: MTU: Input MTU value of data package ,default value is 1454. Normally please do not change it. Disconnect PPP session if idle time is longer than Min: If you choose this option and setup the time T, then the Broadband Router automatically disconnects from Internet after T idle time.

  • Page 45: Setup For Dynamic Ip

    User’s Guide Internet if there is Internet access after disconnection. Note: during usage if there is disconnection due to external causes, then the Broadband Router will try to connect with Internet at once until successful connection. This function is the Broadband Router inner function and does nothing with Connect On Demand function.
  • Page 46 User’s Guide (5) If Conn. status is “Successful connected”, the configuration is correct. (6) Click “Show Internet Information” and see the 6.5.1 (7) If connection status keeps to be “Connecting to Internet”, please do the following steps: * Close the pop-up window. * Turn off Cable Modem power supply then on, and confirm the WAN LED status.
  • Page 47 User’s Guide (8) Re-click “Apply” button. (9)Check the WAN Connection Status: If the status is “Successfully connection”, click “Show Internet Information” to enter WAN status page; or click Status->WAN status, as following diagram: (10) If WAN connection is successfully established, you can see the following. *Connection Type should be “Cable Modem(DHCP)”...
  • Page 48 User’s Guide (These addresses are provided by your ISP). *Disconnect button as follows is manual WAN port IP address release function button. If click it Broadband Router will release WAN port IP address and disconnect with Internet. *“Connect” button is manual WAN port IP address refresh function button. If click it WAN port will re-get dynamic IP address and connect with Internet.
  • Page 49 User’s Guide Note: After completed setup , please save Broadband Router configuration, otherwise the configuration will be lost when Broadband Router is power off or restarts. Other configuration: Physical address Clone：If you want to change WAN port MAC address you can choose this option;...

  • Page 50: Setup For Static Ip

    User’s Guide 6.4 SETUP FOR STATIC IP If you have static IP address provided by ISP, you can choose this option. (1) Turn on the external modem and check the WAN LED of Broadband Router *If the WAN LED is off, please check the network cable between external modem and the WAN port.
  • Page 51 User’s Guide Internet Information” to enter WAN status page; or click Status->WAN status, as following diagram: (7) If WAN connection is successfully established, you can see the following. *Connection Type should be “Static IP” *Connection Status should be “successful connection” *Physical Address is shows Router WAN port MAC Address.

  • Page 52: Status

    User’s Guide After completion please save the configuration, otherwise configuration will be lost when Broadband Router is power off or restarts. 6.5 STATUS 6.5.1 WAN STATUS Click “Status”->“WAN Status” as following: This page shows current Internet connection status (WAN port), including Connection Type, Connection Status,WAN IP address, Subnet mask, Default Gateway and DNS server.

  • Page 53: Lan Status

    User’s Guide IP Address, then click “Connect” button to refresh WAN IP address ; If it is PPPoE way, then “Connect” or “Disconnect” button will be shown above. Click “Connect” button to connect with internet, click “Disconnect” button to disconnect with internet. *Refresh：...

  • Page 54: Basic Setup

    User’s Guide among IP address ,subnet mask, DHCP server in LAN . *Shared IP information : Show IP address information rent by DHCP server *Serial Number : The position in the subject *Physical Address: MAC address of the client PC *Types: Wireless /Wired ,dynamic / static 6.6 BASIC SETUP 6.6.1 LAN/DHCP SETUP...
  • Page 55 User’s Guide -54- www.zioncom.net...
  • Page 56 The Twin IP feature is not allowed in Wireless WAN mode and NAT off mode. Static Lease Management For the management on the IP address in the LAN, ipTIME IP0416 has static lease management , which will keep the IP address for the PC with specific MAC address.

  • Page 57: Link Setup/Info

    User’s Guide 6.6.2 LINK SETUP/INFO Click Basic Setup-Link setup/Info , refer to following snap -56- www.zioncom.net...

  • Page 58: Routing Table

    User’s Guide Link Setup The physical link property can be changed. The duplicity is fixed to half duplex in the manual link mode. WAN link setup is not allowed in Wireless WAN mode. Link Information It shows the link status router. Link Statistics It shows the traffic statistic of WAN and LAN links.

  • Page 59: System

    User’s Guide Routing table make sure the physical connecting port to which IP date package will go .Router table will route every one to destination for the traffic smooth . Type Chose the type of routing entry to define. NET : Chose it when target is a network.

  • Page 60: System Upgrade

    User’s Guide This e-mail address is used for the system to send the system log or etc. . SMTP mail server should be set to send the mail. 6.7.2 SYSTEM UPGRADE Firmware Upgrade Click System-Firmware Upgrade, Please refer to following snap , Upgrade Procure 1.
  • Page 61 User’s Guide 2. Select the firmware file. 3. Press "Upgrade" button. -60- www.zioncom.net...
  • Page 62 User’s Guide Following Snap will come out in the process of upgrading , After upgrading , router will reset automatically Note: It takes 60 minutes ,Pleasekeep power on in the process of upgrading. -61- www.zioncom.net...

  • Page 63: System History

    User’s Guide 6.7.3 SYSTEM LOG Click “System”—System Log This page record router’s system history for your reference . -62- www.zioncom.net...

  • Page 64: System Misc

    User’s Guide System Log History The history of the system logs. If the system could not get the time from time server, Timestamp is displayed by "*****". Refer to the "Miscel." menu. System Log level is classified by color RED: Error BLUE: Warning Black: Information If the count of system log is reached to MAX log count, no more system log will be...
  • Page 65 User’s Guide Hostname Setup -64- www.zioncom.net...

  • Page 66: Qos

    User’s Guide Hostname is displayed on the title bar of Internet Browser. Hostname is displayed on the subject of E-mail report. Config Backup Download configuration file into your PC. If the configuration is modified, click "Save" link and backup configuration file. Config Restore Select configuration backup file and clieck "Config Restore"...
  • Page 67 User’s Guide QoS Basic QoS will limit or grantee the internet access bandth of the device conntected to LAN of the router. QoS Basic Setup It shows and changes the current operation of QoS in the router. WAN Speed Setup Define the current the current WAN connetion speed.

  • Page 68: Ip Qos

    User’s Guide 6.8.2 IP QoS Click Qos –IP Qos , refer to following Sketch-up QoS Setup by IP Address With setting QoS by IP address, the upload and download speed of specified IP address can be limitted at a specified maximum rate or granteed at a specified minimum rate.

  • Page 69: Applications Qos

    User’s Guide QoS Examples QoS Operations - The maximum download speed 192.168.0.100 is 192.168.0.100 limited to 3Mbps Max Rate Limit - If other traffic is increase, 192.168.0.100 download Download 3Mbps can be decreased lower than 3Mbps. - The minimum upload speed through 192.168.0.100 192.168.0.100 is granted to 2Mbps Min Rate Grantee...
  • Page 70 User’s Guide Setup by Application With setting QoS by application, the upload and download speed of specified application can be limited at a specified maximum rate or granted at a specified minimum rate. Apps Check the application which you want set a QoS. Operation Mode Chose 'Max Rate Limit' or 'Min Rate Grantee'.

  • Page 71: Ports Qos

    User’s Guide - The maximum download speed through HTTP is WWW(HTTP) limited to 3Mbps Max Rate Limit - If other traffic is increase, the HTTP download Download 3Mbps can be decreased lower than 3Mbps. - The minimum upload speed through HTTP is WWW(HTTP) granted to 2Mbps Min Rate Grantee...

  • Page 72: Ls/Nat

    User’s Guide QoS Setup by Port With Setting QoS by an application port, the upload and download speed of specified port can be limited at a specified maximum rate or granted at a specified minimum rate. External Port Number. Enter the application port number on WAN side to set QoS. Protocol Select the protocol type (TCP / UDP) Operation Mode...
  • Page 73 User’s Guide ipTIME IP0416 has dual WAN ports for two internet connection. This design enables auto line back-up, load sharing and user self-defined through specific -72- www.zioncom.net...
  • Page 74 User’s Guide configuration on the router. Primary WAN All internet traffic not matched any rule will be routed to a Primary WAN. Auto Line Backup if any WAN was dead, all traffics will be diverted to another WAN automatically. WRR Load Sharing Weight Round Robin (WRR) Load Sharing.

  • Page 75: Applications

    User’s Guide Protocol Chose TCP/UDP type for the packet that you want to diversity a Internet traffic. Destination Port For destination port, enter the destination protocol port number that you want to diversity a Internet traffic. Designated WAN Chose WAN port to diversity a Internet traffic. Attention: Please click “save”, when you want to keep the configuration in case power off or reset on the router.
  • Page 76 User’s Guide Applications enables some software application program to run ,such as Networking game, video conference, networking telephone which is disabled under router with NAT for firewall. In NAT off mode, Application setup is not available. Application Setup -75- www.zioncom.net...

  • Page 77: Internal Server

    User’s Guide The applications listed below will work correctly when the IP address is specified. FTP Private Port It is used for FTP access when server using the private port number (not 21). Attention: Please click “save”, when you want to keep the configuration in case power off or reset on the router .
  • Page 78 User’s Guide -77- www.zioncom.net...
  • Page 79 User’s Guide In NAT off mode, internal server setup is not available. Internal Server Setup This setup is needed for servers connected router's internal network. On the WAN side, the server can be accessed through the external port number. On the LAN side, the server must be configured using the default application port number.

  • Page 80: Port Forwarding

    User’s Guide 6.9.4 PORT FORWARDING Click LS/NAT –Port Forwarding , refer to following snap In NAT off mode, port forward setup is not available. Port Forwarding Setup It is a mapping between WAN side access to the internal host's application port. Rule Name Any string can be entered to distinguish the forward rules.

  • Page 81: Advanced Setup

    User’s Guide Define the IP address of host on LAN side. Internal Port Range Define the port number on LAN side. If not defined, the external port number will be used. Note: 1.Pleaseclick “save”, when you want to keep the configuration in case power off or reset on the router .
  • Page 82 User’s Guide Note : Blocking DoS Use Blocking DoS to protect CPU in router from many kind of network attack such as SYN flooding, Smurf, IP source routing and IP spoofing. Check the attack you want to block and press "Apply" button to start blocking. Connection Filtering The connection filtering function will block or accept the specified internal PCs and external PCs.
  • Page 83 User’s Guide Net Mask The IP address range can be specified by the net mask. (C class) Net Mask The 4th value in IP address 0 ~ 1 1 ~ 3 1 ~ 7 1 ~ 15 1 ~ 31 1 ~ 63 1 ~ 127 1 ~ 254...

  • Page 84: Ddns

    User’s Guide 6.10.2 DDNS Click “Advanced ” DDNS, refer to following Snap ISP will assign a dynamic IP address when router connects with Internet with Cable Modem or ADSL, DDNS let dynamic IP address to be corresponding with domain name. What is DDNS? DynDNS client converts a dynamic IP address as a fixed internet domain name.

  • Page 85: Wol

    User’s Guide DDNS Setup DynDNS client can be stopped or started. Use the user ID and password used when registers the DynDNS account. Host Name Registration Enter the host name already registered on DynDNS server. 5 host names can be entered. 6.10.3 WO WOL stands for Wake up On LAN and the PCs connected to router can be turned on with WOL function.

  • Page 86: Url Filtering

    User’s Guide 6.10.4 URL FILTERING Click “Advanced”-URL filtering, refer to following snap, URL Filter The access of the URL site which has specified string will be blocked. URL Filtering Setup The status of URL filtering is showed and changed with this menu. Filtering Keyword Enter the string of URL which site need to be blocked.

  • Page 87: Remote Management

    User’s Guide Note: 1.Pleaseclike “save”, when you want to keep the configuration in case power off or reset on the router . 2.It is better to let IP address binding on or use the static IP address on the client for user self-defined LS. 6.10.5 REMOTE MANAGEMENT Click “Advanced ”- remote management ,refer to following snap, Remote Management...

  • Page 88: Scheduler

    User’s Guide 6.10.6 SCHEDULER Click “Advanced”-scheduler, refer to following snap , Days To Block Select the day of week when the Internet access will be blocked. Time To Block Select the time zone to block the Internet access. Address To Block IP : The IP address of PC which will be blocked The IP address range can be specified with mask.

  • Page 89: Vpn

    User’s Guide Mask Mask The 4th value in IP The specified IP 0 ~ 1 1 ~ 3 1 ~ 7 1 ~ 15 1 ~ 31 1 ~ 63 1 ~ 127 1 ~ 254 Physical : The physical address PC which will be blocked. [System ->...
  • Page 90 User’s Guide VPN(PPTP) Setup The VPN server status can be monitored and changed. VPN(PPTP) Account Enter the account, password and IP address which will be assigned to VPN client. The IP address should be chosen which is not in a DHCP pool of router. -89- www.zioncom.net...

  • Page 91: Index

    User’s Guide 7. INDEX UTP cable Cross –over Cable Straight Forward Cable -90- www.zioncom.net...
