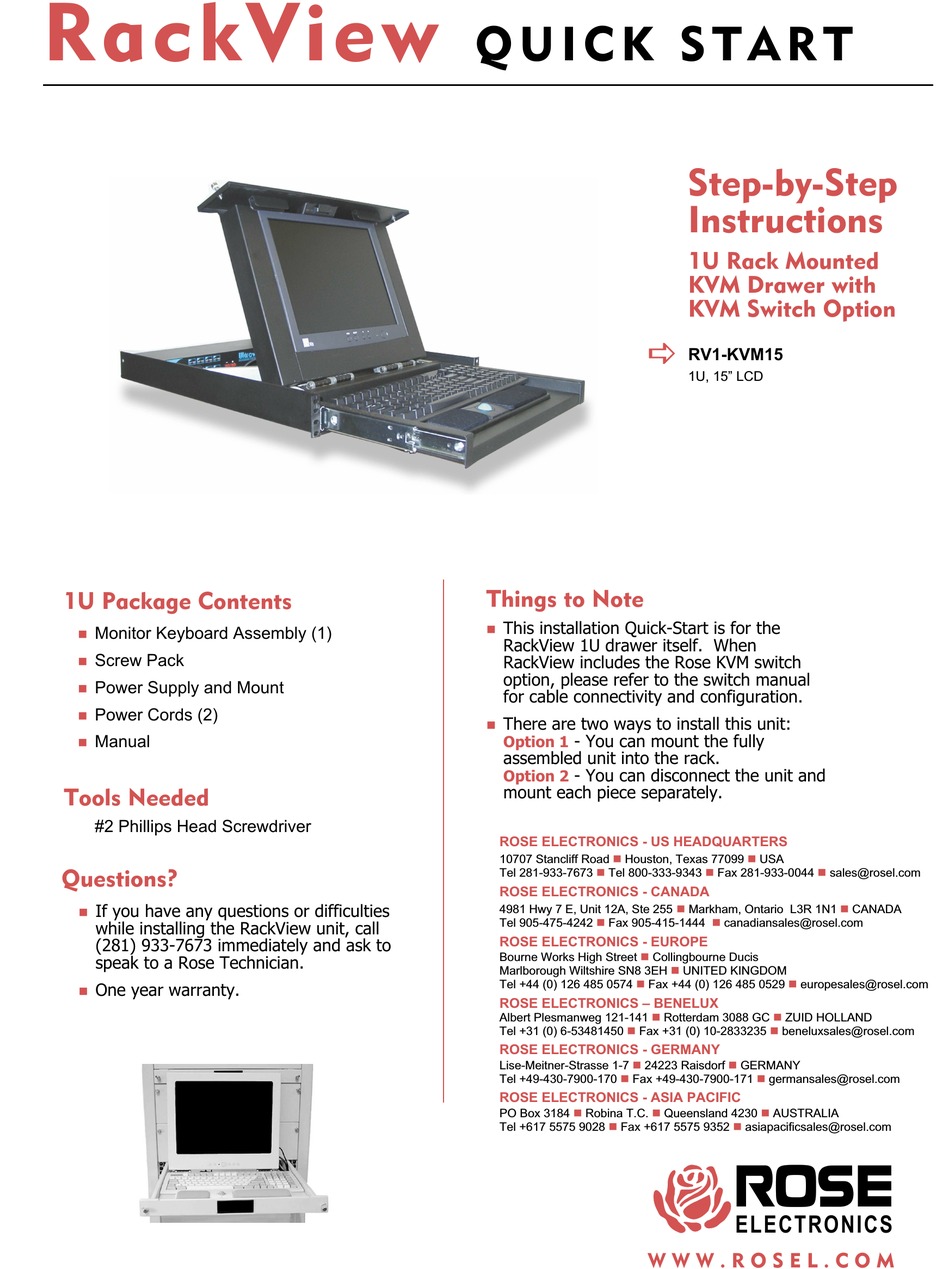

Rose electronics RV1-KVM15 RackView Quick Start Manual

RackView

1U Package Contents

Monitor Keyboard Assembly (1)
n
Screw Pack
n
Power Supply and Mount
n
Power Cords (2)
n
Manual
n

Tools Needed

#2 Phillips Head Screwdriver
Questions?
If you have any questions or difficulties
n
while installing the RackView unit, call
(281) 933-7673 immediately and ask to
speak to a Rose Technician.
One year warranty.
n
Q U I C K S T A R T
a

Things to Note

This installation Quick-Start is for the
n
RackView 1U drawer itself. When
RackView includes the Rose KVM switch
option, please refer to the switch manual
for cable connectivity and configuration.
There are two ways to install this unit:
n
- You can mount the fully
Option 1
assembled unit into the rack.
- You can disconnect the unit and
Option 2
mount each piece separately.
