MiHome MIHO001 User Manual

Hide thumbs Also See for MIHO001:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

User Manual

Energenie MiHome Gateway

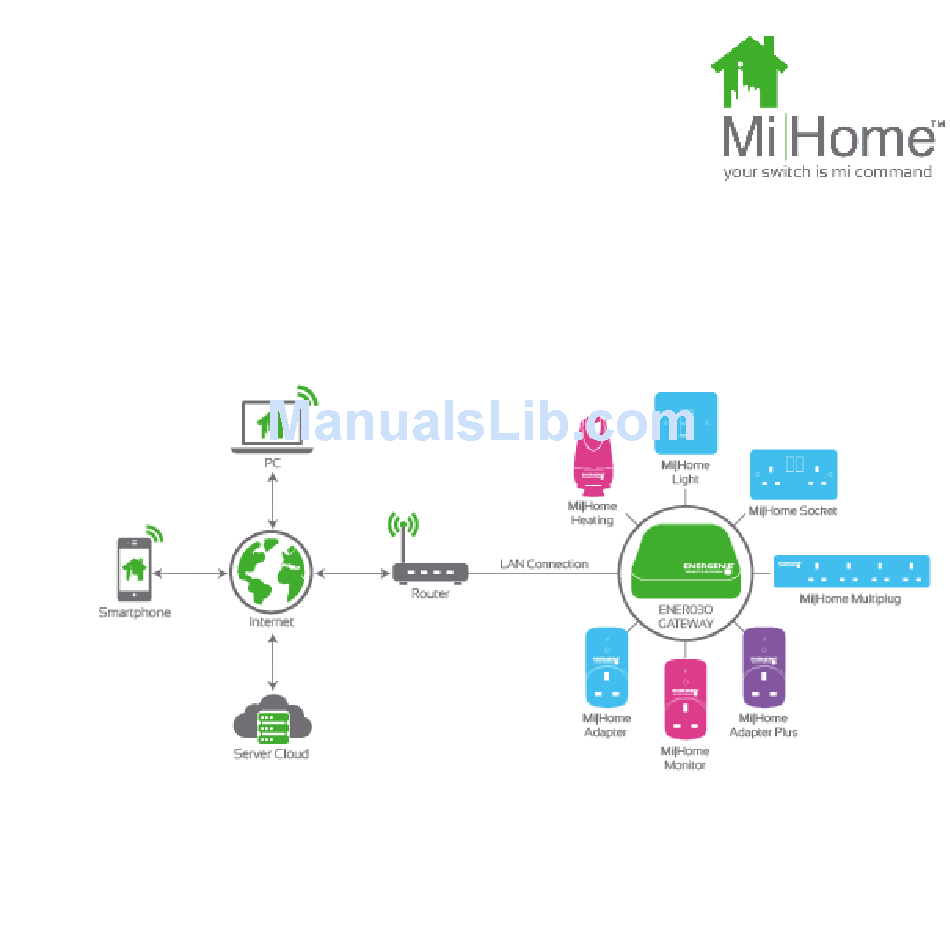

The Gateway provides the communications between all your
MiHome
devices and the internet.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIHO001 and is the answer not in the manual?

Questions and answers

Related Manuals for MiHome MIHO001

Summary of Contents for MiHome MIHO001

  • Page 1: User Manual

    User Manual Energenie MiHome Gateway The Gateway provides the communications between all your MiHome devices and the internet.
  • Page 2 Out of the box Gateway PSU adapter MicroUSB cable Ethernet patch cable Visit mihome4u.co.uk Scan this QR code with your smartphone QR App to take you directly there.

  • Page 3: Quick Start

    It may take up to 20 seconds for this to happen. The light will also blip briefly red as message traffic is being exchanged.  Manage your Gateway and MiHome devices using one of the methods as follows:...
  • Page 4 Using a Smartphone App (Android/iPhone)  Download the MiHome smartphone from the appropriate store eg Play Store or Apple Store and install and then open it.  Follow the on-screen instructions that will take you through the Gateway set up process.
  • Page 5 It may take up to 20 seconds for this to happen. The light will also blip briefly red as message traffic is being exchanged. You can then install your Gateway either from a PC or smart device browser or via the MiHome App on your iPhone or Android smartphone.

  • Page 6: Web Browser

    Configuring the Gateway for the first time using a Smartphone App (iPhone/Android) Download the MiHome App from the Play Store or Apple Store and install and then open it. Follow the on screen instructions that will take you through the Gateway set up process.

  • Page 7: Software Upgrade

    Type in the authorisation code which is the case- sensitive 10 digit code located on the label underneath the Gateway. Your Gateway should now be displayed in the Managed Devices window. Software Upgrade A message may appear advising that an update to firmware is available.

  • Page 8: Connecting Your Devices

    Connecting Your Devices if you have succeeded in connecting it to the server and created an account. The following devices can be paired with the Gateway:  Control adapter  Monitor adapter  Control & Monitor adapter Further devices will become available in due course. Reception Range...
  • Page 9 Please ensure that your devices are in range of the Gateway when you pair them. We suggest 10 metres or so as unobscured by furniture or walls etc. as possible. Please note that after pairing, your adapters may be moved to different locations.
  • Page 10 Pairing a Control-only Adapter Via a Browser: Hold down the button on the front of the housing of the adapter for 5 seconds or more. You should see the red light on the adapter housing start flashing at 1 second intervals. Select the option to pair a new socket and choose the Control Socket to be paired.
  • Page 11 Follow the instruction to pair a Control adapter. Pairing a Monitor Adapter Via a Browser: Select the option to pair a new device and choose the Monitor adapter to be registered. Follow the instructions to hold down the button on the front of the housing of the adapter until you see the device come up on the screen as being paired.
  • Page 12 Pairing a Control and Monitor Adapter Via a Browser: Select the option to pair a new device and choose the Control and Monitor adapter to be registered. Follow the instructions to hold down the button on the front of the housing of the adapter for 5 seconds or more.

  • Page 13: Using The Dashboard

    Using the Dashboard You can view and control your paired device by selecting the Dashboard option on your App or via the browser.
  • Page 14 Gateway Specification Input voltage: 5VDC Input current: 150mA Power connection: MicroUSB (Power only) Ethernet connection: RJ45, cat5e patch cable Radio Frequency: 433MHz Band Tx duty cycle: <10% Router Port: 9998 Server URL: mihome4u.co.uk Important Note: The Gateway can get warm to the touch during normal operation.

  • Page 15: Troubleshooting

    Troubleshooting If your Gateway fails to connect initially and you see the light on the front displaying orange, please try power cycling the Gateway to see if it then will connect and display a predominantly green light. Please ensure that you do not plug your adapters into adjacent sockets in a wall socket or extension lead.
  • Page 16 The range of communication between your Gateway and linked devices will be affected by anything in between that may obscure the signal such as furniture, walls, ceilings, windows, doors etc. The Gateway can be cleared of any knowledge of attached devices by pressing the button on the front of the housing for 10 seconds while the power is on.
  • Page 17 happen you may need to un-pair the devices from the Gateway at the server or App and re-pair them. If you attempting to operate with a firewall, it may be blocking access to the internet. Please speak to your network controller to ensure the Gateway is given internet access.

  • Page 18: Status Lights

    Status lights The light on the front of the Gateway will indicate useful status information using a traffic-light set of colours: Light Meaning Gateway is powered but not yet connected to your router. Orange Gateway has connected to your router successfully but not server. Green Gateway has now successfully connected to the router and server.

  • Page 19: Declaration Of Conformity

    Declaration of Conformity Sandal Plc trading as Energenie declare under our sole responsibility as importer that the product: Model: MIHO001 is CE marked and is in accordance with the following Directive(s): 2014/53/EC R&TTE Directive (Article 3.1b and 3.2) 2002/96/EC Waste Electrical and Electronic...
  • Page 20 Please be aware that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Energenie and MiHome are brand names of Sandal Plc. Registered Office: Claremont House, Deans Court, Bicester, Oxon, OX26 6BW...

  • Page 21: Other Notices

    Other Notices THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL- SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS...
  • Page 22 Copyright Notice © 2015 Sandal Plc. User Manual Part no: MIHO001...
