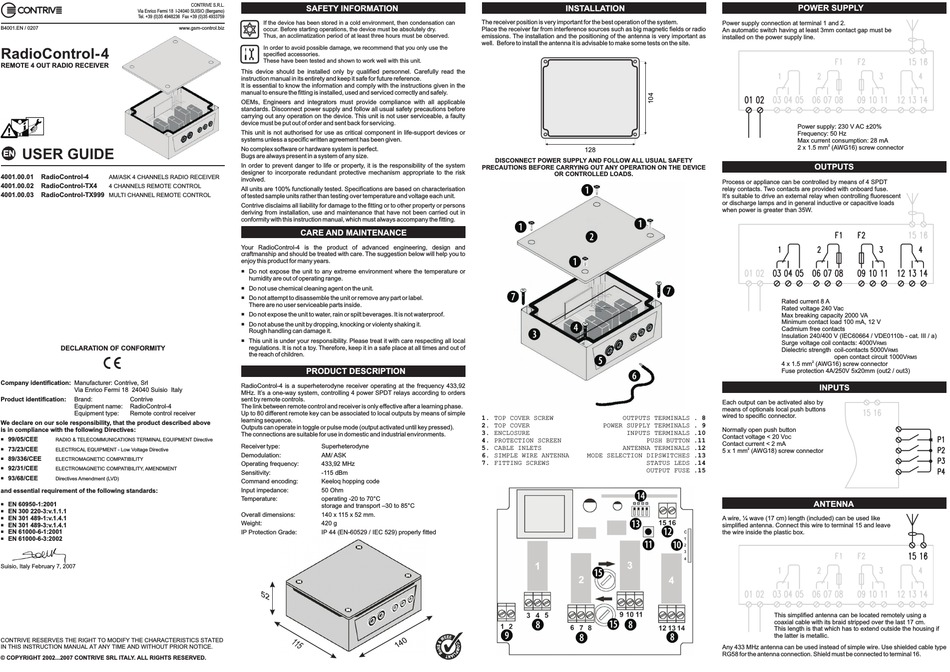

Contrive RadioControl-4 User Manual

Via Enrico Fermi 18 I-24040 SUISIO (Bergamo)
Tel. +39 (0)35 4948236 Fax +39 (0)35 4933759
B4001.EN / 0207 www.gsm-control.biz
RadioControl-4
REMOTE 4 OUT RADIO RECEIVER

USER GUIDE

4001.00.01 RadioControl-4
AM/ASK 4 CHANNELS RADIO RECEIVER
4001.00.02 RadioControl-TX4
4 CHANNELS REMOTE CONTROL
4001.00.03 RadioControl-TX999
MULTI CHANNEL REMOTE CONTROL

DECLARATION OF CONFORMITY

Company identification: Manufacturer: Contrive, Srl
Via Enrico Fermi 18 24040 Suisio Italy
Product identification: Brand: Contrive
Equipment name: RadioControl-4
Equipment type: Remote control receiver
We declare on our sole responsibility, that the product described above
is in compliance with the following Directives:
¡ 99/05/CEE
RADIO & TELECOMMUNICATIONS TERMINAL EQUIPMENT Directive
73/23/CEE
¡ ELECTRICAL EQUIPMENT - Low Voltage Directive
¡ 89/336/CEE
ELECTROMAGNETIC COMPATIBILITY
¡ 92/31/CEE
ELECTROMAGNETIC COMPATIBILITY, AMENDMENT
93/68/CEE
¡ Directives Amendment (LVD)
and essential requirement of the following standards:
EN 60950 -1:2001
¡
EN 300 220-3:v.1.1.1
¡
EN 301 489-1:v.1.4.1
¡
¡ EN 301 489-3:v.1.4.1
¡ EN 6 1000-6-1:2001
¡ EN 61000-6-3:2002
Suisio, Italy February 7, 2007
CONTRIVE RESERVES THE RIGHT TO MODIFY THE CHARACTERISTICS STATED
IN THIS INSTRUCTION MANUAL AT ANY TIME AND WITHOUT PRIOR NOTICE.
© COPYRIGHT 2002...2007 CONTRIVE SRL ITALY. ALL RIGHTS RESERVED.
CONTRIVE S.R.L.

SAFETY INFORMATION

If the device has been stored in a cold environment, then condensation can
occur. Before starting operations, the device must be absolutely dry.
Thus, an acclimatization period of at least three hours must be observed.
In order to avoid possible damage, we recommend that you only use the
r
specified accessories.
These have been tested and shown to work well with this unit.
This device should be installed only by qualified personnel. Carefully read the
instruction manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in the
manual to ensure the fitting is installed, used and serviced correctly and safely.
OEMs, Engineers and integrators must provide compliance with all applicable
standards. Disconnect power supply and follow all usual safety precautions before
carrying out any operation on the device. This unit is not user serviceable, a faulty
device must be put out of order and sent back for servicing.
This unit is not authorised for use as critical component in life-support devices or
systems unless a specific written agreement has been given.
No complex software or hardware system is perfect.
Bugs are always present in a system of any size.
In order to prevent danger to life or property, it is the responsibility of the system
designer to incorporate redundant protective mechanism appropriate to the risk
involved.
All units are 100% functionally tested. Specifications are based on characterisation
of tested sample units rather than testing over temperature and voltage each unit.
Contrive disclaims all liability for damage to the fitting or to other property or persons
deriving from installation, use and maintenance that have not been carried out in
conformity with this instruction manual, which must always accompany the fitting.

CARE AND MAINTENANCE

Your RadioControl-4 is the product of advanced engineering, design and
craftmanship and should be treated with care. The suggestion below will help you to
enjoy this product for many years.
¡ Do not expose the unit to any extreme environment where the temperature or
humidity are out of operating range.
¡ Do not use chemical cleaning agent on the unit.
¡ Do not attempt to disassemble the unit or remove any part or label.
There are no user serviceable parts inside.
¡ Do not expose the unit to water, rain or spilt beverages. It is not waterproof.
¡ Do not abuse the unit by dropping, knocking or violenty shaking it.
Rough handling can damage it.
¡ This unit is under your responsibility. Please treat it with care respecting all local
regulations. It is not a toy. Therefore, keep it in a safe place at all times and out of
the reach of children.

PRODUCT DESCRIPTION

RadioControl-4 is a superheterodyne receiver operating at the frequency 433,92
MHz. It's a one-way system, controlling 4 power SPDT relays according to orders
sent by remote controls.
The link between remote control and receiver is only effective after a learning phase.
Up to 80 different remote key can be associated to local outputs by means of simple
learning sequence.
Outputs can operate in toggle or pulse mode (output activated until key pressed).
The connections are suitable for use in domestic and industrial environments.
Receiver type: Superheterodyne
Demodulation: AM/ ASK
Operating frequency: 433,92 MHz
Sensitivity: -115 dBm
Command encoding: Keeloq hopping code
Input impedance: 50 Ohm
Temperature: operating -20 to 70°C
storage and transport –30 to 85°C
Overall dimensions: 140 x 115 x 52 mm.
Weight: 420 g
IP Protection Grade: IP 44 ( EN-60529 /
5 2
The receiver position is very important for the best operation of the system.
Place the receiver far from interference sources such as big magnetic fields or radio
emissions. The installation and the positioning of the antenna is very important as
well. Before to install the antenna it is advisable to make some tests on the site.
DISCONNECT POWER SUPPLY AND FOLLOW ALL USUAL SAFETY
PRECAUTIONS BEFORE CARRYING OUT ANY OPERATION ON THE DEVICE
1. TOP COVER SCREW
2. TOP COVER
3. ENCLOSURE
4. PROTECTION SCREEN
5. CABLE INLETS
6. SIMPLE WIRE ANTENNA
7. FITTING SCREWS
IEC 529) properly fitted

INSTALLATION

Power supply connection at terminal 1 and 2.
An automatic switch having at least 3mm contact gap must be
installed on the power supply line.
128
OR CONTROLLED LOADS.
Process or appliance can be controlled by means of 4 SPDT
relay contacts. Two contacts are provided with onboard fuse.
It's suitable to drive an external relay when controlling fluorescent
or discharge lamps and in general inductive or capacitive loads
when power is greater than 35W.
Each output can be activated also by
means of optionals local push buttons
wired to specific connector.
OUTPUTS TERMINALS . 8
POWER SUPPLY TERMINALS . 9
Normally open push button
INPUTS TERMINALS . 10
Contact voltage < 20 V
PUSH BUTTON . 11
Contact current < 2 mA
ANTENNA TERMINALS . 12
5 x 1 mm (AWG18) screw connector
MODE SELECTION DIPSWITCHES . 13
STATUS LEDS . 14
OUTPUT FUSE . 15
A wire, ¼ wave (17 cm) length (included) can be used like
simplified antenna. Connect this wire to terminal 15 and leave
the wire inside the plastic box.
Any 433 MHz antenna can be used instead of simple wire. Use shielded cable type
RG58 for the antenna connection. Shield must be connected to terminal 16.

POWER SUPPLY

Power supply: 230 V AC ±20%
Frequency: 50 Hz
Max current consumption: 28 mA
2 x 1.5 mm (AWG16) screw connector 2

OUTPUTS

Rated current 8 A
Rated voltage 240 Vac
Max breaking capacity 2000 VA
Minimum contact load 100 mA, 12 V
Cadmium free contacts
Insulation 240/400 V (IEC60664 / VDE0110b - cat. III / a)
Surge voltage coil contacts: 4000V
RMS
Dielectric strength coil-contacts 5000V
RMS
open contact circuit 1000V
RMS
4 x 1.5 mm (AWG16) screw connector 2
Fuse protection 4A/250V 5x20mm (out2 / out3)

INPUTS

DC
2

ANTENNA

This simplified antenna can be located remotely using a
coaxial cable with its braid stripped over the last 17 cm.
This length is that which has to extend outside the housing if
the latter is metallic.
