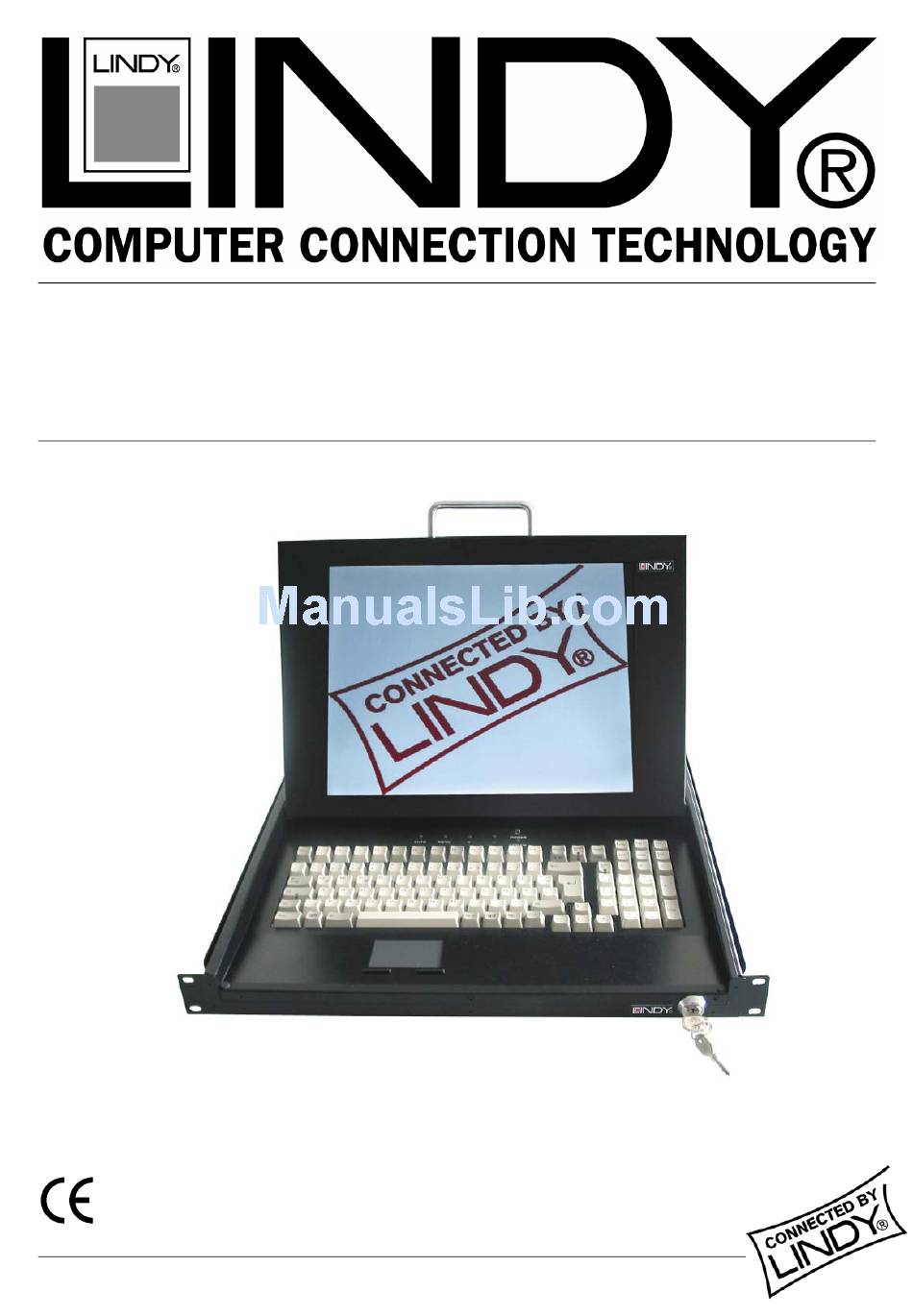

LINDY LCD Terminal
User Manual
English
LINDY No. 21520 - 21525
www.LINDY.com
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (AUG 2003)

Advertisement

loading
Need help?

Need help?

Do you have a question about the GMBH and is the answer not in the manual?

Questions and answers

Summary of Contents for Lindy GMBH

  • Page 1 LINDY LCD Terminal User Manual English LINDY No. 21520 - 21525 www.LINDY.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (AUG 2003)

  • Page 2: Safety Information

    • Rack mountable to a depth of between 52cm - 90 cm • Environmental Specification: o Temperature: 0 ~ 50° C (Operating) -20~60° C (Storage) o Relative Humidity: 10~90%, Non-Condensing © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (AUG 2003)
  • Page 3 User Manual KVM LCD Terminal KVM LCD Terminal INSTALLATION INSTALLING THE DRAWER INTO A 19” CABINET 1. Fix the front side panel of the drawer onto the front side of your 19” cabinet 2. Fix the screws in the back onto the rear side of your 19” Cabinet. The mounting rails may be adjusted to fit different cabinet depths of between 52cm and 90cm Cable connections Ensure the computer or KVM switch you are connecting to is switched OFF!

  • Page 4: Installation

    1 . L C D M o n i t o r I n s t a l l a t i o n 1-1 Installation: (1) The following process offers users the best way to set up your LCD Monitor into a whole PC system with correct and safe installation.
  • Page 5 2 . F u n c t i o n K e y s a n d o p e r a t i o n : 2.1 Function Keys Definition and description: (1) Menu Key: Use this key to select and execute the magnitude and function process.
  • Page 6 + Key: (a) In the Mode-Selection Mode: Pressing this key to locate forward the icon you want to adjust. Pressing it once, it moves one step forward to the next icon. Pressing it twice, it moves forward one more step to next 2nd icon. And so on. (b) Keep pressing down on this key, it flows continually through every icon and stops at the icon when the key is released.
  • Page 7 (f) Keep pressing down on this key, and it will keep increasing continually until the key is released. Switch Power on/off Switch. Press this Key once; the monitor would be turned on. Press this key again and the monitor will be turned off. Users are reminded that prior to press this Key to turn on the monitor, remember to switch on your PC first...
  • Page 8 2-2. Quick OSD Adjustment & Execution Operation: Key to be pressed Step 1 Menu Key OSD Menu shows up. 1."Colour Icon” keeps flashing. 2.Mode is ready for Colour Adjustment. 3. Resolution displayed Press/Display: + key: 1 press + key: 2 press + key: 3 press...
  • Page 9 S e c t i o n 1 : C o l o u r M o d e A d j u s t m e n t Key to be pressed Step 1 Menu Key Contrast Brightness/ Red/Green/ Blue by 1.
  • Page 10 Step 4 Menu Key The Contrast adjustment is completed. The system is ready for next selection 1. “Colour icon” keeps flashing. Step 5 +/- key To select Brightness 1. “Colour icon” keeps flashing. Step 6 Manu Key 1. “Colour icon” keeps flashing. Example: Contrast “Contrast”...
  • Page 11 Step 7 +/- key 1. “Colour icon” keeps flashing. Step 8 Manu key Brightness adjustment is completed. The system is ready for next selection 1. “Colour icon” keeps flashing. Step 9 +/- key To select Exit 1. “Colour icon” keeps flashing. Example: Brightness “Brightness”...
  • Page 12 Step 10 Manu key System backs to Mode Selection Status and is ready to select: 1. “Colour icon” keeps flashing. Step 11 +/- key Section 2 or Section 3 or Section 4 or Section 5 or Section 6 The selected icon become flashing. Example: Exit...
  • Page 13 S e c t i o n 2 : I m a g e M o d e A d j u s t m e n t Key to be pressed Step 1 Menu Key H-Position V-Position/ Sharpness/ Phase/Clock 3.
  • Page 14 Step 4 Menu Key H-Position adjustment is completed. The system is ready for next selection 3. “Image icon” keeps flashing. Step 5 +/- key To select V-Position 3. “Image icon” keeps flashing. Step 6 Manu Key 4. “Image icon” keeps flashing. Example: H-Position “H-Posit.”...
  • Page 15 Step 7 +/- key 3. “Image icon” keeps flashing. Step 8 Manu key V-position adjustment is completed. The system is ready for next selection 3. “Image icon” keeps flashing. Step 9 +/- key To select Exit 3. “Image icon” keeps flashing. Example: V-Position “V-Position”...
  • Page 16 Step 10 Manu key System backs to Mode Selection Status and is ready to select: 1. “Image icon” keeps flashing. Step 11 +/- key Section 1 or Section 3 or Section 4 or Section 5 or Section 6 The selected icon become flashing. Example: Exit...
  • Page 17 S e c t i o n 3 : F u n c t i o n E x e c u t i o n Key to be pressed Step 1 Menu Key Auto config 5. “Function icon” keeps flashing. 6.
  • Page 18 Step 4 Menu Key Auto Config. is completed. The system is ready for next selection Step 5 +/- key To select Auto-Position 1. “Function icon” keeps flashing. Step 6 Manu Key Example: Auto Configuration “Function icon” keeps flashing. Example: Auto-Position “Auto position”...
  • Page 19 Step 7 +/- key “Function icon” keeps flashing. Step 8 Manu key Auto-Position execution is completed. The system is ready for next selection “Function icon” keeps flashing. Step 9 +/- key To select Exit 5. “Fuction icon” keeps flashing. Example: Auto-Position Example: Auto-Position Example: Exit “Exit”...
  • Page 20 Step 10 Manu key System backs to Mode Selection Status and is ready to select: “Function icon” keeps flashing. Step 11 +/- key Section 1 or Section 2 or Section 4 or Section 5 or Section 6 The selected icon become flashing. Example: Exit...
  • Page 21 S e c t i o n 4 : O S D M a n u A d j u s t m e n t Key to be pressed Step 1 Menu Key Language 7. “OSD Manu icon” keeps flashing. 8.
  • Page 22 Step 4 Menu Key Language setting is completed. The system is ready for next selection Step 5 +/- key To select OSD H-Position 3. “OSD Manu icon” keeps flashing. Step 6 Manu Key Example: Language “OSD Manu icon” keeps flashing. Example: OSD H-Position “OSD H-position”...
  • Page 23 Step 7 +/- key “OSD Manu icon” keeps flashing. Step 8 Manu key H-Position adjustment is completed. The system is ready for next selection. “OSD Manu icon” keeps flashing. Step 9 +/- key To select Exit 7. “OSD Manu icon” keeps flashing. Example: OSD H-Position Example: OSD H-Position Example: Exit...
  • Page 24 Step 10 Manu key System backs to Mode Selection Status and is ready to select: “OSD Manu icon” keeps flashing. Step 11 Section 1 or Section 2 or Section 3 or Section 5 or Section 6 The selected icon become flashing. Example: Exit...
  • Page 25 S e c t i o n 5 : F u n c t i o n E x e c u t i o n Key to be pressed Step 1 Menu Key Input Source 9. “Misc icon” keeps flashing. 10.
  • Page 26 Step 4 Menu Key Input Source Selection is completed. The system is ready for next “Misc icon” keeps flashing. selection. Step 5 +/- key To select Mode Option 5. “Misc icon” keeps flashing. Step 6 Manu Key Example: Input Source Example: Mode Option “Mode Option”...
  • Page 27 Step 7 +/- key “Misc icon” keeps flashing. Step 8 Manu key Mode Option selection is completed. The system is ready for next “Misc icon” keeps flashing. selection Step 9 +/- key To select Exit 9. “Misc icon” keeps flashing. Example: Mode Option Example: Mode Option Example: Exit...
  • Page 28 Step 10 Manu key System backs to Mode Selection Status and is ready to select: “Misc icon” keeps flashing. Step 11 +/- key Section 1 or Section 2 or Section 3 or Section 4 or Section 6 The selected icon become flashing. Example: Exit...
  • Page 29 S e c t i o n 6 : O S D E x i t Key to be pressed Mode Selection: E x i t 11. “Exit icon” keeps flashing. 12. Only “Exit” displayed on OSD. Step Menu Key Menu Display Example: Exit...

  • Page 30: Technical Specification

    3 . S p e c i f i c a t i o n a n d A p p e n d i x : Technical Specification: LCD Panel: Viewing Angle Resolution: Display Colors: Pixel Pitch (mm): Contrast Ration: Brightness (cd/m2): Display Area (mm): Power Supply:...
  • Page 31 3-2. Appendix A: Systems Compatible: Input Mode Resolution Zoom to 1024x768 1024 x 768 1:1 SVGA 800 x 600 HQ scale up 640 x 480 HQ scale up DOS (Text) 640 x 480 Scale up DOS (EGA) 640 x 350 Scale up TEXT 720 x 400 Scale up 832 x 624 HQ scale up...
  • Page 32 This equipment complies with the requirement for CE mentioned in the European Directive and Standards EN55022 and EN55024. © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (AUG 2003) FCC Compliance Statement (United States) This equipment has been tested and found to comply with part 15 of FCC rules.
