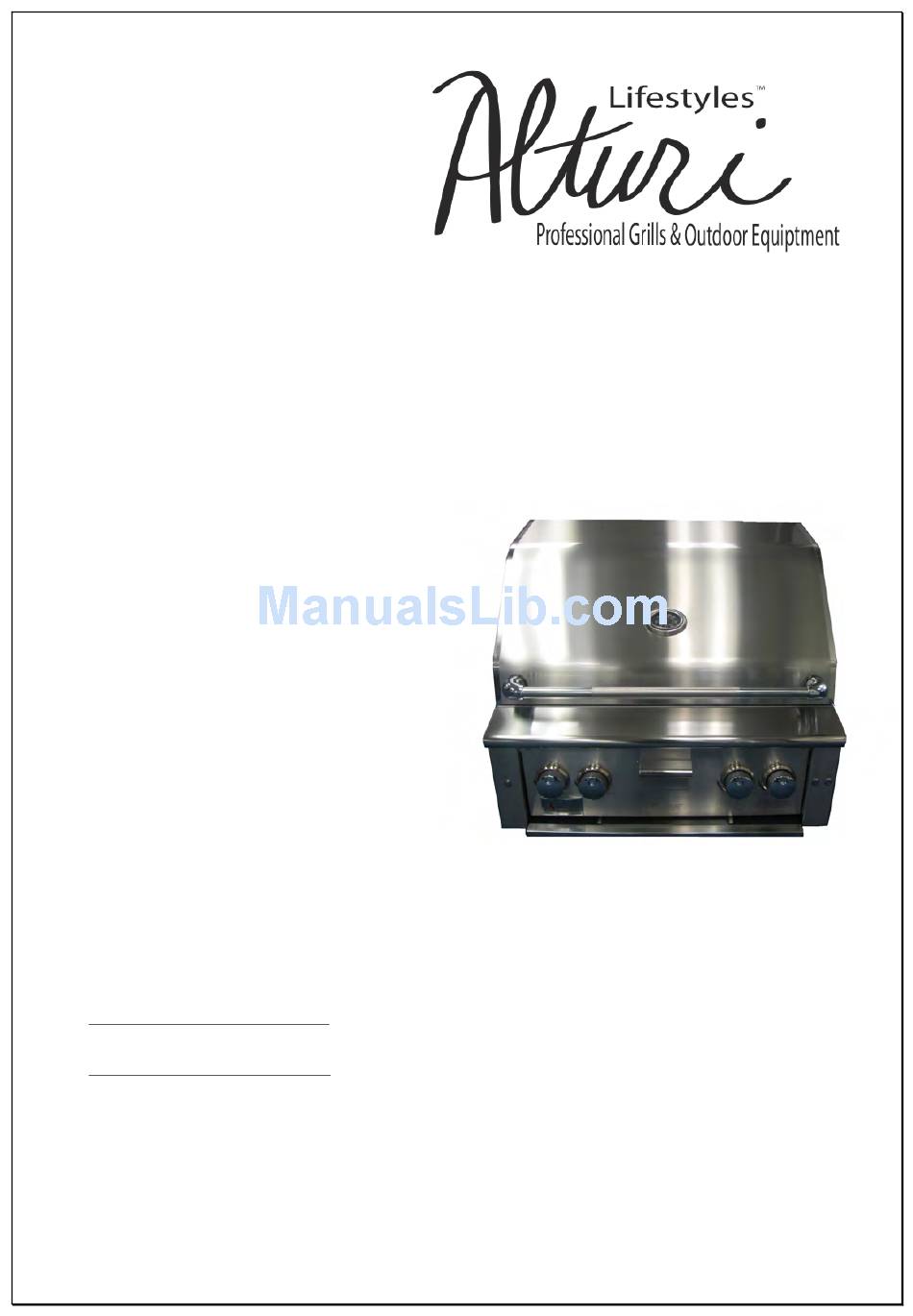

Installation

Instructions

30" 80,000 BTU Professional Grill.

Includes smoker tray and burner.

Fully Equipped

ALT30S NG/ ALT30RB NG

ALT30S LP/ ALT 30RB LP

36" 100,000 BTU Professional Grill

ALT36S NG/ ALT36RB NG

ALT36S LP/ ALT 36RB LP

42" 110,000 BTU Professional Grill

ALT42S NG/ ALT 42RG NG

ALT42S LP/ ALT 42 RB LP

PLEASE READ THESE OPERATING INSTRUCTIONS BEFORE INSTALLATION

AND USE TO PREVENT ACCCIDENT OR DAMAGE TO THE GRILL.

ATTENTION INSTALLER:

PLEASE LEAVE THESE INSTRUCTIONS WITH THE

CONSUMER.

ATTENTION CONSUMER:

PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE

REFERENCE.

If you have service or installation questions, please call us at

1-800-966-8126 or visit our website at WWW.AlturiLifestyles.com

Table of Contents

Need help?

Do you have a question about the ALT30S NG and is the answer not in the manual?

Questions and answers

Summary of Contents for Alturi ALT30S NG

Page 1: Installation Instructions
Installation Instructions 30” 80,000 BTU Professional Grill. Includes smoker tray and burner. Fully Equipped ALT30S NG/ ALT30RB NG ALT30S LP/ ALT 30RB LP 36” 100,000 BTU Professional Grill ALT36S NG/ ALT36RB NG ALT36S LP/ ALT 36RB LP 42” 110,000 BTU Professional Grill...
Page 2: Safety Labels Appearing On The Appliance
Safety Labels Appearing On The Appliance MODEL NO: ALT30 ALT36 ALT42 EQUIPPED FOR: NATURAL GAS OR LP [PROPANE] GAS SERIAL No: 000000**** ANSI Z21.58-1995/CGA 1.6-M95, ANSI Z21.58A-1998/CGA 1.6-M98, ANSI Z21.58B-2000/CGA 1.6-M02 OUTDOOR COOKING GAS APPLIANCE FOR OUTDOOR USE ONLY, IF STORED INDOORS, DETACH AND LEAVE CYLINDERS OUTDOORS BURNER INPUT RATING LP AND NATURAL GAS: ALT30 NG GRILL: 25,000 BTU X 2...
Page 3: Safety Labels Appearing On The Appliance
Safety Labels Appearing On The Appliance YOUR GRILL IS EQUIPPED WITH A BATTERY OPERATED IGNITION SYSTEM FOR EASIER LIGHTING OF YOUR GRILL. READ THESE GRILL AND ROTISSERIE LIGHTING INSTRUCTIONS BEFORE LIGHTING - KEEP THE GRILL HOOD OPEN DURING THE LIGHTING PROCESS. MAKE SURE ALL THE BURNER KNOBS ARE TURNED TO THE "OFF"...
Page 4: Table Of Contents
Table of Contents Congratulations on the purchase of your Alturi Professional Grill. These products were designed and developed by AMD Direct, Inc,. the premier manufacturer and distributor of high quality outdoor products. This grill meets or exceeds the requirements of ETL as intended for outdoor use.
Page 5: Important Instructions For Safe Installation And Operation
Safety and Installation Instructions When using your Alturi Professional Grill, please read and follow these basic precautions: GRILL INSTALLATION This gas grill must be installed in accordance with all local codes. If installation is planned in an area with no local codes, the gas grill must be installed in accord with the National Fuel Gas Code ANSI Z223.1 and storage and handling of liquefied petroleum gases, ANSI/NFPA...
Page 6: If You Smell Gas
Safety and Installation Instructions Please read all instructions before installing or operating your gas grill to prevent injury and appliance damage. All gas grills will get hot during use. Use extreme caution when operating the grill. Do not touch hot surfaces. Always use the handle to open or close the grill. Close supervision is necessary when this or any appliance is used near children.
Page 7: Filling And Refilling Lp Gas Cylinders
Safety and Installation Instructions Grills operated with LP (liquid propane) gas must be installed with an LP regulator supplied with the unit set to 10.5" water column pressure. The gas valves used in the grills are preset at the factory for Natural Gas or Liquid Propane operation. Please contact your dealer and use a licensed contractor or installer to convert your grill to a different gas type.
Page 8: Checking For Gas Leaks
Safety and Installation Instructions The outdoor gas grill and its individual gas shut off valve must be disconnected from the gas supply piping system before any pressure testing of that system at test pressures equal to or greater than 1/2 Psig (3.5 kPa) The outdoor gas grill must be isolated from the main gas supply piping system by closing its individual manual shut off valve during any pressure testing of the gas supply system at test pressures equal to or...
Page 9: General Use And Care
Safety and Installation Instructions This appliance conforms to all uniform electrical safety codes and electrical grounding regulations, install unit to I.A.W. local codes or in their absence, with National Electrical Code, ANSI/NFPA 70 or CSA C22.1. GENERAL USE AND CARE: The manufacturer can not be held responsible for damage or injury caused by improper use of this appliance.
Page 10: Unit Installation
Safety and Installation Instructions UNIT INSTALLATION: Your Alturi Professional Grill comes pre-assembled and requires very little set-up. We do however, recommend the use of professional help during the installation of your unit as improper installation may affect your warranty. Remove the unit from the carton along with all accessories and check that no damage has occurred to any parts or the unit.
Page 11 Safety and Installation Instructions For Liquid Propane Gas Units " The regulator supplied by the manufacturer must be used in the installation. " Attach regulator hose to the pipe connection at the rear of the unit. Tighten with a wrench but do not over-tighten.
Page 12: Lighting Your Grill
Lighting Instructions Caution: Never operate the grill unattended. Do not operate the rotisserie or Sear Zone burner with the hood closed. Prior to using your grill, make sure all of the following is correctly completed: Verify that the burner tube is free of insects and insect nests, webs, etc. Verify installation of the proper gas type and regulator settings.
Page 13: First Time Operation
If the unit still does not work, consult your dealer or call Alturi Professional Grills at the numbers listed on the front of this manual.
Page 14: Rotisserie & Sear Burner
Your grill comes with ceramic briquettes to be spaced evenly on the supplied briquette trays. Two boxes are delivered with the unit. More briquettes can be purchased from your dealer or Alturi Professional Grills at your request. The briquettes add flavor, provide more even heat and will assist in burning off...
Page 15: Cleaning
Maintenance Instructions As with all appliances, proper care and maintenance will keep your gas grill in good operating condition and prolong its life. By following these cleaning procedures on a regular and timely basis, your grill will be clean and working properly with minimum effort. Cleaning the Top Grates and Sear Grate: After cooking, turn the knobs to the OFF position and let the grill cool down before attempting to clean the grates.
Page 16: Burner Adjustments
Warranty Registration PLEASE NOTE THE FOLLOWING: If you have purchased an Alturi Professional Grill, you must supply your own three pronged grounded extension cord to use the halogen light. This extension cord must be rated for outdoor use. All natural and LP gas units require the customer to install the gas regulator, supplied with the unit, on the unit.
Page 17: When The Burners Will Not Light
Lighting Instructions WHEN THE BURNERS WILL NOT LIGHT PROBLEM WHAT TO DO 1. Air in the line Contact a qualified professional to correct. 2. Low gas pressure Check pressure and make sure a regulator is installed correctly; check for proper pipe ID. 3.
Page 18: Warranty Registration
Warranty Registration Alturi Professional Grills 1573 Sunland Lane Costa Mesa, Ca 92626 CUSTOMER SERVICE: 1-800-966-8126 FAX: 1-714-966-9331 VISIT US AND REGISTER ON-LINE AT: www.AlturiLifestyles.com DATE OF PURCHASE: __________________ DATE OF INSTALLATION:__________________ SERIAL NUMBER:________________________ MODEL:______________________________ CUSTOMER INFORMATION NAME:____________________________________________________________________ STREET ADDRESS:__________________________________________________________ CITY, STATE AND ZIP CODE:___________________________________________________...
Page 19: Appliance Cut Out Dimensions
Installation Instructions Appliance cut-out dimensions WIDTH DEPTH HEIGHT ALT30 28 1/2” 23 1/16” 10 3/16” ALT36 34 1/4” 23 1/16” 10 3/16” ALT42 40 1/2” 23 1/16” 10 3/16” Important: please verify by measuring actual appliance from box..measure twice, cut once...
Page 20: Exploded View
EXPLODED VIEW...
Page 21: Parts List
PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION AL001F HOOD-FRONT AL030P KNOB AL001P HOOD SPRING AL031P LOGO PLATE AL002P LIGHT AL032P SMOKER TRAY AL002F HOOD-REAR AL033P LED LIGHT AL003P HOOD SPOILER AL034P VALVE LATCH AL004P I.R BURNER INJECTOR WINDOW AL035P MAIN VALVE AL005P...
Page 22: Wiring Diagrams
WIRING DIAGRAMS...
