Digital Projection RIGGING FRAME Installation Manual

For highlite 660 / 740 / 8000 series / highlite laser 3d series / m-vision 930 series / titan led / 800 / 930 / quad series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HIGHlite 660 / 740 / 8000 Series
HIGHlite Laser 3D Series
M-Vision 930 Series
Titan LED / 800 / 930 / Quad Series
RIGGING FRAME INSTALLATION GUIDE
4
Rev B March 2015
115-918B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIGGING FRAME and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digital Projection RIGGING FRAME

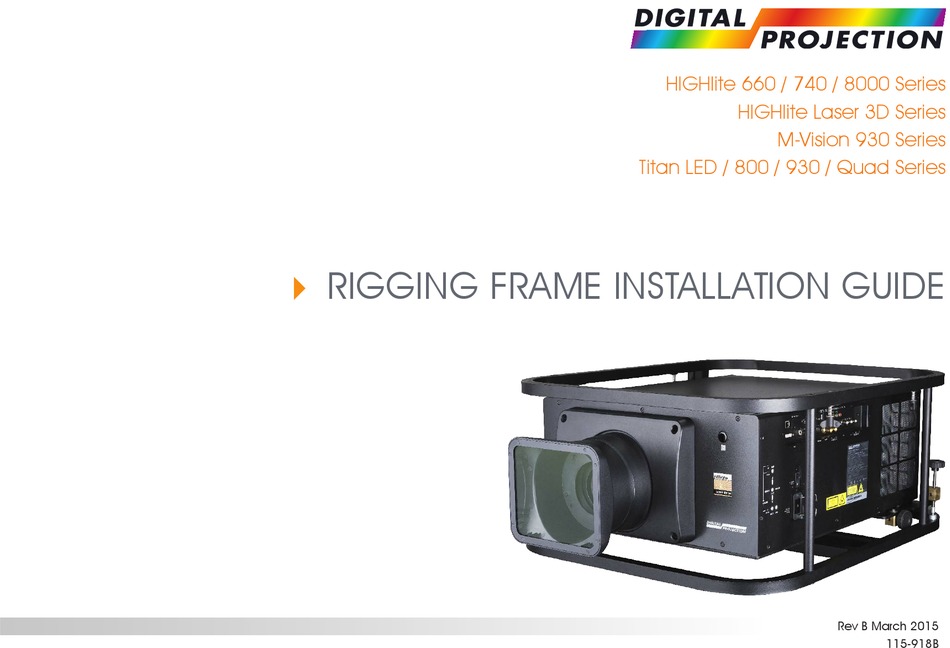

  • Page 1 HIGHlite 660 / 740 / 8000 Series HIGHlite Laser 3D Series M-Vision 930 Series Titan LED / 800 / 930 / Quad Series RIGGING FRAME INSTALLATION GUIDE Rev B March 2015 115-918B...
  • Page 2 NOTE: this symbol indicates that there is some important information that you should read. Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.

  • Page 3: Safety Warnings

    No screws are missing and all screws are in the right position. • No screws, adjustment wheels or other components are damaged. • No plates, square pipes or other components are bent or broken. Use a suitable tool to test each screw and make sure that none are loose. After an installation, ensure that all screws, washers and insulations are present and positioned correctly. Rigging Frame Installation Guide Rev B March 2015 page ii...
  • Page 4 750 kg Doughty clamp for a maximum weight load of 138 kg (304.23 lb). When stacking projectors, make sure all four threaded rods are tightened with a torque of 5 N m. Do not position the frame in a manner which may impede projector ventilation. Poor ventilation may result in a fire. Ensure that there is at least 30 cm (12 in) of space between the ventilation outlets and any wall, and 10 cm (4 in) on all other sides. Prevent property damage and personal injury caused by incorrect installation. Ensure the frame is in good condition, the installation has been carried out properly and the load capacity of the supporting structure is sufficient to carry the weight of the entire installation, up to 150 kg (330.69 lb) incl. lenses, cabling, etc. Do not operate the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam. Using the projector in such conditions may result in fire, electric shocks or plastic deterioration. Rigging Frame Installation Guide Rev B March 2015 page iii...
  • Page 5 Digital Projection SAFE HANDLING Notes Avoid injury from falling objects during assembly and disassembly of the frame. Wear protective shoes, gloves and helmet. The frame is heavy. Use safe handling techniques when lifting the frame. Wear safety gloves to prevent fingers being caught between the outer rings and the plates. When adjusting the image, keep your hands on the adjustment wheels at all times as shown below. Do not lean on the frame. Rigging Frame Installation Guide Rev B March 2015 page iv...
  • Page 6 Digital Projection Which Products Are Compatible With The Rigging Frame? Notes The rigging frame can be used with the following projectors: Products Badges • HIGHlite Laser 3D Any attempt to use the frame with HIGHlite other projectors may result in LASER severe injury or damage.

  • Page 7: Table Of Contents

    Ceiling installation using 750 kg / 1650 lb Doughty clamps ......... Safe fitting areas - bottom ....................Safe fitting areas - top ..................... Ceiling installation using the truss mount (optional accessory) ......Adjusting ceiling installations with the truss mount ..........Rigging Frame Installation Guide Rev B March 2015...

  • Page 8: What's In The Box

    If any pieces are missing, contact your dealer. You should save the original box and packing materials, in case you ever need to ship the rigging frame. 4 x square to round adaptors Rigging Frame Installation Guide 115-920...

  • Page 9: Fitting Highlite Laser In The Frame

    Remove the lens hood. as they provide galvanic isolation. Place the projector upside down on a suitable flat surface and remove the four adjustable feet Place the ø10 insulation washers over each M10 screw hole Rigging Frame Installation Guide Rev B March 2015 page 2...
  • Page 10 FITTING HIGHLITE LASER IN THE FRAME Setup (continued) Notes Insert six of the ø6.2 insulation sleeves in the M6 screw holes on the inside of the frame. This procedure requires two persons. It is important to use the sleeves as they provide galvanic isolation. Rigging Frame Installation Guide Rev B March 2015 page 3...
  • Page 11 Digital Projection FITTING HIGHLITE LASER IN THE FRAME Setup (continued) Notes Position the rigging frame over the projector so that the adjustment screws are at the back, aligning the M10 M6 screw holes This procedure requires two persons. Ensure that the projector plate is flat against the body of the projector.
  • Page 12 Secure the six M6x20 button head screws into each hole. Ensure each screw runs through the sleeve and washer and catches into and washers as they provide the corresponding M6 hole in the projector surface. galvanic isolation. Torque: 4±0.5 N m. Rigging Frame Installation Guide Rev B March 2015 page 5...

  • Page 13: Order Of Components In Assembly With Highlite Laser

    Notes Notes This procedure requires two persons. It is important to use the sleeves and washers as they provide galvanic isolation. Torque: 4±0.5 N m. M10x25 low profile socket head screw ø10 insulation sleeve Projector plate ø10 insulation washer M6x20 button head screw ø6 spring lock washer ø6.2 insulation sleeve Rigging Frame Installation Guide Rev B March 2015 page 6...

  • Page 14: Fitting M-Vision 930 In The Frame

    ø6 spring lock washers ø6.2 insulation sleeves It is important to use the washers as they provide galvanic isolation. Setup Place the projector upside down on a suitable flat surface and remove the four adjustable feet Rigging Frame Installation Guide Rev B March 2015 page 7...
  • Page 15 FITTING M-VISION 930 IN THE FRAME Setup (continued) Notes Insert six of the ø6.2 insulation sleeves in the M6 screw holes on the inside of the frame. This procedure requires two persons. It is important to use the sleeves as they provide galvanic isolation. Rigging Frame Installation Guide Rev B March 2015 page 8...
  • Page 16 Digital Projection FITTING M-VISION 930 IN THE FRAME Setup (continued) Notes Position the rigging frame over the projector so that the adjustment screws are at the back, aligning the M6 screw holes This procedure requires two persons. Ensure that the projector plate is flat against the body of the projector.
  • Page 17 Ensure each screw runs through the sleeves and catches into the persons. corresponding M6 hole in the projector surface. It is important to use the washers as they provide galvanic isolation. Torque: 4±0.5 N m. Rigging Frame Installation Guide Rev B March 2015 page 10...

  • Page 18: Order Of Components In Assembly With M-Vision 930

    Order of components in assembly with M-Vision 930 Notes This procedure requires two persons. It is important to use the washers as they provide galvanic isolation. Torque: 4±0.5 N m. M6x20 button head screw ø6 spring lock washer ø6.2 insulation sleeve Projector plate Rigging Frame Installation Guide Rev B March 2015 page 11...

  • Page 19: Fitting Titan In The Frame

    This procedure requires two Super Super Quad Quad Quad Quad Quad Quad 2000 2000 persons. Required parts Part Quantity Rigging frame M10x25 low profile socket head screws ø10 insulation sleeves ø10.5 insulation spacers Rigging Frame Installation Guide Rev B March 2015 page 12...

  • Page 20: Setup

    Place the projector upside down on a suitable flat surface and remove the four adjustable feet This procedure requires two persons. Place the ø10.5 insulation spacers over each M10 screw hole It is important to use the washers as they provide galvanic isolation. Rigging Frame Installation Guide Rev B March 2015 page 13...
  • Page 21 Digital Projection FITTING TITAN IN THE FRAME Setup (continued) Notes Position the rigging frame over the projector so that the adjustment screws are at the back, aligning the M10 screw holes This procedure requires two persons. Ensure that the projector plate is flat against the body of the projector.
  • Page 22 Ensure each screw runs through the corresponding sleeve and washer and catches into the corresponding M10 hole in the projector persons. surface. It is important to use the washers as they provide galvanic isolation. Torque: 4±0.5 N m. Rigging Frame Installation Guide Rev B March 2015 page 15...

  • Page 23: Order Of Components In Assembly With Titan

    Order of components in assembly with Titan Notes This procedure requires two persons. It is important to use the washers as they provide galvanic isolation. Torque: 4±0.5 N m. M10x25 low profile socket head screw ø10 insulation sleeve Projector plate ø10.5 insulation spacer Rigging Frame Installation Guide Rev B March 2015 page 16...

  • Page 24: Fitting Highlite In The Frame

    Rigging frame M6x20 button head screws ø6 spring lock washers ø6.2 insulation sleeves Setup Place the projector upside down on a suitable flat surface and remove the four adjustable feet Rigging Frame Installation Guide Rev B March 2015 page 17...
  • Page 25 FITTING HIGHLITE IN THE FRAME Setup (continued) Notes Insert six of the ø6.2 insulation sleeves in the M6 screw holes on the inside of the frame. This procedure requires two persons. It is important to use the sleeves as they provide galvanic isolation. Rigging Frame Installation Guide Rev B March 2015 page 18...
  • Page 26 Digital Projection FITTING HIGHLITE IN THE FRAME Setup (continued) Notes Position the rigging frame over the projector so that the adjustment screws are at the back, aligning the M6 screw holes This procedure requires two persons. Ensure that the projector plate is flat against the body of the projector.
  • Page 27 Secure the six M6x20 button head screws into each hole. Ensure each screw runs through the sleeves and catches into the persons. corresponding M6 hole in the projector surface. It is important to use the sleeves as they provide galvanic isolation. Torque: 4±0.5 N m. Rigging Frame Installation Guide Rev B March 2015 page 20...

  • Page 28: Order Of Components In Assembly With Highlite

    Order of components in assembly with HIGHlite Notes This procedure requires two persons. It is important to use the washers as they provide galvanic isolation. Torque: 4±0.5 N m. M6x20 button head screw ø6 spring lock washer ø6.2 insulation sleeve Projector plate Rigging Frame Installation Guide Rev B March 2015 page 21...

  • Page 29: Adjustment Options

    Use the two adjusting screws to adjust the pitch by approximately ±5º. Apply ±5º equal adjustment to both screws. Use the adjustment screw positioned underneath the projector to adjust the yaw by approximately ±5º. ±5º Rigging Frame Installation Guide Rev B March 2015 page 22...

  • Page 30: Stacking Projectors

    Tighten the M8 nut with a torque value of 5 N m using a dynamometric wrench. Make sure the screw is in a straight position, perpendicular to the frame. Correct Incorrect Rigging Frame Installation Guide Rev B March 2015 page 23...

  • Page 31: Ceiling Installation

    Parts of the frame are unsuitable for fitting square to round adaptors. See Safe fitting areas - bottom Safe fitting areas - top for more information. Rigging Frame Installation Guide Rev B March 2015 page 24...

  • Page 32: Safe Fitting Areas - Bottom

    Square to round adaptors should only be fitted in the areas shown below. For information on weight 510 mm (20.07 in) restrictions for installations using the Doughty clamps, see Maximum Weight Loads further in this guide. 510 mm (20.07 in) Rigging Frame Installation Guide Rev B March 2015 page 25...

  • Page 33: Safe Fitting Areas - Top

    Square to round adaptors should only be fitted in the areas shown below. For information on weight 510 mm (20.07 in) restrictions for installations using the Doughty clamps, see Maximum Weight Loads further in this guide. 510 mm (20.07 in) Rigging Frame Installation Guide Rev B March 2015 page 26...

  • Page 34: Ceiling Installation Using The Truss Mount (Optional Accessory)

    For information on weight the screws into the mounting holes on the frame restrictions for installations using the truss mount, see Maximum Weight Loads further in this guide. Torque: 4±0.5 N m. Rigging Frame Installation Guide Rev B March 2015 page 27...

  • Page 35: Adjusting Ceiling Installations With The Truss Mount

    The inclination angle can be adjusted by 10% at the upper part (rough adjustment) and by 2% at the lower part (fine adjustment). Use the four adjustment screws for fine adjustment. Rough adjustment (up to 10º) Fine adjustment (up to 2º) Rigging Frame Installation Guide Rev B March 2015 page 28...

  • Page 36: Maximum Weight Loads

    Use the truss mount with up to two projectors per installation, as shown in the illustration. supporting structure is sufficient to carry the weight of the entire installation, up to 150 kg (330.69 lb) incl. lenses, cabling, etc. HIGHlite HIGHlite Laser M-Vision 930 Titan Rigging Frame Installation Guide Rev B March 2015 page 29...

  • Page 37: Ceiling Installation Using 750 Kg / 1650 Lb Doughty Clamps

    Use Doughty clamps to mount up to two projectors as shown in the illustration. Ensure the load capacity of the supporting structure is sufficient to carry the weight of the entire installation, up to 150 kg (330.69 lb) incl. lenses, cabling, etc. HIGHlite HIGHlite Laser M-Vision 930 Titan Rigging Frame Installation Guide Rev B March 2015 page 30...
  • Page 38 The maximum weight load for a table mount installation is 210 kg (462.97 lb). Mount up to three projectors as shown in the illustration. Make sure the surface can support the weight of the installation. HIGHlite Laser HIGHlite M-Vision 930 Titan Rigging Frame Installation Guide Rev B March 2015 page 31...

  • Page 39: Dimensions

    Digital Projection DIMENSIONS Dimensions Notes 695 mm / 27.36 in 360 mm / 14.17 in Rigging frame Frame only weight: 20 kg / 44.09 lb 670 mm / 26.37 in Rigging Frame Installation Guide Rev B March 2015 page 32...

  • Page 40: Truss Mount

    Digital Projection DIMENSIONS Truss mount Notes Truss mount weight: 4.5 kg / 8.81 lb Rigging Frame Installation Guide Rev B March 2015 page 33...
  • Page 41 Digital Projection DIMENSIONS This page is intentionally left blank. Rigging Frame Installation Guide Rev B March 2015 page 34...

  • Page 42: Contact Information

    (+65) 6284-1138 Shi Ao International Center (+65) 6284-1238 (+44) 161 947 3300 powerinfo@digitalprojection.com Chaoyang District (+44) 161 684 7674 www.digitalprojection.com www.digitalprojectionasia.com Beijing 100029, PR CHINA enquiries@digitalprojection.co.uk (+86) 10 84888566 service@digitalprojection.co.uk (+86) 10 84888566-805 www.digitalprojection.co.uk techsupport@dp-china.com.cn www.dp-china.com.cn 115-918B Rigging Frame Installation Guide...
