Summary of Contents for Janus Terminus 400AP LCR

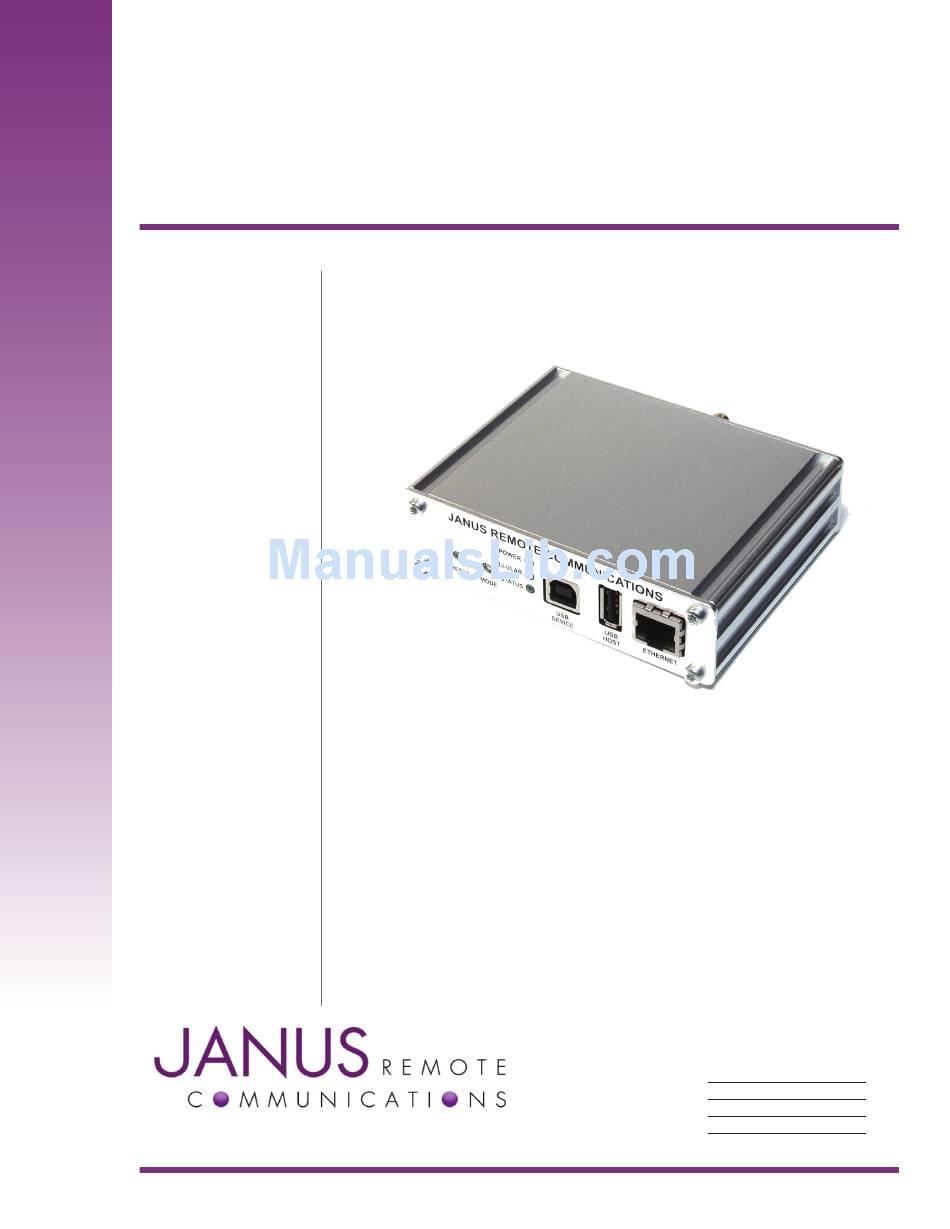

- Page 1 Terminus 400AP LCR Products User Manual Bulletin JA07-UM_LRC Revision Date 23 Oct 2014...
- Page 2 DISCLAIMER The information contained in this document is the proprietary information of Connor-Winfield Corporation and its affiliates (Janus Remote Communication). The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Connor-Winfield, is strictly prohibited. Connor-Winfield makes every effort to ensure the quality of the information it makes available.
- Page 3 Powered by the Terminus Common Footprint, the 400AP router can be utilized across various technologies depending on the user’s needs. Terminus 400AP LCR User Guide JA07-UM_LCR Page 3 Rev: A01 Date: 10/23/14 ©...
- Page 4 The locking header connection breaks out many signals useful to the 400AP, however in the router configuration it’s largely unused, save for power. Reset The reset button is connected to the reset controller of the 400AP. When pressed and released the 400AP is reset. Terminus 400AP LCR User Guide JA07-UM_LCR Page 4 Rev: A01 Date: 10/23/14 ©...
-
Page 5: Led Indicators
The Mode button is used to place the 400AP Router into different operational modes during boot. It’s only recommended to explore this if instructed to do so by Janus as by default the bootloader and router application are already in place. -
Page 6: Electrical Specifications
To access the 400AP board, remove the four TX-10 screws from the ruggedized aluminum enclosure. These screws are located on the back panel of the 400AP where the DB9 and lock header are located. Terminus 400AP LCR User Guide JA07-UM_LCR Page 6... - Page 7 Slide back to original position to lock in place. Step 5 Slide the back panel and 400AP board into the aluminum enclosure. Replace the four TX-10 screws and tighten them back on to enclosure. Terminus 400AP LCR User Guide JA07-UM_LCR Page 7 Rev: A01 Date: 10/23/14 ©...
- Page 8 Password: admin The password can be adjusted in the drop down at the top. You will be prompted for the old password and the new password you wish to use. Terminus 400AP LCR User Guide JA07-UM_LCR Page 8 Rev: A01 Date: 10/23/14 ©...
- Page 9 • Port Forwards – Set your port forwards as required for your local network • Administration – Change port number, restore the default configuration • About - Version lookup and general information Terminus 400AP LCR User Guide JA07-UM_LCR Page 9 Rev: A01 Date: 10/23/14 ©...
- Page 10 CDMA/EVDO (CE910/DE910) Based Unit – If available, set the Network type to Sprint or Verizon. There will be no APN/Username/Password required. Click “Save” and continue. It will warn of requiring a reboot, which we will do at the end of this. Terminus 400AP LCR User Guide JA07-UM_LCR Page 10 Rev: A01 Date: 10/23/14 ©...
- Page 11 If you are not entering any port forwards at this time you may move on. If you are entering any port forwards, click the “Add” button and fill in the information, check the Enabled box and then click “Save.” Terminus 400AP LCR User Guide JA07-UM_LCR Page 11 Rev: A01 Date: 10/23/14 ©...
- Page 12 Once rebooted, if the APN and other network settings are correct the green LED will illuminate upon a successful PPP connection being made. Once this LED illuminates, open your browser and attempt a simple connection to www.google.com to test. Terminus 400AP LCR User Guide JA07-UM_LCR Page 12 Rev: A01 Date: 10/23/14 ©...
- Page 13 Terminus 400AP LCR Products User Manual – Ordering Information Ordering Information Description EVDO400AP LCR v2.0 EV-DO Sprint EVDO400AP LCR v3.0 EV-DO Verizon HSPA400AP LCR v1.0 HSPA+ AT&T / T-Mobile Revision History Revision Revision Date Note 02/27/14 Advanced Release - User Manual...
