Teledyne LeCroy Quick Start

PCI Express 3.0 to SFF-8639 Adapter
Quick Start
1
Introduction
Use this document for quick installation and setup.
Teledyne LeCroy's PCIe to SFF-8639 x4 NMVe/SCSIe Port A Adapter card
provides a quick and simple means for test and debug of Solid State Drives (SSDs)
based on PCI Express (PCIe
5 GT/s (Gen2) and 8 GT/s (Gen3). The PCIe to SFF-8639 x2 NVMe/SCSIe PortB
Adapter looks exactly the same as the Port A adapter except for the silkscreen with
the name of the product. Functionally, the Port B SFF-8639 Adapter works up to X2
since only Lanes 0 and 1 are routed in the PCB from the PCIe edge connector to
the Port B of the SFF-8639 connector.
2
Components
The adapter package includes the following components:
• SFF-8639 single-port Adapter card
• Power supply +12V @ 3A
• Quick Start Guide (this document)
Inspect the received shipping container for any damage. Unpack the container
and account for each of the system components listed above. Visually inspect
each component for absence of damage.
In the event of damage, notify the shipper and Teledyne LeCroy. Retain all
shipping materials for shipper's inspection.
®
) protocols. It supports data rates of 2.5 GT/s (Gen1),

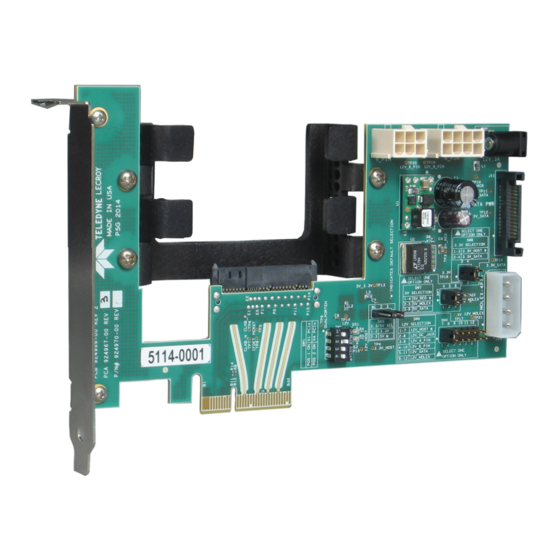

SFF-8639 Single-Port Adapter Card
