Summary of Contents for Heat Controller CD-101G

  • Page 1: Room Air Conditioner

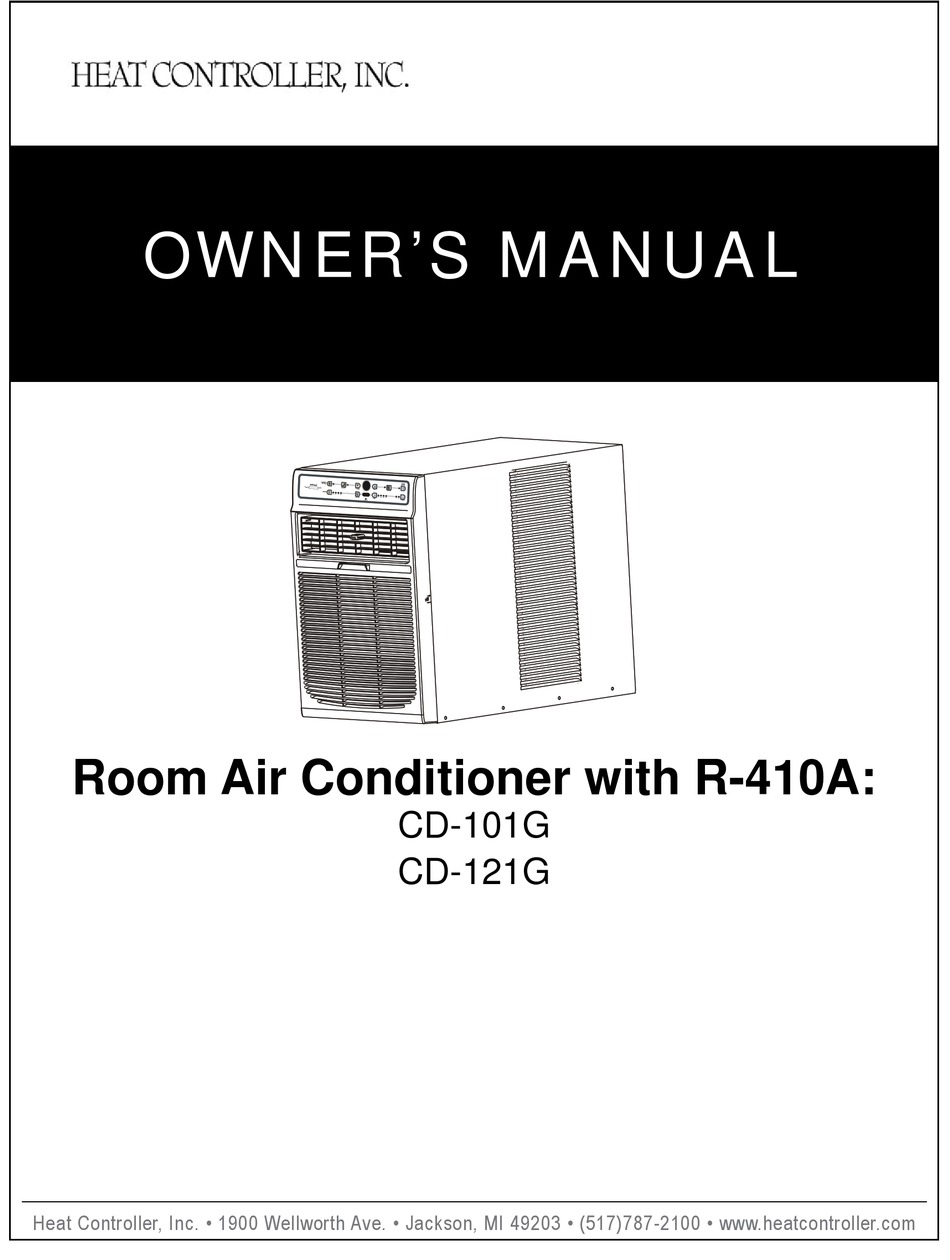

    Room Air Conditioner with R-410A: MULTI-STEP SPEED ELECTRONIC CONTROL CD-101G THIS AIR CONDITIONER IS EQUIPPED WITH A NEW INDUSTRY STANDARD POWER SUPPLY CORD WITH A TEST-RESET FUNCTION CD-121G Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com...

  • Page 2: Table Of Contents

    Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............5 5. INSTALLATION INSTRUCTIONS............10 6. CARE AND CLEANING ..............14 7. TROUBLESHOOTING TIPS...............15 ead This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.

  • Page 3: Safety Precautions

    Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual Safety Precautions To prevent injury to the user or other people and property damage, the following instructions To prevent injury to the user and propert damage, the following instructions must be must be followed.
  • Page 4 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. ! CAUTION When the air filter is to be Ventilate the room well Do not allow water to When the air filter is to be Do not clean the air...

  • Page 5: Important Safety Instructions

    Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS For your safety For your safety WARNING WARNING NOTE NOTE The power supply cord with For some models, the power Do not store or use gasoline or other flammable vapors and liquids in...

  • Page 7: Air Conditioner Features

    Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual AIR CONDITIONER FEATURES NOTE: The following instructions represent the Unit Controls, the same instructions can be used for the Remote Control. TO TURN UNIT ON OR OFF: CHECK FILTER DOWN...
  • Page 9 Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual AIR CONDITIONER FEATURES (CONTINUED) AIR CONDITIONER FEATURES AIR CONDITIONER FEATURES(CONTINUED) AIR CONDITIONER FEATURES(CONTINUED) TIMER: AUTO START/ TIMER: AUTO START/ NOTE: TIMER: AUTO START/ STOP FEATURE: STOP FEATURE: NOTE: NOTE: First press the Timer button, the Timer on indicator...

  • Page 10: Additional Things You Should Know

    Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. AIR CONDITIONER FEATURES AIR CONDITIONER FEATURES (CONTINUED) DO THIS: Press Check NOTE: Filter button Press the Clean Air button, the ion generator is ener gized and will help to remove pollen and energized impurities from the air, and trap them in the filter.

  • Page 11: Installation Instructions

    Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual INSTALLATION INSTRUCTIONS NOTE: These instructions describe installation in a typical wood framed window with a wood SLIDE -BY sash, or installation in a metal CASEMENT window. Modification may be necessary when installing in windows made differently than those shown in these instructions.
  • Page 12 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. 1. Make sure you have all the necessary parts. Installation kit contents: Platform(1) Support brace(1) Adjustment bolt(1) 1/4” (1) Hex flange nut - 1 / 4 (1) Track seal(1) Side channel seal(1)
  • Page 14 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc.
  • Page 16 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. Insert 20. To replace the front First reconnect the coupler plugs, make the Exhaust control positioned through the front in the proper location. Then replace the retaining screws that holds the panel in place.
  • Page 18 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc.

  • Page 20: Care And Cleaning

    Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. CARE AND CLEANING CARE AND CLEANING CAUTION CAUTION WARNING! Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards.

  • Page 21: Troubleshooting Tips

    Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance.
  • Page 22 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. Problem Solution Unit removing large quantity of moisture from humid room. This is normal during Water dripping excessively humid days. OUTSIDE when unit is cooling. Remote control not located within range. Place remote control within 20 feet & 180 , Remote Sensing radius of the front of the unit.
  • Page 23 11/2009 04/2009...
