Summary of Contents for X4-TECH Zelo M7

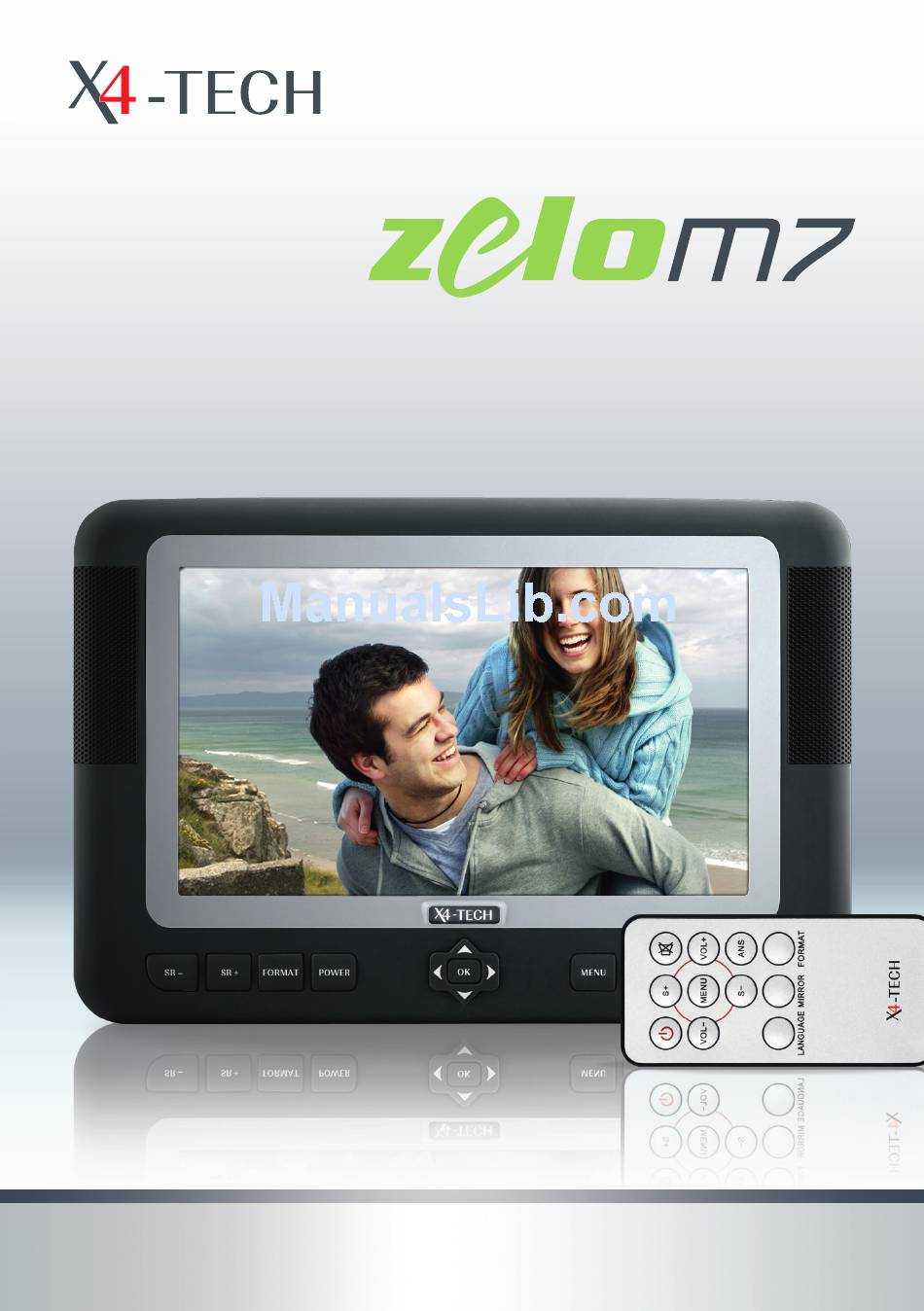

  • Page 1: Instruction Manual

    mobile LCD monitor Instruction manual...
  • Page 2: Table Of Contents

    Content 5 Chapter 1 Safety instructions 7 Chapter 2 The monitor 7 The LCD monitor 9 Remotr control 11 Power supply 1 1 Indicator lamp 12 Chapter 3 Basic operation 12 Sound volume 12 To mute sound 13 Adjusting the picture setting 1 3 Choosing the input 14 Chapter 4 Function selection Chapter 5 Further features 15 Sleep time 15 Listening with earphones 16 Connecting other devices Chapter 6 Troubleshooting Chapter 7 Specifications...
  • Page 3: Chapter 1 Safety Instructions

    Safety instructions Dear customer 1. Never attempt your own maintenance. If something appears strange, please turn the monitor off and consult your dealer. The monitor is composed of many delicate congratulations on purchasing the ZELO M7 LCD monitor. To enjoy the features that this electronic components that can be damaged or broken if you open the monitor or monitor has to offer and to ensure safety and years of trouble-free operation, please attempt to modify it. read and follow all operating and maintenance instructions found in the instruction manual thoroughly and retain this manual for future reference. 2. Do not exposing the monitor to high humidity, dust, steam, oil, smoke of place etc. And avoid the unit dropping and strong impact. A declaration of CE conformity has been established for this product. Certification has 3. Do not use thinners or other chemical reagent. Wipe the monitor off with a soft cloth been documented and entrusted to the manufacturer. if it gets dirty.
  • Page 4: Chapter 2 The Monitor

    The monitor The LCD monitor 1. LCD panel 2. Logo and control light for ON/OFF/Standby 3. Source select buttons and navigation p q 4. Power on/off button 5. 4:3 and 16:9 select button 6. Source select buttons 7. Stereo speakers 8. MENU button 9. VOL–/ VOL+ button and navigation t u 10. MENU button 11. ANS button: to change volume, brightness, contrast, color and tint 12. VOL–/ VOL+ button Chapter 1 Safety instructions Chapter 2 The monitor...
  • Page 5: Remote Control

    Remote control 13. Earphone socket 14. AV2 input socket 15. AV1 input socket 16. Screw hole circle (for stand attachment) 17. DC power input socket 18. Bracket 19. Bracket lock Chapter 2 The monitor Chapter 2 The monitor...
  • Page 6: Power Supply

    Power supply 1. POWER button: to put the monitor on/off 2. VOL–/VOL+ For use at home: 3. SOURCE: to select AV1 or AV2 Connect the included adapter to a wall outlet and then to your monitor to supply your 4. LANGUAGE: to select the OSD language monitor with power. Press the POWER switch for approx. 3 seconds to turn the monitor 5. MIRROR: to mirror the picture on. Please make sure that the power adapter coincides with the voltage specification of your wall outlet. 6. MUTE: used to enable or disable the audio 7. MENU: displays the Menu on the screen For use in the car (DC 12 V): 8. ANS: to select brightness, contrast, color, tint adjusting mode Connect the included car adapter to your cars cigarette lighter and then to your moni- 9. FORMAT: to turn the 16:9 or 4:3 picture tor. Press the POWER switch approx. 3 seconds to turn the monitor on. Indicator lamp At operation the logo is shining white and red at standby.
  • Page 7: Chapter 3 Basic Operation

    Basic operation Sound volume Adjusting the picture setting 1. Press ANS to select volume. 1. Press the ANS button to select brightness., contrast, color, tint (tint only NTSC system using). 2. Press the VOL+ button to increase sound volume adjusting. The segment of indicator increases. 2. Press VOL+/VOL– button to adjust the brightness, contrast, color and tint. 3. Press the VOL– button decrease sound volume. The following progress bar is an example of a brightness setting adjustment. The segment of indicator decreases. Color adjustments can only be made in the NTSC system. The PAL standard system should be used in Europe. To mute sound 1. Press the MUTE button to temporarily turn off the sound. Screen display the mute mark. Choosing the input Press the SOURCE (SR+/SR–) button respectively to choose between the inputs AV1 and AV2.
  • Page 8: Chapter 4 Function Selection

    Function selection Further features Sleep time 1. Press MENU button to select FUNCTION menu. 2. Press the SOURCE p ,q button to select the function. Press the SLEEP TIME button to select the sleep time from 0 to 240 minutes. 3. Press the VOL+/VOL– button to transfer the function items. The screen displays Listening with earphones Plug the earphones into the 3.5 mm jack located on the right side of the set (can be identified by the symbol „ earphones“). FUNCTION 1. Language Press the SOURCE p ,q button to select the language. Press the VOL+/VOL– button to change the language or press the language button of controller to change the lan- guage. 2. Picture up MIRROR Press the p ,q button to select MIRROR. Press the VOL+/VOL– button or press the MIRROR button of controller to turn the picture normal and mirror. Note: No sound can be heard from the main speakers, when the earphones are connected 3.
  • Page 9: Connecting Other Devices

    Troubleshooting Connecting other devices Problem Solution Press the SOURCE buttons on the remote control or the SR+/SR– buttons on the device respectively until AV1 or AV2 is displayed on screen. There is no picture or Make sure the AC adapter is connected properly to sound. the power outlet/adapter terminal. You have the opportunity to connect an external source, such as a DVD player, satel- lite receiver or video recorder to your TV monitor as follows. Use the adapter cable for Make sure that you don‘t have interchanged the connecting the devices. jacks. Picture and Sound: Make sure that the right input is selected. No picture Make sure that you don‘t have interchanged the jacks. No sound Check that teh MUTE button has not been activa- ted or that the volume has not benn adjusted to a minimum.
  • Page 10: Chapter 7 Specifications

    Specifications Technical data Remote control is not Check if the batteries have sufficient power/re- functioning properly. place batteries. › 7 inch LCD monitor (18 cm) › Dimensions: 224 x 153 x 37 mm Make sure the remote sensor is not exposed to strong light. › Weight: approx. 650 g › 16:9 wide screen format Doubled picture Check that there are no electromagnetic waves › Pixel: 480 x 3 x 234 that could influence the device.
  • Page 11: Delivery Contents

    Delivery contents Please check contents thoroughly after purchasing. › Mobiler 16:9 LCD monitor › Adapter (100 – 240 V) › Car adapter › Car bag for headrest attachment › Earphones › A/V cable › Stand › Remote control › Instruction manual Chapter 7 Specifications...
  • Page 12 Service Hotline: +49 (0) 53 02/8 06-450 Address: x-services.eu gmbh Service department X4-TECH Brackestraße 3 D-38159 Vechelde Germany Manufacturer information x-peer.de GmbH Brackestraße 3 38159 Vechelde Germany Telephone +49 (0) 53 02/8 06-400 Fax +49 (0) 53 02/8 06-499 Internet: www.x-peer.de E-Mail: info@x-peer.de...
  • Page 13 Version 2.2 – 1/2010 www.x4-tech.de...
