Summary of Contents for Audio bit Ten

  • Page 1 ADVANCED MANUAL Rev. 1.1c www.audison.eu...

  • Page 2: Table Of Contents

    4.5 Controls and settings ..........................08 CONNECTIONS ..............................09 5.1 Power supply and remote turn on ......................09 5.2 How to turn the bit Ten on / off .........................09 5.3 Personal computer and Digital Remote Control (DRC)................10 5.4 High-Level input signals ..........................10 5.5 Low-Level input signals ..........................11 5.6 Connection with hands-free phone kit ......................11...

  • Page 3: Product Description - Precautionary Notes

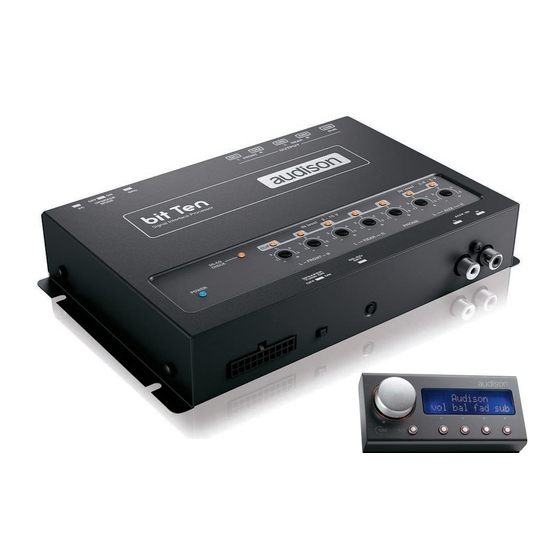

    ADVANCED MANUAL / bit Ten / 1. PRODUCT DESCRIPTION / PRECAUTIONARY NOTES The bit Ten is a digital signal processor essential to maximize the acoustic performance of your car audio system. It consists of a 32-bit DSP processor and 24-bit AD and DA converters.

  • Page 4: Bit Ten And Drc Installation

    ADVANCED MANUAL / bit Ten / 3. bit Ten D and DRC INSTALLATION External dimensions 191 mm / 7.51” 191 mm / 7.51” 191 mm / 7.51” Mounting dimensions How to install 4,2x20mm / 0,16”x0,78” 183.6 mm / 7.22” 183.6 mm / 7.22”...

  • Page 5: Connection Panels - Description

    ADVANCED MANUAL / bit Ten / 4. CONNECTION PANELS – DESCRIPTION MULTIPOLAR CONNECTOR The bit Ten comes with a 20 multipolar interface for input signals, power supply and various control connections. 1: violet 2: gray 3: white 4: green 5: red...

  • Page 6: Input Signals

    17: orange AUX IN L - R; auxiliary low-level stereo input. The bit Ten comes with an auxiliary stereo signal input to connect an external source, mp3 player, audio sources. Input sensitivity is adjustable from 0.6 to 5 V RMS.

  • Page 7: Output Signals

    -BATT: Power supply negative connection terminal (GND). WARNING: make sure the connection polarity is as indicated on the terminals. A misconnection may result in damage to the bit Ten. After applying power, wait at least 10 seconds before turning the bit Ten on. REMOTE IN-OUT.

  • Page 8: Controls And Settings

    DRC or REM IN. MUTE IN: To mute the bit Ten outputs when starting the engine by connecting the terminal to the starter turn-on input or other devices. This control works by jumping the terminal to 12V.

  • Page 9: Connections

    HOW TO TURN THE bit Ten ON / OFF The bit Ten is on when the POWER ON LED lights up in blue. It can be turned on / off in the following ways: Push the DRC main control switch (to turn on). Keep the DRC main control knob pressed (to shut down).

  • Page 10: Personal Computer And Digital Remote Control (Drc)

    ADVANCED MANUAL / bit Ten / PERSONAL COMPUTER AND DIGITAL REMOTE CONTROL (DRC) (optional) USB cable (provided) DRC/ACLink cable (provied) HIGH-LEVEL INPUT SIGNALS SPEAKERS IN HI-LEVEL STEREO FRONT+REAR SPEAKERS IN HI-LEVEL MULTICHANNEL (see 8.1) (see 8.2) FRONT FRONT HI REAR...

  • Page 11: Low-Level Input Signals

    PHONE MUTE: bit Ten OFF. This turns the bit Ten on. When a phone call is received, the ring tone is audible after around 5 seconds. Once the phone call is finished, the bit Ten turns off. Nota: The PHONE MUTE terminal can be used to enable the AUX IN input .

  • Page 12: Output Signals

    ADVANCED MANUAL / bit Ten / OUTPUT SIGNALS OUTPUT TO AN AMPLIFIER’S SYSTEM Example of a Front Rear + Sub amplifier’s system, connected with the default settings (see 8.1) FRONT REAR FRONT REAR DRC (optional) DRC (optional) Some SUB amplifiers inputs need RCA split.

  • Page 13: How To Setup The Bit Ten Without A Pc

    (hissing sound) when playing music tracks. This is due to the low signal / noise ratio provided by the bit Ten input head unit. If you have this problem after...

  • Page 14: Source De-Equalization

    By replacing the factory audio system (speakers and / or amplifiers), this equalization is harmful. The bit Ten has an automatic procedure to verify equalization and, if present, can eliminate it. Equalization analysis: setting the source. To run this procedure, follow the instructions as listed below: • Disconnect the bit Ten RCA outputs (Front, Rear and Sub) if they are connected to the amplifiers. • Play track 2 of the bit Ten CD. • Set all tone and equalizer controls to zero (0). • Set balance and fader to center (0). • Don’t change or reset the volume of the input sensitivity calibration (see 6.1.3)
  • Page 15 OUT OF DE-EQ PROCESS 5 sec • The DE-EQ LED turns on to show that you recorded a de-equalization curve, otherwise it will be off. MEMORY CANCEL LED OFF NO DE-EQ • If the DE-EQ CHECK LED on the bit Ten is on, you can run the de-equalization procedure again. The new data will erase the ones previously stored. Important: Confirm or abort the de-equalization process within 5 minutes, otherwise the bit Ten will automatically reset and turn off. 5 sec...

  • Page 16: Amplifiers Sensitivity Calibration

    - AUX IN: To use this input you need to install the DRC (optional). Through the DRC select AUX (see 10) - If a source with a CD player is connected to the AUX input, disconnect the bit Ten outputs from the amplifiers and proceed as detailed in chapters 6.1.3 - 6.1.4 - If the source to be connected to the AUX IN input has no CD player (e.g.

  • Page 17: Bit Ten Software And Drivers Installation / Uninstallation Guide

    GUIDE PC SOFTWARE INSTALLATION GUIDE Insert the “bit Ten Setup CD 1.0” CD-ROM into the CD player of the PC you are going to use. Windows XP: select My Computer from the Windows START menu; Windows Vista: select Computer from the Windows START menu;...
  • Page 18 ADVANCED MANUAL / bit Ten / Windows XP: select NEXT to continue with the installation, CANCEL to interrupt it; Windows Vista: select NEXT to continue with the installation, CANCEL to interrupt it; Windows 7: select NEXT to continue with the installation, CANCEL to interrupt it;...

  • Page 19: Drivers Installation Guide

    DRIVERS INSTALLATION GUIDE Turn the bit Ten on. Connect the USB cable to the appropriate port on the bit Ten and to an available USB slot on the PC. WARNING When connecting a PC laptop via USB cable to the bit Ten while the device is turned on, the laptop has to work with its own battery and stay disconnected from the mains adapter (external power supply).

  • Page 20: Bit Ten Software Uninstall

    Start / All Programs / bit Ten / uninstall. Procedure 2 To uninstall the bit Ten PC software you can also follow the standard procedure: Start / Control Panel / Applications Installation / bit Ten / uninstall.

  • Page 21: Bit Ten Installation Guide Using A Pc

    Make sure that the IN Level knobs for the inputs used (L / R Front, L / R Rear, Phone, Aux IN L-R) are set to minimum sensitivity as in the figure (position -). Turn on the bit Ten and connect the USB cable to a PC. After installing the bit Ten software, start it by clicking the icon previously created on the PC desktop.
  • Page 22 ADVANCED MANUAL / bit Ten / If synchronization is successful, a dialog box will show the data exchange between processor and software. Wait a few seconds and, finally, confirm by clicking the OK button. At this point you need to have in mind the system you want to realize beforehand, since from this moment if you want to change any of the settings you will have to go through the guided procedure all over again.
  • Page 23 (Front Left Tweeter); FRTW (Front Right Tweeter); FLW (Front Left Woofer); FRW (Front Right Woofer); Sub L (Sub Left); Sub R (Sub Right). The bit Ten will use these names to reconstruct a full range signal coming from an OEM source with a dedicated multi-channel amplifier and assign the corresponding signal to the respective analog output.
  • Page 24 If you do not use passive crossover filters, each speaker corresponds to an output channel. The bit Ten has 5 output channels; not using passive crossover filters allows you to pilot 5 amplified channels. Of course you can select more than 5 speakers, in which case the system will help implement passive crossovers.
  • Page 25 You can set if passive crossovers exist that manage speaker functional groups. Eg.: If the audio system has passive crossovers, the software will ask you to set them, otherwise press NEXT. A 2 or 3-way passive crossover only takes a single channel.
  • Page 26 Setup CD from the CD player of your head unit and then click OK. Once the de-equalization is complete, the bit Ten DE-EQ CHECK LED will turn on indicating that you have recorded a curve. If you were to repeat the de-equalization, new data will replace the previous ones.
  • Page 27 1. Connect the different amplifiers channels to the speakers. 2. Connect the bit Ten PRE outputs (OUTPUT: Front - Rear - Sub / CHI -> CH5) to the amplifiers inputs using high quality RCA cables.

  • Page 28: Offline Mode

    - AUX IN: To use this input you need to install the DRC (optional). Through the DRC select AUX (see 10) - If a source with a CD player is connected to the AUX input, disconnect the bit Ten outputs from the amplifiers and proceed as detailed in chapters 6.1.3 - 6.1.4 - If the source to be connected to the AUX IN input has no CD player (e.g.

  • Page 29: Adjusting Acoustic Reproduction

    Take your time to get familiar with the possibilities this software offers. If you decide to leave the amplifiers connected to the bit Ten, remember to perform the adjustments keeping the general volume at a level that does not damage the speakers in your system.
  • Page 30 - Click NO to interrupt the process. WARNING: Before disconnecting the bit Ten from the PC or each time that you exit the PC Software after modifying the system configuration, always run the Finalize to bit Ten procedure. If you do not follow these instructions, all data entered will be lost and the device will use the previous settings.

  • Page 31: Config Main Menu

    Current Input Type: shows the specialization assigned to the MASTER inputs. Start up/Shutdown delays: allows you to change the bit Ten turn on / off time settings. • StartUp Time: is the delay between turning the device on and audio output.

  • Page 32: Selected Input

    SELECTED INPUT The Selected Input window shows the source that is active while the bit Ten is connected to the PC. You can select the desired source by clicking it. Once the bit Ten has been disconnected from the PC, you...

  • Page 33: Filter Settings

    - Linkwitz (default) - Butterworth When launching the bit Ten software, it suggests Linkwitz as the standard filter model for the speaker or speaker group connected to the corresponding channel. To apply the opposite (Left / Right), turn the Xover L/R Link on.
  • Page 34 - Hi-P Slope 12/24 dB/Oct (Linkwitz) 6/12/18/24dB/Oct (Butterworth) - Lo-P Slope 12/24 dB/Oct (Linkwitz) 6/12/18/24 dB/Oct (Butterworth) When starting the bit Ten software, it offers Linkwitz with 12 dB/Oct. slope. Eg.If you select Band Pass as filter type, the slope will be applied to both hi-pass and low-pass as the default slope, but it is also possible to unbind them.

  • Page 35: Set Distance And Delay

    If you set the distances of the different speakers in your system, the bit Ten will automatically change them into time (ms - milliseconds). It does not assign a delay (0.0 ms) to the farthest speaker (usually the Subwoofer)
  • Page 36 If, once you have set the distances for the “driver” listening point, you click on the “passenger” listening point, Fig. 5 the bit Ten won’t re-calculate the delays for the new reference point because the buttons available in the SELECT A CHANNEL diagram are merely descriptive.

  • Page 37: Graphic Equalizer

    ADVANCED MANUAL / bit Ten / 8.12 GRAPHIC EQUALIZER The bit Ten software features a 31-band, ± 12 dB graphic equalizer for each system channel. In compliance with ISO requirements, frequencies are equally spaced at 1/3 Oct. from 20 to 20 kHz.

  • Page 38: Output Level

    If you click the Mute button, you can mute the corresponding output channels. If you click the Mute button again, output will resume If you click the Link button, you can simultaneously adjust all the bit Ten output levels. If you click the Link button again, the function will be disabled.

  • Page 39: Memory

    So a good compromise needs to be found, depending on the listener. 8.14 MEMORY The bit Ten uses memory A by default for the system’s configuration; however, it also offers the possibility to store and recall two memories (A, B). By pressing the MEMORY button on the main menu, different functions are available for the featured presets.

  • Page 40: Troubleshooting

    2. The bit Ten does not connect to the PC software - If, while tuning the system with a laptop PC, the bit Ten is switched off and then on again, the connection is lost and the software can not “finalize” the selected setup. If you don’t want to lose the modifications and setup previously selected, proceed as per the following steps: a- save the setup as a file on the PC using the function FILE / SAVE SETUP;...
  • Page 41 PC. WARNING: To ensure the Firmware is updated correctly, disconnect, if any, the terminals for the hands-free kit in use from the bit Ten PHONE inputs. The bit Ten firmware update procedure requires particular attention. So, it must be performed under the best possible conditions:...
  • Page 42 Do not interrupt the process in any way. 9. Once the update has been successfully completed, the window on the right will appear. To use the bit Ten again, you have to exit the PC software and the bit Ten will turn off.

  • Page 43: Rescue Mode

    A - Use a previous version of the PC software. E.g. if you are using PC software v.1.0, open v.0.9; B - Update the bit Ten firmware. In this case you will have to proceed as follows: - Save the previous setup (in case you want to open it in OFFLINE mode);...

  • Page 44: Drc - Digital Remote Control

    When it is turned on the first time, the display will show the firmware version installed in the DRC. When the bit Ten is setup through the PC, the DRC can stay connected but its display will show the message “PC control - DRC is disabled”.

  • Page 45: Phone Call

    MUTE impulse when receiving a phone call. The DRC display will show the message bit Ten - PHONE CALL. The bit Ten will set the source selected in that moment to mute, reproducing the signal coming from the PHONE input.

  • Page 46: Drc Firmware Upgrade

    ADVANCED MANUAL / bit Ten / 10.4 DRC FIRMWARE UPGRADE If, when launching the bit Ten PC software, the “bit Ten Warning” window pops up, it means that the DRC Firmware needs to be updated. Important Remark 1. The steps of this upgrade must be performed strictly FOLLOWING THE SEQUENCE here, exactly as per the chronological order indicated in this document.

  • Page 47: Bit Ten Accessories

    ADVANCED MANUAL / bit Ten / 11. bit Ten ACCESSORIES 11.1 DRC CABLE EXTENSION KIT This kit is composed of a cable and adapter allowing 2 m / 78.74” additional extension of the cable supplied with the DRC. This extension is necessary in installations on particularly long vehicles such as large SUVs.

  • Page 48: Technical Specifications

    ADVANCED MANUAL / bit Ten / 12. TECHNICAL SPECIFICATIONS POWER SUPPLY Voltage 11 ÷ 15 VDC Idling current 0.4 A Switched off without DRC 2.5 mA Switched off with DRC 4 mA Remote IN voltage 7 ÷ 15 VDC (1.3 mA)
