Summary of Contents for Jaeger 9645
-
Page 1: User Manual

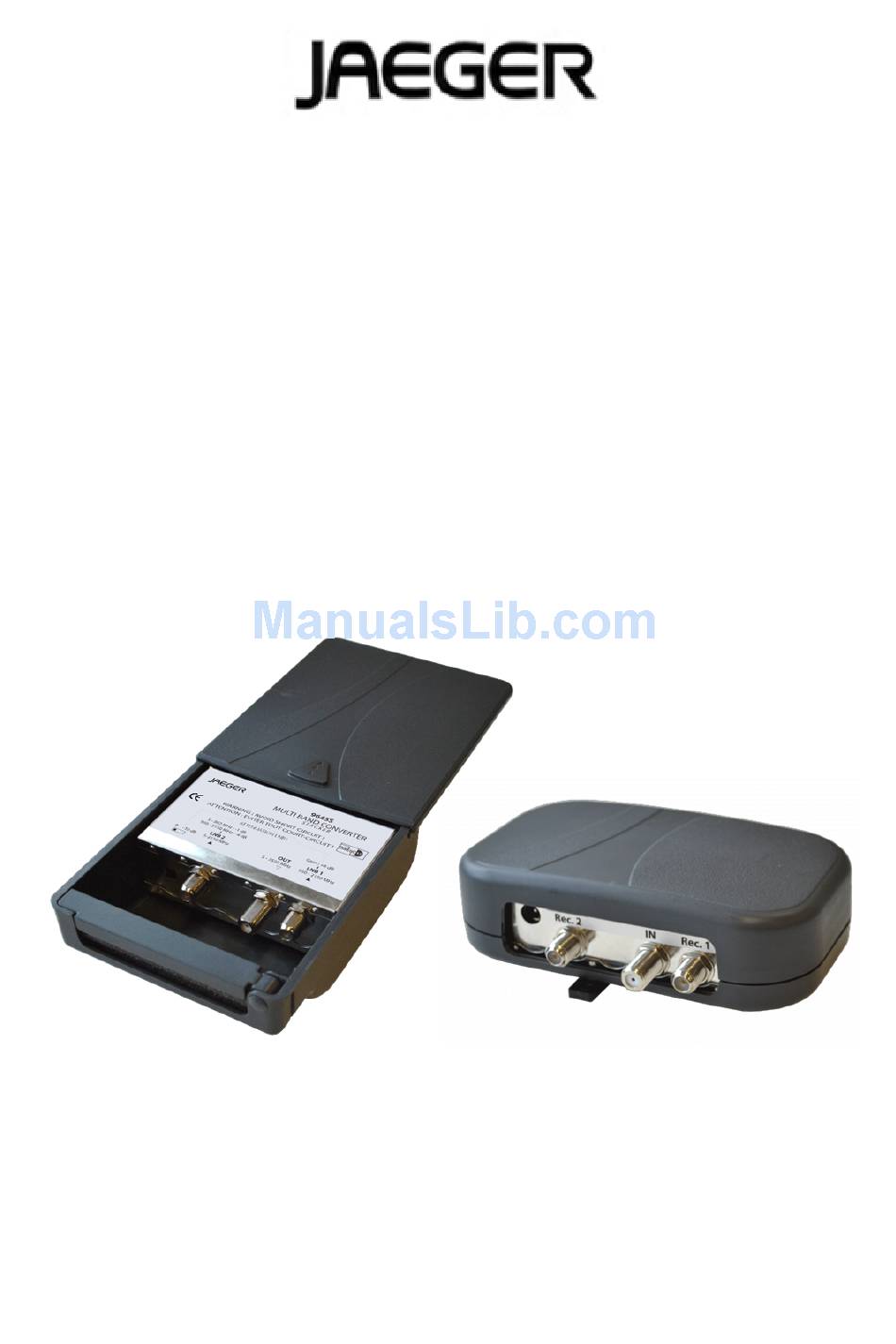

User Manual JAEGER KIT Stacker & Destacker II REF. 9645 Multi Band Converter... -
Page 2: Safety Instructions
1. Safety Instructions Read carefully these instructions before connectiong the unit To prevent fire, short circuit, shock hazard: Do not expose the unit to rain or moisture. Install the unit in a dry location without infiltration or condensation of water. Do not expose it to dripping or splashing. -
Page 3: Package Contents
2. Introduction FEATURES The Multi Band Converter allows you to upgrade the installation with a TWIN (or quad) LNBF to be connected with a dual tuner input digital receiver with recorder (PVR) on existing cable. DiSEqC function allows to receive signals from 2 satellites (e.g. Astra/Hot Bird). PACKAGE CONTENTS Be sure all items listed below are included: Stacker (converter) - Page 4 4. Converter Mounting Make connections between LNB and Converter with 2 short F/F coaxial cables. Swinging Arm Mount ... or Mast Mount ... or Wall Mount...
- Page 5 5. Customer Device Mounting 110 mm...
- Page 6 6. Applications ONE SATELLITE D.T.H. Direct To Home TWIN LNBF or Quad LNBF Convertor Existing cable Attention: Connection between the Converter and the Customer Device is a direct link without any accessories such as splitters, standard line amplifiers..Customer Device online message r em ote comman d...
- Page 7 TWO SATELLITES Astra FM/DAB/VHF/UHF Hot Bird Astra Hot Bird Twin DiSEqC Switch Convertor Existing cable Attention: Connection between the Converter and the Customer Device is a direct link without any accessories such as splitters, standard line amplifiers..Customer Device FM/DAB The 5-2150 MHz output can be con- nected to the SAT/TV diplexer or direct to the receiver if no TV signal is needed.
