Summary of Contents for Wildgame M10i20

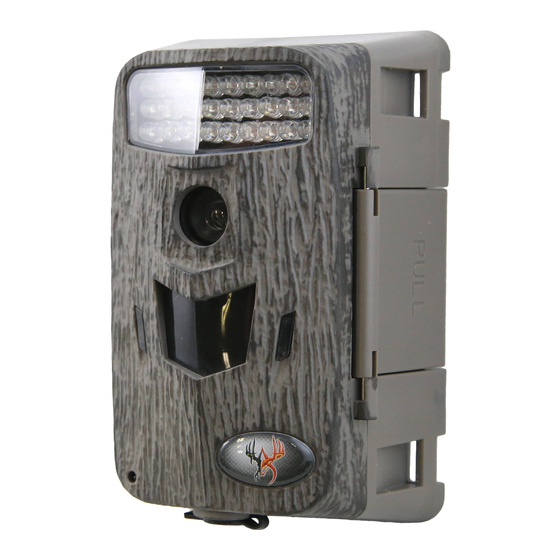

- Page 1 Infrared Digital Scouting Camera User’s Manual Model # M10i20...
- Page 2 Includes USB Cable 2 - Bungee Cords User Manual Flextime Player Camera Unit Software NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players page 1...
-
Page 3: Image Resolution
Features RESOLUTION MAX: 10 MP Still FLASH 27 High Intensity Infrared LED’s FLASH RANGE up to 75 feet SENSOR Passive Infrared Sensor (PIR) Motion and Heat SENSOR RANGE up to 60 feet IMAGE FORMAT JPEG - Digital Stills/ AVI-Digital Video MEMORY up to 32GB SD Card (not included and required) Class 4 and above recommended... -
Page 4: Installing Batteries
Installing Batteries With the camera facing up, open the Open the door on the right of the camera and PULL the tab battery compartment door. towards you. page 3... - Page 5 Make sure to insert the AA-cell Load SD memory card (up to 32GB not batteries based on the direction included) into the SD CARD slot with the labeled on the inside of each com- connectors facing down. partment. Match minus “-” sign with the marked negative on the battery and the plus “+”...
-
Page 6: Test Mode
Power On Test Mode LCD Ready Mode: The camera will To turn the unit ON press and re- automatically enter Ready Mode if a lease the power button. button is not pressed for greater than 30 seconds. The status lights will il- luminate for a total of 2 minutes. -
Page 7: Power Save
Setting Time Power Save After 30 seconds without any buttons To change date and time, start by being pushed, the LCD will turn off pressing and release the center and camera enters into Power Save navigation button to set the hour. or Ready Mode. -
Page 8: Setting Date
Setting Date Location Press the center navigation but- Save the location of the area the camera was installed. This is for your reference and is op- ton after setting the minute to tional. If you do not wish to name your location change the Day. - Page 9 Flextime Trigger Press the center navigation but- This setting allows you to choose the mode in which the camera will be capturing images. ton while Flextime is selected. The highlighted option will be blinking. Press the center navigation but- ton while Trigger is selected. The highlighted option will be blinking.
- Page 10 FLEXTIME selected Camera is inactive before and after Flextime periods. Flextime is active twice a day. Flextime period: 15 MINUTES 15 MINUTES 1. 15 min before Sunrise BEFORE AFTER SUNRISE FLEX FLEX SUNSET to 1 hour after Sunrise. INACTIVE TIME TIME INACTIVE 2.
- Page 11 PIR Active PIR Mode Press the center navigation button Press the center navigation button while PIR Active is selected. The while PIR Mode is selected. The highlighted option will be blinking. highlighted option will be blinking. Press the left or right navigation Press the left or right navigation button to move to different op- button to move to different op-...
-
Page 12: Pir Sensitivity
PIR Sensitivity Exposure Press the center navigation button Press the center navigation button while PIR Sense is selected. The while Exposure is selected. The highlighted option will be blinking. highlighted option will be blinking. Press the left or right navigation Press the left or right navigation button to move to different op- button to move to different op-... - Page 13 Picture/Video Resolution Press the center navigation button Press the center navigation but- while Resolution is selected. The ton while Picture is selected. The highlighted option will be blinking. highlighted option will be blinking. Press the left or right navigation Press the left or right navigation button to move to different op- button to move to different op- tions.
-
Page 14: Power Off
Delay Power Off Press the center navigation button To turn the unit off, first wake up while Delay is selected. The high- the LCD screen and then depress and hold the power button until lighted option will be blinking. the LCD turns off. Press the left or right navigation button to move to different op- tions. -
Page 15: Power Port
Image Stamp Power Port WGI Cameras come standard with Pictures Display: an external power port. You must open the weather resistant cover and use a Wildgame Innovations 6 Volt camera battery accessory. SD CARD 087°F 08:15PM 11-12-2011 0200 A- Temperature... - Page 16 Mounting When mounting to a tree, first latch the 2 bungee cords through the mounting holes on the left or right side of the camera. Then, stretch the cords around the tree and latch the other ends of the bungee cords through the mounting holes on the opposite side of the camera.
- Page 17 Important Once you connect the camera to your computer via the USB cable/ports, the camera will then draw power from the computer. When completing the viewing, transferring, copying or deletion of images, please make sure that you DISCON- NECT THE USB CABLE FROM BOTH THE CAMERA AND THE COMPUTER, as you will not be able to power the camera OFF until you do so.
-
Page 18: Retrieving Images
Retrieving Images (SD Card in Camera) Method 1: Leave SD card in camera Please select Removable Disk from this A. First, make sure that the camera is pow- menu (or double click on the graphical icon). ered OFF. Next, plug the USB cable into the F. - Page 19 Retrieving Images (SD Card in Camera) Method 2: Remove SD card and use card left of your screen and select “Computer”. reader The summary view will then be illustrated A. First, remove the SD Card from the cam- on the right hand side of the window where era unit itself by pressing on it to where it by the “Devices with Removable Storage”...
-
Page 20: Warranty
Warranty DISCLAIMERS WGI Innovations, LTD. is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY For the warranty to be in effect, you MUST completely fill out and mail the warranty card along with your proof of purchase to WGI Innovations within (14) days after the date of purchase. - Page 21 FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# M10i20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 22 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are TM trademarks of Wildgame Innovations, LLC. “Sport Responsible” , “Redux” and “Flextime” are TM trademarks of WGI Innovations, LTD.
