LEVITON Dock
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dock and is the answer not in the manual?

Questions and answers

Related Manuals for Leviton Dock

Summary of Contents for Leviton Dock

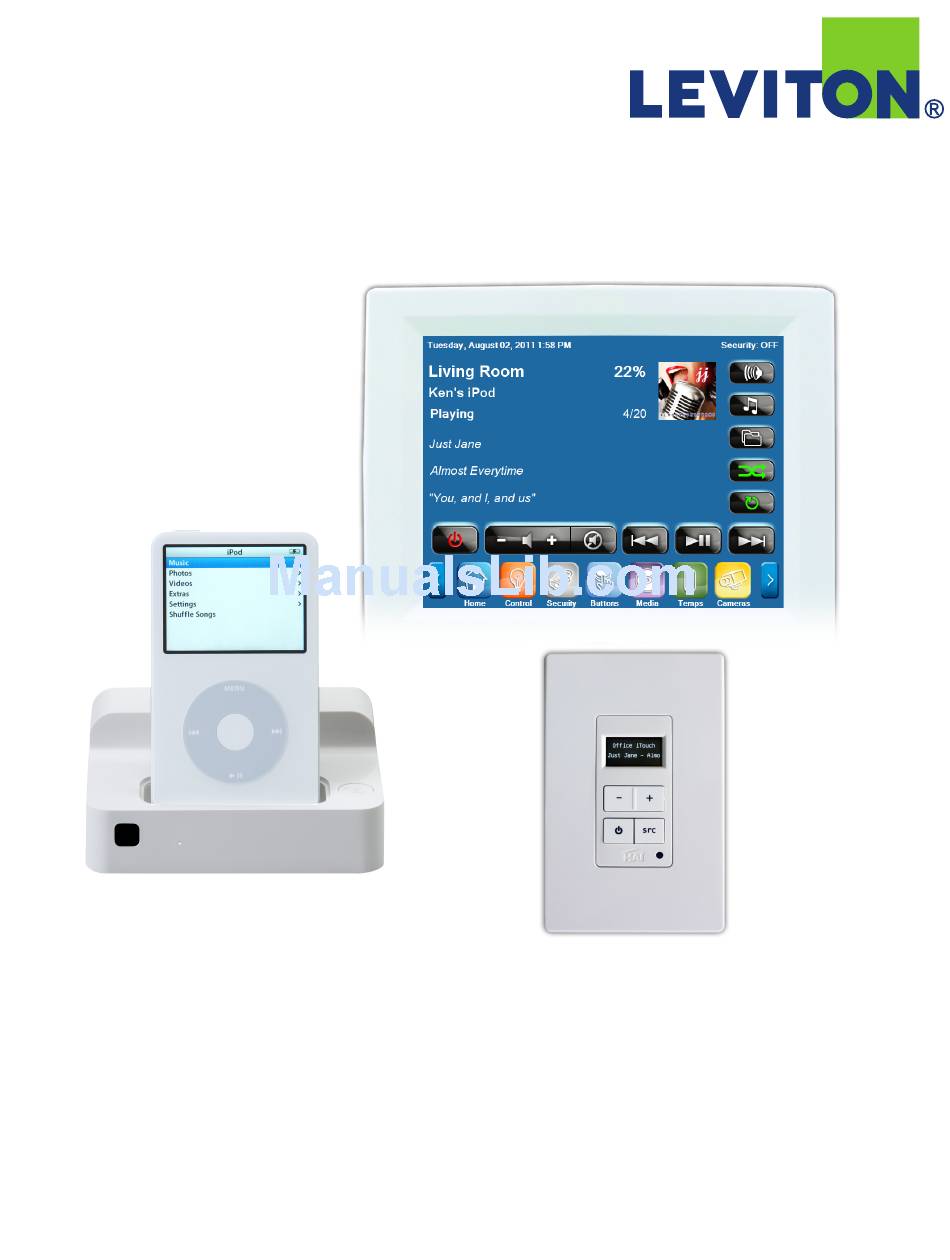

  • Page 1 LEVITON Dock Operation Manual...
  • Page 2 This document and all its contents herein are subject to and protected by international copyright and other intellectual property rights and are the property of Leviton Manufacturing Co., Inc, its subsidiaries, affiliates and/or licensors. © 2013 Leviton Manufacturing Co., Inc. All rights reserved.
  • Page 3 Regulatory Compliance Statements FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Safety Precautions

    While every effort has been made to ensure that the information contained in this guide is accurate and • complete, no liability can be accepted for any errors or omissions. LEVITON reserves the right to change the specifications of the hardware and software described herein at any • time without prior notice.

  • Page 5: Table Of Contents

    Interfacing with the LEVITON Dock ....20   Enabling the LEVITON Dock ................20     Creating a New Project with the LEVITON Dock ..............20   Adding Touchscreens to the Project ..................22 Adding the LEVITON Dock to an Existing Design ..........24  ...
  • Page 6 Accessing Your Music ..................32     Browse the Media Library ..................... 33   Selecting a new Music Source ....................34   Selecting a New Audio Zone ....................35 Specifications ............36  ...

  • Page 7: Introducing The Leviton Dock

    Chapter 1 Introducing the LEVITON Dock The LEVITON Dock is a product that allows you to access music and other content on an iPod, iPod Touch, or iPhone using IP enabled devices, such as LEVITON OmniTouch 5.7e and 10pe Touchscreens, and Hi-Fi2 audio distribution systems. The LEVITON Dock connects over a wired or wireless LAN network.

  • Page 8: Package Contents

    After opening the box, ensure the following items are present: o LEVITON Dock o Power Supply o Audio Cable o LEVITON Dock CD (Setup Utility and Manual) o Getting Started Guide Supported Operating Systems o Windows 7, Windows Vista, Windows XP, Windows 2000 o Mac OS X 10.2.7 to 10.4.x (PPC version)

  • Page 9: Leviton Dock Overview

    LEVITON Dock Overview This section describes the main components of the LEVITON Dock. Front View Control playback of a connected iPod Infrared (IR) from a distance using the Apple Receiver Remote when the LEVITON Dock is in Local Mode. The Operation Mode LED is illuminated...

  • Page 10: Rear View

    Shows the network communication Orange LED status. S-Video This output is currently not active. Output Connect supplied 3.5mm male stereo patch cable between the Audio Output on the LEVITON Dock and an audio input Hi-Fi2 other audio distribution system. Audio Output 3.5mm male to 2 RCA male stereo...

  • Page 11: Connections To The Leviton Dock

    Output. Connecting the Network Connect a network cable to the Network Port on the LEVITON Dock and connect the other end of the network cable to a router, hub, or network switch on the local network. To router, hub, or network switch Connecting the Power Connect the supplied AC power supply to the Power Jack on the LEVITON Dock.

  • Page 12: Connecting The Audio Output

    Connecting the Audio Output Connect the LEVITON Dock to an audio system using the Audio Output jack on the LEVITON Dock using a 3.5mm male stereo patch cable (supplied). IR OUT AUDIO IN Hi-Fi RIM Remote Input Module AUDIO...

  • Page 13: Getting Started

    Getting Started The LEVITON Dock is configured over the network using the supplied LEVITON Dock Setup Utility. The LEVITON Dock Setup utility runs on a PC on the same local network as the LEVITON Dock. Configuring the LEVITON Dock To configure the LEVITON Dock using the LEVITON Dock Setup Utility: 1.

  • Page 14: Leviton Dock Setup Utility

    LEVITON Dock Setup Utility Follow the instructions on the screen to configure the LEVITON Dock using the LEVITON Dock Setup Utility. 1. When the LEVITON Dock Setup Utility is started, you are first prompted to select your language: Select your language and then click Next.
  • Page 15 Read the Software License Agreement and then click Yes to accept the terms and proceed.
  • Page 16 If DHCP is disabled on the router and there is no other DHCP server on the network, you can manually assign a static IP address. The IP address of the LEVITON Dock must be compatible with your existing network. To manually assign a static IP address to the LEVITON Dock: a) Select the Assign IP Address radio button.
  • Page 17 LEVITON Dock is connected to on the audio system. When complete, click Next. If this is a wireless version of the LEVITON Dock, the following setup screens will be displayed. Otherwise, confirm configuration parameters and complete Setup (see Step 9).
  • Page 18 If you are going to use the LEVITON Dock with a network cable instead of wirelessly, check Skip wireless configuration and then click Next complete Setup. 9. Confirm configuration parameters and save the settings in the LEVITON Dock: View confirm configuration parameters and then click Execute.
  • Page 19 Finish. 10. Reboot the LEVITON Dock: The LEVITON Dock must be rebooted for the new settings to take effect. If wireless has been configured, first unplug the network cable before rebooting the LEVITON Dock. To reboot the LEVITON Dock, disconnect the power cable momentarily, and then reconnect the...

  • Page 20: Leviton Dock Operation

    LEVITON Dock Operation The LEVITON Dock has 3 LED indicators which can be used to determine its operation mode and network status. The Operation Mode LED indicator is located on the front of the unit and indicates the operation mode...

  • Page 21: Operation Modes

    Operation Modes To set the LEVITON Dock to Network Mode, if the unit is currently in Standby Mode (i.e. Operation Mode LED is off), press the Operation Mode Button momentarily. The Operation Mode LED will illuminate. To set the LEVITON Dock to Standby Mode, if the unit is currently in Network Mode (i.e. Operation Mode LED is on), press and hold the Operation Mode Button for 2 seconds.

  • Page 22: Inserting And Removing An Ipod

    Displays information about the LEVITON Dock. Also used to change the web System server password, reset (factory default), remotely restart, and update the firmware Information in the LEVITON Dock. To access the web server, open a web browser and enter the IP address of the LEVITON Dock in the Address Bar.

  • Page 23: Status

    Status Select between iPod Status, System Status, and Wireless status. Click [Refresh] to update the status on the page. Protected Information The Configuration Menu and some of the System Information settings are protected with a user name and password. When the screen below is displayed, type a user name (root) and click OK. The default username is: root By default there is no password Item...

  • Page 24: Configuration

    Configuration Select between Network Settings and Wireless Settings. Click the item you wish to configure. Select or enter a value for the appropriate item, then click Submit. System Information Select between System Information, Password, Reset, or Firmware Upgrade and follow the instructions on the screen.

  • Page 25: Reset To Factory Default

    To reset the LEVITON Dock back to its factory default configuration: 1) Disconnect the AC power cable. 2) Press and hold the Operation Mode Button on the front of the LEVITON Dock and reconnect the AC power cable. Keep holding the Operation Mode Button to start the factory default configuration.

  • Page 26: Interfacing With The Leviton Dock

    Interfacing with the LEVITON Dock A custom touchscreen design must be used to operate the LEVITON Dock from an OmniTouch 5.7e, 10p, or 10pe Touchscreen. LEVITON Automation Studio must be used to enable and configure the LEVITON Dock, assign the audio output to source input on the audio distribution system, assign the touchscreen page, and update each of the respective touchscreens with the new design.

  • Page 28: Adding Touchscreens To The Project

    Adding Touchscreens to the Project When the project was created (using the steps above), one touchscreen was automatically added to the project along with a touchscreen design. The touchscreen and design was given a default name. It is generally a good idea to rename the touchscreen and the project that better describes where the touchscreen is installed.
  • Page 29 6. From the Add Device dialog, select LEVITON OmniTouch 5.7e, LEVITON OmniTouch 10 Portable, or 10Pe Portable under Touchscreens. 7. In Project Explorer, click on the touchscreen that was added. 8. Select the Properties tab. Give a name to the touchscreen next to Name under Design.

  • Page 30: Adding The Leviton Dock To An Existing Design

    Dock functionality by importing the LEVITON Dock pages as described below. Importing the LEVITON Dock Pages To use the LEVITON Dock functionality in an Automation Studio design that was created in a version of Automation Studio prior to Version 1.0.2.167, you must import the LEVITON Dock pages using the Add Modules feature in Automation Studio.

  • Page 31: Discovering Touchscreens

    Once confirmed, the import cannot be undone. Before confirming, make sure that the LEVITON Dock pages do not already exist. If they do, duplicate pages will be added. 6. Click OK to add the pages. 7. Repeat this process for each touchscreen design under Project Explorer.

  • Page 32: Adding An Leviton Controller To The Design

    PC Access account file that will be used with the touchscreen. Adding the LEVITON Dock to the Design When a LEVITON Dock is added to the project, Automation Studio will guide you through the steps to configure it. Add the LEVITON Dock to the project as follows:...

  • Page 33: Discover The Leviton Dock

    2. From the Add Device dialog, select LEVITON Dock from the Media Devices list. Discover the LEVITON Dock After the LEVITON Dock has been added, you will be prompted to discover it as follows: In the Discover LEVITON Docks dialog, select the discovered LEVITON Dock, and then press the Select button to save the network settings with the design.

  • Page 34: Assigning The Audio Output

    Assigning the Audio Output The Audio Output of the LEVITON Dock must be assigned to a source input on the audio distribution system. After discovering the LEVITON Dock, the Media Mapping dialog is displayed: 1. From the Media Mapping dialog, select the Media Input (source input on the audio distribution system) where the audio will be routed for the Media Source (Audio Output) of the LEVITON Dock.

  • Page 35: Assigning A Touchscreen Page For Media

    Finally, a page that the touchscreen will jump to when the Media button is pressed must be assigned. A special Dock Now Playing page has been created for the LEVITON Dock. After assigning the Audio Output, the Channel Mapping dialog is displayed: 1.

  • Page 36: Updating The Touchscreens

    Updating the Touchscreens The final step in enabling the LEVITON Dock is to update each touchscreen using Automation Studio. To update the touchscreens: 1. Click the Update icon on the toolbar. 2. If the project has not been saved, you will be prompted to save.
  • Page 37 5. Put a check in the boxes under Update to select which touchscreens will be updated. 6. Click the Update button to update the selected touchscreens. 7. After the update is complete, the touchscreens will have LEVITON Dock functionality.

  • Page 38: Accessing Your Music

    Accessing Your Music Using a LEVITON OmniTouch 5.7e, 10p, or 10pe Touchscreen, you can browse and make music selections by Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks. From the Menu Bar on an OmniTouch 5.7e, 10p, or 10pe Touchscreen, select the Media icon.

  • Page 39: Browse The Media Library

    Browse the Media Library To play music in an audio zone, select the music from the device. To browse the device for music: 1. Press the Browse button to display the available media: 2. You are able to browse your media by Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks.

  • Page 40: Selecting A New Music Source

    2. When an iPod is not currently docked in a LEVITON Dock, the name LEVITON Dock will be displayed as the audio source in the list instead of the name on an iPod.

  • Page 41: Selecting A New Audio Zone

    Selecting a New Audio Zone To select a new audio zone to control with the touchscreen: 1. Press the Zone button to display the available audio zones: 2. Select the audio zone that you want to control with the touchscreen.

  • Page 42: Specifications

    Chapter 4 Specifications Temperature : +0°C to +40°C , +32°F to +104°F Operating environment Humidity : 5% to 95%RH (Non-condensing) Temperature : -20°C to +50°C , -4°F to +122°F Storage environment Humidity : 5% to 95%RH (Non-condensing) VCCI Class B / FCC Class B / EN55022 / EN55024 32bit RISC CPU : 8MByte Memory...
  • Page 43 LEVITON LIMITED WARRANTY Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that products manufactured by Leviton under the Leviton brand name (“Product”) will be free from defects in material and workmanship for the time periods indicated below, whichever is shorter: • OmniPro II and Lumina Pro: three (3) years from installation or 42 months from manufacture date.
