Summary of Contents for Quart Healthcare DynaLAL

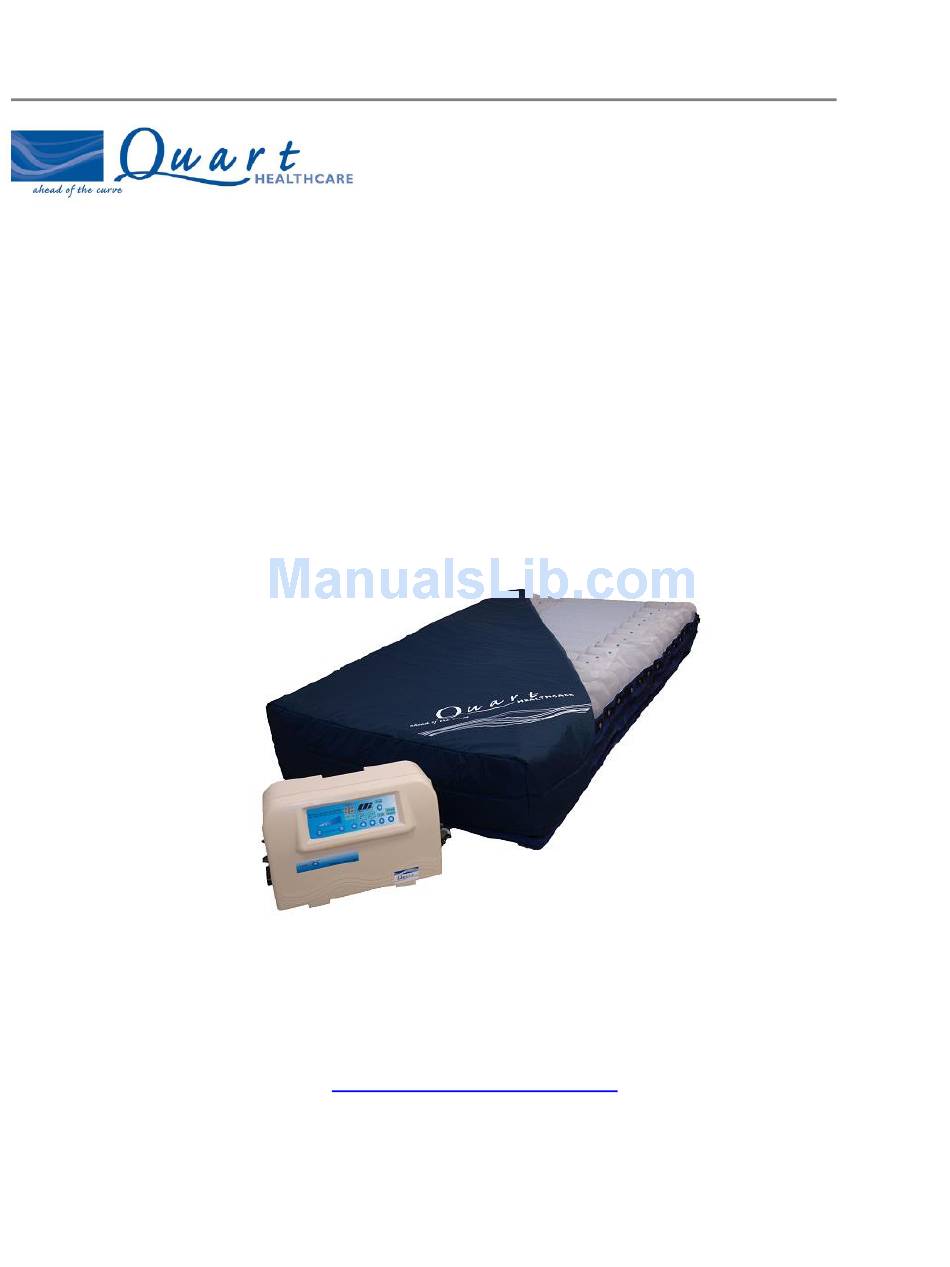

- Page 1 User Manual – DynaLAL Dynamic Low Air Loss (DynaLAL) Alternating + Pressure Relief User Manual Distributed by: Quart Healthcare Inc. www.quarthealthcare.com...
- Page 2 (the cells inflate and deflate in a 3:1 cycle, meaning 2/3rds of the body is always supported at any one time). The DynaLAL system offers “deep-cell therapy”; whereby, the cells completely collapse providing “0” pressure at the point of deflation. The soft-firm adjustment allows the patient to adjust the firmness or softness of the surface for optimal comfort through 8 digital scales.
- Page 3 User Manual – DynaLAL 3-1 Alternation Cycle Illustration Control Unit Features (pump) Alternating time can be adjusted in 5min increments to 95 min. In addition, the caregiver can select the “Static Function” stopping the alternating function and providing only low air loss therapy ...
- Page 4 User Manual – DynaLAL Master Control Unit Part No FC-QHI0079 Device Identifier (Health FC-CRP0079 Canada) Size (cm) 42(L)x17 (W)x27(H) Weight (Kg) Phase Time 5 ~ 95 Rated Voltage 120 volt Fuse Rating T5AH 250V Max Current Rated Frequency 60 Hz...
- Page 5 User Manual – DynaLAL 2. Instructions for Proper Use Remove the existing mattress from the bed frame Replace the standard mattress with mattress replacement system (orient mattress so that the air tube is at the foot of the bed) iii.
- Page 6 User Manual – DynaLAL 3. Cleaning The mattress should be cleaned on the bed weekly using a damp soft cloth and mild detergent. If the top or bottom cover becomes severely soiled, remove, clean as follows, and replace with a clean cover. Covers can be washed and thermally disinfected in a washing machine.
- Page 7 User Manual – DynaLAL Cleaning procedure for air filter 1. Air Filter is located at the back of the control unit, inside the carry handle. No tools are required to remove it. Air Filter must be removed for inspection at least once a month and washed under running tap water if necessary.
- Page 8 In no event shall Quart Healthcare Inc. be liable for any direct, indirect or consequential damages or losses resulting from the use of equipment...
