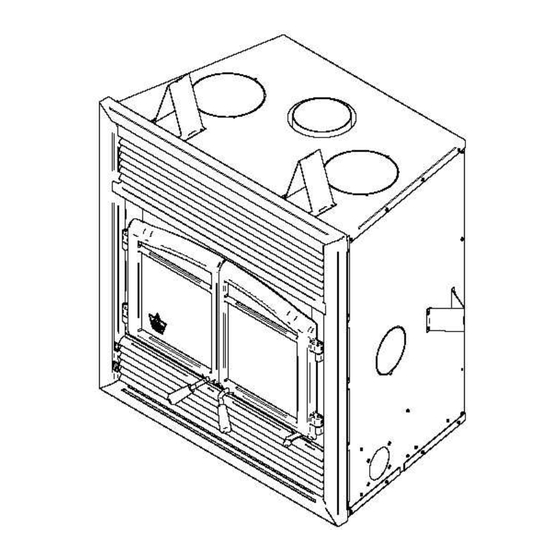

MONACO FIREPLACE
Installation and Operation Manual
250, rue de Copenhague, St-Augustin-de-Desmaures (Quebec) Canada G3A 2H3
This manual is available for free download on the manufacturer's web site. It is a
copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this
manual from time to time and cannot be responsible for problems, injuries, or damages
arising out of the use of information contained in any manual obtained from unauthorized
sources.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
www.flame-intl.com
Stove Builder International Inc.
Tel: (418) 878-3040
Fax: (418) 878-3001
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED WOOD
FIREPLACE
Listed to standards ULC-S610
and UL 127
(FL063 model)
45727A
31-03-2015
