Zoweetek ZW-51025 Installation & User Manual

Multifunction keyboard
Hide thumbs

Advertisement

Quick Links

Download this manual
Multifunction keyboard
Installation & User Manual
Ver:ZW-51025/1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZW-51025 and is the answer not in the manual?

Questions and answers

Related Manuals for Zoweetek ZW-51025

Summary of Contents for Zoweetek ZW-51025

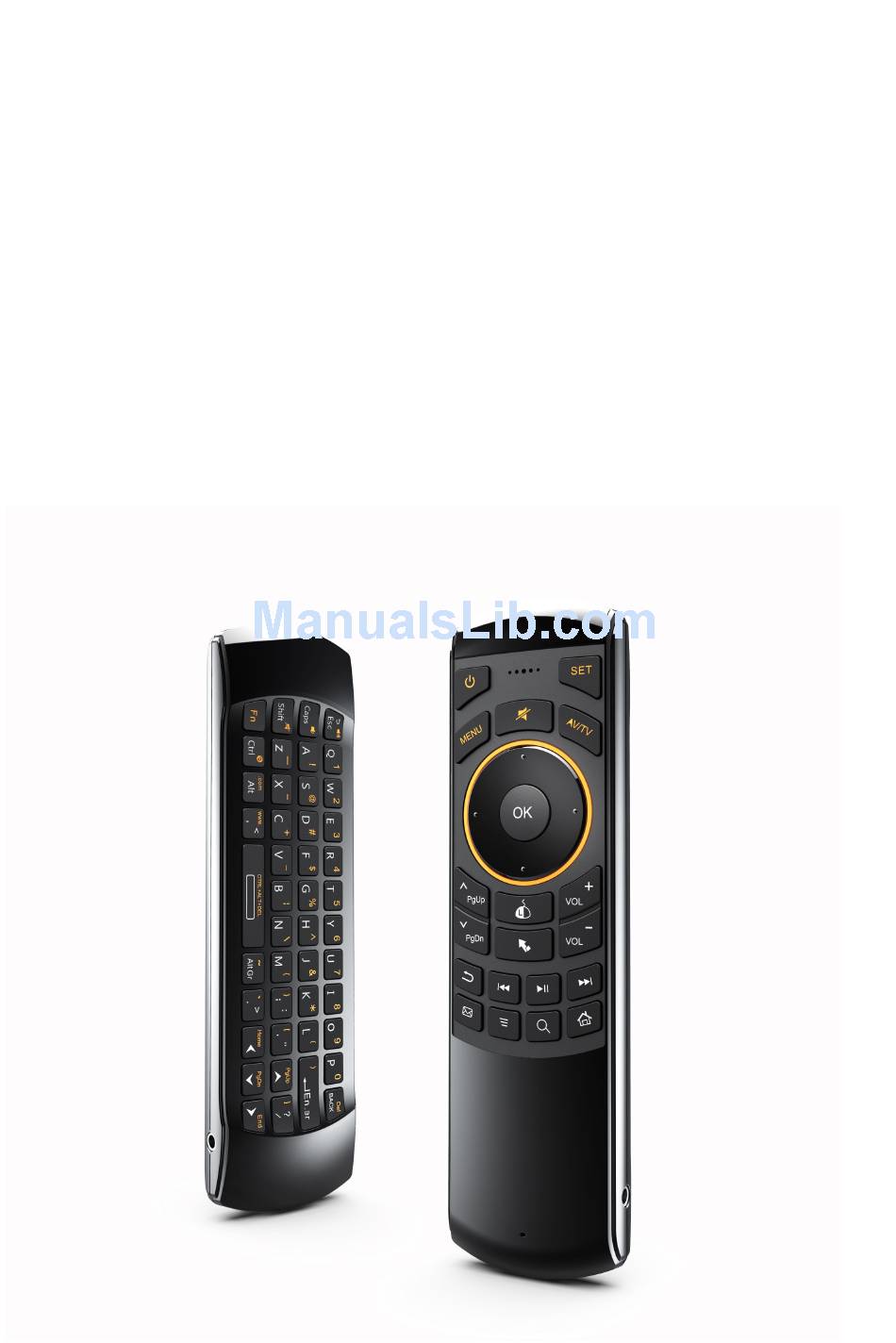

  • Page 1 Multifunction keyboard Installation & User Manual Ver:ZW-51025/1.0...
  • Page 3 Overview Thank you for purchasing the Mini Multifunction Keyboard! , Wireless Mini QWERTY Keyboard & Air Mouse & IR remote & Audio chat Combo, with USB interface receiver. And Built-in advanced lithium-ion battery, energy-efficient. You can use it for emails, chat, or to enjoy your favorite games.
  • Page 4 Introduction Product overview...

  • Page 5: Package Contents

    Package contents Multifunction Keyboard USB Wireless Receiver User Manual USB charge cable Applicable equipment list HID compatible device USB port Windows 2000 Windows XP Windows Vista ,Windows CE, Windows 7 Linux(Debian-3.1,Redhat-9.0 Ubuntu-8.10 Fedora-7.0 tested) Android OS (With standard USB interface) HD Player,TV set Set-Top BOX ,DVD/VCD/CD equipment.

  • Page 6: Installation

    (wireless keyboard and air mouse) Frequency range：2401-2480MHz Operational Range: up to 10 meters Transmit power : +4db Max. Operation voltage: 3.3V Operation current: < 53mA Charging current: < 300mA Sleep current: < 50μA Function parameters (IR remote) Rated voltage：DC 3V Voltage range：2.3V~3.6V Operation current：<20mA Sleep current：<2μA...

  • Page 7: Charging The Battery

    Air mouse function to open and close, relying on the specific keys to control, as shown below. In the open state, the mouse will follow your gestures, in any direction to move, to help you perform the move, click, drag, and other functions operating. In any state can rely on to trigger this button to turn off the mouse function.
  • Page 8 This device can be used when charging, but will extend the charging time; When the battery is low, the low-voltage light will flash to warn the user. The unit will automatically turn off if the battery has been depleted. G-sensor caliberate feature The cursor will drift at a time,In this case ,the keyboard needs to be caliberated.We can press the Fn key and mouse left key at the same time, realse the pressing key after put the...
  • Page 9 2. Aim the Multifunction remote's infrared LED at your original remote control's infrared LED in parallel alignment (PS: the relative distance not more than 7 cm), then press any button on Riimini, the Riimini 's light will flash two times then long-time on, it is in learning status.

  • Page 10: Maintenance

    multifunction remote Note: The can study eight sets of different remote control Warning While finished charging, pull out the charge cable. Never try to open or to repair this product yourself. Keep this appliance away from fluids, such as water. Maintenance Do not attempt to disassemble the device or replace rechargeable battery.
  • Page 11 Disposal Always dispose of the used appliance at a recycling centre. Do not dispose of the used appliance with the household waste. Notes: Since devices using 2.4G technology communicate using radio waves,your device and the other devices do not need to be in direct line-of-sight.
