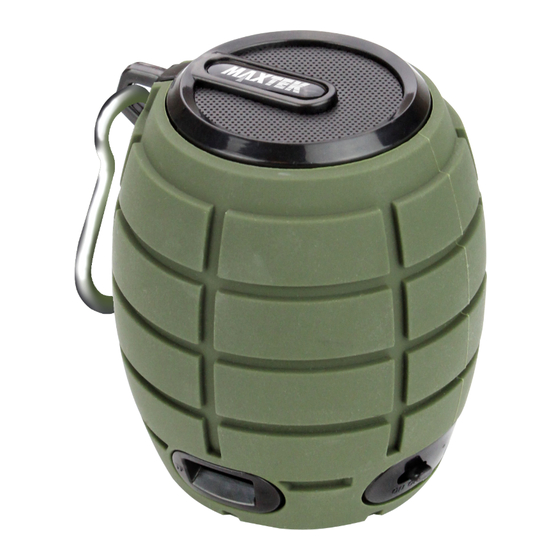

- Page 1 Rugged Wireless Speaker MODEL NUMBER: 66354 USER GUIDE After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
-
Page 2: Table Of Contents
Contents Welcome Section General Information & Safety Instructions Contents & Features First Time Use • Before Use 4-5. Bluetooth Operation • Pairing • Bluetooth Controls AUX Operation • Connecting to a Device 6-7. Micro SD Operation • Micro SD & File Requirements •... -
Page 3: Welcome Section
Welcome Section Congratulations! You have made an excellent choice with the purchase of this quality MAXTEK product. ® By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Quesh Ltd. -
Page 4: General Information & Safety Instructions
General Information & Safety Instructions This Wireless Speaker is powered by: Internal 300mAh Li-ion rechargable battery. Do not dispose of batteries in your household waste. Please contact your local authority for details on safe disposal. • Never throw batteries into a fire or expose to •... -
Page 5: Contents & Features
Contents & Features Contents 1 x Wireless Speaker 1 x micro USB combi cable 1 x Carabiner Clip Features • Bluetooth 3.0v • 40mm Speaker • Hands-free function • Micro SD card port • Micro USB port • AUX input •... -
Page 6: First Time Use
LED can be seen by the micro USB port. Scan for new devices on the device you want to pair with the speaker. Look for ‘MAXTEK AUDIO’ in the device list and select it to pair. The speaker will automatically pair with the device. -
Page 7: Bluetooth Controls
Bluetooth controls You can use the buttons on the base to control the volume level, skip tracks, play and pause. Press button will allow you to play or pause your music. Press the - button to skip backwards. Press the + button to skip forwards. Press and hold the - button to lower the volume. -
Page 8: Micro Sd Operation
Micro SD Operation Micro SD & File Requirements Make sure your micro SD card is no bigger than 8Gb and is in FAT32 format. Please make sure that all MP3 files used are DRM free and stored in the root folder on the micro SD card.. Inserting &... -
Page 9: Hands Free Operation
Micro SD Card Controls Once a micro SD card is inserted in to the micro SD card port you will hear “Music input mode.” and the first audio file will begin to play automatically. Press button will allow you to play or pause your music. Press the - button to skip backwards. -
Page 10: Charging Instructions
Charging Instructions How to Charge the Speaker Make sure the speaker is turned OFF before charging. Plug the Micro SD Combi Cable in to the micro USB port on the speaker and the other end in to a USB port/adaptor. Leave to charge for 2-3 hours till the red LED light turns off. -
Page 11: Specifications
Specification Rugged Wireless Speaker • Bluetooth 3.0V • 10m operating range • 3W output • 40mm Speaker • 60Hz - 18KHz frequency response • 130g total weight • 300mAh rechargeable Li-ion battery • 2-3hr recharge cycle • up to 5hr use per full charge. •... - Page 12 Intentionally Left Blank After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
- Page 13 Intentionally Left Blank After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
- Page 14 Warranty Certificate Warranty This product is warranted to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
-
Page 15: Warranty Card
Warranty Card Rugged Wireless Speaker Model Number: 66354 Please keep your purchase receipt together with your warranty card Name: Address: Date of purchase: Location of purchase: Fault Description: We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this warranty card and keep it for your reference.
